Linksys WRT3200ACM Hardware Information

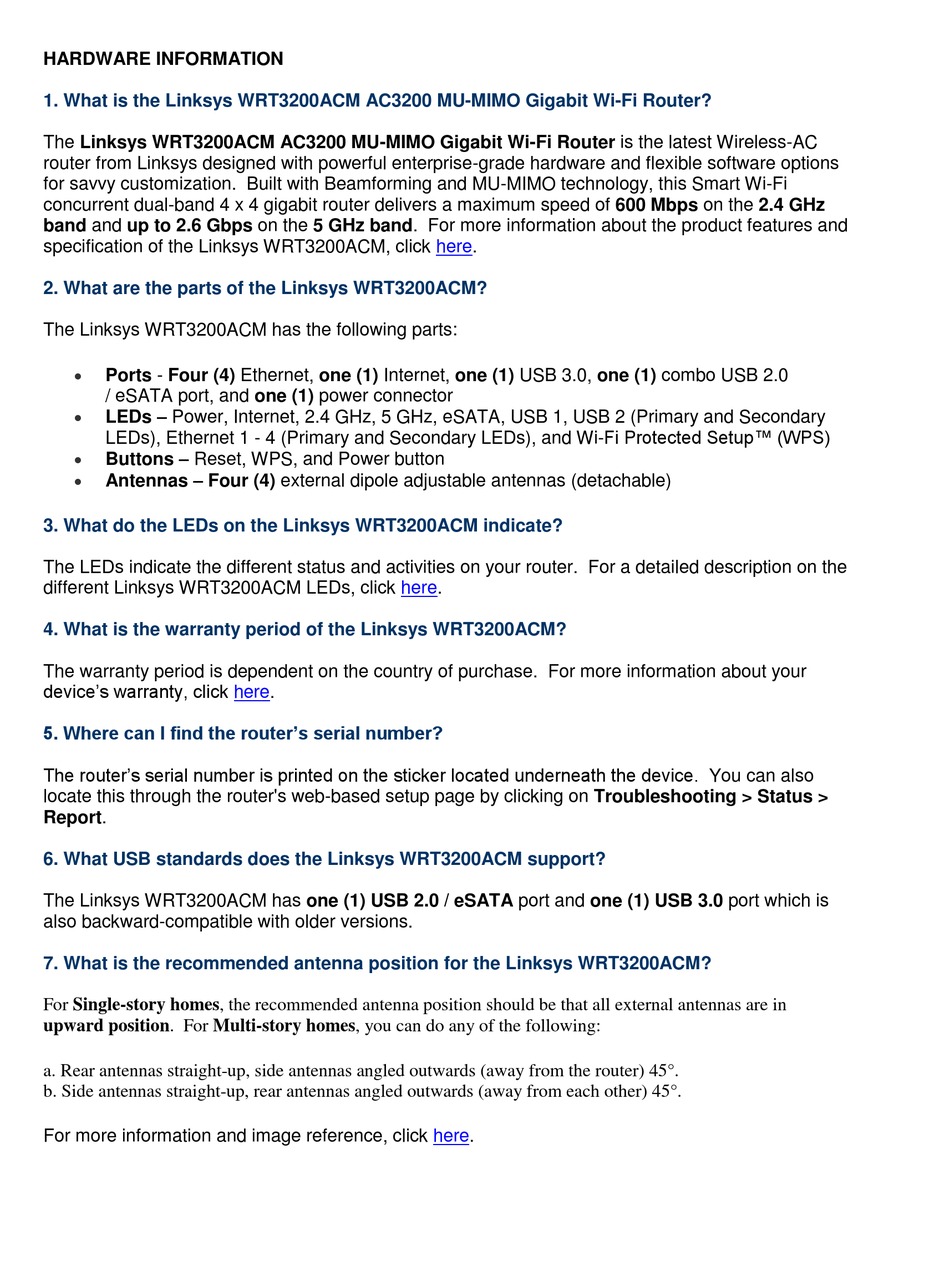

HARDWARE INFORMATION
1. What is the Linksys WRT3200ACM AC3200 MU-MIMO Gigabit Wi-Fi Router?
The Linksys WRT3200ACM AC3200 MU-MIMO Gigabit Wi-Fi Router is the latest Wireless-AC
router from Linksys designed with powerful enterprise-grade hardware and flexible software options
for savvy customization. Built with Beamforming and MU-MIMO technology, this Smart Wi-Fi
concurrent dual-band 4 x 4 gigabit router delivers a maximum speed of 600 Mbps on the 2.4 GHz
band and up to 2.6 Gbps on the 5 GHz band. For more information about the product features and
specification of the Linksys WRT3200ACM, click here.
2. What are the parts of the Linksys WRT3200ACM?
The Linksys WRT3200ACM has the following parts:

Ports - Four (4) Ethernet, one (1) Internet, one (1) USB 3.0, one (1) combo USB 2.0
/ eSATA port, and one (1) power connector
 LEDs – Power, Internet, 2.4 GHz, 5 GHz, eSATA, USB 1, USB 2 (Primary and Secondary
LEDs), Ethernet 1 - 4 (Primary and Secondary LEDs), and Wi-Fi Protected Setup™ (WPS)
 Buttons – Reset, WPS, and Power button

Antennas – Four (4) external dipole adjustable antennas (detachable)
3. What do the LEDs on the Linksys WRT3200ACM indicate?
The LEDs indicate the different status and activities on your router. For a detailed description on the
different Linksys WRT3200ACM LEDs, click here.
4. What is the warranty period of the Linksys WRT3200ACM?
The warranty period is dependent on the country of purchase. For more information about your
device's warranty, click here.
5. Where can I find the router's serial number?
The router's serial number is printed on the sticker located underneath the device. You can also
locate this through the router's web-based setup page by clicking on Troubleshooting > Status >
Report.
6. What USB standards does the Linksys WRT3200ACM support?
The Linksys WRT3200ACM has one (1) USB 2.0 / eSATA port and one (1) USB 3.0 port which is
also backward-compatible with older versions.
7. What is the recommended antenna position for the Linksys WRT3200ACM?
For Single-story homes, the recommended antenna position should be that all external antennas are in
upward position. For Multi-story homes, you can do any of the following:
a. Rear antennas straight-up, side antennas angled outwards (away from the router) 45°.
b. Side antennas straight-up, rear antennas angled outwards (away from each other) 45°.
For more information and image reference, click here.
