Mounting; Supplied Accessories - Icom IC-A110EURO Instruction Manual

6

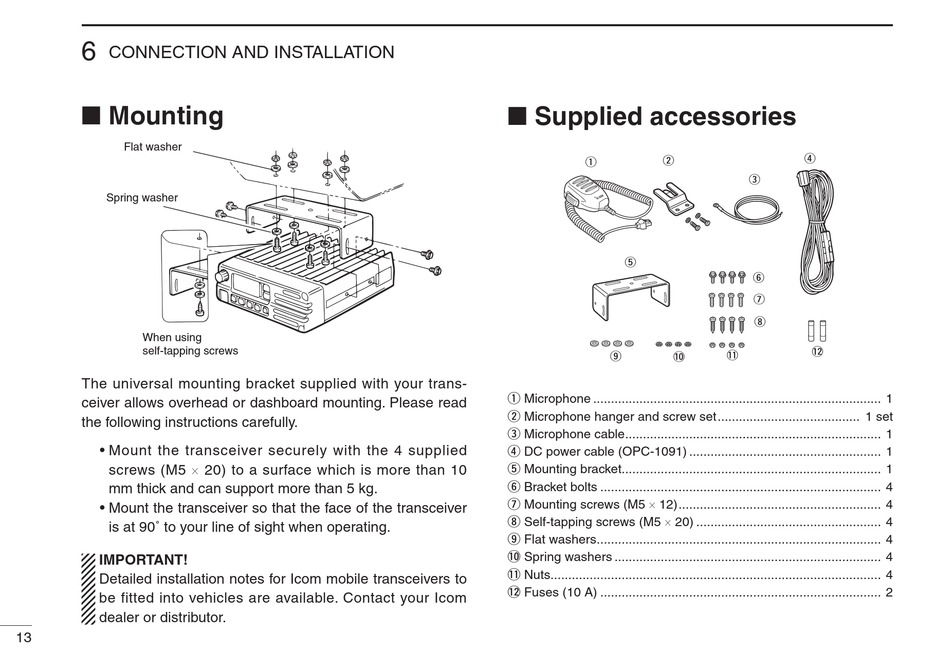

CONNECTION AND INSTALLATION

■ Mounting

Flat washer
Spring washer
When using
self-tapping screws
The universal mounting bracket supplied with your trans-
ceiver allows overhead or dashboard mounting. Please read
the following instructions carefully.
• Mount the transceiver securely with the 4 supplied
screws (M5 × 20) to a surface which is more than 10
mm thick and can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver
is at 90˚ to your line of sight when operating.
IMPORTANT!
Detailed installation notes for Icom mobile transceivers to
be fitted into vehicles are available. Contact your Icom
dealer or distributor.
13

■ Supplied accessories

w
q
t
o !0
q Microphone ................................................................................. 1
w Microphone hanger and screw set ........................................ 1 set
e Microphone cable ........................................................................ 1
r DC power cable (OPC-1091) ...................................................... 1
t Mounting bracket......................................................................... 1
y Bracket bolts ............................................................................... 4
u Mounting screws (M5 × 12) ......................................................... 4
i Self-tapping screws (M5 × 20) .................................................... 4
o Flat washers ................................................................................ 4
!0 Spring washers ........................................................................... 4
!1 Nuts ............................................................................................. 4
!2 Fuses (10 A) ............................................................................... 2
r
e
y
u
i
!2
!1
