Icom IC-F3162DT Instruction Manual page 37

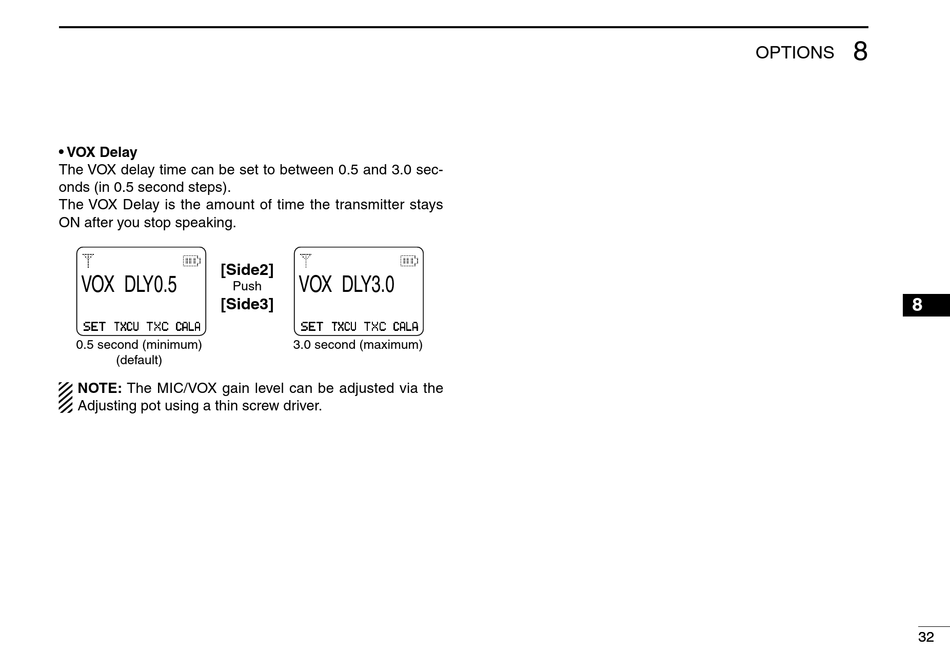

• VOX Delay
The VOX delay time can be set to between 0.5 and 3.0 sec-
onds (in 0.5 second steps).
The VOX Delay is the amount of time the transmitter stays
ON after you stop speaking.
[Side2]
VOX DLY0.5
Push
[Side3]
SET TXCU TXC CALA
0.5 second (minimum)
(default)
NOTE: The MIC/VOX gain level can be adjusted via the
Adjusting pot using a thin screw driver.
SET X TXC
VOX DLY3.0
SET TXCU TXC CALA
3.0 second (maximum)
SET X TXC
8
OPTIONS
1
2
3
4
5
6
7
8 8
9
10
11
12
13
14
15
16
32 32
