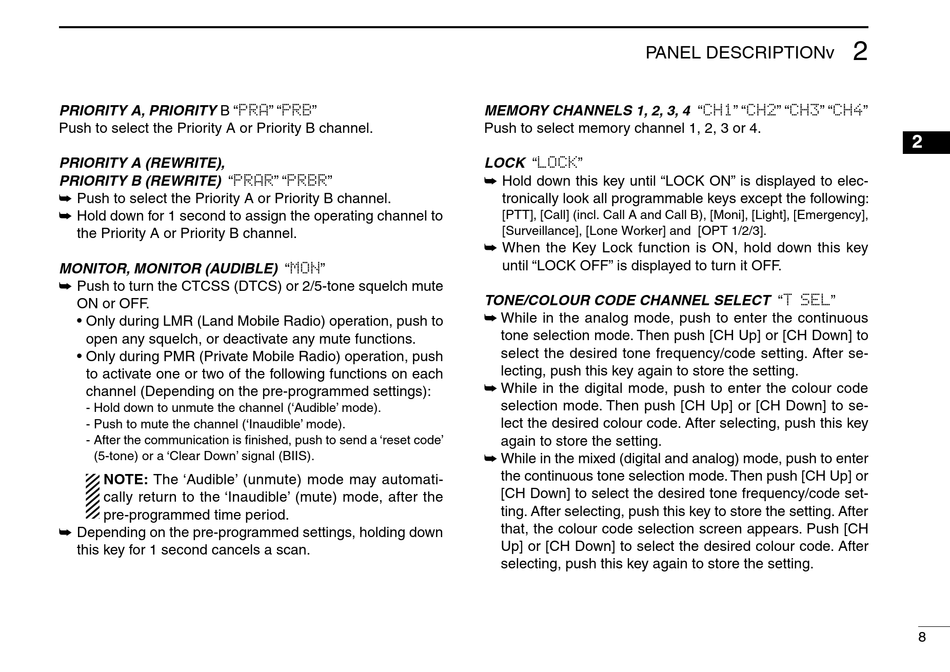

PRIORITY A, PRIORITY B "PRA" "PRB"
Push to select the Priority A or Priority B channel.
PRIORITY A (REWRITE),
PRIORITY B (REWRITE) "PRAR" "PRBR"
➥ Push to select the Priority A or Priority B channel.
➥ Hold down for 1 second to assign the operating channel to
the Priority A or Priority B channel.
MONITOR, MONITOR (AUDIBLE) "MON"
➥ Push to turn the CTCSS (DTCS) or 2/5-tone squelch mute
ON or OFF.
• Only during LMR (Land Mobile Radio) operation, push to
open any squelch, or deactivate any mute functions.
• Only during PMR (Private Mobile Radio) operation, push
to activate one or two of the following functions on each
channel (Depending on the pre-programmed settings):
- Hold down to unmute the channel ('Audible' mode).
- Push to mute the channel ('Inaudible' mode).
- After the communication is finished, push to send a 'reset code'
(5-tone) or a 'Clear Down' signal (BIIS).
NOTE: The 'Audible' (unmute) mode may automati-
cally return to the 'Inaudible' (mute) mode, after the
pre-programmed time period.
➥ Depending on the pre-programmed settings, holding down
this key for 1 second cancels a scan.
PANEL DESCRIPTIONv
MEMORY CHANNELS 1, 2, 3, 4 "CH1" "CH2" "CH3" "CH4"
Push to select memory channel 1, 2, 3 or 4.
LOCK "LOCK"
➥ Hold down this key until "LOCK ON" is displayed to elec-
tronically look all programmable keys except the following:
[PTT], [Call] (incl. Call A and Call B), [Moni], [Light], [Emergency],
[Surveillance], [Lone Worker] and [OPT 1/2/3].
➥ When the Key Lock function is ON, hold down this key
until "LOCK OFF" is displayed to turn it OFF.
TONE/COLOUR CODE CHANNEL SELECT "T SEL"
➥ While in the analog mode, push to enter the continuous
tone selection mode. Then push [CH Up] or [CH Down] to
select the desired tone frequency/code setting. After se-
lecting, push this key again to store the setting.
➥ While in the digital mode, push to enter the colour code
selection mode. Then push [CH Up] or [CH Down] to se-
lect the desired colour code. After selecting, push this key
again to store the setting.
➥ While in the mixed (digital and analog) mode, push to enter
the continuous tone selection mode. Then push [CH Up] or
[CH Down] to select the desired tone frequency/code set-
ting. After selecting, push this key to store the setting. After
that, the colour code selection screen appears. Push [CH
Up] or [CH Down] to select the desired colour code. After
selecting, push this key again to store the setting.
