If ties are established for input 5, all output LEDs toggle; outputs with no
ties turn off and the LEDs associated with all outputs tied to input 5 (audio,
video, or audio and video ties) light. If no ties are established for input 5, all
output LEDs turn off.
If audio is broken away, the Audio LED blinks.
A set of ties can also be viewed by selecting a tied output. To demonstrate this,
note the number of a lit output LED, and press and release the output button
for an unlit (untied) output LED. Observe that all of the untied outputs light.
Then press the output button for the output LED noted previously and observe
that the selected output LED, the tied input LED (input 5), and the output
LEDs light for all of the outputs that are tied to the input.
5
D
INPUTS
1 2 3 4 5 6 7
1 2 3 4 5 6 7
OUTPUTS
1 3 4

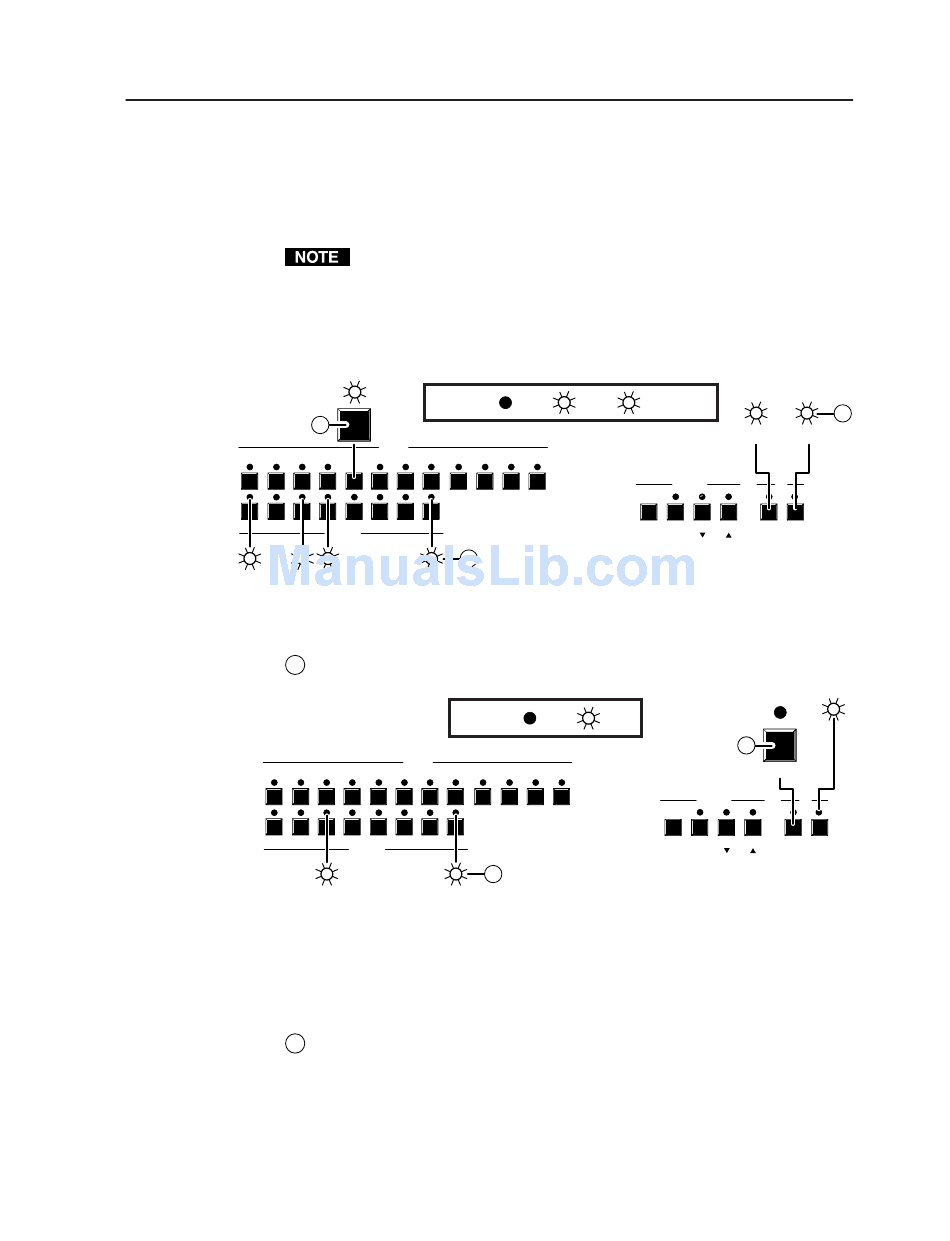

Figure 3-8 — Example 4d: Viewing the current configuration, video
and audio
Press and release the Video button to toggle the Video LED off (figure 3-9). If
E
audio is broken away, the Audio LED stops blinking and lights steadily.
INPUTS
1 2 3 4 5 6
1 2 3 4 5 6
OUTPUTS
3
Figure 3-9 — Example 4e: Viewing the current configuration, audio
only
If audio ties are established for input 5, the output LEDs for all audio outputs
tied to input 5 light. If no ties are established for input 5, all output LEDs turn
off.
Press and release the Video and Audio buttons to toggle the Video LED on
F
and the Audio LED off (figure 3-10).
If video ties are established for input 5, the output LEDs for all video
outputs tied to input 5 light. If no ties are established for input 5, all output
LEDs turn off.
LED key: = off, = on,
8 9 10 11 12
8
D
8
LED key: = off, = on
7 8 9 10 11 12
7 8
E
8
Matrix 50 Series Switchers • Operation
= blinking
B
B
VIDEO AUDIO
CONTROL I/O
ENTER PRESET VIEW ESC VIDEO AUDIO
E
VIDEO
CONTROL I/O
ENTER PRESET VIEW ESC VIDEO AUDIO
D
AUDIO
3-9
