Summary of Contents for John Lewis JLUCLFW6003

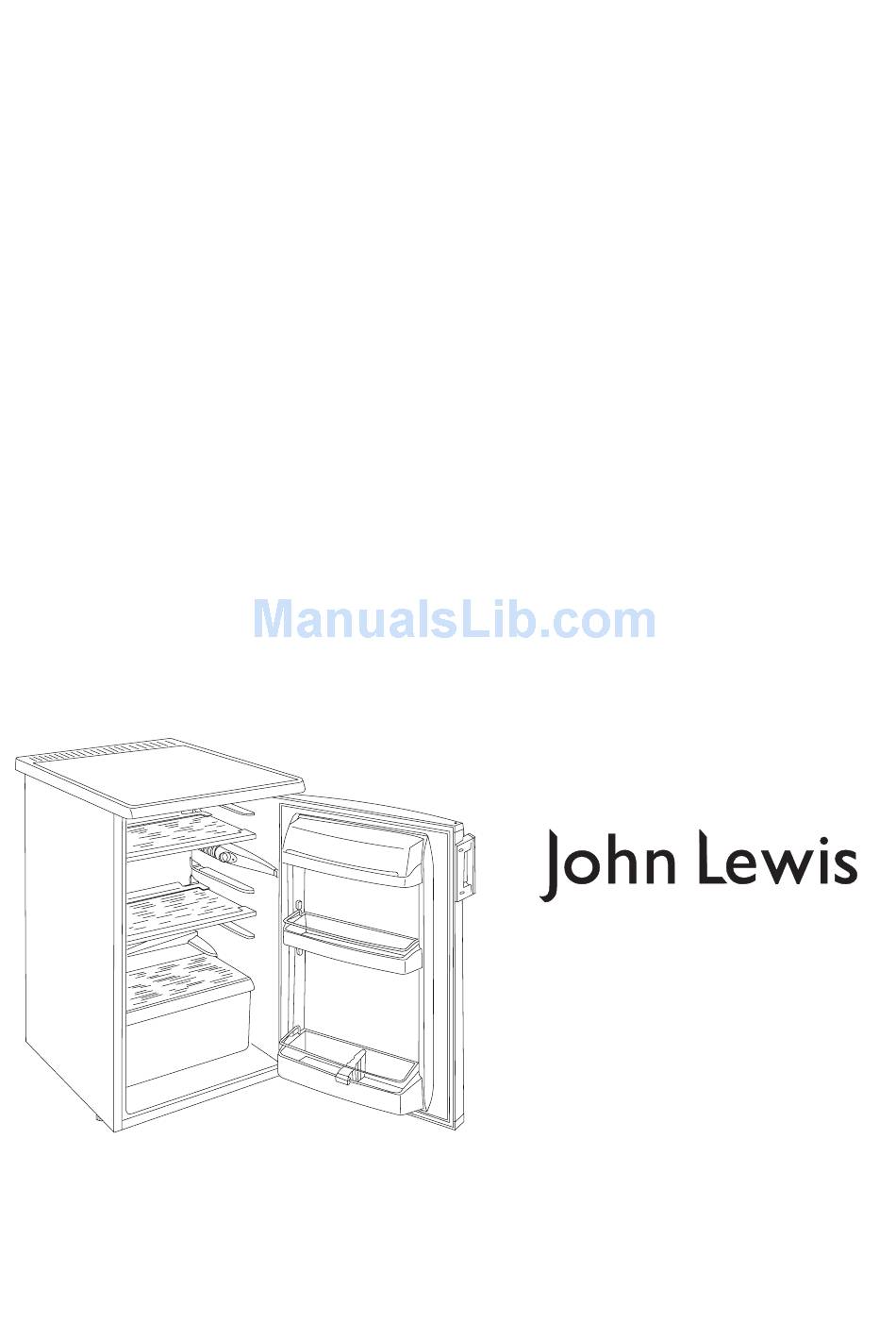

- Page 1 JLUCLFW6003 refrigerator Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Ecological Hints
Service This product should only be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the appliance yourself. repairs carried out by inexperienced persons may cause injury or serious malfunction. -
Page 4: Table Of Contents
Unpacking Transportation, unpacking Cleaning Location Ventilation Requirements Levelling Door Reserval Electrical connection When the refrigerator is first installed General information Using the Appliance Before Use Thermostat control Guide to using the Instruction Manual The following symbols will be found in the text to guide... -
Page 5: Description Of The Appliance
Description of the appliance 1. Glass shelf 2. Defrost water drain 3. Salad drawer 4. Rating plate 5. Adjustable feet 6. Butter compartment 7. Interior light/Thermostat control 8. Door shelf 9. Door gasket 10. Bottle shelf 11. Egg tray 12. Air circulation 13. -
Page 6: Installation
RATED CURRENT GROSS CAPACITY NET CAPACITY ENERGY CONSUMPTION ENERGY CLASS, ACCORDING TO EU STANDARDS NOISE LC WEIGHT Width Height Depth Refrigerator Refrigerator 595 mm 850 mm 635 mm 230V/50Hz 0,55 A 155 l 152 l 0,3261 kWh/24h 119 kWh/year 38 dB... -
Page 7: Unpacking
Unpacking It is recommended to deliver the appliance in original packaging, in vertical position considering the protective warning on packaging. After positioning, the appliance must not be switched on for approx. 2 hours to allow the refrigerant to settle. Unpack the appliance and check if there are damages on it. Report any damage immediately to the place where you bought it. -
Page 8: Door Reversal
(3 pieces) respectively the screw on the other side. Take off the freezer door by pulling it slightly downwards. Unscrew the top door hinge pin of the refrigerator then screw it back on the other side. Fit the freezer door on the upper door hinge pin. -
Page 9: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. Should the appliance power supply cable need to be replaced, this must be carried out Force agent (see page 16). -
Page 10: When The Refrigerator Is First Installed
Thermostat Control The thermostat control knob situated inside the refrigerator regulates the temperature of the larder compartment. Thermostat control is marked from 1-5 the higher the number, the colder the setting. Position 0... -
Page 11: Using The Refrigerator
The storage times quoted are intended as a guide only. Storage Shelves The shelves in the refrigerator compartment are adjustable to allow storage of large items. The shelves can be removed and adjusted opening the door to 90°. -
Page 12: Hints & Tips
Do not push food together too closely, try to allow air to circulate around each item. Do not store food uncovered. Remove suspect food from your refrigerator and clean, refer to cleaning and maintenance. Energy Saving Advice Do not install the cabinet close to sources of heat, such as a cooker, dishwasher or radiator. -
Page 13: Storage Time Chart (Refrigerator)
Storage time chart (refrigerator) Time and method of storage of fresh foods in the refrigerator Foods Raw meat Cooked meat Roasted meat Raw minced meat Roasted minced meat Cold cuts,Vienna sausage Fresh fish Cooked fish Fried fish Tinned fish, open... -
Page 14: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance of cleaning work is carried out DISCONNECT the appliance from the ELECTRICITY SUPPLY. Internal Cleaning Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water). Rinse and dry thoroughly. -
Page 15: Something Not Working
Something Not Working If the appliance is not working correctly, please carry out the following checks before contacting your local Service Force agent. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 16: Repairs - After Sales Service
Repairs - After Sales Service In the unlikely event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: 0870 010 7887 They will give you details for your local Service Force Centre. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 08/06 200380417...
