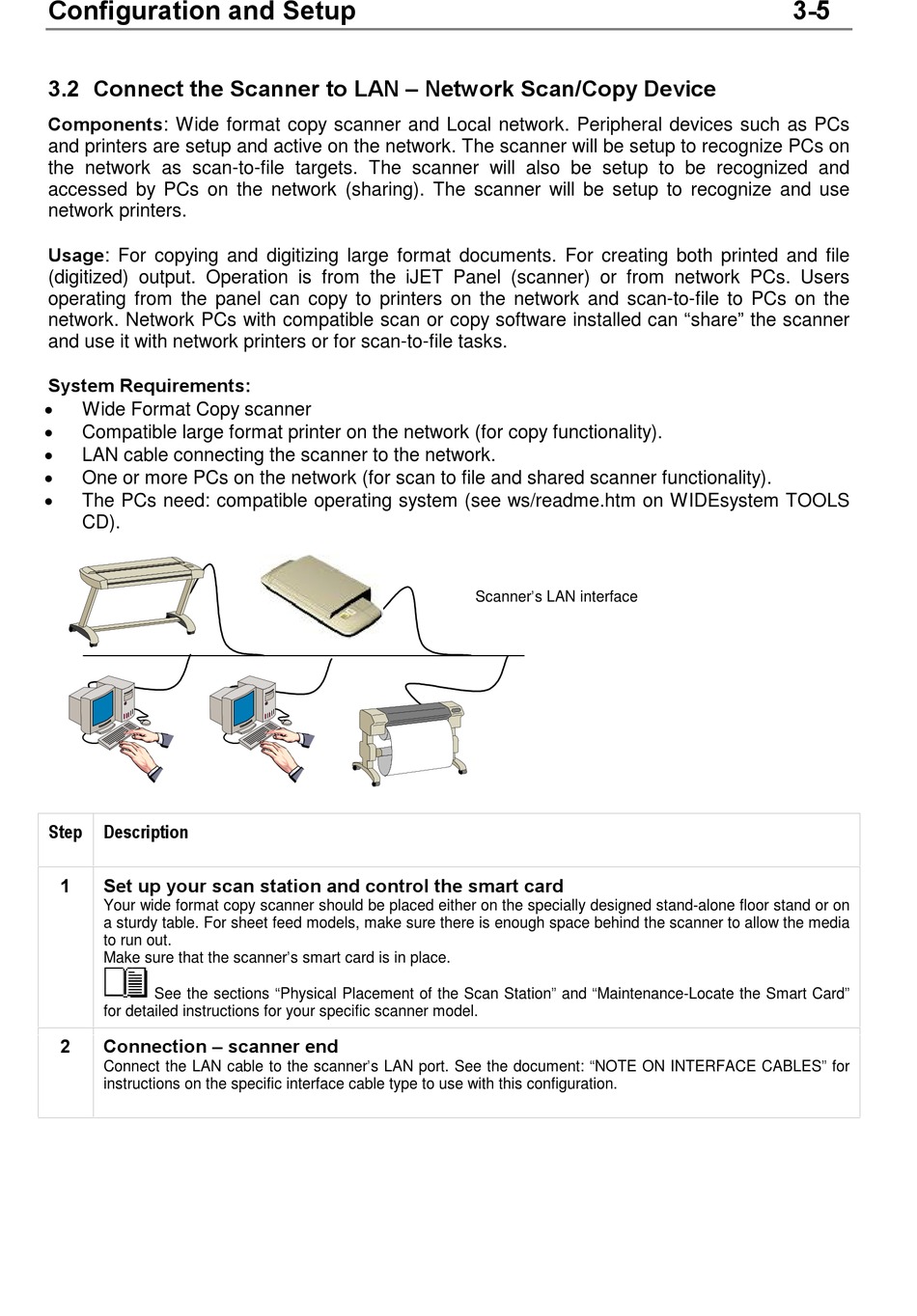

Configuration and Setup
3.2 Connect the Scanner to LAN – Network Scan/Copy Device
Components: Wide format copy scanner and Local network. Peripheral devices such as PCs
and printers are setup and active on the network. The scanner will be setup to recognize PCs on
the network as scan-to-file targets. The scanner will also be setup to be recognized and
accessed by PCs on the network (sharing). The scanner will be setup to recognize and use
network printers.
Usage: For copying and digitizing large format documents. For creating both printed and file
(digitized) output. Operation is from the iJET Panel (scanner) or from network PCs. Users
operating from the panel can copy to printers on the network and scan-to-file to PCs on the
network. Network PCs with compatible scan or copy software installed can "share" the scanner
and use it with network printers or for scan-to-file tasks.
System Requirements:
Wide Format Copy scanner
Compatible large format printer on the network (for copy functionality).
LAN cable connecting the scanner to the network.
One or more PCs on the network (for scan to file and shared scanner functionality).
The PCs need: compatible operating system (see ws/readme.htm on WIDEsystem TOOLS
CD).
Step
Description
1
Set up your scan station and control the smart card
Your wide format copy scanner should be placed either on the specially designed stand-alone floor stand or on
a sturdy table. For sheet feed models, make sure there is enough space behind the scanner to allow the media
to run out.
Make sure that the scanner's smart card is in place.
See the sections "Physical Placement of the Scan Station" and "Maintenance-Locate the Smart Card"
for detailed instructions for your specific scanner model.
2
Connection – scanner end
Connect the LAN cable to the scanner's LAN port. See the document: "NOTE ON INTERFACE CABLES" for
instructions on the specific interface cable type to use with this configuration.
Scanner's LAN interface
3-5
