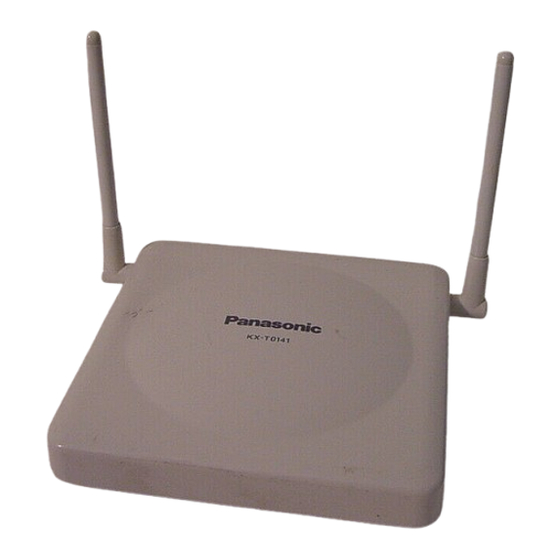

Page 1 2.4 GHz Cell Station Unit KX-T0141 Model No. KX-TDA0142 KX-T0151 KX-TDA0152 Thank you for purchasing a Panasonic 2.4 GHz Cell Station Unit. Please read this manual carefully before using this product and save this manual for future use. Document Version: 2009-12...
Page 2: Important Information
The CS should not be placed on a metal object. • Systems using 2.4 GHz ISM (Industrial, Scientific and Medical) band may interfere with the Panasonic wireless system. Examples of such systems are cordless telephones, wireless LAN, Home RF, microwave ovens and other ISM devices. These systems may cause minor noise.
Page 3 Important Information • When driving the screws into the wall, be careful to avoid touching any metal laths, wire laths or metal plates in the wall. • To prevent malfunction, deformity, overheating, rust, and discoloration, do not install or place equipment in the following types of locations: –...
Page 4: Additional Information
Important Information Additional Information F.C.C. REQUIREMENTS AND RELEVANT INFORMATION CAUTION Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 5: Table Of Contents
Table of Contents Table of Contents 1 Overview ....................6 2 Procedure Overview ................9 3 Site Planning ..................11 4 Before Site Survey .................15 5 Site Survey ....................19 6 After Site Survey ..................23 7 Connecting a Cell Station to the PBX ..........24 8 Wall Mounting ..................34 9 Troubleshooting ..................39 Document Version 2009-12...
Page 6: Overview
1 Overview 1 Overview Names and Locations KX-T0151/KX-TDA0152 Antennas RJ11 Modular DIP Switch KX-T0141/KX-TDA0142 Antennas RJ11 Modular DIP Switch LED Indications (KX-T0151/KX-TDA0152) Indication Color Description STATUS Green/Red CS status indication • OFF: Power Off • Green ON: Stand-by (no active calls) •...
Page 7 For more details about the Portable Station (PS), refer to the Operating Instructions of the PS. Maximum Number of CSs Supported by PBX Notice The CSs are for connection to specified Panasonic PBXs only. The following number of CSs can be supported by each PBX. Maximum Number...
Page 8 The CS should not be placed on a metal object. • Systems using 2.4 GHz ISM (Industrial, Scientific and Medical) band may interfere with the Panasonic wireless system. Examples of such systems are cordless telephones, wireless LAN, Home RF, microwave ovens and other ISM devices. These systems may cause minor noise.
Page 9: Procedure Overview
2 Procedure Overview 2 Procedure Overview When connecting the wireless system, use extreme care in conducting the site survey. An incorrectly performed site survey can result in poor service area, frequent noise, and disconnection of calls. 1. Investigate the installation site Refer to "3 Site Planning".
Page 10 2 Procedure Overview Using the KX-TD7690 Display example: CS NO.1 LEVEL:12 CS No. << SEARCHING >> SAVE:0123456789 Press 1, 9, and POWER 1 to 9 for more than 2 seconds. By walking away from the CS with the PS, check the radio signal strength. The radio signal strength weakens as you walk away from the CS.
Page 11: Site Planning
3 Site Planning 3 Site Planning Choosing the best site for the CS requires careful planning and testing of essential areas. The best location may not always be convenient for installation. Read the following information before installing the unit. Understanding Radio Waves Characteristics of Radio Waves The transmission of radio waves and the CS coverage area depend on the structure and materials of the building.
Page 12 3 Site Planning Object Material Transmission Tendency Wall Concrete The thicker they are, the less radio waves penetrate them. Ferroconcrete Radio waves can penetrate them, but the more iron there is, the more radio waves are reflected. Window Glass Radio waves usually penetrate them. Glass with wire net Radio waves can penetrate them, but tend to be reflected.
Page 13 3 Site Planning CS Coverage Area The example below shows the size of the coverage area of 1 CS if it is installed in an area with no obstacles. Note Radio signal strength levels are measured during the site survey (refer to "5 Site Survey"). Coverage Area Radio signal strength level is greater than "3".
Page 14 3 Site Planning If 1 CS cannot cover the entire service area, install additional CSs as required. Overlap the coverage areas of adjacent CSs. Where CS coverage areas overlap, the PS will start call handover to the next CS if the signal from one CS becomes weak.
Page 15: Before Site Survey
4 Before Site Survey 4 Before Site Survey Setting and Installing the CS Temporarily for Site Survey Switch the Radio Signal Test switch from OFF to ON. Set the CS number switches as desired. Set the Power Supply Select switch as desired (KX-T0151/KX-TDA0152 only). KX-T0151/KX-TDA0152 CS no.
Page 16 4 Before Site Survey KX-T0141/KX-TDA0142 DIP Switch CS Number Switch Keep this switch at the default "OFF" position. Otherwise, the CS will not function. Radio Signal Test Switch CS no. 1 CS no. 2 CS no. 3 CS no. 4 CS no.
Page 17 4 Before Site Survey KX-T0151/KX-TDA0152 KX-T0141/KX-TDA0142 RJ11 Modular RJ11 Modular Telephone Cord Telephone Cord Power Supply Adaptor Power Supply Adaptor (PSZZ1TDA0142) (PSZZ1TDA0142) RJ11 Modular RJ11 Modular To AC Adaptor (KX-A11/KX-TCA1)/ To AC Adaptor (KX-A11/KX-TCA1)/ Battery Box (PSZZTD142CE) Battery Box (PSZZTD142CE)
Page 18 4 Before Site Survey Install the CS temporarily for the site survey. Install the CS at least 2 m (6 ft 7 in) above the floor, and place the antennas so that they are pointing in directions that are 90 degrees apart (for antenna diversity), as follows: Note The illustration of the CS is based on the KX-T0151/KX-TDA0152.
Page 19: Site Survey
5 Site Survey 5 Site Survey The PS has a Radio Signal Test mode that monitors the state of the radio link to the CS. After installing the CSs temporarily, set the PS to Radio Signal Test mode and measure each CS coverage area. Then, record the results on the map of the installation site.
Page 20 5 Site Survey Measure the radio signal strength by moving towards and away from the CS. Move to the CS until the radio signal strength level becomes "12". Move away from the CS and identify the CS coverage area within which the radio signal strength level is greater than "8".
Page 21 5 Site Survey Overlap the CS coverage areas of at least 2 CSs at any location in the installation site. CS no. 1 CS no. 2 CS no. 3 CS no. 4 Make sure that the radio signal strength level is greater than "3" at any location in the service area required by the user.
Page 22 5 Site Survey Using the KX-TD7690 Display example: When there is scan data Scan Data No. NO.1 CS No.2 LEVEL: 9 Press 1, 9, and POWER 0 to 9 for more than 2 seconds. When there is no scan data NO.0 NOT SAVED To the Desired Scan Data No.
Page 23: After Site Survey
Hold down the POWER button on the PS until the PS is turned OFF. Disconnect the CS from the AC adaptor/battery box or the PBX to stop supplying electricity. KX-T0151/KX-TDA0152 KX-T0141/KX-TDA0142 Switch all DIP switches on the CS from ON to OFF. KX-T0151/KX-TDA0152...
Page 24: Connecting A Cell Station To The Pbx
7 Connecting a Cell Station to the PBX 7 Connecting a Cell Station to the PBX Connection Example for KX-TAW848/KX-TDA50 Refer to the following example to connect a CS to the PBX. KX-T0151/KX-T0141 connecting to KX-TAW848/KX-TDA50 Cable Maximum Distance 26 AWG:...
Page 25 7 Connecting a Cell Station to the PBX Connection Examples for KX-TDA100/KX-TDA200/KX-TDA600/KX-TDE100/ KX-TDE200/KX-TDE600 Refer to the following examples to connect a CS to the PBX. KX-TDA0152/KX-TDA0142 connecting to KX-TDA100/KX-TDA200/KX-TDA600/KX-TDE100/ KX-TDE200/KX-TDE600 Note The illustration of the PBX is based on the KX-TDE200. CSIF8 Card Port 1 Cable...
Page 26 7 Connecting a Cell Station to the PBX KX-T0151/KX-T0141 connecting to KX-TDA100/KX-TDA200/KX-TDA600/KX-TDE100/ KX-TDE200/KX-TDE600 Note The illustration of the PBX is based on the KX-TDE200. DHLC8 Card Cable Maximum Distance 26 AWG: 222 m (728 ft) 24 AWG: 347 m (1138 ft)
Page 27 7 Connecting a Cell Station to the PBX Connection Example for KX-NCP500/KX-NCP1000 Refer to the following example to connect a CS to the PBX. KX-T0151/KX-T0141 connecting to KX-NCP500/KX-NCP1000 Note The illustration of the PBX is based on the KX-NCP500. DHLC4 Card...
Page 28 7 Connecting a Cell Station to the PBX Connecting the CS Connect the cable from the PBX to the CS. KX-T0151/KX-TDA0152 KX-T0141/KX-TDA0142 RJ11 Modular RJ11 Modular To PBX To PBX Pass the cable through the groove of the CS (in any direction depending on your preference).
Page 29 7 Connecting a Cell Station to the PBX Registering the PS The PS must be registered to the PBX before it can be used. Programming of both the PS and PBX is required. A Proprietary Telephone (PT) with multiline display (e.g., KX-T7636 6-line display) is required to perform the PBX system programming.
Page 30 7 Connecting a Cell Station to the PBX Setting the Personal Identification Number (PIN) for PS Registration To prevent registering the PS to a wrong PBX, a PIN for PS registration can be set to the PBX. Before registering the PS to the PBX, enter the PIN set to the PBX into the PS. By doing so, the PS will only be registered to the PBX with the matching PIN.
Page 31 7 Connecting a Cell Station to the PBX Using the KX-TD7684/KX-TD7694 C.Tone C.Tone Press "F" Press Select the desired POWER for for 2 language. seconds. 2 seconds. Using the KX-TD7680 [ F2 ] [ F3 ] C.Tone Press S2 repeatedly Press S3 Press for 2...
Page 32 7 Connecting a Cell Station to the PBX Keeping the password secret. Changing your password regularly. Selecting a complex, random password that cannot be easily guessed. Using the KX-TD7684/KX-TD7694 Select Choose "On/Off". "System Lock". System Lock Password System Lock Password 4 digits 4 digits C.Tone...
Page 33 7 Connecting a Cell Station to the PBX • The PS is within range. [691] PS No. 001 to max. no. ENTER ENTER of PSs (3 digits) If "Rejected" or "Time out" is displayed CLEAR Press "CLEAR". Press "YES". (HOLD) If "Rejected"...
Page 34: Wall Mounting
8 Wall Mounting 8 Wall Mounting Mounting the KX-T0151/KX-TDA0152 WARNING • Make sure that the wall that the unit will be attached to is strong enough to support the unit (approx. 310 g [11 oz]). If not, it is necessary for the wall to be reinforced. •...
Page 35 8 Wall Mounting Slide the wall mounting plate in the direction of the arrow until it clicks. Hook the CS on the screw heads. Washer Drive the screw to this point. Place the antennas so that they are pointing in directions that are 90 degrees apart (for antenna diversity), as follows: 45º...
Page 36 8 Wall Mounting Reference for Wall Mounting (KX-T0151/KX-TDA0152) Please copy this page and use as a reference for wall mounting. Install a screw here. 83 mm (3-1/4 in) 100 mm (3-15/16 in) Install a screw here. Note Make sure to set the print size to correspond with the size of this page. If the dimension of the paper output still deviates slightly from the measurement indicated here, use the measurement indicated here.
Page 37 • Make sure the cables are securely fastened to the wall. Place the reference for wall mounting (KX-T0141/KX-TDA0142) on the wall to mark the 2 screw positions. Install the 2 screws and washers (included) into the wall. Note •...
Page 38 Place the antennas so that they are pointing in directions that are 90 degrees apart (for antenna diversity), as follows: 45º 90º 45º Reference for Wall Mounting (KX-T0141/KX-TDA0142) Please copy this page and use as a reference for wall mounting. Install a screw here. 71 mm (2-13/16 in) Install a screw here.
Page 39: Troubleshooting
9 Troubleshooting 9 Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION • • • The LED of the CS does not The optional service card is Install the card properly. change to Green ON. not working. • • CS is not connected Make sure that the cable is connected properly.
Page 40 Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd. © Panasonic System Networks Co., Ltd. 2009 PSQX5041ZA KK1209NT0 (v0.004)
