Desa GMC7CF Assembly Instructions Manual

This mantel kit contains the following pieces:
• Hardware package
103831-11
• Brass trim kit 103832-01
• Trim) Kit Hardware
102866-01
• Gauge Strip 103531-01
• One Mounting Strip
ESA
TM
INTERNATIONAL

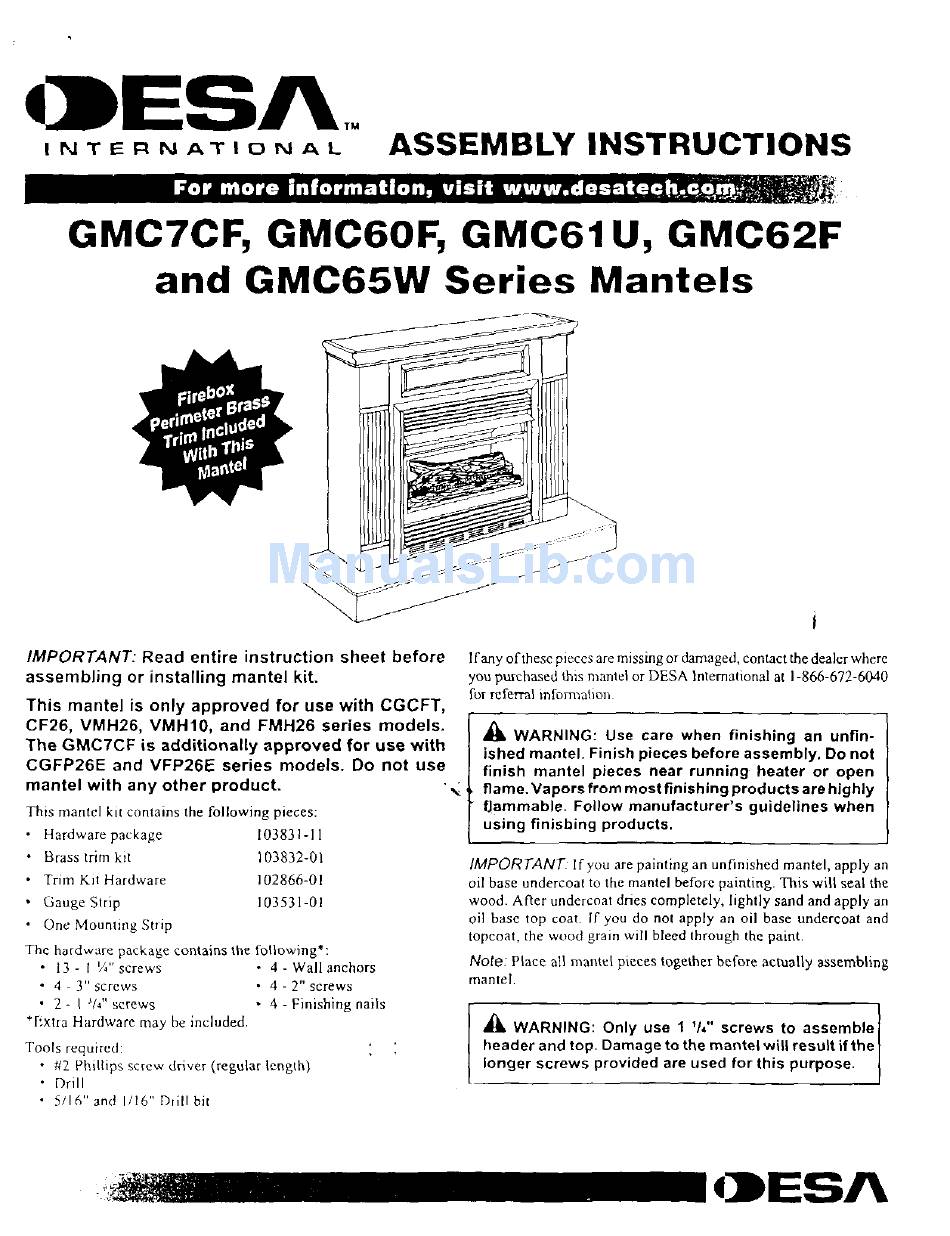

ASSEMBLY INSTRUCTIONS
For more information, visit www.desatecn,c4m4r, ;
GMC7CF, GMC60F, GMC61U, GMC62F
and GMC65W Series Mantels
IMPORTANT: Read entire instruction sheet before
assembling or installing mantel kit.
This mantel is only approved for use with CGCFT,
CF26, VMH26, VMH10, and FMH26 series models.
The GMC7CF is additionally approved for use with
CGFP26E and VFP26E series models. Do not use
mantel with any other product. •••;.
If
any of these
pieces are missing
or damaged, contact the dealer where
you purchased this mantel or DESA International
at
1-866-672-6040
for refen-al information.
A
WARNING: Use care when finishing an unfin-
ished mantel. Finish pieces before assembly. Do not
finish mantel pieces near running heater or open
flame. Vapors from most finishing products are highly
flammable. Follow manufacturer's guidelines when
using finisbing products.
IMPORTANT:
If you are painting an unfinished mantel, apply an
oil base undercoat to the mantel before painting. This will seal the
wood. After undercoat cities completely, lightly sand and apply an
oil base top coat. If you do not apply an oil base undercoat and
topcoat, the wood grain will bleed through the paint.
The hardware package contains the following':
• 13 - I 'A" screws • 4 - Wall anchors
• 4 - 3" screws
• 4 - 2" screws
• 2- I 'A" screws
• 4 - Finishing nails
*Extra Hardware may be included.
Tools required:
• ri2
Phillips screw driver (regular length)
• Drill
• 5/16" and 1/16" Dull bit
Note:
Place all mantel pieces together before actually assembling
mantel.
A
WARNING: Only use 1 '/4" screws to assemble
header and top. Damage to the mantel will result if the
longer screws provided are used for this purpose.
4MESA
