TECDIS Installation Manual
TELchart TA3232-1 analog adapter.
Technical specifications:
Inputs:
32 digital inputs
32 analog input (24 x +/- 10VDC and 8 x 4-20mA )
Outputs:
RS422 output ar baudrate 4800,n,8,1 to Furuno VDR
Ethernet TCP/IP serverport at 192.168.0.60 : 2000
Ethernet UDP/IP broadcast at 0.0.0.0 : 2100

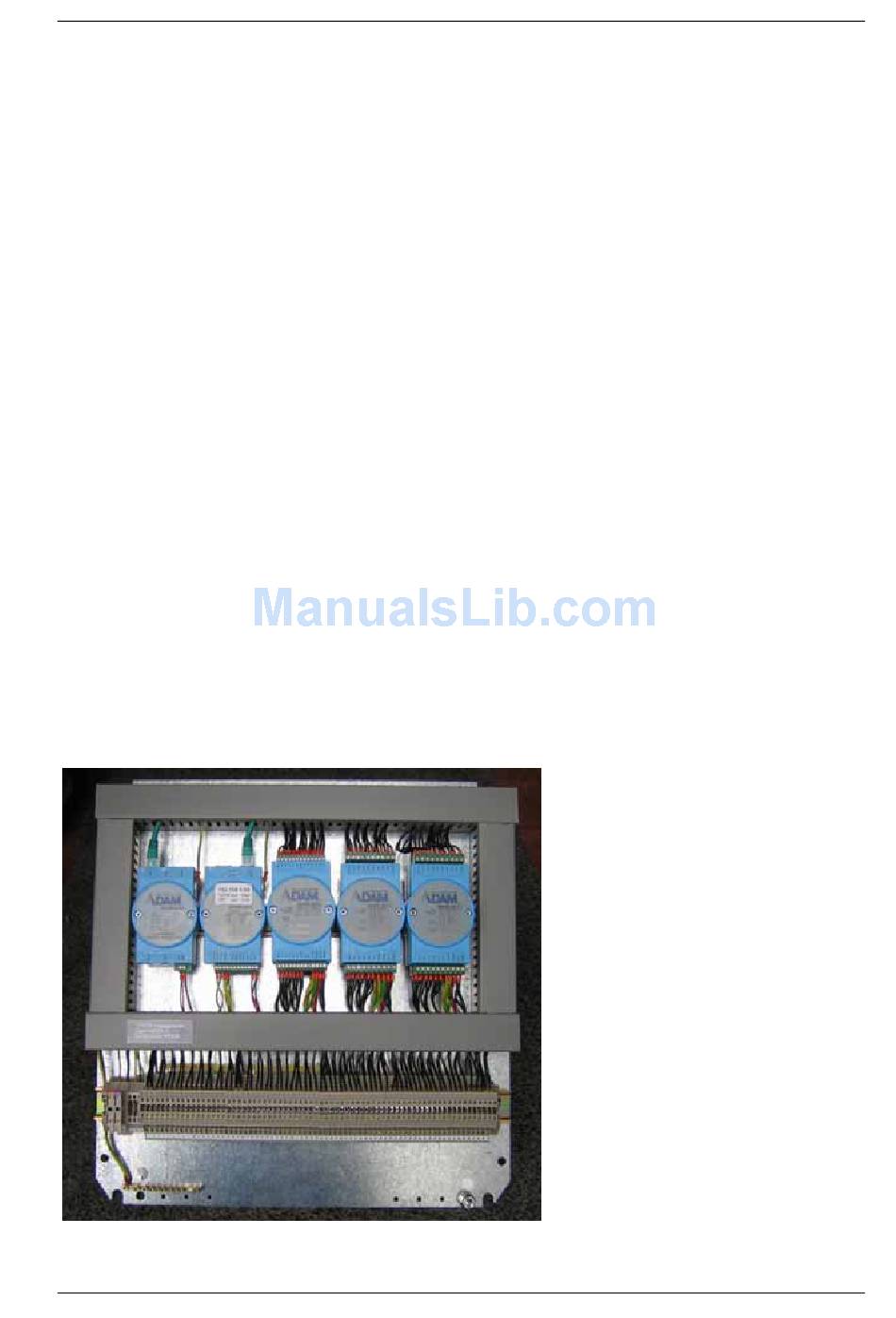

The placement of the modules in the box are.
[ADAM6520] [ADAM6500] [ADAM4051 #1] [ADAM4017+ #3] [ADAM4017+ #5]
From left to right as indicated in the picture
ADADM 6520 5 port industrial 10/100 Mb Ethernet switch w/auto direction sense.
ADADM 6500 WinCE processor
2 x ADADM 4051 á 8 x digital inputs
2 x ADADM 4017+ á 8 x analog inputs
2 x ADADM 4017+ á 8 x analog inputs (top one is 8 x 4-20mA inputs)
Powered from 12-30 VDC
Typical consumption 0.4A @24 VDC
Fuses: 2 x 1,6AT
[ADAM4051 #2] [ADAM4017+ #4] [ADAM4017+ #6]
