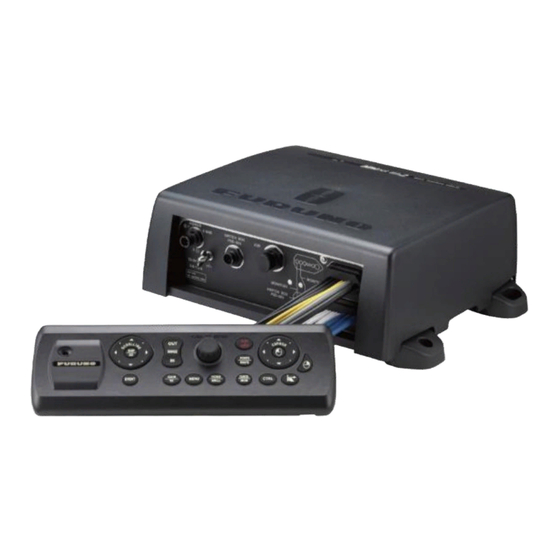

Furuno TZT2BB Installation Manual
Accessing the secondary display on a single monitor
Hide thumbs
Also See for TZT2BB:
- Instructions manual (28 pages) ,
- Quick start manual (6 pages) ,
- Operator's manual (367 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Furuno TZT2BB
Summary of Contents for Furuno TZT2BB
- Page 1 Accessing the Secondary Display on a Single Monitor TZT2BB Installation...
- Page 2 Display Output on a Single Monitor TZT2BB Installation Take full advantage of both video outputs when using only a single monitor TZT2BB installation. Examples of why this installation may be useful: 1. Assist with performing software updates when having only one display connected 2.
- Page 3 Example of secondary video (as three-way screen) displaying in quarter selection of primary display Items need for this install configuration: 1. USB A to Micro B cable 2. HDMI cable Very short cables are best suited for this purpose to reduce signal loss and prevent induction of noise.
-
Page 4: Installation Instructions
2. Connect USB Touch Control for HDMI 2 into USB 2 a. USB 2 has the Micro B connection Setup: Once the TZT2BB is booted, setup your HDMI input. 1. Touch the Home icon 2. Touch the Settings icon 3. Scroll down and select Camera 4. -
Page 5: Operation Notes
Consider the following tips and tricks. 1. If you see the 3-bar icon to the top right, you are on the video page (secondary TZT2BB display) 2. On full page video, for the first nine seconds, the home key that is displayed at the top left is the primary home key. - Page 6 Example of Secondary Home Key 3. To gain access to the primary home key, press the 3-bar icon, then tap outside of the pop-up box to make it go away, and then touch the “Home” icon within the nine second time-period. Example of Primary Home Key...
- Page 7 NOTE: In some menus the 3-bar icon may make touching the X in the top right difficult. This can be fixed by pressing and holding the 3-bar icon until gold arrows appear on it. You can then drag the icon and place it where ever you find to be convenient or appealing. REVISION 4/18/19...
