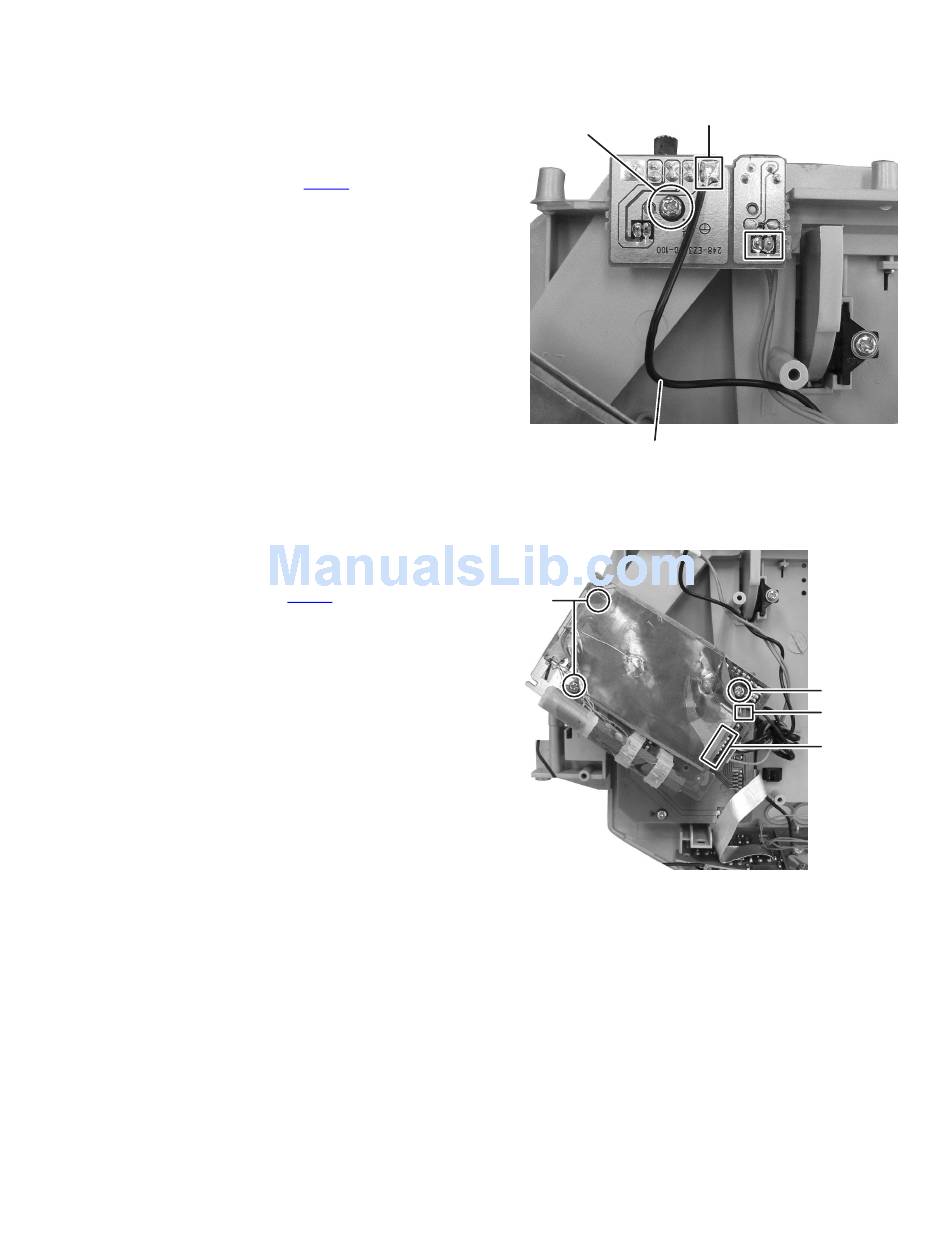

3.1.5 Removing the Headphone jack board assembly

(See Fig.10)

(1) Remove the solder the grand wire from LCD board assem-
bly soldered to Headphone jack board assembly.)
(2) Remove the one screw F attaching the Headphone jack
board assembly.)
(3) Disconnect the connector wire from Function board assem-
bly connected to connector
board assembly.
3.1.6 Removing the Tuner board assembly
(See Fig.11)
(1) Remove the solder of the grand wire from Function board
assembly soldered to Tuner board assembly.
(2) Disconnect the connector wire from Function board assem-
bly connected to connector
sembly.
(3) Remove the tree screws G attaching the Tuner board as-
sembly.
CN707 of the Headphone
CN102 of the Tuner board as-
Solder point
F
Ground wire
Fig.10
G
Fig.11
CN707
G
Solder point
CN102
(No.MB593)1-9
