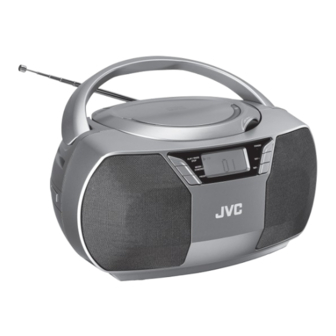

- Page 1 Instruction Manual FM Boombox RD-D228H...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................6 Product Overview ..........................7 Front View .................................. 7 Side View ..................................7 Top View ..................................8 Rear View ................................... 8 Power Source ..........................9 Battery Power ................................9 Mains Power ................................10 Connections ..........................11 Using the AUX Connection..........................11 General Operation ........................12 Powering ON/OFF ..............................12 Selecting Modes ..............................12... -
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before mains immediately. Withdraw the mains using the unit and keep them for future plug and consult your dealer. reference. Ventilation • Retain the manual. If you pass the unit • To prevent the risk of electric shock or onto a third party make sure to include this fire hazard due to overheating, ensure manual. - Page 5 • Before putting on earphones, turn the • Do not use any type of abrasive pad or volume down then put the earphones on abrasive cleaning solutions as these may and slowly increase the volume until you damage the unit’s surface. reach a comfortable listening level.
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview
Product Overview Front View Side View 1. PLAY/PAUSE/STOP Button 7. SKIP+ Button 2. MODE/ST/MONO Button 8. SKIP– Button 3. PRESET Button 9. Speakers 4. Display 10. SOURCE Button 5. STANDBY Indicator 11. Volume – Button 6. ON/OFF Button 12. Volume + Button... -
Page 8: Top View
Top View 1. Aerial 2. Handle 3. CD Compartment Cover 4. OPEN/CLOSE Lid • Visible and invisible laser radiation. If the cover is open, do not look at the beam. • High voltage! Do not open. You run the risk of getting an electric shock. •... -
Page 9: Power Source
Power Source Whenever convenient, use the mains cable if you want to conserve battery life. Make sure you remove the plug from the unit and mains socket before inserting batteries. Battery Power 1. Open the battery door and insert 6 batteries, type UM-2 or C-cells (not included) with the correct polarity as indicated by the “+”... -
Page 10: Mains Power
Mains Power Always check you have completely switched off the unit, before you change or disconnect the power supply. 1. Check that the power voltage shown on the rating label located on the bottom of the unit, corresponds to your local power supply. If it does not, consult your dealer or service centre. -
Page 11: Connections
Connections Using the AUX Connection Use a 3.5mm to RCA stereo audio cable to connect the audio device’s audio output sockets to the unit’s AUX IN socket. Auxillary device Top View of Unit 3.5mm to RCA stereo audio cable (not included) AUX-IN AC-IN~ AUX IN... -
Page 12: General Operation
General Operation Powering ON/OFF When you first connect the unit to the mains socket, the unit will be in STANDBY mode and the STANDBY indicator will light up red. Press and hold the ON/OFF button on the unit to switch the unit on. •... -
Page 13: Fm Operation
FM Operation Press SOURCE repeatedly to select FM mode. Auto Scan Press and hold the SKIP+/SKIP– button until the tuner starts searching for a station. Once a station has been found, the scanning will stop automatically. The search may not stop at a station with a very weak signal. Manual Scan Press SKIP+/SKIP–... -
Page 14: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable) AUDIO CD-RW (CD-Rewritable) AUDIO AUDIO-CD (Compact Disc Digital Audio) AUDIO CD Operation • CD-ROM, CD-I, CDV, VCD, DVD or computer CDs are not possible for playback. • CDs encoded with copyright protection technologies by some record companies may be unplayable by this unit. -
Page 15: Repeat Playback
Repeat Playback 1. Press MODE/ST/MONO once, “ 1“ will show on the display. The CD will play the current track repeatedly. 2. Press MODE/ST/MONO twice, “ ALL“ will show on the display. The CD will play all tracks repeatedly. 3. Press MODE/ST/MONO three times, “RAN” will show in the display. The CD will play all tracks randomly. -
Page 16: Maintenance
Maintenance Cleaning the Unit / Cassette Compartment Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •... -
Page 17: Hints And Tips
Hints and Tips Problem Description No sound • Adjust the volume. Static sound • Signal reception is too low. Adjust the aerial or move the unit to a stronger signal location. Sound is distorted • Volume is too high. Adjust the volume. The unit does not •... -
Page 18: Product Fiche And Specifications
Product Fiche and Specifications Brand Model RD-D228H Power Requirement AC 230-240 V 50Hz Power Consumption 11 W Output Speaker Power 1.5 W RMS × 2 Frequency Response 50 Hz - 15 kHz Speakers Total Impedance 4 Ω Disc Format CD, CD-R, CD-RW Frequency Range FM: 87.5 –... -
Page 19: Useful Information And Licences
Useful Information and Licences For general information about appliances, and handy hints and tips check out Kit Guides at teamknowhow.com or call UK: 0344 561 1234 Ireland: 1890 818 575 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. - Page 20 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. IB-RD-D228H-190408V4...
