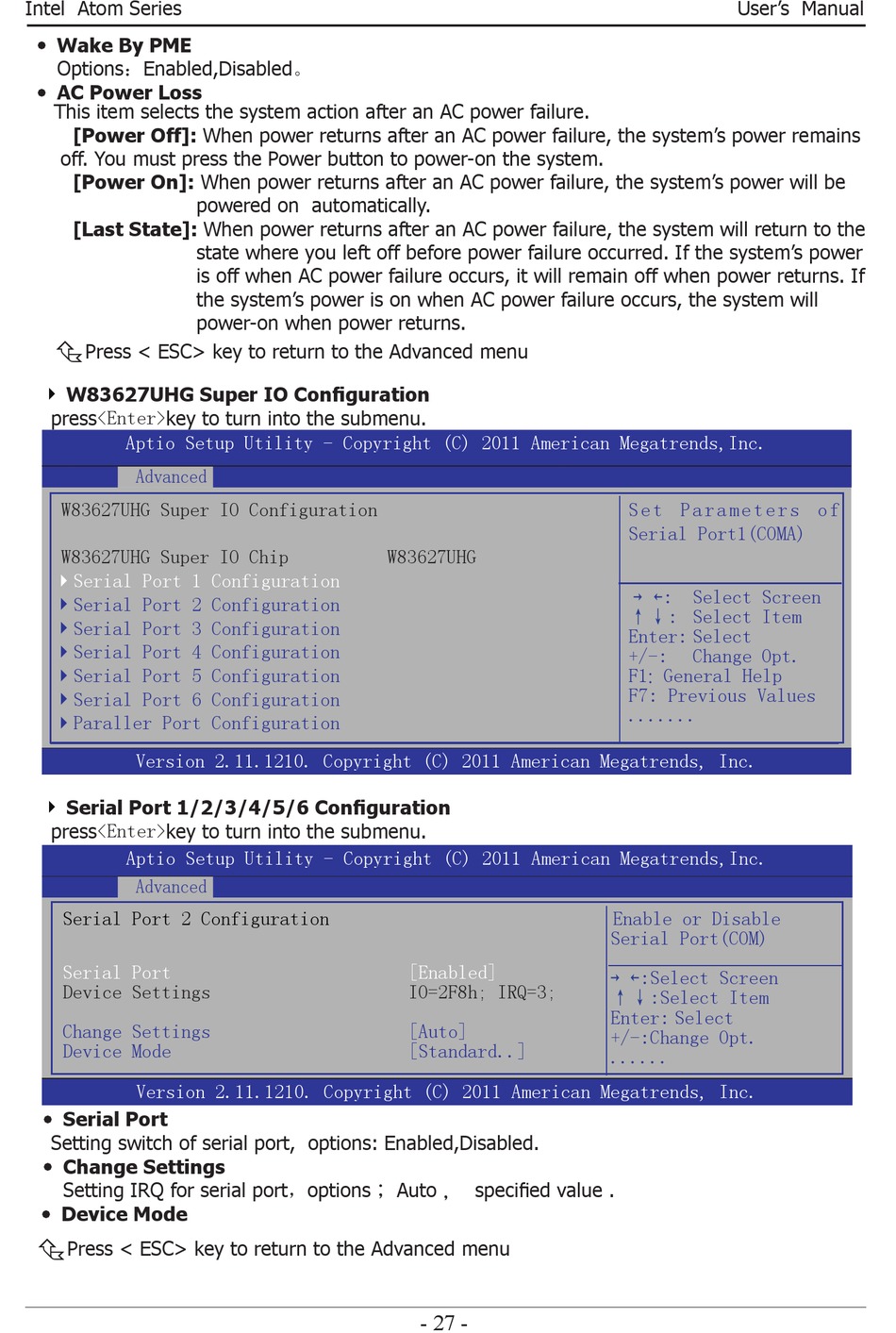

Intel ITX-IC2M1026S Series User Manual page 27

Intel Atom Series
・ Wake By PME
Options：Enabled,Disabled。
・ AC Power Loss
This item selects the system action after an AC power failure.
[Power Off]: When power returns after an AC power failure, the system's power remains
off. You must press the Power button to power-on the system.
[Power On]: When power returns after an AC power failure, the system's power will be
[Last State]: When power returns after an AC power failure, the system will return to the

Press < ESC> key to return to the Advanced menu
► W83627UHG Super IO Confguration
press<Enter>key to turn into the submenu.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc.
Advanced
W83627UHG Super IO Configuration
W83627UHG Super IO Chip
► Serial Port 1 Configuration
► Serial Port 2 Configuration
► Serial Port 3 Configuration
► Serial Port 4 Configuration
► Serial Port 5 Configuration
► Serial Port 6 Configuration
► Paraller Port Configuration
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
►
Serial Port 1/2/3/4/5/6 Confguration
press<Enter>key to turn into the submenu.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc.
Advanced
Serial Port 2 Configuration
Serial Port
Device Settings
Change Settings
Device Mode
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
・ Serial Port
Setting switch of serial port, options: Enabled,Disabled.
・ Change Settings
Setting IRQ for serial port，options； Auto ， specified value .
・ Device Mode

Press < ESC> key to return to the Advanced menu
powered on automatically.
state where you left off before power failure occurred. If the system's power
is off when AC power failure occurs, it will remain off when power returns. If
the system's power is on when AC power failure occurs, the system will
power-on when power returns.
W83627UHG
[Enabled]
IO=2F8h; IRQ=3;
[Auto]
[Standard..]
- 2 -
User's Manual
S e t P a r a m e t e r s o f
Serial Port1(COMA)
→ ←
: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F7: Previous Values
.......
Enable or Disable
Serial Port(COM)
→ ←
:Select Screen
↑↓:Select Item
Enter: Select
+/-:Change Opt.
......
