Intel G41 User Manual

Intel G41 User Manual

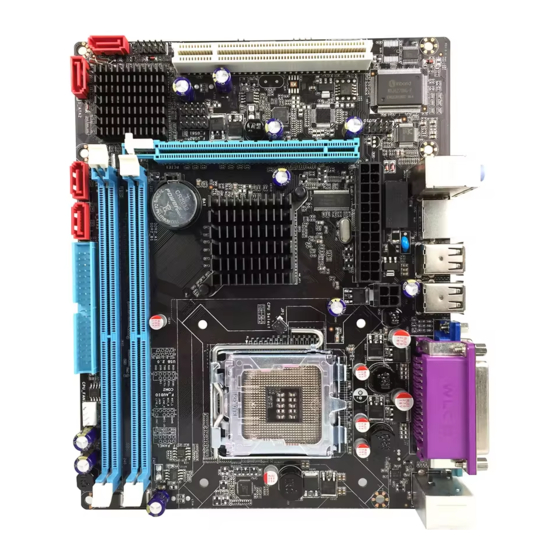

Express and chipset based m/b for lga775 quad core ready intel core processor family
Hide thumbs Also See for G41:
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
Of
Intel G41 Express and ICH7 Chipset
Based
M/B for LGA775 Quad Core Ready
Intel Core Processor Family
NO. G03-MIP41TA-F
Rev: 2.0
Release date: May, 2011
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading

Related Manuals for Intel G41

Summary of Contents for Intel G41

  • Page 1 USER'S MANUAL Intel G41 Express and ICH7 Chipset Based M/B for LGA775 Quad Core Ready Intel Core Processor Family NO. G03-MIP41TA-F Rev: 2.0 Release date: May, 2011 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are...

  • Page 2: Table Of Contents

    TABLE OF CONTENT CHAPTER 1 INTRODUCTION OF INTEL G41 MOTHERBOARD SERIES FEATURES OF MOTHERBOARD ................1 1-1.1 SPECIAL FEATURES OF MOTHERBOARD ..........2 SPECIFICATION ......................3 ITEM CHECKLIST....................... 3 LAYOUT DIAGRAM....................4 CHAPTER 2 HARDWARE INSTALLATION INSTALL INTEL LAG775 SOCKET CPU..............6 INSTALL MEMORY ....................

  • Page 3: Chapter 1 Introduction Of Intel G41 Motherboard Series Features Of Motherboard

    DDRIII 800 / 1066MHz system memories which are expandable to 8GB and the next generation PCI Express interface for the latest AMD and NVIDIA graphics card . The G41 Express and ICH7 chipset motherboard series are absolutely the ultimate solution for game enthusiasts and applications, and it also meets the demanding usage of computing of gaming, multimedia entertainment and business applications.

  • Page 4: 1-1.1 Special Features Of Motherboard

    computing. But if you insist to gain more system performance with variety possibilities of the components you choose, please be careful and make sure to read the detailed descriptions of these value added product features, please get them in the coming section.

  • Page 5: Specification

    PCI-Express x16 by 16 lane slot Expansion Slot 1pcs PCI-Express x1 2pcs 32-bit PCI slot The Intel ICH7 supports four Serial ATA ports provide 3.0 Integrate IDE and Gb/sec data transfer rate SATA2 Integrated Gigabit LAN function. Gigabit LAN Supports Fast Ethernet LAN function provide 10Mb/100Mb/ 1Gb /s data transfer rate.

  • Page 6: Layout Diagram

    ATX 12V Power Connector KB／MS Power ON Jumper (JP1) KB/Mouse Ports CPU Socket mPGA775 Serial Port DDRIII DIMMx2 USB Ports Intel G41Express ATX Power Chipset Connector RJ-45 LAN over USB Ports Audio Connector SWA Chip PCI Express 2.0 x16 by 16 Lane...
  • Page 7 ATX 12V Power Connector KB／MS Power ON Jumper (JP1) KB/Mouse Ports CPU Socket mPGA775 Serial Port DDRIII DIMMx2 USB Ports Intel G41Express ATX Power Chipset Connector RJ-45 LAN over USB Ports Audio Connector PCI Express 2.0 x16 by 16 Lane...

  • Page 8: Chapter 2 Hardware Installation

    2-1 Install Intel LGA775 Socket CPU This motherboard provides a 775-pin DIP, LGA775 Land Grid Array socket, referred to as the LGA775 socket supports Intel Pentium 4 processor in the 775 Pin package utilizes Flip-Chip Land Grid Array (FC-LGA) package technology.

  • Page 9: Install Memory

    2-3 Expansion Cards The G41 Express chipset based motherboard series offer one PCI-Express2.0 x16 by 16lane graphics slots which get 7 times of bandwidth more than AGP8X. This graphics slot offers 8 Gbyte/sec data transfer rate at each relative direction and up to 16Gbyte/sec concurrent bandwidth at full speed.

  • Page 10: Connectors

    PCI-E 2.0 x16 Slot PCI-E2.0 x1 Slot 32-bit PCI Slots Chapter 3 Connectors, Headers & Jumpers Setting 3-1 Connectors Power Connector (24-pinblock): ATXPWR ATX Power Supply connector: This is a new defined 24-pins connector that usually comes with ATX case. The ATX Power Supply allows using soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
  • Page 11 ATX 12V Power Connector (4-pin block) : ATX12V This is a new defined 4-pins connector that usually comes with ATX Power Supply. The ATX Power Supply which fully supports AM2 processor must including this connector for support extra 12V voltage to maintain system power consumption.

  • Page 12: Headers

    IDE1 IDE1 Pin 1 Primary IDE Connector • Two hard disks can be connected to each connector. The first HDD is referred to as the “Master” and the second HDD is referred to as the “Slave”. • For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk.
  • Page 13 (2) USB Port Headers (9-pin) :USB2 / USB3 These headers are used for connecting the additional USB port plug. attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel. USB2 USB3 Pin 1 Pin 1 USB Port Headers...
  • Page 14 should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector. CPUFAN SYSFAN1 FAN Power Headers (9) Parallel Port header (25-pin): PARALLEL The onboard parallel port header is a 25-pin connector for connecting devices such as old-fashioned printer.

  • Page 15: Jumper Setting

    3-3 Jumper Setting (1) Keyboard/Mouse/USB function Enabled/Disabled: JP1 1-2 Closed KB/MS/ USB Power ON Disable 2-3 Closed KB/MS/ USB Power ON Enabled (Default) Keyboard/Mouse & USB Power On Setting (2) CMOS RAM Clear (3-pin): JBAT A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.

  • Page 16: Chapter 4 Useful Help

    Chapter 4 Useful Help 4-1 How to Upgrade BIOS Solution1: Updating BIOS under DOS: 1. Prepare a bootable disk. (You may make one by click START click RUN type SYS click OK) 2. Download upgrade tools and the latest BIOS files of the motherboard from official website and then make a copy of it to your bootable floppy disk after decompressing these files 3.
