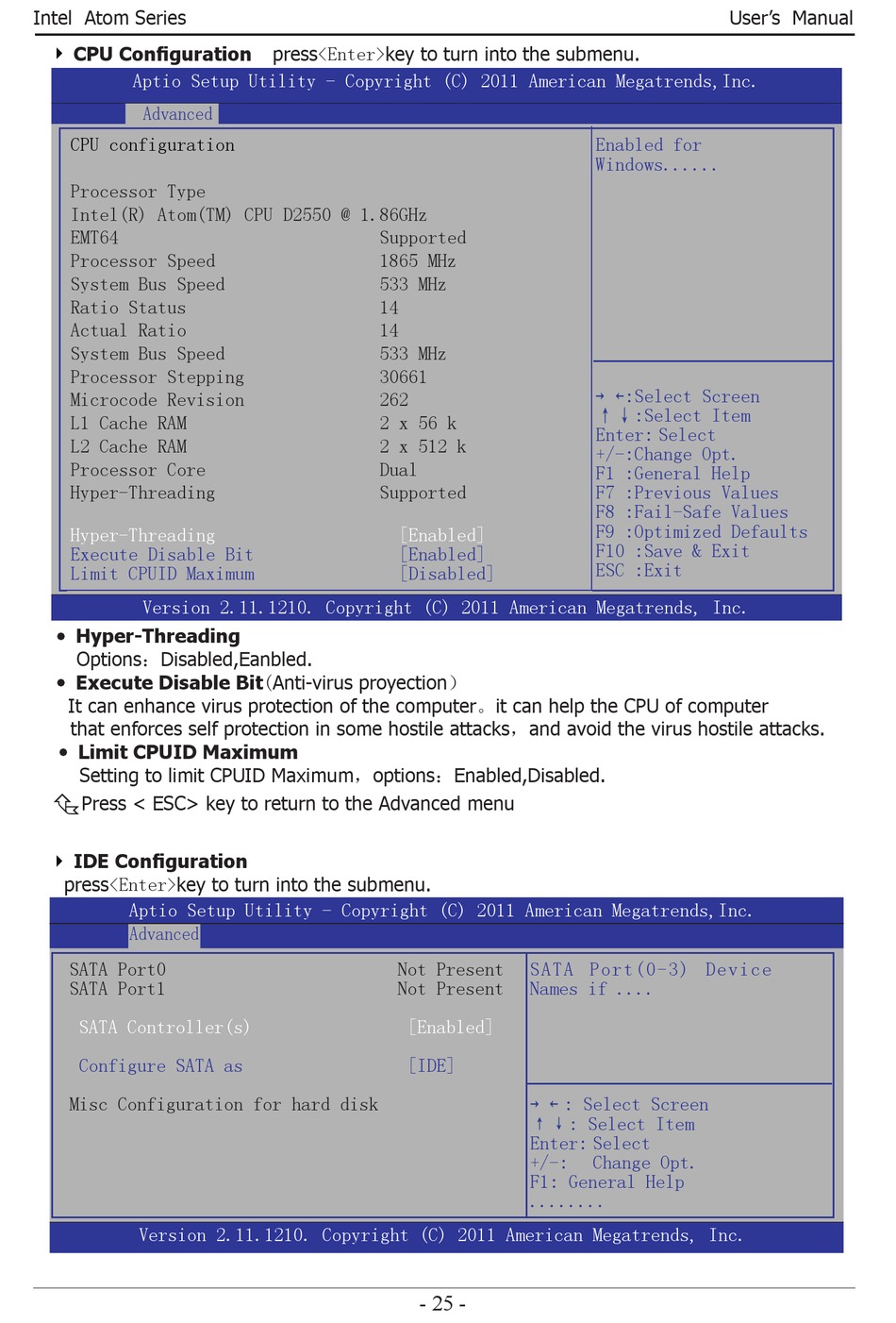

► CPU Confguration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc.
Advanced
CPU configuration
Processor Type
Intel(R) Atom(TM) CPU D2550 @ 1.86GHz
EMT64
Processor Speed
System Bus Speed
Ratio Status
Actual Ratio
System Bus Speed
Processor Stepping
Microcode Revision
L1 Cache RAM
L2 Cache RAM
Processor Core
Hyper-Threading
Hyper-Threading
Execute Disable Bit
Limit CPUID Maximum
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
・ Hyper-Threading
Options：Disabled,Eanbled.
・ Execute Disable Bit(Anti-virus proyection）
It can enhance virus protection of the computer。it can help the CPU of computer
that enforces self protection in some hostile attacks，and avoid the virus hostile attacks.
・ Limit CPUID Maximum
Setting to limit CPUID Maximum，options：Enabled,Disabled.

Press < ESC> key to return to the Advanced menu
►
IDE Confguration
press<Enter>key to turn into the submenu.
