Operation/Reference Guide
MVP-5200i
Modero® Viewpoint

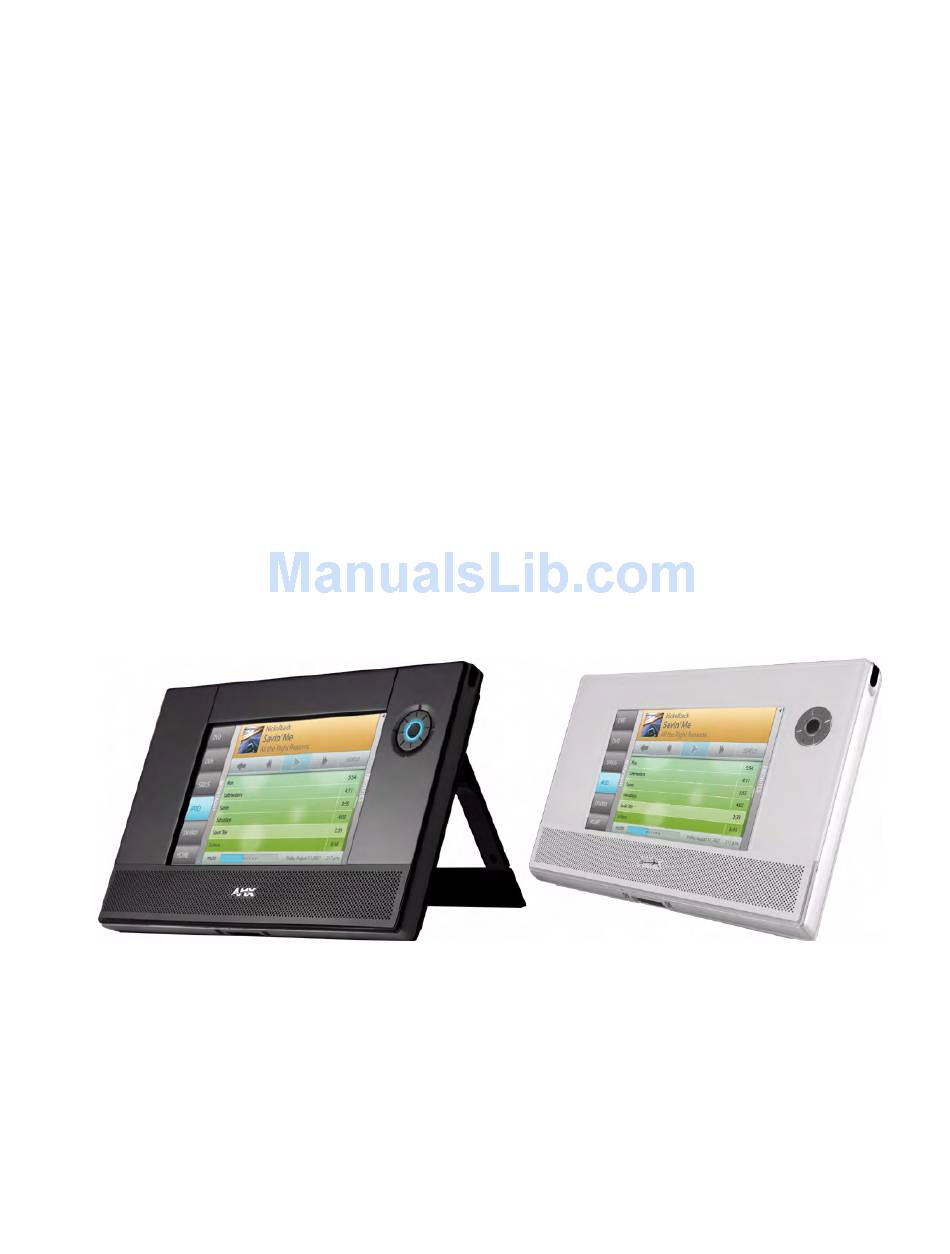

Widescreen Touch Panel
M i o M o d e r o T o u c h P a n e l s
L a s t U p d a t e d : 4 / 2 3 / 2 0 1 0

Advertisement

Table of Contents
loading

Related Manuals for AMX Modero MVP-5200i

Summary of Contents for AMX Modero MVP-5200i

  • Page 1 Operation/Reference Guide MVP-5200i Modero® Viewpoint Widescreen Touch Panel M i o M o d e r o T o u c h P a n e l s L a s t U p d a t e d : 4 / 2 3 / 2 0 1 0...
  • Page 2 AMX Limited Warranty and Disclaimer All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused.
  • Page 3 FCC Information This device complies with Part 15 of the FCC Rules and Industry Canada RSS 210, subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of...
  • Page 4 Software License and Warranty Agreement • LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Introduction ......................1 Memory ........................4 Connector Locations ....................5 Navigation Wheel ..................... 5 Basic Operation ......................6 Intercom Microphone ....................6 Stylus ........................6 Kick Stand......................... 6 Audio/Video Capabilities ..................6 Power Management....................6 Cleaning the Touch Overlay and Navigation Wheel..........
  • Page 6 Table of Contents IR Communication ....................25 "Find Me" Function ....................25 Modero Setup and System Settings ............... 26 Accessing the Setup and Protected Setup Pages............26 Setting the Panel’s Device Number................26 Wireless Settings - Wireless Access Overview ............27 Hot Swapping........................
  • Page 7 Table of Contents Time & Date Setup Page ..................64 Audio Adjustments/Volume Page ................65 WAV files - Supported sample rates ................66 Batteries Page ......................66 Protected Setup Pages ................... 67 Protected Setup Navigation Buttons ................69 G4 Web Control Page..................... 70 Password Setup Page .....................
  • Page 8 Table of Contents Dynamic Image Commands................... 147 Browser-Based User Pages ................151 Battery Life and Replacement ................153 Overview ......................153 Battery Replacement .................... 153 Appendix A: Text Formatting .................155 Text Formatting Codes for Bargraphs/Joysticks........... 155 Text Area Input Masking..................156 Input mask character types ..................156 Input mask ranges .......................

  • Page 9: Introduction

    Introduction Introduction ® ® The MVP-5200i Modero Viewpoint Widescreen Touch Panel is AMX’s smallest and most powerful wireless handheld panel, available in black (FG5966-01) (FIG. 1) and white (FG5966-02). The MVP- 5200i is a wireless-only ergonomic device capable of Voice Over Internet Protocol (VoIP) communication, with all control established through a NetLinx Master.
  • Page 10 Introduction The MVP-5200i comes with an integrated rear "kickstand", allowing it to be used and displayed away from a Charging Station if necessary (FIG. 2). It also comes with a pre-installed 802.11g WPA/WPA2 SDIO wireless card. Kickstand DC power jack Mini-USB port FIG.
  • Page 11 Introduction MVP-5200i Specifications (FG5966-01, FG5966-02) (Cont.) Battery Duration: • Four days of normal use, in a combination of Awake, Standby, and Shutdown. • Up to six hours of continuous use (continuous Awake state). Memory: • 128 MB Mobile DDRAM (upgrade not available) •...

  • Page 12: Memory

    Introduction MVP-5200i Specifications (FG5966-01, FG5966-02) (Cont.) Other AMX Equipment: • MVP-TCS-52: Table Charging Station (FG5966-1X) • MVP-WCS-52: Wall Charging Station (FG5966-1X) • MVP-BP-5X: Battery Replacement Kit (FG5966-27) • MVP-STYLUS-52-GB: Black Replacement Stylus, Pack of 3 (FG5966-21) • MVP-STYLUS-52-GW: White Replacement Stylus, Pack of 3 (FG5966-22) •...

  • Page 13: Navigation Wheel

    Introduction Basic Operation The MVP-5200i is operated using both its integral touchscreen and the navigation wheel on the right side of the device. If the device has gone into its Standby Mode, a touch of the touchscreen or of the button wheel will reactivate it.
  • Page 14 Introduction The light at the center of the navigation wheel brightens and dims based on its source of power. It lights at full intensity when attached to a power source, such as the Table Charging Station (see the Table Charging Station section on page 9) or the Wall Charging Station (see the Wall Charging Station section on page 11), but lights at only half intensity when running on its internal battery.

  • Page 15: Intercom Microphone

    Introduction Navigation Wheel behavior in each Power Mode (Cont.) Power Mode Power Enters Mode By - Exits Mode By - LED Behavior Notes Status (Sleep Blink Setting) Enabled Disabled Stand By Battery Enabled Advanced 1. Apply External External (Display Off, Power Power Management Power...

  • Page 16: Kick Stand

    Introduction Kick Stand Since the MVP-5200i device is designed to be a unit used away from its charging station, it has an extendable "kickstand" on the back of the unit (FIG. 2). This may be opened by physically lifting the free end of the kick stand away from the device.

  • Page 17: Accessories

    Accessories Accessories Table Charging Station The MVP-5200i device comes with the MVP-TCS-52 Table Charging Station (FG5966-1X) (FIG. 5), which acts both as a charging station and a direct power connection. The charging station is available in either white (FG5966-10) or black (FG5966-11). FIG.

  • Page 18: Connections And Wiring

    Accessories 4. Place the touch panel in the Charging Station cradle (FIG. 6), guiding it into place with the locking grooves on each side of the cradle (FIG. 7). When fully seated, the touch panel’s charging station connector should be in contact with the Charging Station’s charger pins. MVP-5200i device Table Charging Station...

  • Page 19: Wall Charging Station

    Accessories Wall Charging Station The optional MVP-WCS-52 Wall Charging Station (FG5966-1X) offers the same recharging and connection features as the Table Charging Station, with the advantage of being placed within accessible locations where the table station is either inconvenient or impractical (FIG. 8). The Wall Charging Station is available in either white (FG5966-13) or black (FG5966-12).
  • Page 20 Accessories MVP-WCS-52 Specifications Front Panel • Securing Magnets: Prevent MVP touch panel from falling free during ejection. Components: • Security Latch: Adds the primary layer of security when mounting an MVP touch panel. When the device is inserted, this latch grabs onto the rear of the touch panel and secures it to prevent it from being removed.

  • Page 21: Recharging

    Accessories Wall Charging Station MVP-5200i Security Release button FIG. 9 MVP-WCS-52-GW Wall Charging Station - Side view Unlocking the touch panel Once placed within the Wall Charging Station, the MVP-5200i remains secured until the user unlocks it. A ten-second lag betwen the touch panel being placed in the Wall Charging Station and thesecurity feature enabling allows the user to remove the touch panel if it is accidentally put into the device.
  • Page 22 Accessories Installing the MVP-WCS-52 Since the Wall Charging Station is intended to be affixed to a wall or other permanent structure, care must be taken to ensure its proper installation to prevent potential damage to the MVP-5200i placed within. Other than wall installation tools, the only tool required for this installation is a #1 Phillips screwdriver.
  • Page 23 Accessories To assist with wiring, and to avoid mechanical stresses on the wire and the mechanism of the Wall-Mounted Charging Station, the top right knockout is preferred for use. 3. Run the power cable through the knockout into the box. Pull out about six inches (15.25cm) of cable into the box to facilitate installation of the MVP-WCS-52.
  • Page 24 Accessories Strip 0.25 inch (6.35 mm) of wire insulation off all wires. Insert each wire into the appropriate opening on the connector. Turn the screws clockwise to secure the wires in the connector. Do not over-torque the screws; doing so can bend the seating pins and damage the connector. 7.
  • Page 25 Accessories Screw holes Plastic back box Neodymium magnets MVP-WCS-52 Rubber feet FIG. 13 Installation of MVP-WCS-52 For ease of installation, put each screw on a neodymium magnet in the device’s interior compartment to keep them on hand until they are needed. 11.
  • Page 26 Accessories Installing the Optional Metal Rough-In Box The optional metal rough-in box (FG037-11) is 10 inches (25.40cm) wide at its widest dimension (wider than the bezel of the Wall Charging Station), and is only intended for pre construction installations (FIG. 14). The Metal Rough-In Box is used in conjunction with the Wall Charging Station’s plastic back box.
  • Page 27 Accessories Other MVP-WCS-52 installations The Wall-Mounted Charging Station is designed to be installed in various different locations, such as into the face of a wooden podium or the top of a table. Depending upon the ability to wire it to a power source, Wall-Mounted Charging Stations may be installed on vertical or horizontal surfaces composed of such materials as wood, brick, and glass.
  • Page 28 Accessories MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 29: Configuring Communication

    Configuring Communication Configuring Communication All control for a MVP-5200i touch panel is established through a NetLinx Master. Communication between the MVP and the Master consists of using either Wireless Ethernet (DHCP, Static IP) or USB. References to Ethernet in this manual focus on the use of Wireless Ethernet via the MVP’s WiFi Card. Before commencing, verify you are using the latest NetLinx Master and Modero panel-specific firmware.

  • Page 30: Ir Communication

    Configuring Communication IR Communication In certain situations, the MVP-5200i may be used as an infrared remote device for other AMX controllers. The device can transmit IR over 20 feet (6.10 m) from the panel at frequencies of 38KHz, 455KHz, and 1.2MHz. IR receivers and transmitters on G4 panels share the device address number of the panel.

  • Page 31: Modero Setup And System Settings

    Configuring Communication Modero Setup and System Settings All AMX Modero panels, including the MVP-5200i, feature on-board Setup pages. Use the options in the Setup pages to access panel information and make various configuration changes. Accessing the Setup and Protected Setup Pages 1.

  • Page 32: Setting The Panel's Device Number

    Configuring Communication Setting the Panel’s Device Number In the Protected Setup page: 1. Press the Device Number field in the Device ID section to open the Device Number keypad. 2. Enter a unique Device Number assignment for the device, and press Done to return to the Protected Setup page.

  • Page 33: Configuring Wireless Network Access

    Configuring Communication Configuring Wireless Network Access The first step in connecting the MVP-5200i to a wireless network is to configure the wireless communication parameters within the device’s Wireless Settings page. This page only configures the card to communicate to a target WAP: the device must still be directed to communicate with the correct Master.

  • Page 34: Wireless Communication Using A Static Ip Address

    Configuring Communication This information can be found in either the Workspace - System name > Define Device section of the code that defines the properties for the panel, or in the Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics dialog. 6.

  • Page 35: Using The Site Survey Tool

    Configuring Communication Using the Site Survey tool This tool allows a user to "sniff out" all transmitting Wireless Access Points within the detection range of the internal wireless card (FIG. 20). Once the Site Survey button is pressed, the device displays the Site Survey page, which contains the following categories: Network Name (SSID) - Wireless Access Point names Channel (RF) - Channel currently being used by the WAP (Wireless Access Point)
  • Page 36 Configuring Communication If the panel detects more than 10 WAPs, the Up/Down arrows at the far right side of the page become active (blue) and allow the user to scroll through the list of entries. 4. Select a desired Access Point by touching the corresponding row. The up arrow and down arrow will be grayed out if ten or fewer access points are detected.

  • Page 37: Step 2: Configure The Card's Wireless Security Settings

    Configuring Communication Step 2: Configure the Card’s Wireless Security Settings The second step in setting up the wireless card is to configure the Wireless Settings section of the Wireless Settings page. This section configures both the communication and security parameters from the internal wireless card to the WAP.

  • Page 38: Configuring Communication

    Configuring Communication 3. From within the Wireless Security section, press the Open (Clear Text) button to open the Open (Clear Text) Settings dialog (FIG. 23). An Open security method does not utilize any encryption methodology, but does require that an alpha-numeric SSID be entered. This method sends out network packets as unencrypted text.

  • Page 39: Automatically Setting Ssid

    Configuring Communication Automatically setting SSID In the Protected Setup page: 1. Select Wireless Settings. 2. Press the Site Survey button at the bottom of the page. 3. Select a WEP secured WAP from within the Site Survey page, and press the Connect button (FIG.
  • Page 40 Configuring Communication 3. Press the Static WEP button to open the Static WEP Settings dialog (FIG. 26). Requ ired In formation: - SSI D (Net work Name used by t he Target WAP) - Encryption Method - Passphrase - WE P Key assignment - Authentication Met hod FIG.

  • Page 41: Step 3: Choose A Master Connection Mode

    Configuring Communication The signal strength field provides some descriptive text regarding the strength of the connection to a Wireless Access Point. Configuration of the network could be required if there is no signal or no IP Address is displayed. Configuring multiple wireless touch panels to communicate to a target WEP 1.

  • Page 42: Ethernet Over Usb

    Configuring Communication Ethernet over USB The MVP-5200i device is the first G4 device to support a new Ethernet over USB driver for panel downloads and firmware updates. This means that the device can connect to a host computer for updates through its Mini USB port instead of through a standard Ethernet port (FIG.
  • Page 43 Configuring Communication Click OK. 6. In the next box (FIG. 30), make sure to: Select Search for the best driver in these locations Select Include this location in the search Click on Browse Select the folder that contains the 'linux.inf' file FIG.
  • Page 44 Configuring Communication 9. Once the system finds the driver, it displays its choice (FIG. 32). Click Finish to complete the driver installation. FIG. 32 Completing the Found New Hardware Wizard When an IP address is assigned to the usb0 interface on the device, Windows XP will make an attempt to assign an IP address to the corresponding interface on the Windows side.

  • Page 45: Configure A Virtual Netlinx Master Using Netlinx Studio

    Configuring Communication 5. In the new window: Select Use the following IP Address. Under IP address, provide an IP address (ensure that it is in the same subnet as the IP address given to the usb0 interface on the MVP-5200i). Under Subnet mask, set the suitable subnet mask.
  • Page 46 Configuring Communication 3. Click the Communications Settings button to open the Communications Settings dialog (FIG. 35). FIG. 35 Communications Settings dialog box 4. Click the NetLinx Master radio button in the Platform Selection section. 5. Click the Virtual NetLinx Master radio button in the Transport Connection Option section. 6.

  • Page 47: Ethernet

    Configuring Communication Ethernet 1. When using Wireless Ethernet, press the listed Mode to toggle through the available connection modes: Connection Modes Mode Description Procedures None No connection None Auto The device connects to the first master that Setting the System Number: responds.

  • Page 48: Master Connection To A Virtual Master Via Ethernet

    Configuring Communication Master Connection to a Virtual Master via Ethernet When configuring the panel to communicate with a Virtual Master on your PC via wireless Ethernet, the Master IP/URL field must be configured to match the IP Address of the PC. Make sure to use the Virtual System value assigned to the Virtual Master within NetLinx Studio.
  • Page 49 Configuring Communication 5. Click on the Virtual NetLinx Master radio box from the Transport Connection Option section to indicate wanting to configure the PC to communicate with a panel. Everything else, such as the Authentication, is greyed out because the procedure is not being made through the Master’s UI. 6.
  • Page 50 Configuring Communication 13. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page (FIG. 40). The System Number is assigned to the Master within the AMX software application (these must match) Enter the IP Address information of the PC used as a Virtual Master...

  • Page 51: Using G4 Web Control To Interact With A G4 Panel

    Configuring Communication Using G4 Web Control to Interact with a G4 Panel The G4 Web Control feature allows you to use a PC to interact with a G4-enabled panel via the Web. This feature works in tandem with the new browser-capable NetLinx Security firmware update (build 300 or higher).
  • Page 52 Configuring Communication 8. From the Web Name keyboard, enter a unique alpha-numeric string to identify this panel. This information is used by the NetLinx Security Web Server to display on-screen links to the panel. The on-screen links use the IP Address of the panel and not the name for communication (FIG. 42). FIG.

  • Page 53: Using The Netlinx Master To Control The G4 Panel

    Configuring Communication Using the NetLinx Master to control the G4 panel Refer to the particular NetLinx Master’s instruction manual for detailed information on how to download the latest firmware from www.amx.com. This firmware build enables SSL certificate identification and encryption, HTTPS communication, ICSP data encryption, and disables the ability to alter the Master security properties via a TELNET session.
  • Page 54 Configuring Communication 5. Click on the G4 panel name link associated with the target panel. A secondary web browser window appears on the screen (FIG. 44). FIG. 44 Web Control VNC installation and Password entry screens 6. Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer.
  • Page 55 Configuring Communication 9. Enter the Web Control session password into the Session Password field (FIG. 45). This password was previously entered into the Web Control Password field within the G4 Web Control page on the panel. 10. Click OK to send the password to the panel and begin the session. A confirmation message appears stating "Please wait, Initial screen loading.".
  • Page 56 Configuring Communication MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 57: Setup Pages

    Setup Pages Setup Pages The MVP-5200i features on-board Setup pages. Use the options in the Setup pages to access panel information and make various configuration changes. To access the Setup pages, press the center button of the navigation wheel and hold for 3 to 5 seconds (FIG.
  • Page 58 Setup Pages Setup Page (Cont.) Connection Status: Displays whether the panel is has external communication, as well as the encryption status of the Master, the connection type (Ethernet or USB), and to which System the panel is connected. • Until a connection is established, the message displayed is: “Attempting via Ethernet”...

  • Page 59: Navigation Buttons

    Setup Pages Navigation Buttons The following Navigation buttons (FIG. 48) appear on the left side of the Setup page: Press to access the Protected Setup pages. Press to access the Project Information page in order to view information on the TPDesign file being used, and Panel Information page in order to view panel specific information such as resolution and memory.

  • Page 60: Project Information Page

    Setup Pages Information Button The Information button allows access of both the Project Information page, which contains data on the TPDesign4 file being used with the MVP-5200i, and the Panel Information page, which contains detailed information on the panel itself. To access these pages: 1.
  • Page 61 Setup Pages Project Information Page (Cont.) Sales Order: Displays the sales order information. Purchase Order: Displays the purchase order information. AMX IR 38K Assigned Displays the AMX 38 kHz IR channel port used by the IR Emitter on the panel. Port: •...

  • Page 62: Panel Information Page

    Setup Pages Panel Information Page The Panel Information page provides detailed panel information (FIG. 50). FIG. 50 Panel Information page Features on this page include: Panel Information Page Back: Saves all changes and returns to the previous page. Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant visual indication of current connection status.

  • Page 63: Time & Date Setup Page

    Setup Pages Time & Date Settings Page The options on the Time & Date Settings page (FIG. 51) allows setting and adjusting of time and date information on the NetLinx Master. If the time and/or date on the Master is modified, all connected devices will be updated to reflect the new information.
  • Page 64 Setup Pages Audio Settings Page The Audio Settings page allows adjustment of volume levels and panel sounds settings (FIG. 52). FIG. 52 Audio Settings pages Features on these pages include: Audio Settings Page Back: Saves all changes and returns to the previous page. Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant visual indication of current connection status.

  • Page 65: Wav Files - Supported Sample Rates

    Setup Pages Audio Settings Page (Cont.) Analog Line In Level: Adjusts the volume level of any analog signal coming into the device: • Use the Up/Down buttons to adjust the input level (range = 0 - 100) • The Line In Level bargraph indicates the current input level. Press the bargraph to the left or right of the graph marker to adjust the volume level in one-percent increments (range 0 - 100), or press the bargraph and hold to move the graph marker to the desired level.
  • Page 66 Setup Pages Battery Settings Page The options on the Battery Settings page allow setting of power warning preferences and battery status information, and adjustment of the display times for battery warnings (FIG. 53). FIG. 53 Battery page Features on this page include: Battery Page Back: Saves all changes and returns to the previous page.
  • Page 67 Setup Pages Battery Page (Cont.) Battery Power Brightness The DISABLE/DISABLED button acts as a power save feature with two options: Limit: • Disable - Clicking on this button deactivates this power save feature. The panel will use the Panel Brightness level. •...
  • Page 68 Setup Pages MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 69: Protected Setup Pages

    Protected Setup Pages Protected Setup Pages The Protected Setup page (FIG. 54) provides secured access to advanced panel configuration options, including communication and security settings. The Protected Setup page is accessed through the Setup page (please refer to the Setup Pages section on page 49). To access the Protected Setup pages: 1.
  • Page 70 Protected Setup Pages Protected Setup Page (Cont.) System Recovery: • Reset System Settings - Deletes all of the current configuration parameters on the panel (including IP Addresses, Device Number assignments, Passwords, and other presets). This option invokes a Confirmation dialog, prompting you to confirm your selection before resetting the panel.

  • Page 71: Protected Setup Navigation Buttons

    Protected Setup Pages Protected Setup Navigation Buttons The Protected Setup Navigation Buttons (FIG. 56) appear on the left edge of the Protected Setup page. Press to access the System Settings page, which contains IP Settings and Master Connection information. Press to access the Wireless Settings page, which allows configuration of wireless connection settings.
  • Page 72 Protected Setup Pages System Settings Page The System Settings page (FIG. 57) displays sets the NetLinx Master’s communication settings. FIG. 57 System Settings page The elements of this page include: System Settings Page Elements Back: Saves all changes and returns to the previous page. Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a constant visual indication of current connection status.
  • Page 73 Protected Setup Pages System Setting Page Elements (Cont.) Mode Cycles between the connection modes: URL, Listen, NDP(UDP,) URL(UDP), and Auto. (Ethernet Only - disabled when USB is selected) • URL - In this mode, enter the IP/URL, Master Port Number, and username/ password (if used) on the Master.

  • Page 74: Wireless Settings Page

    Protected Setup Pages Wireless Settings Page Use the options on the Wireless Settings page (FIG. 58) to configure communication settings for the wireless CF card (802.11b/g), and read the device number assigned to the panel. FIG. 58 Wireless Settings page (reads from and assigns values to the WAP) Features on this page include: Wireless Settings Page Back:...
  • Page 75 Protected Setup Pages Wireless Settings Page (Cont.) Access Point MAC This unique address identifies the Wireless Access Point (WAP) used by this Address: panel for wireless communication (read-only). • Site Survey button: Launches the Wireless Site Survey page. The options on this page allow you to detect (“sniff-out”) all WAPs transmitting within range of the panel’s Wi-Fi card.
  • Page 76 Protected Setup Pages Wireless Settings Page (Cont.) Wireless Security (Cont.): EAP-TLS This button opens the EAP-TLS Settings page (FIG. 69 on page 83). “EAP-TLS” security is designed for wireless environments where securely transmitting data over a wireless network by adding an additional level of security protocol is necessary via the use of a private key.

  • Page 77: Wireless Security Page

    Protected Setup Pages Wireless Security The options on the Wireless Security section (FIG. 59) include the wireless security methods supported by the NXA-WC80211GCF Wi-Fi card. These security methods incorporate WPA, WPA2, and EAP technology, some of which require the upload of unique certificate files to a target panel. Refer to the Appendix B: Wireless Technology section on page 180 for further information.

  • Page 78: Open (Clear Text) Settings

    Protected Setup Pages Open (Clear Text) Settings Press the Open (Clear Text) button to open the Open (Clear Text) Settings page (FIG. 60). FIG. 60 Wireless Settings page - Open (Clear Text) Settings Open security does not utilize any encryption methodology, but requires an SSID (alpha-numeric) entry. This entry must match the Network Name (SSID) entry of the target WAP so the panel knows what device it is using to communicate with the network.

  • Page 79: Static Wep Settings

    Protected Setup Pages Static WEP Settings Press the Static WEP button to open the Static WEP Settings page (FIG. 61). FIG. 61 Wireless Settings page - Static WEP Settings Static WEP security requires that both a target WAP be identified and an encryption method be implemented prior to establishing communication.
  • Page 80 Protected Setup Pages Static WEP Settings (Cont.) Generate (Passphrase): This button displays an on-screen keyboard which allows you to enter a passphrase. The panel then automatically generates four WEP keys that are compatible only with Modero panels. Enter these WEP keys into the target WAP.

  • Page 81: Wpa-Psk Settings

    Protected Setup Pages WPA-PSK Settings Press the WPA-PSK button to opens the WPA-PSK dialog (FIG. 62). FIG. 62 Wireless Settings page - WPA-PSK Settings WPA-PSK security is designed for environments where using WPA or WPA2 is desirable, but an 802.1x authentication server is not available.

  • Page 82: Eap Security & Server Certificates - Overview

    Protected Setup Pages WPA-PSK Settings (Cont.) Save/Cancel: • Save - store the new security information, apply changes, and return to the previous page. • Cancel - discard changes and return to the previous page. Refer to the Configuring Wireless Network Access section on page 25 for details on these security options.

  • Page 83: Eap-Leap Settings

    Protected Setup Pages EAP-LEAP Settings Press the EAP-LEAP button to open the EAP-LEAP Settings page (FIG. 64). FIG. 64 Wireless Settings page - EAP-LEAP Settings EAP (Extensible Authentication Protocol) is an Enterprise authentication protocol that can be used in both wired and wireless network environments. EAP requires the use of an 802.1x Authentication Server, also known as a Radius server.
  • Page 84 Protected Setup Pages EAP-LEAP Settings SSID (Service Set Identifier): Opens an on-screen keyboard to enter the SSID name used on the target WAP. The SSID is a unique name used by the WAP, and is assigned to all panels on that network. An SSID is required by the WAP before the panel is permitted to join the network.

  • Page 85: Eap-Fast Settings

    Protected Setup Pages EAP-FAST Settings Press the EAP-FAST button to open the EAP-FAST Settings dialog (FIG. 66). FIG. 66 Wireless Settings page - EAP-FAST Settings EAP-FAST (Flexible Authentication via Secure Tunneling) security was designed for wireless environments where security and ease of setup are equally desirable. EAP-FAST uses a certificate file, however it can be configured to download the certificate automatically the first time the panel attempts to authenticate itself.
  • Page 86 Protected Setup Pages EAP-FAST Settings (Cont.) Anonymous Identity: Opens an on-screen keyboard to enter an IT provided alphanumeric string which (similar to the username) is used as the identity, but that does not represent a real user. This information is used as a fictitious name which might be seen by sniffer programs during the initial connection and setup process between the panel and the Radius server.

  • Page 87: Eap-Peap Settings

    Protected Setup Pages EAP-PEAP Settings Press the EAP-PEAP button to open the EAP-PEAP Settings page (FIG. 67). FIG. 67 Wireless Settings page - EAP-PEAP Settings PEAP (Protected Extensible Authentication Protocol) was developed as a way to securely transmit authentication information, such as passwords, over a wireless network environment. PEAP uses only server-side public key certificates and therefore does not need a client (panel) certificate which makes the configuration and setup easier.
  • Page 88 Protected Setup Pages EAP-PEAP security is designed for wireless environments where it is necessary to transmit data securely over a wireless network. EAP-PEAP Settings SSID (Service Set Identifier): Opens an on-screen keyboard to enter the SSID name used on the target WAP.

  • Page 89: Eap-Ttls Settings

    Protected Setup Pages EAP-TTLS Settings Press the EAP-TTLS button to opens the EAP-TTLS Settings page (FIG. 68). FIG. 68 Wireless Settings page - EAP-TTLS Settings TTLS (EAP Tunneled Transport Layer Security) is an authentication method that does not use a client certificate to authenticate the panel.
  • Page 90 Protected Setup Pages EAP-TTLS Settings (Cont.) Identity: Opens an on-screen keyboard. Enter an EAP Identity string (used by the panel to identify itself to an Authentication (RADIUS) Server). Note: This information is similar to a username used to login to a secured server or workstation.

  • Page 91: Eap-Tls Settings

    Protected Setup Pages EAP-TLS Settings Press the EAP-TLS button to open the EAP-TLS Settings page (FIG. 69). FIG. 69 Wireless Settings page - EAP-TLS Settings TLS (Transport Layer Security) was the original standard wireless LAN EAP authentication protocol. TLS requires additional work during the deployment phase, but provides additional security since even a compromised password is not enough to break into an EAP-TLS protected wireless network environment.
  • Page 92 Protected Setup Pages EAP-TLS Settings (Cont.) Certificate Authority: When pressed, the panel displays an on-screen Certificate Authority (CA) File Location keyboard, for entering the name of the certificate authority file which is used to validate the server certificate. This field is optional. If a server certificate is used, it should first be downloaded into the panel and the Certificate Authority field should then be set to the name of that certificate file.

  • Page 93: Client Certificate Configuration

    Protected Setup Pages Client certificate configuration A client certificate can be configured by an IT department in several ways. The client certificate and private key can both be incorporated into one file or split into two separate files. In addition, the file format used by these files could be PEM, DER, or PKCS12.
  • Page 94 Protected Setup Pages Calibration Page The Calibration page (FIG. 70) allows you to calibrate the touch panel for accurate button selection. FIG. 70 Calibration page 1. Press and hold the center button on the navigation wheel for 6 seconds to access the Calibration page (see FIG.

  • Page 95: G4 Web Control Settings Page

    Protected Setup Pages G4 Web Control Settings Page An on-board VNC (Virtual Network Computing) server allows the panel to connect to any remote PC running a VNC client. Once connected, the client can view and control the panel remotely. The options on this page allow you to enable/disable G4 Web Control functionality(FIG.
  • Page 96 Protected Setup Pages Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 43 for instructions on using the G4 Web Control page with the web-based NetLinx Security application. MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 97: Other Settings

    Protected Setup Pages Other Settings Press the Other Settings button to display the two settings options for Cache and Password. Press one of the options within three seconds, or the two options buttons will slide back behind the Other Settings button.
  • Page 98 Protected Setup Pages Cache Settings Page (Cont.) RAM Hit Rate: The number of times the RAM cache was referenced since the last cache clearing. Items In Cache (RAM): The total number of cached images in the RAM cache. Flash Current Size: The maximum size allocated to the flash cache.

  • Page 99: Password Settings Page

    Protected Setup Pages Password Settings Page The options on the Password Settings page (FIG. 73) allow assignment of passwords required for users to access the Protected Setup page, and to release the device from a MVP-WCS-52 Charging Station. FIG. 73 Password Setup page Features on this page include: Password Setup Page...
  • Page 100 Protected Setup Pages To change a previously established password: 1. In the Password Settings page, press the button in the In Panel Password Change section for the particular password to be changed. Password 5 is protected, and can only be changed by the Administrator. 2.
  • Page 101 Protected Setup Pages SIP Settings Page The options on the SIP Settings page (FIG. 74) enable you to establish network settings for using your touch panel as an IP phone. With a CSG SIP Communications Gateway (FG2182-01, -02, -03), you can use your touch panel to make and receive local, long distance, and international phone calls, and have access to phone features like call waiting, caller ID, call forwarding, call queuing, and voice mail.
  • Page 102 Protected Setup Pages SIP Settings Page (Cont.) Status: This option enables the SIP Stack on startup. If you disable this option, the panel will not attempt to read the rest of the configuration and will not register with a proxy server. However, point-to-point SIP will still be enabled allowing for existing intercom functionality.
  • Page 103 Protected Setup Pages Tools Press and hold the Tools button to access the MVP-5200i’s Panel Logs, Panel Statistics, and Connection Utility buttons (FIG. 75). Each of these buttons opens a separate page, covered in detail below. FIG. 75 Tools button menu The Tools button menu will remain visible for three seconds, regardless of whether or not the button continues to be held.
  • Page 104 Protected Setup Pages Panel Statistics Page The Panel Statistics page (FIG. 77) displays activity between the device and the network in proportions of ICSP messages, blink messages, and Ethernet versus wireless use. FIG. 77 Panel Statistics Page Panel Statistics Page Back: Saves all changes and returns to the previous page.
  • Page 105 Protected Setup Pages Connection Utility Page The Connection Utility page (FIG. 78) displays the current wired and wireless connection information, including the latest link quality and signal strength information. FIG. 78 Connection Utility Page Connection Utility Page Connection Information: Master IP: The IP address for the network’s Master.
  • Page 106 Protected Setup Pages MVP-5200i Modero Viewpoint Widescreen Touch Panel...
  • Page 107 Upgrading Firmware Upgrading Firmware For the purpose of panel downloads, the MVP-5200i’s download procedure is not compatible with other AMX panel devices. This is due to the unique configuration of the device. The first major change from other AMX devices is that the MVP-5200i uses dynamic Setup Pages for its displays.
  • Page 108 Upgrading Firmware 1. Launch NetLinx Studio 2.x and select Settings > Master Communication Settings from the Main menu to open the Master Communication Settings dialog (FIG. 79). If this is the first time the device needs to be configured, refer to the Configuring Modero Firmware via the USB Port section on page 186.
  • Page 109 Upgrading Firmware 5. Click the Edit Settings button on the Communications Settings dialog to open the Virtual NetLinx Master Settings dialog (FIG. 81). FIG. 81 Virtual NetLinx Master Settings 6. Within this dialog, enter the Master System number. The default is 1. 7.
  • Page 110 Upgrading Firmware 3. After the Communication Verification dialog window verifies active communication between the Virtual Master and the panel, click the OnLine Tree tab in the Workspace window (FIG. 82) to view the devices on the Virtual System. The default System value is 1. 4.
  • Page 111 Upgrading Firmware 7. Select Tools > Firmware Transfers > Send to NetLinx Device from the main menu to open the Send to NetLinx Device dialog (FIG. 83). Verify that the panel’s System and Device number values match those values listed within the System folder in the OnLine Tree tab of the Workspace window.

  • Page 112: A Special Note For Network Interface Connections

    Upgrading Firmware 16. Confirm that the panel has been properly updated to the correct firmware version. Verify you have downloaded the latest firmware file from www.amx.com and then save the Kit file to your computer. A Special Note for Network Interface Connections Due to any USB connection to your PC being made through a Network Interface Connection (NIC), Windows will automatically make any new NIC connection the Primary connection.
  • Page 113 Upgrading Firmware 3. From the Advanced menu, select Advanced Settings... to open the Advanced Settings window (FIG. 86). FIG. 86 Advanced Settings window 4. Under the Adapters And Bindings tab, the user needs to make sure the Local Area Connection is not at the top of the Connections list.
  • Page 114 Upgrading Firmware 5. In the lower Bindings for Local Area Connection field, unselect ALL bindings by clicking on the checkboxes by each binding to remove the checks from each box (FIG. 88). FIG. 88 Bindings for Local area list detail 6.

  • Page 115: Programming

    Programming Programming Overview You can program the MVP-5200i, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).

  • Page 116: Page Commands

    Programming Page Commands These Page Commands are used in NetLinx Programming Language and are case insensitive. Page Commands Add the popup page to a group if it does not already exist. If the new popup is added to a @APG group which has a popup displayed on the current page along with the new pop-up, the Add a specific displayed popup will be hidden and the new popup will be displayed.
  • Page 117 Programming Page Commands (Cont.) Syntax: @PHE Set the hide effect "'@PHE-<popup page name>;<hide effect name>'" for the specified Variable: popup page to the popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed named hide effect.
  • Page 118 Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). If the popup page is @PPF part of a group, the whole group is deactivated. This command works in the same way as Deactivate a the ’Hide Popup’...
  • Page 119 Programming Page Commands (Cont.) A Modal popup page, when active, only allows you to use the buttons and features on that @PPM popup page. All other buttons on the panel page are inactivated. Set the modality of a specific Syntax: popup page to "'@PPM-<popup page name>;<mode>'"...
  • Page 120 Programming Page Commands (Cont.) Syntax: @PSE Set the show "'@PSE-<popup page name>;<show effect name>'" effect for the Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed page to the named show show effect name = Refers to the popup effect name being used.
  • Page 121 Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). If the popup page is PPOF part of a group, the whole group is deactivated. This command works in the same way as Deactivate a the ’Hide Popup’...

  • Page 122: Programming Numbers

    Programming Programming Numbers The following information provides the programming numbers for colors, fonts, and borders. Colors can be used to set the colors on buttons, sliders, and pages. The lowest color number represents the lightest color-specific display; the highest number represents the darkest display. For example, 0 represents light red, and 5 is dark red.
  • Page 123 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Very Light Cyan Light Cyan Cyan Medium Cyan Dark Cyan Very Dark Cyan Very Light Aqua Light Aqua Aqua Medium Aqua Dark Aqua Very Dark Aqua Very Light Blue Light Blue Blue...

  • Page 124: Font Styles And Id Numbers

    Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Grey8 Grey10 Grey12 Grey13 Grey2 Grey11 Grey14 Black TRANSPARENT Font styles and ID numbers Font styles can be used to program the text fonts on buttons, sliders, and pages. The following chart shows the default font type and their respective ID numbers generated by TPDesign4.

  • Page 125: Border Styles And Programming Numbers

    Programming Border styles and Programming numbers Border styles can be used to program borders on buttons, sliders, and popup pages. Border Styles and Programming Numbers Border styles Border styles No border 10-11 Picture frame Single line Double line Double line Bevel-S Quad line Bevel-M...
  • Page 126 Programming TPD4 Border Styles by Name (Cont.) Border styles Border styles Diamond 185 Menu Bottom Rounded 185 Diamond 195 Menu Bottom Rounded 195 Double Bevel -L Menu Top Rounded 15 Double Bevel -M Menu Top Rounded 25 Double Bevel -S Menu Top Rounded 35 Double Line Menu Top Rounded 45...
  • Page 127 Programming TPD4 Border Styles by Name (Cont.) Border styles Border styles Menu Left Rounded 55 Menu Left Rounded 135 Menu Left Rounded 65 Menu Left Rounded 145 Menu Left Rounded 75 Menu Left Rounded 155 Menu Left Rounded 85 Menu Left Rounded 165 Menu Left Rounded 95 Menu Left Rounded 175 Menu Left Rounded 105...

  • Page 128: Button Commands

    Programming "^" Button Commands These Button Commands are used in NetLinx Studio and are case insensitive. All commands that begin with "^" have the capability of assigning a variable text address range and button state range. A device must first be defined in the NetLinx programming language with values for the Device: Port : System (in all programming examples - Panel is used in place of these values).
  • Page 129 Programming "^" Button Commands (Cont.) Same format as ^UNI. ^BAU Append Syntax: unicode text. "'^BAU-<vt addr range>,<button states range>,<unicode text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 130 Programming "^" Button Commands (Cont.) Only if the specified text color is not the same as the current color. ^BCT Set the text color Note: Color can be assigned by color name (without spaces), number or R,G,B value to the specified (RRGGBB or RRGGBBAA).
  • Page 131 Programming "^" Button Commands (Cont.) Syntax: ^BIM Set the input "'^BIM-<vt addr range>,<input mask>'" mask for the Variable: specified address. variable text address range = 1 - 4000. input mask = Refer to the Text Area Input Masking table on page 176 for character types.
  • Page 132 Programming "^" Button Commands (Cont.) Note that the source is a single button state. Each state must be copied as a separate ^BMC command. The <codes> section represents what attributes will be copied. All codes are Button copy 2 char pairs that can be separated by comma, space, percent or just ran together. command.
  • Page 133 Programming "^" Button Commands (Cont.) Syntax: ^BMF Set any/all button "'^BMF-<vt addr range>,<button states range>,<data>'" parameters by Variables: sending variable text address char array = 1 - 4000. embedded codes button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons and data.
  • Page 134 Programming "^" Button Commands (Cont.) For some of these commands and values, refer to the RGB Values for all 88 Basic ^BMF Colors table on page 114. (Cont.) ’%CF<on fill color>’ = Set Fill Color. ’%CB<on border color>’ = Set Border Color. ’%CT<on text color>’...
  • Page 135 Programming "^" Button Commands (Cont.) Mask image is used to crop a borderless button to a non-square shape. This is typically ^BMI used with a bitmap. Set the button mask image. Syntax: "'^BMI-<vt addr range>,<button states range>,<mask image>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 136 Programming "^" Button Commands (Cont.) Syntax: ^BNN Set the TakeNote "'^BNN-<vt addr range>,<network name>'" network name for Variable: the specified variable text address range = 1 - 4000. Addresses. network name = Use a valid IP Address. Example: SEND_COMMAND Panel,"'^BNN-973,192.168.169.99'" Sets the TakeNote button network name to 192.168.169.99.
  • Page 137 Programming "^" Button Commands (Cont.) Refer to the Border Styles and Programming Numbers table on page 117 for more ^BOR information. Set a border to a specific border Syntax: style associated "'^BOR-<vt addr range>,<border style name or border value>'" with a border Variable: value for those buttons with a...
  • Page 138 Programming "^" Button Commands (Cont.) Only if the specified border is not the same as the current border. The border names are ^BRD available through the TPDesign4 border-name drop-down list. Set the border of a button state/ Syntax: states. "'^BRD-<vt addr range>,<button states range>,<border name>'" Variable: variable text address range = 1 - 4000.
  • Page 139 Programming "^" Button Commands (Cont.) Syntax: ^BVL Log-On/Log-Off "'^BVL-<vt addr range>,<connection>'" the computer Variable: control variable text address range = 1 - 4000. connection. connection = 0 (Log-Off connection) and 1 (Log-On connection). Example: SEND_COMMAND Panel,"'^BVL-500,0'" Logs-off the computer control connection of the button. Syntax: ^BVN Set the computer...
  • Page 140 Programming "^" Button Commands (Cont.) Syntax: ^CPF Clear all page flips "'^CPF-<vt addr range>'" from a button. Variable: variable text address range = 1 - 4000. Example: SEND_COMMAND Panel,"'^CPF-500'" Clears all page flips from the button. Syntax: ^DLD Set the disable "'^DLD-<status>'"...
  • Page 141 Programming "^" Button Commands (Cont.) Font ID numbers are generated by the TPDesign4 programmers report. ^FON Set a font to a Syntax: specific Font ID "'^FON-<vt addr range>,<button states range>,<font value>'" value for those Variable: buttons with a defined address variable text address range = 1 - 4000.
  • Page 142 Programming "^" Button Commands (Cont.) Syntax: ^GLH Change the "'^GLH-<vt addr range>,<bargraph hi>'" bargraph upper Variable: limit. variable text address range = 1 - 4000. bargraph limit range = 1 - 65535 ( bargraph upper limit range ). Example: SEND_COMMAND Panel,"'^GLH-500,1000'" Changes the bargraph upper limit to 1000.
  • Page 143 Programming "^" Button Commands (Cont.) Slider names and cursor names can be found in the TPDesign4 slider name and cursor ^GSN drop-down list. Change the bargraph slider Syntax: name or joystick "'^GSN-<vt addr range>,<bargraph slider name>'" cursor name. Variable: variable text address range = 1 - 4000. bargraph slider name = See table below.
  • Page 144 Programming "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JSB to the upper left corner of the button. Set bitmap/ picture alignment Syntax: using a numeric "'^JSB-<vt addr range>,<button states range>,<new text keypad layout for alignment>'"...
  • Page 145 Programming "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JST to the upper left corner of the button. Set text alignment using a Syntax: numeric keypad "'^JST-<vt addr range>,<button states range>,<new text layout for those alignment>'"...
  • Page 146 Programming "^" Button Commands (Cont.) The Text Effect is specified by name and can be found in TPD4. You can also assign the ^TEC color by name or RGB value (RRGGBB or RRGGBBAA). Set the text effect color for the Syntax: specified "'^TEC-<vt addr range>,<button states range>,<color value>'"...

  • Page 147: Miscellaneous Mvp Strings Back To The Master

    Programming "^" Button Commands (Cont.) For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ^UNI ASCII-HEX nibbles. Set Unicode text. Syntax: "'^UNI-<vt addr range>,<button states range>,<unicode text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 148: Text Effects Names

    Programming MVP Panel Lock Passcode Commands (Cont.) Syntax: ^LPR Remove a given "'^LPR-<user>'" user from the User Variable: Access user = 1 - 50 ASCII characters. Passwords list on the Password Example: Setup page. SEND_COMMAND Panel,"'^LPR-Robert'" Remove user named ’Robert’ from the User Access Password list on the Password Setup page.

  • Page 149: Button Query Commands

    Programming Text Effects (Cont.) • Soft Drop Shadow 1 with outline • Soft Drop Shadow 2 with outline • Soft Drop Shadow 3 with outline • Soft Drop Shadow 4 with outline • Soft Drop Shadow 5 with outline • Soft Drop Shadow 6 with outline •...
  • Page 150 Programming All custom events have the following 7 fields: Custom Event Fields Field Description Uint Flag 0 means text is a standard string, 1 means Unicode encoded string slong value1 button state number slong value2 actual length of string (this is not encoded size) slong value3 index of first character (usually 1 or same as optional index string text...
  • Page 151 Programming Button Query Commands (Cont.) Syntax: ?BCF Get the current fill "'?BCF-<vt addr range>,<button states range>'" color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 152 Programming Button Query Commands (Cont.) Syntax: ?BMP Get the current "'?BMP-<vt addr range>,<button states range>'" bitmap name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 153 Programming Button Query Commands (Cont.) Syntax: ?BRD Get the current "'?BRD-<vt addr range>,<button states range>'" border name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 154 Programming Button Query Commands (Cont.) Syntax: ?FON Get the current "'?FON-<vt addr range>,<button states range>'" font index. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 155 Programming Button Query Commands (Cont.) Syntax: ?JSB Get the current "'?JSB-<vt addr range>,<button states range>'" bitmap Variable: justification. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 156 Programming Button Query Commands (Cont.) Syntax: ?JST Get the current "'?JST-<vt addr range>,<button states range>'" text justification. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 157 Programming Button Query Commands (Cont.) Syntax: ?TEF Get the current "'?TEF-<vt addr range>,<button states range>'" text effect name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 158: Panel Runtime Operations

    Programming Panel Runtime Operations Serial Commands are used in the AxcessX Terminal Emulator mode. These commands are case insensitive. Panel Runtime Operation Commands Syntax: ABEEP Output a single "'ABEEP'" beep even if beep Example: is Off. SEND COMMAND Panel,"'ABEEP'" Outputs a beep of duration 1 beep even if beep is Off. Syntax: ADBEEP Output a double...
  • Page 159 Programming Panel Runtime Operation Commands (Cont.) Keypad string is set to null on power up and is stored until power is lost. The Prompt Text @AKP is optional. Pop up the keypad icon and Syntax: initialize the text "'@AKP-<initial text>;<prompt text>'" string to that Variables: specified.
  • Page 160 Programming Panel Runtime Operation Commands (Cont.) Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is @EKP optional. Extend the Keypad. Syntax: "'@EKP-<initial text>;<prompt text>'" Variables: initial text = 1 - 50 ASCII characters. prompt text = 1 - 50 ASCII characters.
  • Page 161 Programming Panel Runtime Operation Commands (Cont.) Syntax: @SOU Play a sound file. "'@SOU-<sound name>'" Variables: sound name = Name of the sound file. Supported sound file formats are: WAV & MP3. Example: SEND COMMAND Panel,"'@SOU-Music.wav'" Plays the 'Music.wav' file. Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is @TKP optional.

  • Page 162: Calibration

    Programming Input Commands These Send Commands are case insensitive. Input Commands Syntax: ^CAL Put panel in "'^CAL'" calibration mode. Example: SEND COMMAND Panel,"'^CAL'" Puts the panel in calibration mode. Syntax: ^KPS Set the "'^KPS-<pass data>'" keyboard Variable: passthru. pass data : <blank/empty>...

  • Page 163: Embedded Codes

    Programming Embedded codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke ($08) Backspace ($0D) Enter ($1B) ($80) CTRL key down ($81) ALT key down ($82) Shift key down ($83) ($84) ($85) ($86) ($87)

  • Page 164: Panel Setup Commands

    Programming Panel Setup Commands These commands are case insensitive. Panel Setup Commands @PWD sets the level 1 password only. @PWD Set the page flip Syntax: password. "'@PWD-<page flip password>'" Variables: page flip password = 1 - 50 ASCII characters. Example: SEND COMMAND Panel,"'@PWD-Main'"...
  • Page 165 Programming Dynamic Image Commands (Cont.) Syntax: ^RMF Modify an "'^RMF-<resource name>,<data>'" existing resource. Variable: resource name = 1 - 50 ASCII characters data = Refer to the table in the RAF command for more information. Example: SEND_COMMAND Panel,"'^RMF-Sports_Image,%ALab_Test/ Images%Ftest.jpg'" Changes the resource ’Sports_Image’ file name to ’test.jpg’ and the path to ’Lab_Test/ Images’.
  • Page 166 Programming Dynamic Image Commands (Cont.) Adds any and all resource parameters by sending embedded codes and data. ^RAF Add new Syntax: resources. "'^RAF-<resource name>,<data>'" Variable: resource name = 1 - 50 ASCII characters. data = Refers to the embedded codes, see table below. Embedded Codes: Parameter Description...

  • Page 167: Intercom Commands

    Programming Intercom Commands The following is a list of Intercom Commands: Intercom Commands Panel model name. If the panel supports intercom hardware it will respond with its model ^MODEL? name as shown in the response below. Older hardware or newer hardware that has inter- Sets model name.
  • Page 168 Programming Intercom Commands (Cont.) Intercom modify command. For backwards compatibility both versions are supported. ^ICM-TALK In this release, however, the TALK and LISTEN subcommands are ignored. The ^ICM-LISTEN microphone and/or speaker are activated based on the initial mode value of the intercom Intercom modify start command and the audio data packet flow is started upon receipt of this command by command.

  • Page 169: Sip Commands

    Programming SIP Commands The following table lists and describes SIP commands that are generated from the touch panel. SIP Commands Syntax: ^PHN- AUTOANSWER "'^PHN-AUTOANSWER, <state>'" Provides the state Variable: of the state = 0 or 1 (off or on) auto-answer feature.
  • Page 170 Programming SIP Commands (Cont.) Syntax: ^PHN- MSGWAITING "'^PHN-MSGWAITING, <messages>, <new message count>, <old message Indicates the count>, <new urgent message count>, <old urgent message count>'" number of Variable: messages waiting messages = 0 or 1 (1 indicates new messages) the user’s voice new message count = The number of new messages.
  • Page 171 Programming The following table lists and describes SIP commands that are sent to the touch panel to manage calls. SIP Commands Syntax: ^PHN-ANSWER Answers the call. "'^PHN-ANSWER, <connection id>'" Variable: connection id = The identifying number of the connection Example: SEND_COMMAND Panel,"'^PHN-ANSWER, 1'"...
  • Page 172 Programming SIP Commands (Cont.) The panel responds with the ^PHN-LINESTATE message. ?PHN- LINESTATE Syntax: Queries the state "’?PHN-LINESTATE’" of each of the Example: connections used by the SIP device. SEND_COMMAND Panel,"'?PHN-LINESTATE'" Enables or disables the privacy feature on the phone (do not disturb). ^PHN-PRIVACY Enables or Syntax:...
  • Page 173 Programming SIP Commands (Cont.) Syntax: ^PHN-SETUP- PASSWORD "’^PHN-SETUP-PASSWORD, <password>’" Sets the user Variable: password for the password = The password for the user name proxy server. Example: SEND_COMMAND Panel,"’^PHN-SETUP-PASSWORD, 6003’" Syntax: ^PHN-SETUP- PORT "’^PHN-SETUP-PORT, <port>’" Sets the port Variable: number for the port = The port for the proxy server proxy server.
  • Page 174 Programming MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 175: Battery Life And Replacement

    Battery Life and Replacement Battery Life and Replacement Overview The battery powering the MVP-5200i is designed for upwards of 300 deep discharge rechargings. Regular shallow rechargings will extensively increase expected battery life, and the device should be stored in either the Table Charging Station or the Wall Charging Station when not in use to keep it at an optimum charge.
  • Page 176 Battery Life and Replacement Prior to battery removal, run the device until the battery is completely discharged. MVP-BP-5X Battery Pack (FG5966-27) Specifications Dimensions: 4 1/8” x 2 1/2” x 3/8” (10.48 cm x 6.35 cm x 0.95 cm) Weight: 0.35 lbs (158.76 g) Certifications: •...

  • Page 177: Proper Battery Maintenance

    Battery Life and Replacement Proper Battery Maintenance To insure maximum performance and reliability of your AMX Wireless Touch Panel, please insure that a full charge is performed every 3 months if not used regularly. If a battery is left uncharged beyond this time frame, it may result in premature battery lifespan degradation and will require replacement.

  • Page 178: Battery Replacement

    Battery Life and Replacement Battery Replacement The touch panel's battery is intended to last the life of the device, but in cases where the battery has reached its effective end of life, it may be replaced with the MVP-BP-5X Battery Pack Kit (FG5966-27). READ THESE INSTRUCTIONS FIRST! To minimize the risk of damage to the battery during installation, all replacement batteries come in a protective metal cover.

  • Page 179: Remove The Old Battery

    Battery Life and Replacement 4. Carefully remove the back of the device and detach the battery lead at the battery connector (FIG. 90). This will allow the back cover to be detached from the device. Battery Connector FIG. 90 Battery installation and connection diagram Remove the old battery Peel the hinge cover film from the hinges on either side of the battery before removing the battery.

  • Page 180: Reconnecting The Battery To The Device

    Battery Life and Replacement Reconnecting the battery to the device 1. On the back cover, make sure that the battery connector wiring runs to the right and that the protective film on the battery case has been removed. Make sure that the excess battery wiring fits in the space to the bottom left of the battery placement (FIG.
  • Page 181 Battery Life and Replacement 4. Insert the five screws and replace the rubber feet atop the two upper screws, using the replacement rubber feet and bottom label included in the Battery Pack Kit (FIG. 5). Rubber feet Upper screws Back plate Bottom label Bottom screws...
  • Page 182 Battery Life and Replacement MVP-5200i Modero Viewpoint Widescreen Touch Panel...

  • Page 183: Appendix A: Text Formatting

    Appendix A: Text Formatting Appendix A: Text Formatting Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes are entered into the text field along with any other text.

  • Page 184: Text Area Input Masking

    Appendix A: Text Formatting Text Area Input Masking Text Area Input Masking may be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters;...

  • Page 185: Input Mask Ranges

    Appendix A: Text Formatting Refer to the following Send_Commands for more detailed information: • - Sets the input mask for the specified addresses. (see the ^BIM section on ^BIM page 123). • subcommand - sets the input mask of a text area (see the ^BMF ^BMF section on page 125).

  • Page 186: Input Mask Output Examples

    Appendix A: Text Formatting A keyboard entry using normal text entry is straightforward. However, once an input mask is applied, the behavior of the keyboard needs to change to accommodate the input mask's requirement. When working with masks, any literal characters in the mask will be "skipped" by any cursor movement, including cursor, backspace, and delete keys.

  • Page 187: Url Resources

    Appendix A: Text Formatting URL Resources A URL can be broken into several parts. For example, with the URL http://www.amx.com/company-info- home.asp, this URL indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).

  • Page 188: Appendix B: Wireless Technology

    Appendix B: Wireless Technology Appendix B: Wireless Technology Overview of Wireless Technology 802.11b/2.4 GHz and 802.11a/5 GHz are the two major WLAN standards and both operate using radio frequency (RF) technology. Together the two standards are together called Wi-Fi and operate in frequency bands of 2.4 GHz and 5 GHz respectively. The 802.11b specification was the first to be finalized and reach the marketplace.

  • Page 189: Terminology

    Appendix B: Wireless Technology Terminology 802.1x IEEE 802.1x is an IEEE standard that is built on the Internet standard EAP (Extensible Authentication Protocol). 802.1x is a standard for passing EAP messages over either a wired or wireless LAN. Additionally, 802.1x is also responsible for communicating the method with which WAPs and wireless users can share and change encryption keys.
  • Page 190 Appendix B: Wireless Technology Short for Wired Equivalent Privacy, WEP is a scheme used to secure wireless networks (Wi-Fi). A wireless network broadcasts messages using radio which are particularly susceptible to hacker attacks. WEP was intended to provide the confidentiality and security comparable to that of a traditional wired network. As a result of identified weaknesses in this scheme, WEP was superseded by Wi-Fi Protected Access (WPA), and then by the full IEEE 802.11i standard (also known as WPA2).
  • Page 191 Appendix B: Wireless Technology WPA2 Also know as IEEE 802.11i, this is an amendment to the 802.11 standard specifying security mechanisms for wireless networks. The 802.11i scheme makes use of the Advanced Encryption Standard (AES) block cipher; WEP and WPA use the RC4 stream cipher.

  • Page 192: Eap Authentication

    Appendix B: Wireless Technology EAP Authentication EAP (Extensible Authentication Protocol) is an Enterprise authentication protocol that can be used in both a wired and wireless network environment. EAP requires the use of an 802.1x Authentication Server, also known as a RADIUS server. Although over 40 different EAP methods are currently defined, the current internal Modero 802.11g wireless card and accompanying firmware only support the following EAP methods (listed from simplest to most complex): EAP-LEAP (Cisco Light EAP)

  • Page 193: Eap Communication Overview

    Appendix B: Wireless Technology EAP communication overview EAP Authentication goes a step beyond just encrypting data transfers, but also requires that a set of credentials be validated before the client (panel) is allowed to connect to the rest of the network (FIG.

  • Page 194: System Settings

    Appendix B: Wireless Technology Configuring Modero Firmware via the USB Port The MVP-5200i needs to be configured to connect with a PC to transfer firmware via the mini-USB port. To configure the touch panel: Step 1: Configure the panel for a USB Connection Type 1.

  • Page 195: Amx Certificate Upload Utility

    Appendix B: Wireless Technology AMX Certificate Upload Utility The Certificate Upload utility gives you the ability to compile a list of target touch panels, select a pre- obtained certificate (uniquely identifying the panel), and then upload that file to the selected panel. This application must be run from a local machine and should not be used from a remote network location.
  • Page 196 Appendix B: Wireless Technology 7. Navigate to the Add IP Address field at the bottom-right of the interface and enter a value of 1 greater than the virtual USB IP Address. For example: If the virtual USB IP Address is 10.0.0.1, then add an address for the directly connected panel of 10.0.0.2.

  • Page 197: Appendix C: Troubleshooting

    Appendix C: Troubleshooting Appendix C: Troubleshooting This section describes the solutions to possible hardware/firmware issues that could arise during the common operation of a Modero touch panel. Panel Doesn’t Respond To Touches Symptom: The device either does not respond to touches on the touch screen or does not register the touch as being in the correct area of the screen.

  • Page 198: Mvp-5200I Isn't Appearing In The Online Tree Tab

    Appendix C: Troubleshooting The "Sensor" device in the Online Tree tab below the MVP panel should show v1.24 or higher after the upgrade, as shown in FIG. 96: FIG. 96 "Sensor" device in the Online Tree tab MVP-5200i Isn’t Appearing In The Online Tree Tab 1.

  • Page 199: Can't Connect To A Netlinx Master

    Appendix C: Troubleshooting Can’t Connect To a NetLinx Master Symptom: I can’t seem to connect to a NetLinx Master using NetLinx Studio 2. Select Settings > Master Comm Settings > Communication Settings > Settings (for TCP/IP), and uncheck the "Automatically Ping the Master Controller to ensure availability". The pinging is to determine if the Master is available and to reply with a connection failure instantly if it is not.
  • Page 200 Appendix C: Troubleshooting 4. Do your regular file or firmware download. MVP-5200i Modero Viewpoint Widescreen Touch Panel...
  • Page 201 Appendix MVP-5200i Modero Viewpoint Widescreen Touch Panel...
  • Page 202 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...

Table of Contents
