Summary of Contents for AMX MVP-5200i-GB

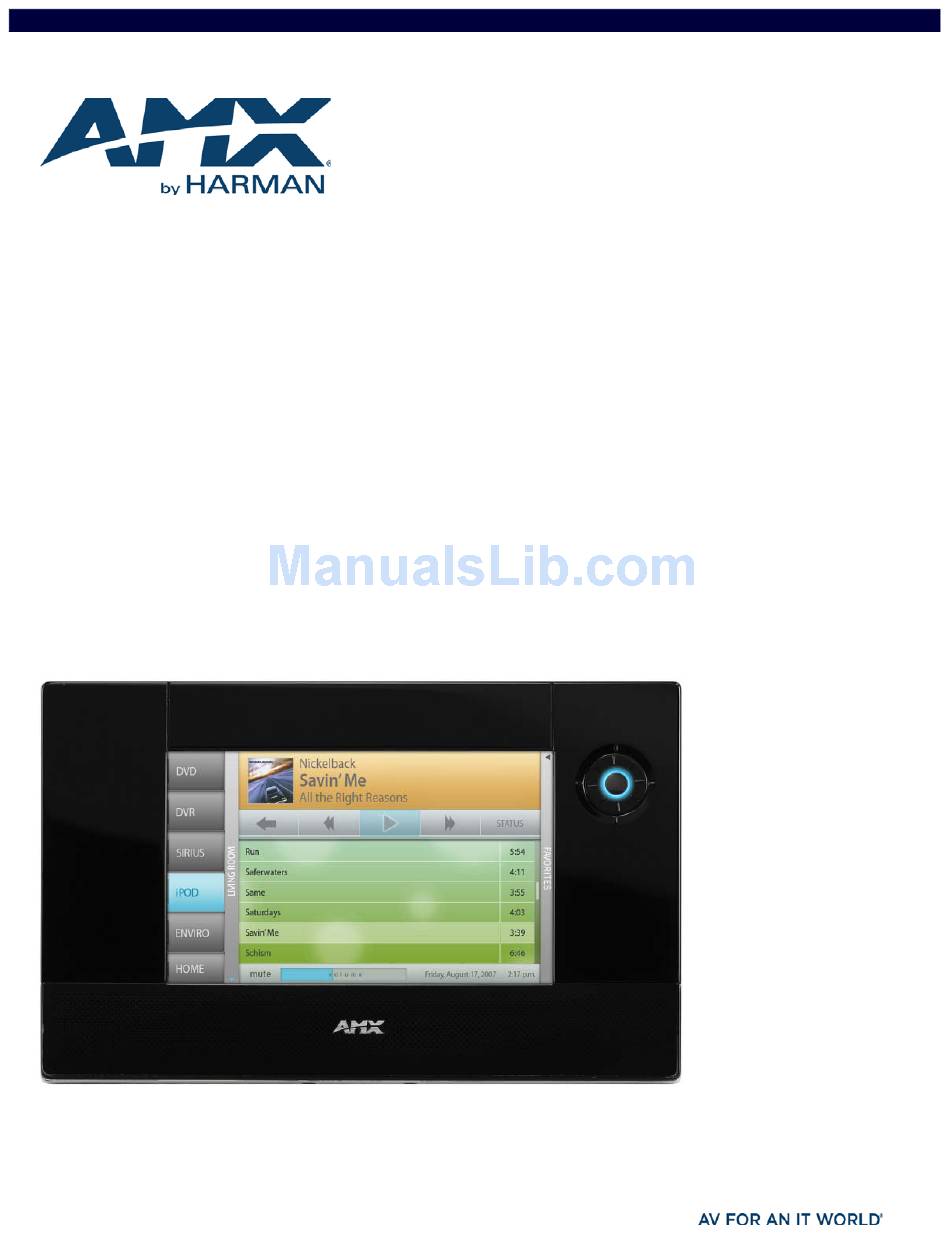

- Page 1 V i e w Po i n t To u c h Pa n e l s w i t h I n te rco m , 5 . 2 " a n d 5 " MVP-5200i-GB 5.2" GLOSS BLACK MVP-5200i-GW 5.2" GLOSS WHITE MVP-5200i-GB 5"...
-
Page 2: Copyright Notice
COPYRIGHT NOTICE AMX© 2015, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed... - Page 3 Anyone performing field maintenance on AMX equipment should use an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord WARNING: Do Not Open! Risk of Electrical Shock.
- Page 4 This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations. You may obtain a free copy of the Declaration of Conformity by visiting http://www.amx.com/techcenter/certifications.asp. WEEE NOTICE: This appliance is labeled in accordance with European Directive 2012/19/EU concerning waste of electrical and electronic equipment (WEEE).
-
Page 5: Table Of Contents
Table of Contents Table of Contents Introduction ....................13 Overview ......................... 13 Common Application ..........................13 Features ..............................13 Memory ..............................15 Table Charging Station Connector Locations ..............16 Basic Operation ......................16 Navigation Wheel......................16 Navigation Wheel Behavior in Each Power Mode ................. 17 Turning on the MVP-5200i ..................... - Page 6 Table of Contents Configuring Wireless Network Access ................29 Step 1: Configure the Device’s Wireless IP Settings............29 Wireless communication using a DHCP Address.................. 29 Wireless Communication Using a Static IP Address ................30 Using the Site Survey Tool........................30 Step 2: Configure the Card’s Wireless Security Settings ..........
- Page 7 Table of Contents EAP-PEAP .............................. 61 EAP-TTLS .............................. 62 EAP-TLS..............................63 Client Certificate Configuration ..................64 Calibrate Page ......................... 65 G4 Web Control Settings Page ..................65 Other Settings........................66 Cache Settings Page ..........................66 Password Settings Page ........................67 To list a new user within the User Access section....................
- Page 8 Table of Contents @PPF....................................... 82 @PPG ...................................... 83 @PPK ...................................... 83 @PPM...................................... 83 @PPN ...................................... 83 @PPT ...................................... 83 @PPX ..................................... 84 @PSE ..................................... 84 @PSP ..................................... 84 @PST ..................................... 84 PAGE ...................................... 84 PPOF....................................... 84 PPOG ....................................... 85 PPON ....................................... 85 Programming Numbers ....................
- Page 9 Table of Contents ^DPF..................................... 101 ^ENA ....................................101 ^FON ....................................101 ?FON..................................... 101 ^GDI..................................... 102 ^GIV..................................... 102 ^GLH ....................................102 ^GLL..................................... 102 ^GRD ....................................102 ^GRU....................................102 ^GSC ....................................103 ^GSN ....................................103 ^ICO..................................... 103 ?ICO ..................................... 103 ^IRM ....................................104 ^JSB .....................................
- Page 10 Table of Contents ^CAL ....................................114 ^KPS ....................................114 ^VKS ....................................114 @VKB ....................................114 WAKE ....................................114 Embedded Codes ..........................115 Panel Setup Commands ....................115 @PWD ....................................115 ^PWD ....................................115 Dynamic Image Commands ..................116 ^BBR ....................................116 ^RAF ....................................
- Page 11 Table of Contents ^PHN-HANGUP ..................................121 ^PHN-HOLD..................................121 SIP Setup Commands ......................... 122 ^PHN-SETUP-DOMAIN................................. 122 ^PHN-SETUP-DTMFDURATION............................122 ?PHN-LINESTATE................................. 122 ^PHN-PRIVACY ..................................122 ?PHN-PRIVACY ..................................122 ^PHN-REDIAL ..................................122 ^PHN-TRANSFER ................................. 122 ^PHN-SETUP-ENABLE................................123 ^PHN-SETUP-PASSWORD ..............................123 ^PHN-SETUP-PORT................................123 ^PHN-SETUP-PROXYADDR..............................123 ^PHN-SETUP-STUNADDR ..............................
- Page 12 Configuring Modero Firmware via the USB Port ............138 Prepare NetLinx Studio For Communication Via the USB Port............138 AMX Certificate Upload Utility ..................138 Uploading a Certificate File ..................138 Erasing All Certificates From the Touch Panel ................... 139 Appendix C: Troubleshooting ..............
-
Page 13: Introduction
Available in your choice of high-gloss black or high-gloss white Navigation wheel provides simple (up/down) or sophisticated control (up/down, right/left, select) VoIP Intercom and SIP Telephone (requires AMX Gateway) Ready 802.11g WiFi for two-way network communications ... - Page 14 • Panel: 1.4 lbs ( 0.64 kg Enclosure: MVP-5200i-GB: High-gloss black plastic with brushed metal retaining ring. MVP-5200i-GW: High-gloss white plastic with brushed metal retaining ring. Power Requirements FG5966-01 & FG5966-02: Panel with battery fully charged or with no battery: (Without Charging): •...
-
Page 15: Memory
Transmit IR over 20 feet (6.10 m) from the panel. • IR emitters on G4 panels share the device address number of the panel. • Transmits AMX fixed frequencies at 38KHz and 455KHz and user programmable frequencies from 20KHz to 1.5MHz Operating/Storage •... -
Page 16: Basic Operation
With the unit facing you, the mini-USB port (for programming and downloading firmware as well as connecting USB headphones using the AMX-provided adapter cable) and the DC power port are located on the lower left side of the device (FIG. 3). The connector for the Table Charging Station (please refer to the Table Charging Station section on page 19) is located on the bottom of the device. -
Page 17: Navigation Wheel Behavior In Each Power Mode
Press any of the navigation wheel’s compass points and hold until the AMX splash screen appears on the touchscreen. If the navigation wheel does not respond, press the touchscreen and hold until the AMX splash screen appears on the touchscreen. -
Page 18: Audio/Video Capabilities
Introduction Audio/Video Capabilities The MVP-5200i has the capability of displaying multiple JPEG and PNG files at one time. The device also supports streaming motion JPEG video (of the sort used by many IP and Web cameras), as well as MP3 and WAV audio files. Power Management The MVP-5200i utilizes a dual voltage external power supply. -
Page 19: Accessories
The MVP-TCS-52 uses a PS3.0 power supply (included with the MVP-5200i touch panel or available separately from www.amx.com) to provide direct power for the MVP panel both for standard functions and for charging its internal battery. Connect the terminal end of the PS3.0 power supply to the PWR connector on the bottom of the MVP-TCS-52. -
Page 20: Connections And Wiring
Accessories Connections and Wiring The PS3.0 is used to supply power to the MVP-5200i by routing incoming power through the connector pins and charge the device’s internal battery Recharging To recharge the MVP-5200i, slide the device into the Table Charging Station cradle bottom-first and make sure the device is fully seated in the Charging Station. - Page 21 • 8.375" x 6.09" x 2.19" (21.27 cm x 15.46 cm x 5.56 cm) Note: Always use the cutout/installation dimensions for the MVP-WCS-52 when installing this unit into various surfaces. This SP engineering drawing is available online at www.amx.com. Power Requirements: • 3 A @ 12 VDC (Class II listed power supplemented) Startup Power •...
-
Page 22: Unlocking The Touch Panel
Accessories Unlocking the Touch Panel Once placed within the Wall Charging Station, the MVP-5200i remains secured until the user unlocks it. A ten-second lag between the touch panel being placed in the Wall Charging Station and the security feature enabling allows the user to remove the touch panel if it is accidentally put into the device. - Page 23 Accessories NOTE: Make sure to measure the size of the intended hole before starting to cut it. Select the knockout to be removed from the top of the box. The box has two knockouts, at the top left and the top right. NOTE: To assist with wiring, and to avoid mechanical stresses on the wire and the mechanism of the Wall-Mounted Charging Station, the top right knockout is preferred for use.
- Page 24 Accessories Tie-Wrap Anchors Mini-Captive Wire Connector (female) MVP- WCS-52 - Rear view FIG. 12 Firmly seat the mini-captive wire connector to the power connector on the device. Firmly seat the device against the box. Make sure that the tab connector at the top of the device is locked into the box. 10.
-
Page 25: Installing The Optional Metal Rough-In Box
Accessories Installing the Optional Metal Rough-In Box The optional metal rough-in box (FG037-11) is 10 inches (25.40cm) wide at its widest dimension (wider than the bezel of the Wall Charging Station), and is only intended for pre construction installations (FIG. 14). The Metal Rough-In Box is used in conjunction with the Wall Charging Station’s plastic back box. -
Page 26: A Note About Wall And Rack Installation
FIG. 15 shows an AMX device installed in a wall with a filled volume (such as with insulation or concrete), as well as with a closed volume (such as between studs in an otherwise finished wall). The diagram shows how heat generated by the device or other devices may have no way to escape, and may build up to levels that may affect device operation. -
Page 27: Configuring Communication
IR Communication In certain situations, the MVP-5200i may be used as an infrared remote device for other AMX controllers. The device can transmit IR over 20 feet (6.10 m) from the panel at frequencies of 38KHz, 455KHz, and 1.2MHz. IR receivers and transmitters on G4 panels share the device address number of the panel. -
Page 28: Modero Setup And System Settings
Configuring Communication Modero Setup and System Settings All AMX Modero panels, including the MVP-5200i, feature on-board Setup pages. Use the options in the Setup pages to access panel information and make various configuration changes. Accessing the Setup and Protected Setup Pages At any time, press down and hold the center button of the navigation wheel for 3-5 seconds. -
Page 29: Wireless Settings - Wireless Access Overview
MVP touch panels connect to a wireless network through their use of the pre-installed AMX 802.11g wireless interface card. This allows users to communicate with an Access Point (AP). The AP communication parameters must match those of the pre-installed wireless interface card installed within the panel. -
Page 30: Wireless Communication Using A Static Ip Address
Configuring Communication Wireless Communication Using a Static IP Address From the Protected Setup page, press the Wireless Settings button to open the Wireless Settings page. Wireless communication is set within the IP Settings section of this page (FIG. 21). NOTE: Check with your System Administrator for a pre-reserved Static IP Address to be assigned to the panel. This address must be obtained before continuing with the Static assignment of the panel. -
Page 31: Step 2: Configure The Card's Wireless Security Settings
Configuring Communication NOTE: If the panel detects more than 10 APs, the Up/Down arrows at the far right side of the page become active (blue) and allow the user to scroll through the list of entries. Select a desired Access Point by touching the corresponding row. The up arrow and down arrow will be grayed out if ten or fewer access points are detected. - Page 32 Configuring Communication Select an OPEN (unsecured) AP Connecting to the AP begins the communication Site Survey of available APs FIG. 24 NOTE: The Wireless Site Survey page will note the available security of each AP. If your AP is not conf igured for Open security, you will not be able to connect in this security mode.
-
Page 33: Automatically Setting Ssid
same case must be maintained when entering this information. ABC is not the same as Abc. The alpha-numeric string is AMX by default, but can later be changed to any 32-character entry. This string must be duplicated within the Network Name (SSID) f ield on the AP. As an example, if the SSID is TECHPUBS, this word and the case within must match both the Network Name (SSID) field on the touch panel’s Network Name SSID field and on the AP’s Basic... -
Page 34: Configuring Multiple Wireless Touch Panels To Communicate To A Target Ap
Configuring Communication NOTE: WEP will not work unless the same Default Key is set on both the panel and the Access Point. For example, if the Access Point has been set to default key 4 (which was 01:02:03:04:05), the panel’s key 4 must be set to 01:02:03:04:05. Toggle the Default Key field to choose a WEP Key value (from 1- 4) that matches what will be used on the target. - Page 35 Configuring Communication Select Yes, this time only and click on Next. In the new window: - Select Use the following IP Address. Under IP address, provide an IP address. Ensure that it is in the same subnet as the IP address given to the usb0 interface ...
- Page 36 From the Windows XP desktop, click on Start > Settings > Network Connections. This opens a window listing the currently active network connections. Select the connection that is specific to AMX USB Device Link. Right click and select Properties. In the Local Area Connection 3 Properties window (FIG. 33) under the General tab, select Internet Protocol (TCP/IP) and click on Properties.
-
Page 37: Configure A Virtual Netlinx Master Using Netlinx Studio
Configuring Communication Conf igure a Virtual NetLinx Master using NetLinx Studio A Virtual NetLinx Master (VNM) is used when the target panel is not actually connected to a physical NetLinx Master. In this situation, the PC takes on the functions of a Master via a Virtual NetLinx Master. This connection is made by either using the PC’s Ethernet Address (via TCP/IP using a known PC’s IP Address as the Master) or using a direct mini-USB connection to communicate directly to the panel. -
Page 38: Wireless
Configuring Communication The System Connection status button turns green after a few seconds to indicate an active USB connection to the PC via the Virtual Master. If the System Connection icon does not turn green, check the USB connection and communication settings and refresh the ... - Page 39 Configuring Communication Communications Settings dialog FIG. 38 Click on the Virtual NetLinx Master radio button (from the Platform Selection section) to indicate that you are working as a NetLinx Master. Click on the Virtual NetLinx Master radio box from the Transport Connection Option section to indicate wanting to configure the PC to communicate with a panel.
-
Page 40: Using G4 Web Control To Interact With A G4 Panel
Refer to the G4 Web Control Settings Page section on page 65 for more detailed field information. NOTE: Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest f irmware KIT f ile from www.amx.com. Refer to the NetLinx Master instruction manual for more detailed information on the use of the new Web-based NetLinx Security. -
Page 41: Using The Netlinx Master To Control The G4 Panel
Both HTTP and HTTPS Ports are enabled by default via the Manage System > Server page. If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate, if SSL is enabled, and then enter a valid username and password into the fields within the Login dialog. - Page 42 Configuring Communication G4 Panels Compression options Manage WebControl Connections page (populated with compatible panels) FIG. 44 Click on the G4 panel name link associated with the target panel. A secondary web browser window appears on the screen (FIG. 45). Web Control VNC installation and Password entry screens FIG.
- Page 43 Configuring Communication If this field does not appear, continue to step 9. Enter the IP Address of the MVP panel - obtained from the IP Settings section of the MVPs Wireless Settings page Connection Details dialog FIG. 46 If a WebControl password was set up on the G4 WebControl page, a G4 Authentication Session password dialog appears on the screen within the secondary browser window.
-
Page 44: Setup Pages
Setup Pages Setup Pages Overview The MVP-5200i features on-board Setup pages. Use the options in the Setup pages to access panel information and make various configuration changes. To access the Setup pages, press the center button of the navigation wheel and hold for 3 to 5 seconds (FIG. 47). Setup Page Access button: Press and hold for 3 to 5 seconds to access the Setup pages. -
Page 45: Navigation Buttons
Setup Pages Setup Page (Cont.) Inactivity Page Flip Indicates the length of time that the panel can remain idle before automatically flipping to a pre-selected page. Timeout: • Press the Up/Down buttons to increase/decrease the Inactivity Page Flip Timeout setting. Range = 0 - 240 (minutes). -
Page 46: Project Information Page
• This information is specified in TPD4 (Project Properties > IR Emitters & Receivers tab). • For example, if you set the AMX IR 38K Port to 7 and then put a button on the panel with a channel code of 5 and a port of 7, it will trigger the IR code in slot 5 of the AMX IR 38K Port. -
Page 47: Panel Information Page
Setup Pages Panel Information Page The Panel Information page provides detailed panel information (FIG. 51). Panel Information page FIG. 51 Features on this page include: Panel Information Page Back: Saves all changes and returns to the previous page. WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current connection to the Master is Wireless (image of a radio antenna), Wired (image of three networked computers), or USB (USB connection symbol). -
Page 48: Time & Date Settings Page
Setup Pages Time & Date Settings Page The options on the Time & Date Settings page (FIG. 52) allows setting and adjusting of time and date information on the NetLinx Master. If the time and/or date on the Master is modified, all connected devices will be updated to reflect the new information. Time and Date Settings page FIG. -
Page 49: Audio Settings Page
Setup Pages Audio Settings Page The Audio Settings page allows adjustment of volume levels and panel sounds settings (FIG. 53). Audio Settings pages FIG. 53 Features on these pages include: Audio Settings Page Back: Saves all changes and returns to the previous page. WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current connection to the Master is Wireless (image of a radio antenna), Wired (image of three networked computers), or USB. -
Page 50: Power Management Page
Setup Pages Power Management Page The options on the Power Management page allow setting of power warning preferences and battery status information, and adjustment of the display times for battery warnings (FIG. 54). Power Management page FIG. 54 Features on this page include: Power Management Page Back: Saves all changes and returns to the previous page. - Page 51 Setup Pages Power Management Page (Cont.) Battery Power The Disable/Disabled button acts as a power save feature with two options: Brightness Limit: • Disable - Clicking on this button deactivates this power save feature. The panel will use the Panel Brightness level.
-
Page 52: Protected Setup Pages
Protected Setup Pages Protected Setup Pages The Protected Setup page (FIG. 55) provides secured access to advanced panel configuration options, including communication and security settings. The Protected Setup page is accessed through the Setup page (please refer to the Setup Pages on page 44). To access the Protected Setup pages: Press the center button of the navigation wheel and hold for 3 to 5 seconds to access the Setup pages. -
Page 53: Security Settings
Confirmation dialog, prompting you to confirm your selection before resetting the panel. • Remove User Pages - Removes all TPD4 touch panel pages currently on the panel, including the pre- installed AMX Demo pages. This option invokes a Confirmation dialog, prompting you to confirm your selection before removing the panel pages. -
Page 54: Protected Setup Navigation Buttons
Web Control. Although the security password features are immediate, a reboot must occur for all the new security mode features to fully take effect. For more information on configuring AMX devices for a secure environment, please refer to the guide Security Prof iles: Conf iguring AMX Devices For Installation Into a Secure Environment, available at www.amx.com. -
Page 55: Wireless Settings Page
Protected Setup Pages System Settings Page Back: Saves all changes and returns to the previous page. WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current connection to the Master is Wireless (image of a radio antenna), Wired (image of three networked computers), or USB (USB connection symbol). - Page 56 Protected Setup Pages Wireless Settings Page (Cont.) IP Settings: Sets the IP communication values for the panel: DHCP/STATIC Sets the panel to either DHCP or Static communication modes. • DHCP - a temporary IP Addresses is assigned to the panel by a DHCP server. If DHCP is selected, the other IP Settings fields are disabled (see below).
-
Page 57: Security Modes
Protected Setup Pages Security Modes The Wireless Settings page has two buttons: Simple and Enterprise. Pressing the Simple button opens the Wireless Security: Simple Mode popup window (FIG. 61), which offers wireless security options suitable for most home and office environments such as Open (page 57), WEP (page 58), and WPA-PSK (page 59). -
Page 58: Wep
Protected Setup Pages In the Wireless Security: Simple Mode popup window (FIG. 61), press the Security Type field to select WEP. WEP security requires that both a target AP be identified and an encryption method be implemented prior to establishing communication. -
Page 59: Wpa-Psk Settings
Protected Setup Pages WPA-PSK Settings In the Wireless Security: Simple Mode popup window (FIG. 61), press the Security Type field to select WPA-PSK. WPA-PSK security is designed for environments where using WPA or WPA2 is desirable, but an 802.1x authentication server is not available. -
Page 60: Eap-Leap
Note: This information is similar to a username used to login to a secured server or workstation. This works in tandem with the Password string which is similar to the password entered to gain access to a secured workstation. Typically, this is in the form of a username such as jdoe@amx.com. Password: Opens an on-screen keyboard. -
Page 61: Eap-Fast
This information is used as a fictitious name which might be seen by sniffer programs during the initial connection and setup process between the panel and the Radius server. In this way the real identity (username) is protected. Typically, this is in the form of a fictitious username, such as anonymous@amx.com Password: Opens an on-screen keyboard. -
Page 62: Eap-Ttls
Note: This information is similar to a username used to login to a secured server or workstation. This works in tandem with the Password string, which is similar to the password entered to gain access to a secured workstation. Typically, this is in the form of a username such as jdoe@amx.com. Password:... -
Page 63: Eap-Tls
This information is used as a fictitious name which might be seen by sniffer programs during the initial connection and setup process between the panel and the Radius server. In this way the real identity (username) is protected. Typically, this is in the form of a fictitious username such as: anonymous@amx.com Password: Opens an on-screen keyboard. -
Page 64: Client Certificate Configuration
Format is: PKCS12 First file contains the client certificate, second file contains the private key. Not supported Not supported Format is: PKCS12 AMX supports the following security certificates PEM (Privacy Enhanced Mail) DER (Distinguished Encoding Rules) PKCS12 (Public Key Cryptography Standard #12) ... -
Page 65: Calibrate Page
Protected Setup Pages Calibrate Page The Calibrate page (FIG. 65) allows you to calibrate the touch panel for accurate button selection. Calibrate page FIG. 65 Press and hold the center button on the navigation wheel for 6 seconds to access the Calibrate page (see FIG. 55). Press the crosshairs in turn. -
Page 66: Other Settings
Protected Setup Pages G4 Web Control Page (Cont.) G4 Web Control Settings: Sets the IP communication values for the touch panel: Enable/Enabled: The Enable/Enabled button toggles between the two G4 activation settings: • Enable - deactivates G4 Web Control on the panel. •... -
Page 67: Password Settings Page
Protected Setup Pages Cache Settings Page (Cont.) Connection Status Icon: The icon in the upper-right corner of each Protected Setup page provides a constant visual indication of current connection status. Note: a Lock appears on the icon if the panel is connected to a secured NetLinx Master. Image Cache Settings Flash Cache Size: Use the Up/Down buttons to increase or decrease the total size of the flash memory cache, up to a maximum... -
Page 68: To List A New User Within The User Access Section
Protected Setup Pages Password Settings Page (Cont.) Enable/Enabled: The Enable/Enabled button allows you to toggle between activating or deactivating the MVP panel requirement of a user to enter a pre-defined password before removing the panel from a connected docking station: •... -
Page 69: Sip Settings Page
Protected Setup Pages SIP Settings Page The options on the SIP Settings page (FIG. 69) enable you to establish network settings for using your touch panel as an IP phone. With a CSG SIP Communications Gateway (FG2182-01, -02, -03), you can use your touch panel to make and receive local, long distance, and international phone calls, and have access to phone features like call waiting, caller ID, call forwarding, call queuing, and voice mail. -
Page 70: Tools
Protected Setup Pages Tools Press and hold the Tools button to access the MVP-5200i’s Panel Logs, Panel Statistics, and Connection Utility buttons. Each of these buttons opens a separate page, covered in detail below. NOTE: The Tools button menu will remain visible for three seconds, regardless of whether or not the button continues to be held. Panel Connection Logs Page The Panel Connection Logs page (FIG. -
Page 71: Connection Utility Page
Protected Setup Pages Panel Statistics Page Back: Saves all changes and returns to the previous page. WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current connection to the Master is Wireless (image of a radio antenna), Wired (image of three networked computers), or USB (USB connection symbol). -
Page 72: Upgrading Firmware
PC and the target device. If a programming cable is not available, it may be purchased from www.amx.com. The Mini-USB port for the connector is located on the left side of the device as viewed from the front. -
Page 73: Step 3: Confirm And Upgrade The Firmware Via The Usb Port
Upgrading Firmware Communications Settings dialog FIG. 74 Click on the NetLinx Master radio button from the Platform Selection section. Click on the Virtual Master radio box from the Transport Connection Option section to configure the PC to communicate directly with a panel. Everything else, such as the Authentication, is disabled because this connection is not going through the Master’s UI. - Page 74 NOTE: The panel-specif ic f irmware is shown on the right of the listed panel. Download the latest f irmware f ile from www.amx.com and then save the Kit f ile to your computer. Note that each Kit f ile is intended for download to its corresponding panel.
-
Page 75: A Special Note For Network Interface Connections
16. Confirm that the panel has been properly updated to the correct firmware version. NOTE: Verify you have downloaded the latest f irmware f ile from www.amx.com and then save the Kit f ile to your computer. A Special Note for Network Interface Connections Due to any USB connection to your PC being made through a Network Interface Connection (NIC), Windows will automatically make any new NIC connection the Primary connection. - Page 76 Upgrading Firmware Advanced Settings window FIG. 80 Under the Adapters And Bindings tab, the user needs to make sure the Local Area Connection is not at the top of the Connections list. If it is at the top of the list (FIG. 80), select it and use the down arrow to the right of the list to move it to the bottom of the list (FIG.
- Page 77 Upgrading Firmware Bindings for Local area list detail FIG. 82 When finished, click OK to close the Advanced Settings window and save all changes. MVP-5200i Modero® ViewPoint® Touch Panel with Intercom - Instruction Manual...
-
Page 78: Programming
Programming Programming Overview You can program the MVP-5200i, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must f irst be def ined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels). -
Page 79: Afp
Programming Transition Classes (Cont.) Page curl The existing page appears to be peeled away like a sheet of paper, revealing the new page underneath. The new page has a shadow effect, and a faint reversed impression of the old page can be seen through the back of the paper being flipped. -
Page 80: Touch Gesture Recognition
Programming Touch Gesture Recognition Gesturing refers to the act of moving a finger or stylus across the overlay and having the panel recognize and process this motion as a gesture.Once a gesture is detected, it is processed as another external button on the panel. This enables the user to design pages that translate gesture operations into any functionality available to external buttons. -
Page 81: Enabling Or Disabling The Gesture Custom Event
Programming Gesture numbers are: Swipe up Swipe down Swipe right Swipe left Clockwise circle Counter-clockwise circle Double-Tap Simplified gesture velocity values are: Fast Normal Slow Precise gesture velocity: For slides and circles this represents pixels per second. For double taps, this is the time in milliseconds from the first press to the second release. Enabling or Disabling the Gesture Custom Event By default, a gesture custom event is sent to the master each time that a gesture is recognized. -
Page 82: Pdr
Programming Page Commands (Cont.) @PDR Set the popup location reset flag. If the flag is set, the popup will return to its default location on show instead of its last drag location. Syntax: "'@PDR-<popup page name>;<reset flag>'" Variable: popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. reset flag = 1 = Enable reset flag, 0 = Disable reset flag Example: SEND_COMMAND Panel,"'@PDR-Popup1;1'"... -
Page 83: Ppg
Programming Page Commands (Cont.) @PPG Toggle a specific popup page on either a specified page or the current page. If the page name is empty, the current page is used (see example 2). Toggling refers to the activating/deactivating (On/Off) of a popup page. This command works in the same way as the ’Toggle Popup’... -
Page 84: Ppx
Programming Page Commands (Cont.) @PPX Close all popups on all pages. This command works in the same way as the 'Clear All' command in TPDesign 4. Syntax: "'@PPX'" Example: SEND_COMMAND Panel,"'@PPX'" Close all popups on all pages. @PSE Set the show effect for the specified popup page to the named show effect. Syntax: "'@PSE-<popup page name>;<show effect name>'"... -
Page 85: Ppog
Programming Page Commands (Cont.) PPOG Toggle a specific popup page on either a specified page or the current page. If the page name is empty, the current page is used (see example 2). Toggling refers to the activating/deactivating (On/Off) of a popup page. This command works in the same way as the ’Toggle Popup’... -
Page 86: Programming Numbers
Programming Programming Numbers The following information provides the programming numbers for colors, fonts, and borders. Colors can be used to set the colors on buttons, sliders, and pages. The lowest color number represents the lightest color-specific display; the highest number represents the darkest display. For example, 0 represents light red, and 5 is dark red. RGB Triplets and Names For Basic 88 Colors RGB Values for all 88 Basic Colors Index No. -
Page 87: Font Styles And Id Numbers
Arial Courier New Arial Courier New Arial Courier New Arial AMX Bold Arial AMX Bold Arial Bold AMX Bold Arial Bold 32 - Variable Fonts start at 32. NOTE: Fonts must be imported into a TPDesign4 project f ile. The font ID numbers are assigned by TPDesign4. These values are also listed in the Generate Programmer’s Report. -
Page 88: Tpd4 Border Styles By Name
Border styles Border styles Border styles None Diamond 55 Windows Style Popup (Status Bar) Menu Right Rounded 15 AMX Elite -L Diamond 65 Menu Bottom Rounded 15 Menu Right Rounded 25 AMX Elite -M Diamond 75 Menu Bottom Rounded 25... -
Page 89: Button Commands
Programming Button Commands All commands that begin with "^" have the capability of assigning a variable text address range and button state range. A device must f irst be def ined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values). -
Page 90: Apf
Programming Button Commands (Cont.) ^APF Add page flip action to a button if it does not already exist. Syntax: "'^APF-<vt addr range>,<page flip action>,<page name>'" Variable: variable text address range = 1 - 4000. page flip action = Stan[dardPage] - Flip to standard page Prev[iousPage] - Flip to previous page Show[Popup] - Show Popup page Hide[Popup] - Hide Popup page... -
Page 91: Bcb
Programming Button Commands (Cont.) ?BCB Get the current border color. Syntax: "'?BCB-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). custom event type 1011: Flag - zero Value1 - Button state number... -
Page 92: Bct
Programming Button Commands (Cont.) ^BCT Set the text color to the specified color. Only if the specified text color is not the same as the current color. Note: Color can be assigned by color name (without spaces), number or R,G,B value (RRGGBB or RRGGBBAA). Syntax: "'^BCT-<vt addr range>,<button states range>,<color value>'"... -
Page 93: Bim
Programming Button Commands (Cont.) ^BIM Set the input mask for the specified address. Syntax: "'^BIM-<vt addr range>,<input mask>'" Variable: variable text address range = 1 - 4000. input mask = Refer to the Text Area Input Masking table on page 129 for character types. Example: SEND_COMMAND Panel,"'^BIM-500,AAAAAAAAAA'"... -
Page 94: Bmf
Programming Button Commands (Cont.) ^BMF Set any/all button parameters by sending embedded codes and data. Syntax: "'^BMF-<vt addr range>,<button states range>,<data>'" Variables: variable text address char array = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). level range = 1 - 600 (level value is 1 - 65535). -
Page 95: Bmi
Programming Button Commands (Cont.) ^BMF ’%VL<0-1>’ = Log-On/Log-Off the computer control connection (Cont.) ’%VN<network name>’ = Set network connection name. ’%VP<password>’ = Set the network connection password. Example: SEND_COMMAND Panel,"'^BMF-500,1,%B10%CFRed%CB Blue %CTBlack%Ptest.png'" Sets the button OFF state as well as the Border, Fill Color, Border Color, Text Color, and Bitmap. ^BMI Set the button mask image. -
Page 96: Bmp
Programming Button Commands (Cont.) ?BMP Get the current bitmap name. Syntax: "'?BMP-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). custom event type 1002: Flag - Zero Value1 - Button state number... -
Page 97: Bop
SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 88 for more information. -
Page 98: Bpp
Programming Button Commands (Cont.) ^BPP Set or clear the protected page flip flag of a button. Zero clears the flag. Syntax: "'^BPP-<vt addr range>,<protected page flip flag value>'" Variable: variable text address range = 1 - 4000. protected page flip flag value range = 0 - 4 (0 clears the flag). Example: SEND_COMMAND Panel,"'^BPP-500,1'"... -
Page 99: Bsp
Programming Button Commands (Cont.) ^BSP Set the button size and its position on the page. Syntax: "'^BSP-<vt addr range>,<left>,<top>,<right>,<bottom>'" Variable: variable text address range = 1 - 4000. left = left side of page. top = top of page. right = right side of page. bottom = bottom of page. -
Page 100: Bvt
Programming Button Commands (Cont.) ^BVT Set the computer control network port for the specified address. Syntax: "'^BVT-<vt addr range>,<network port>'" Variable: variable text address range = 1 - 4000. network port = 1 - 65535. Example: SEND_COMMAND Panel,"'^BVT-500,5000'" Sets the network port to 5000. ^BWW Set the button word wrap feature to those buttons with a defined address range. -
Page 101: Dpf
Programming Button Commands (Cont.) ^DPF Delete page flips from button if it already exists. Syntax: "'^DFP-<vt addr range>,<actions>,<page name>'" Variable: variable text address range = 1 - 4000. actions = Stan[dardPage] - Flip to standard page Prev[iousPage] - Flip to previous page Show[Popup] - Show Popup page Hide[Popup] - Hide Popup page Togg[lePopup] - Toggle popup state... -
Page 102: Gdi
Programming Button Commands (Cont.) ^GDI Change the bargraph drag increment. Syntax: "'^GDI-<vt addr range>,<bargraph drag increment>'" Variable: variable text address range = 1 - 4000. bargraph drag increment = The default drag increment is 256. Example: SEND_COMMAND Panel,"'^GDI-7,128'" Sets the bargraph with variable text 7 to a drag increment of 128. ^GIV Invert the joystick axis to move the origin to another corner. -
Page 103: Gsc
Programming Button Commands (Cont.) ^GSC Change the bargraph slider color or joystick cursor color. A user can also assign the color by Name and R,G,B value (RRGGBB or RRGGBBAA). Syntax: "'^GSC-<vt addr range>,<color value>'" Variable: variable text address range = 1 - 4000. color value = Refer to the RGB Triplets and Names For Basic 88 Colors table on page 86. -
Page 104: Irm
Programming Button Commands (Cont.) ^IRM Set the IR channel - Pulse the given IR channel for onTime in tenths of seconds. Delay offTime in tenths of a second before the next IR pulse is allowed. ^IRM allows the command itself to specify the port number. ^IRM is needed because commands programmed on the panel itself can only be sent to a single port number. -
Page 105: Jsi
Programming Button Commands (Cont.) ^JSI Set icon alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative to the upper left corner of the button. Syntax: "'^JSI-<vt addr range>,<button states range>,<new icon alignment>'"... -
Page 106: Jst
Programming Button Commands (Cont.) ?JST Get the current text justification. Syntax: "'?JST-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). custom event type 1004: Flag - Zero Value1 - Button state number... -
Page 107: Tec
Programming Button Commands (Cont.) ?TEC Get the current text effect color. Syntax: "'?TEC-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). custom event type 1009: Flag - Zero Value1 - Button state number... -
Page 108: Top
Programming Button Commands (Cont.) ^TOP Send events to the Master as string events. If enabled, Press/Move/Release events are sent to the Master as string events. Syntax: "'^TOP-<state>'" <state> is 0(disable) 1(presses/releases), 2(moves), 3(press/move/release). Note: Move should be used with caution. This setting can generate a signif icant amount of traff ic to the master depending on user interaction. -
Page 109: Miscellaneous Mvp Strings
Programming Miscellaneous MVP Strings The following two strings are sent by the MVP panel back to the communicating Master: MVP Strings to Master undock <master> This is sent to the target Master when the MVP is undocked. • If the panel has no information within the User Access Passwords list, ’none’ is sent as a user. •... -
Page 110: Text Effects Names
Programming Text Effects Names The following is a listing of text effects names associated with the ^TEF command on page 107. Text Effects • Glow -S • Medium Drop Shadow 1 • Hard Drop Shadow 1 • Glow -M • Medium Drop Shadow 2 •... -
Page 111: Panel Runtime Operations
Programming Panel Runtime Operations Serial Commands are used in Terminal Emulator mode. These commands are case insensitive. Panel Runtime Operation Commands ABEEP Output a single beep even if beep is Off. Syntax: "'ABEEP'" Example: SEND COMMAND Panel,"'ABEEP'" Outputs a beep of duration 1 beep even if beep is Off. ADBEEP Output a double beep even if beep is Off. -
Page 112: Akr
Programming Panel Runtime Operation Commands (Cont.) @AKR Remove keyboard or keypad that was displayed using 'AKEYB', 'AKEYP', 'PKEYP', @AKB, @AKP, @PKP, @EKP, or @TKP commands. Syntax: "'@AKR'" Example: SEND COMMAND Panel,"'@AKR'" Removes the Keyboard/Keypad. BEEP Output a beep. Syntax: "'BEEP'" Example: SEND COMMAND Panel,"'BEEP'"... -
Page 113: Pkp
Programming Panel Runtime Operation Commands (Cont.) @PKP Present a private keypad - Pops up the keypad icon and initializes the text string to that specified. Keypad displays a '*' instead of the numbers typed. The Prompt Text is optional. Syntax: "'@PKP-<initial text>;<prompt text>'"... -
Page 114: Input Commands
Programming Panel Runtime Operation Commands (Cont.) @VKB Popup the virtual keyboard. Syntax: "'@VKB'" Example: SEND COMMAND Panel,"'@VKB'" Pops-up the virtual keyboard. WAKE Force the panel out of screen saver mode. Syntax: "'WAKE'" Example: SEND COMMAND Panel,"'WAKE'" Forces the panel out of the screen saver mode. Input Commands These Send Commands are case insensitive. -
Page 115: Embedded Codes
Programming Embedded Codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke Decimal numbers Hexidecimal values Virtual keystroke ($08) Backspace ($92) Delete ($0D) Enter ($93) Home ($1B) ($94) ($80) CTRL key down ($95) Page Up ($81) -
Page 116: Dynamic Image Commands
Adds a new resource. The resource name is ’New Image’ %P (protocol) is an HTTP %H (host name) is AMX.COM %A (file path) is Lab/Test_f ile %F (file name) is test.jpg. Note that the %%5F in the file path is actually encoded as %5F. -
Page 117: Raf, ^Rmf - Embedded Codes
X resolution of current panel mode/file X Resolution of Current button Y resolution of current panel mode/file Y Resolution of Current button Current state Name of Button For instance, http://www.amx.com/img.asp?device=$DV would become http://www.amx.com/img.asp?device=10001. MVP-5200i Modero® ViewPoint® Touch Panel with Intercom - Instruction Manual... -
Page 118: Intercom Commands
Programming Intercom Commands Intercom Commands ^MODEL? Set panel model name. If the panel supports intercom hardware it will respond with its model name as shown in the response below. Older hardware or newer hardware that has intercom support disabled with not respond to this command. -
Page 119: Sip Commands
Programming Intercom Commands (Cont.) ^ICM-MUTEMIC Set the state of the microphone on a panel to muted (1) or unmuted (0). At the start of each call the microphone starts out unmuted. Syntax: SEND_COMMAND <DEV>, "^ICM-MUTEMIC" Variables: None. Example: SEND_COMMAND TP1, "^ICM-MUTEMIC,1" ^ICM-SPEAKERLEVEL Used to set the speaker level during an intercom call. -
Page 120: Phn-Linestate
Programming SIP Commands - Panel to Master ^PHN-LINESTATE SIP call linestate status - Indicates the current state of each of the available connections used to manage calls. • Syntax: "'^PHN-LINESTATE,<connection id>,<state>,<connection id>,<state>,..., SIP,<extn>'" • Variables: connection id = The identifying number of the connection. state = IDLE, HOLD, or CONNECTED extn = The local extension of this panel (see Example) •... -
Page 121: Master To Panel
Programming Master to Panel The following table lists and describes SIP commands that are sent to the touch panel to manage calls. SIP Commands - Master to Panel ^PHN-ANSWER SIP call answer command - Answers the call. • Syntax: "'^PHN-ANSWER,<connection id>'" •... -
Page 122: Sip Setup Commands
Programming SIP Commands - Master to Panel (Cont.) ?PHN-LINESTATE Get SIP linestate command - Queries the state of each of the connections used by the SIP device. The panel responds with the ^PHN-LINESTATE message. • Syntax: "'?PHN-LINESTATE'" • Example: SEND_COMMAND Panel,"'?PHN-LINESTATE'" Get the current line states. -
Page 123: Phn-Setup-Enable
Programming SIP Commands - Setup Commands (Cont.) ^PHN-SETUP-ENABLE Enable SIP setup command - Registers a new user. Once the configuration has been updated, the ENABLE command should be run to re-register the new user. • Syntax: "'^PHN-SETUP-ENABLE'" ^PHN-SETUP-PASSWORD Setup SIP password command - Sets the user password so this extension can connect to the SIP server (SIP proxy server). -
Page 124: Battery Life And Replacement
NOTE: This installation requires opening the case of the MVP-5200i and working within its internal components. If you are unwilling or unable to replace the battery, please return the device to AMX for battery replacement. WARNING: Misuse of a Lithium-Polymer battery may result in overheating, f ire, or explosion! To Avoid Injury,... -
Page 125: Power Management
Proper Battery Maintenance To insure maximum performance and reliability of your AMX Wireless Touch Panel, please insure that a full charge is performed every 3 months if not used regularly. If a battery is left uncharged beyond this time frame, it may result in premature battery lifespan degradation and will require replacement. -
Page 126: Battery Replacement
Remove the battery from its packaging, remove the protective film from the battery, and inspect it for any damage or distortion. If the battery shows evidence of damage, contact AMX for replacement and proper disposal information. Place the device face-down on a surface that will not scratch the unit and remove the five screws from the back of the device (FIG. -
Page 127: Remove The Old Battery
Battery Life and Replacement Battery Connector Battery installation and connection diagram FIG. 84 Remove the Old Battery Peel the hinge cover film from the hinges on either side of the battery before removing the battery. If the battery is attached ... - Page 128 Battery Life and Replacement Rubber foot Rubber feet Upper screw Upper screws Back plate Bottom label Bottom screws Speaker Front of MVP-5200i MVP-5200i back plate installation FIG. 86 NOTE: The three bottom screws are shorter than the top two screws. The screws must be re-assembled in their original location or the device can be damaged during reassembly.
-
Page 129: Appendix A: Text Formatting
Appendix A: Text Formatting Appendix A: Text Formatting Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes are entered into the text field along with any other text. -
Page 130: Input Mask Character Types
Appendix A: Text Formatting With this feature, it is not necessary to: Limit the user to a choice of selections Handle complex input tasks such as names, days of the week, or month by name Perform complex validation such as Subnet Mask validation ... -
Page 131: Input Mask Literals
(HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page). -
Page 132: Complex Script Support
Appendix A: Text Formatting Other used escape sequences include: Escape Sequences Sequence Panel Information Device Number System Number IP Address Host Name Mac Address Neuron ID X Resolution of current panel mode/file Y Resolution of current panel mode/file X Resolution of current button Y Resolution of current button Name of button Current state... - Page 133 Alt-<Scan Code> method. NOTE: For more information on TPDesign4 and its complex script support, please refer to the TPDesign4 (v3.0 or higher) Operation Reference Guide, available at www.amx.com. MVP-5200i Modero® ViewPoint® Touch Panel with Intercom - Instruction Manual...
-
Page 134: Appendix B: Wireless Technology
Appendix B: Wireless Technology Appendix B: Wireless Technology Overview of Wireless Technology 802.11b/2.4 GHz and 802.11a/5 GHz are the two major WLAN standards and both operate using radio frequency (RF) technology. Together the two standards are together called Wi-Fi and operate in frequency bands of 2.4 GHz and 5 GHz respectively. -
Page 135: Terminology
The certificate authority (CA) is a trusted external third party which "signs" or validates the certificate. When a certificate has been signed, it gains some cryptographic properties. AMX supports the following security certificates within three different formats: •... -
Page 136: Eap Authentication
Appendix B: Wireless Technology Terminology - Wireless Technology (Cont.) WPA2 Also know as IEEE 802.11i, this is an amendment to the 802.11 standard specifying security mechanisms for wireless networks. The 802.11i scheme makes use of the Advanced Encryption Standard (AES) block cipher;... -
Page 137: Eap Characteristics
Appendix B: Wireless Technology EAP Characteristics The following table outlines the differences among the various EAP Methods from most secure (at the top of the list) to the least secure (at the bottom of the list): EAP Method Characteristics Method: Credential Type: Authentication: Pros:... -
Page 138: Configuring Modero Firmware Via The Usb Port
From the Start menu in Windows XP, open the Network Connections dialog (Start > Settings > Network Connections > Local Area Connection). Look for the Local Area Connection reading Local Area Connection, AMX USB Device Link and double-click on it to open the Local Status. -
Page 139: Erasing All Certificates From The Touch Panel
Once the Status field for each entry reads Done, the upload was successfully completed. The AMX Certificate Upload Utility is intended to be used for only one certificate at a time on the touch panel, and has no indicator that a certification has been loaded onto a touch panel. After a certification has been loaded onto a panel using the Certificate Upload Utility, you should immediately enter the certificate name (including file extension) into the Client Certif icate field for the specified SSID. -
Page 140: Appendix C: Troubleshooting
To keep the battery from being damaged from operating at too low a level, the firmware places it into a protected state. The panel must have the latest firmware. If it doesn’t, the firmware can be found at www.amx.com Dealers/Tech Center > Firmware Files.>... -
