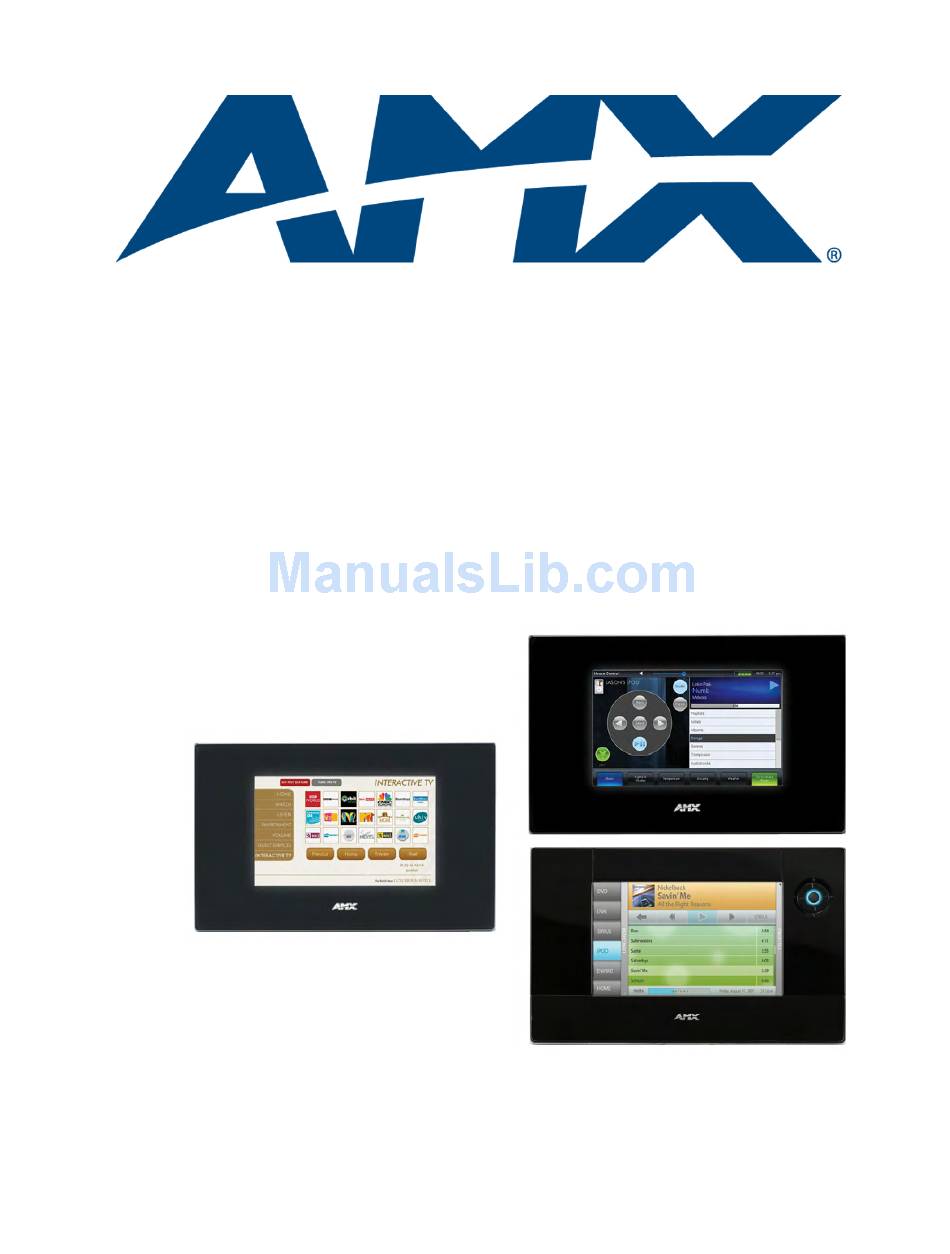

Page 1: Installation Guide
Installation Guide Battery Replacement & Firmware Upgrade 5.2" Modero® ViewPoint® Touch Panels MVP-5200i MVP-5150 MVP-5100 Touch Panels I n i t i a l R e l e a s e : 1 2 / 1 7 / 2 0 0 9... - Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.
- Page 3 LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software.
-
Page 5: Table Of Contents
MVP-5100 Firmware File (to upgrade Firmware to v2.66.21) ........12 MVP-5150 Firmware File (to upgrade Firmware to v2.66.21) ........12 MVP-5200i Firmware Files (to upgrade Firmware to v2.66.21) ........12 Upgrading the Firmware on the Panels (NetLinx Studio)........14 MVP-5100 and MVP-5150 ..................... 14 MVP-5200i........................ - Page 6 Table of Contents Reconnecting the Battery to the MVP-5200i ..............19 MVP-5100/MVP-5150 Battery Removal and Installation ......... 21 Removing the Old Battery From the MVP-5100 or MVP-5150........21 Installing the New Battery..................... 22 Battery Return Process ................... 24 Reloading Panel Files ..................25 Overview ........................
-
Page 7: Battery Replacement & Firmware Upgrade Guide
Firmware version 2.66.21 (or higher) for the Touch Panel. Touch Panel Firmware files are available to download from the product catalog pages for each Touch Panel type at www.amx.com. Firmware files are listed with other downloadable files, along the right-edge of the catalog pages. -
Page 8: Battery Replacement Kits
Description Included Items FG5966-01BAT MVP-BP-5X, Battery Pack Kit • (1) Replacement battery (57-0016-SA) for MVP-5200i (black) • (1) Back Cover - black (MA5966-01BL) Note that the replacement battery is pre-installed in the Back Cover. • (1) Residual Voltage Discharge Adaptor (SAA5966-27-A) •... -
Page 9: Retrieving Panel Files
Since the NetLinx Studio software application can handle all types of file transfers, including retrieving / reloading the Touch Panel files from the panel as well as upgrading the Firmware on the panel, AMX recommends using NetLinx Studio for all file transfers involved in this procedure. - Page 10 Retrieving Panel Files Click Communication Settings to access the Communication Settings dialog (FIG. 2). Click to open the TCP/IP Settings dialog FIG. 2 NetLinx Studio - Communication Settings dialog Select NetLinx Master as the Platform Selection. Select TCP/IP as the Transport Connection Option. Click Edit Settings to open the TCP/IP Settings dialog (FIG.
-
Page 11: Retrieving Panel Files
Retrieving Panel Files The Port should always be set to 1319 (default setting). Do not change the Port assignment. Click OK to return to the Communication Settings dialog. Retrieving Panel Files The following steps describe retrieving the Panel Files from the Touch Panel and saving them as a backup, in case they need to be restored after the Firmware upgrade / Battery replacement process. - Page 12 Retrieving Panel Files Select the TP4 (Touchpanel Design) file type FIG. 6 Select Files for Transfer dialog (Other tab) Select TP4Touch panel Design File, and click Add. In the Save As dialog, select a target directory and enter a filename for the retrieved file (FIG. 7). FIG.
- Page 13 Retrieving Panel Files FIG. 8 Enter Device Mapping Information dialog If you do not already know the Device Number assignment for the Touch Panel, you can get it from the panel’s online Protected Setup page. See the Determining the Device Mapping Information for the Touch Panel section on page 8 for details. Click OK to close the dialog and add the File to the list at the bottom of the Select Files To Transfer dialog (FIG.
-
Page 14: Determining The Device Mapping Information For The Touch Panel
Retrieving Panel Files Click to initiate the transfer of the TP4 file from the specified Touch Panel to the selected directory on your PC FIG. 10 File Transfer dialog (Receive tab) This initiates the transfer of every file listed in the File list, in the order in which they are listed (top to bottom). The progress and status of each file transfer is indicated in the Transfer Status Window. -
Page 15: Upgrading Panel Firmware
Touch Panel Firmware (*.ZIP) files are available to download from the product catalog pages for each Touch Panel type at www.amx.com (see the Downloading Firmware (ZIP) Files From www.amx.com section on page 12 for details). The process of upgrading the panel firmware depends on which version of firmware is currently loaded in the panel. -
Page 16: Mvp-5150 Firmware Upgrade Paths
V2.66.21 Added Battery Type field. This is current release. User settings (System Settings, Wireless Settings, etc.) are not affected by these firmware upgrades. MVP-5200i Firmware Upgrade Paths Upgrade Path #1 – User Touch Panel Pages Must Be Reloaded Step 1 Install “SW5966-01-A-MVP5200i_PrepFor_v2.60.64.kit”... -
Page 17: Determining The Current Panel Firmware Version
Upgrading Panel Firmware Determining the Current Panel Firmware Version You can determine the current version of Firmware loaded on your Touch Panel either by checking the Panel Information page on the panel itself, or by checking the Online Tree in NetLinx Studio, as described in the following sections. -
Page 18: Downloading Firmware (Zip) Files From Www.amx.com
Panel Firmware Files are provided for download in the AMX online product catalog, at www.amx.com. To access the 5.2" Modero ViewPoint Touch Panels catalog pages: In your web browser, go to www.amx.com, and select Products from the menu at the top of the main page (FIG. 4): FIG. - Page 19 Click here to download the latest MVP-5100 Firmware This takes you to the AMX License Agreement. Read the License Agreement and click I Accept to proceed. This initiates the download. Save the Firmware files to a known and accessible location.
-
Page 20: Upgrading The Firmware On The Panels (Netlinx Studio)
Upgrading Panel Firmware Upgrading the Firmware on the Panels (NetLinx Studio) Use the Firmware Transfers function in NetLinx Studio to send the new Firmware files to the panels: Ensure the Touch Panel is on wall power during the Firmware Upgrade process. -
Page 21: Mvp-5200I
Upgrading Panel Firmware MVP-5200i The process for upgrading MVP-5200i Touch Panels is similar to that described for the MVP-5100 and MVP-5150 (see above), but with an important difference: Firmware v2.60.64, 2.65.13, 2.65.21 or later must be installed prior to loading the latest Firmware. - Page 22 Upgrading Panel Firmware Battery Replacement & Firmware Upgrade - 5.2” Modero ViewPoint Touch Panels...
-
Page 23: Battery Removal And Replacement
This installation requires opening the case of the MVP-5200i, MVP-5100, or MVP-5150 and working within its internal components. If you are unwilling or unable to replace the battery, please return the device to AMX for battery replacement. Misuse of a Lithium-Polymer battery may result in overheating, fire, or... -
Page 24: Discharging The Battery
Before starting, remove the battery and back cover from their packaging, and inspect the assembly for any damage or distortion. If the battery and back cover shows evidence of damage, contact AMX for replacement and proper disposal information. Place the device face-down on a surface that will not scratch the unit and remove the five screws from the back cover (FIG. -
Page 25: Reconnecting The Battery To The Mvp-5200I
(FIG. 2). This will allow the back cover to be detached from the device. Battery Connector FIG. 2 Interior of MVP-5200i, including female battery connector Attach the residual voltage discharge adaptor (SAA5966-27-A) to the old battery and allow any remaining charge to dissipate. Note that the adaptor may become warm to the touch for up to 12 hours. - Page 26 Bottom label Bottom screws Bottom screw holes Speaker Front of MVP-5200i FIG. 4 MVP-5200i back cover installation Restart the device to confirm that the new battery is functioning correctly. Battery Replacement & Firmware Upgrade - 5.2” Modero ViewPoint Touch Panels...
-
Page 27: Mvp-5100/Mvp-5150 Battery Removal And Installation
Before starting, remove the battery and back cover from their packaging, and inspect the assembly for any damage or distortion. If the battery and back cover shows evidence of damage, contact AMX for replacement and proper disposal information. Place the device face-down on a surface that will not scratch the unit and remove the five screws from the back cover (FIG. -
Page 28: Installing The New Battery
Battery Removal and Replacement Carefully remove the back cover and detach the battery lead at the battery connector (FIG. 6). This will allow the back cover to be detached from the device. Battery Connector FIG. 6 Interior of MVP-5100, including female battery connector Attach the residual voltage discharge adaptor (SAA5966-27-A) to the old battery and allow any remaining charge to dissipate. - Page 29 Battery Removal and Replacement When reassembling the device, take care not to pinch or squeeze the connector wiring or the battery. Do not force the back cover onto the device, as this can damage the device. Insert the five screws and replace the rubber feet atop the two upper screws, using the replacement rubber feet included in the Battery Pack Kit (FIG.
-
Page 30: Battery Return Process
Battery Removal and Replacement Battery Return Process The old battery must be returned to AMX, but only after it has been fully discharged. To return the old battery and receive your credit, please perform the following steps: Connect the supplied battery discharge adaptor to the old battery. Note that the adaptor may remain warm to the touch for up to 12 hours. -
Page 31: Reloading Panel Files
Reloading Panel Files Reloading Panel Files Overview Once the Firmware has been upgraded and the battery has been replaced, the Touch Panel files that were retrieved and backed up can be replaced on the panel. Generally, this process is simply a reversal of the process described in the Retrieving Panel Files section on page 3. - Page 32 Reloading Panel Files Select the TP4 (Touchpanel Design) file type FIG. 2 Select Files for Transfer dialog (Other tab) Select TP4 Touch panel Design File, and click Add. In the Open dialog, locate and select the retrieved TP4 file (FIG. 3). FIG.
- Page 33 Reloading Panel Files FIG. 4 Enter Device Mapping Information dialog If you do not already know the Device Number assignment for the Touch Panel, you can get it from the panel’s online Protected Setup page. See the Determining the Device Mapping Information for the Touch Panel section on page 8 for details. Enter the Device, Port and System numbers for the target Touch Panel, and click OK to close the dialog and add the File to the list at the bottom of the Select Files To Transfer dialog (FIG.
- Page 34 Reloading Panel Files Click to initiate the transfer of the TP4 file from the specified Touch Panel to the selected directory on your PC FIG. 6 File Transfer dialog (Send tab) This initiates the transfer of every file listed in the Files list, in the order in which they are listed (top to bottom).
-
Page 35: Validation (Final Step)
Validation (Final Step) Validation (Final Step) Overview Now that the panel firmware has been upgraded and the panel pages reloaded, you can use NetLinx Studio to verify that the latest firmware is in fact loaded on the panel: These steps assume that you are still running NetLinx Studio, and are still connected to the LAN. Refer to the Connecting to a NetLinx Master Via TCP/IP section on page 3 for instructions on connecting to the LAN if necessary. - Page 36 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
