8
Blade Iron
Medallion

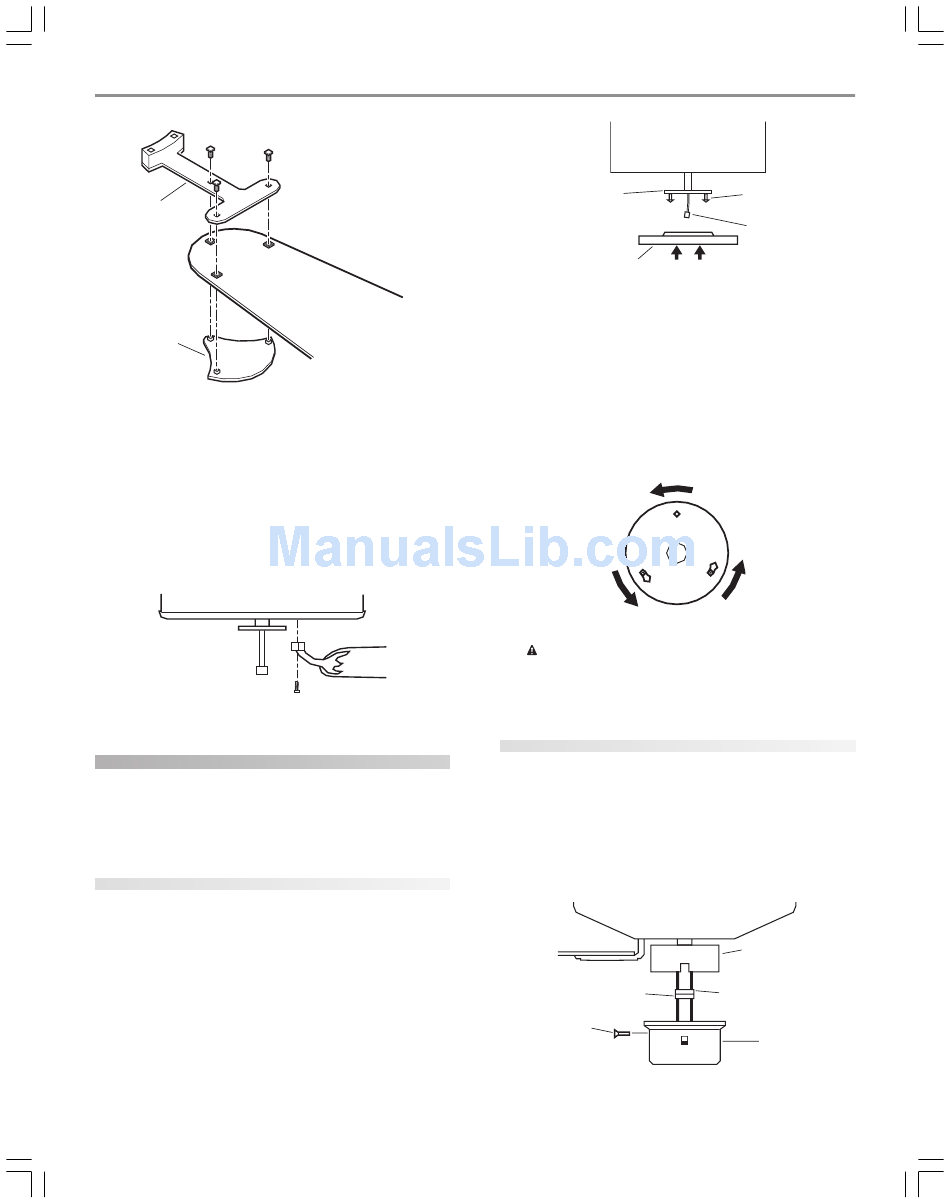

Figure 24 - Attaching the
blade to the blade iron and medallion
If you used grommets, the blades may appear slightly loose
after screws are tightened. This is normal.
3. Remove the blade mounting screws and rubber shipping
bumpers from the motor.
4. For each blade, insert one blade mounting screw through the
blade iron as shown in Figure 25, and attach lightly to the fan.
Insert the second blade mounting screw, then securely tighten
both mounting screws.
Figure 25 - Attaching the blade iron to the fan

installing the light fixture

You can install with or without the light fixture. If you want to
install without the light fixture, skip to the installing without the
light fixture section.
WARNING: Use only the supplied light fixture for this fan
model.
attaching the upper switch housing
1. Partially install two #6-32 x 3/8" housing assembly screws into
the switch housing mounting plate as shown in Figure 26.
2. Feed the upper plug connector through the center opening of
the upper switch housing. See Figure 26.
41886-01 02/08/2005
41886-01_Rev 02.08.05.pmd 8
Switch Housing
Mounting Plate
Upper Switch
Housing
Figure 26 - Attaching the upper
switch housing to the mounting plate
3. Align the keyhole slots in the upper switch housing with the
housing assembly screws installed previously.
4. Turn the upper switch housing counterclockwise until the
housing assembly screws are firmly situated in the narrow end
of the keyhole slots as shown in Figure 27. Install the one re-
maining #6-32 x 3/8" housing assembly screw into the third
hole in the upper switch housing. Tighten all three screws
firmly.
Figure 27 - Mounting the upper switch housing
CAUTION: Make sure the upper switch housing is se-
curely attached to the switch housing mounting plate. Fail-
ure to properly attach and tighten all three housing assem-
bly screws could result in the switch housing and light fix-
ture falling.
attaching the lower switch housing
1. Connect the upper plug connector from the motor to the
lower plug connector in the lower switch housing assembly.
See Figure 28.
NOTE: Both plug connectors are polarized and will only fit to-
gether one way. Make sure that both connectors are properly
aligned before connecting them together. Incorrect connection
could cause improper operation and damage to the product.
Lower Plug
Connector
Housing
Assembly
Screw
Figure 28 - Connecting the plug connectors
2/8/05, 5:14 PM
Housing
Assembly
Screw
Upper Plug
Connector
Upper Switch
Housing
Upper Plug
Connector
Lower
Switch
Housing
