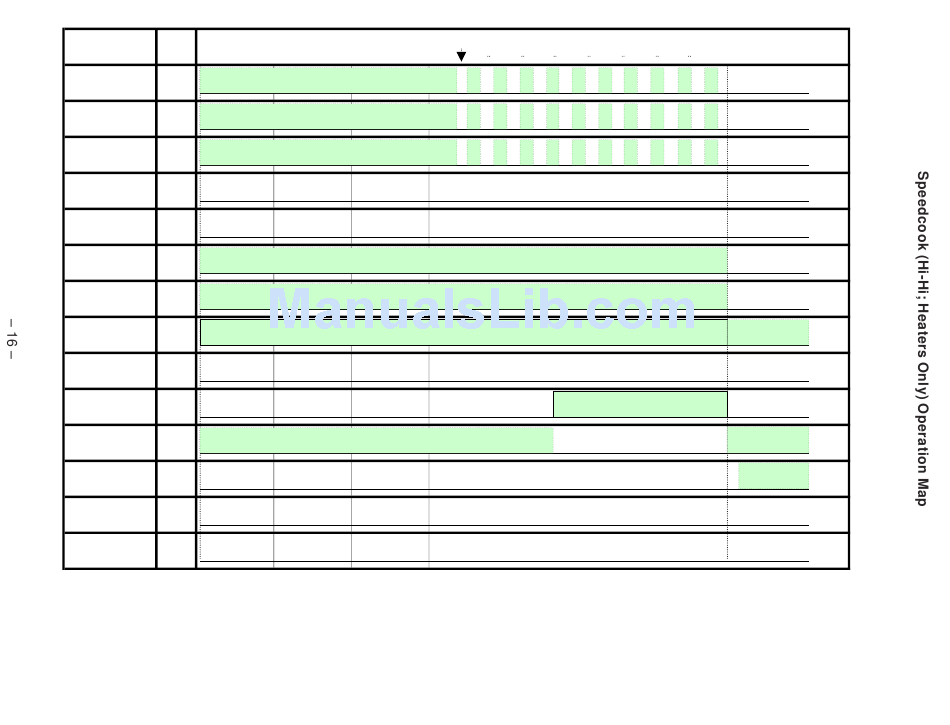

Operation Maps - GE SCA1000 Technical Service Manual

Function Relay
No start
Upper Heater, RY8
Ceramic
Upper Heater, RY3
Halogen
Lower Heater, RY9
Ceramic
MAG RY2
Upper Heater, RY7
Sheath
Oven Lamp RY1
Fan Motor RY6
(for MAG)
Convection
RY16
Motor
Vent Fan, RY11
High
Vent Fan, RY12
Low
Vent Fan, RY13
Slow
Damper RY10
Damper closed
Motor
Cook Top RY14
Lamp, Hi
Cook Top RY15
Lamp, Lo
Shaded areas indicate relay contacts closed.
Cut back only if cavity temperature > 450° F.
end
When cavity Temp.
exceeds 425° F.
When hood TCO is actuated.
When cavity Temp.
exceeds 425° F.
Damper opens 10 min.
after cook time ends.
