Summary of Contents for Emotiva UOM-6.2

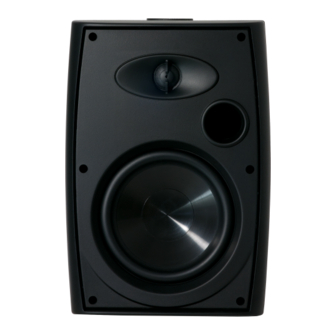

- Page 2 Emotiva products are carefully engineered and produced with the highest quality materials and incorporate the latest technology. We think you will find the Emotiva UOM 6.2 meets or exceeds your expectations. Under the guidance legendary loudspeaker designer Vance Dickason, we have developed a series of loudspeakers that are extremely efficient and dynamic, with a clear, detailed, neutral sound.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Read this User's Guide thoroughly before attempting to install and configure your Emotiva UOM 6.2. All the safety and operation instructions should be read before any operation of the speakers. After successful installation and configuration Emotiva UOM 6.2 Architectural Speakers, be sure to retain this manual in a safe place for future reference. - Page 4 CAUTION: As with any home improvement or home construction project, great care should be taken to avoid potentially dangerous or damaging situations! Exercise caution and good judgement when installing outdoor speakers so as not to disrupt vapor barriers in exterior wall installations, or interfere with or impinge on AC lines.
-
Page 5: Technical Specifications
INVENTORY Two speakers, two mounting brackets, and two pairs of bracket knobs. TECHNICAL SPECIFICATIONS Drivers: One 6.5" Woofer, one wide dispersion 1" silk dome tweeter Sensitivity: 88db (2.83volts/1m) Recommended amplifier power: 10-150 Watts RMS Frequency response: 50Hz-20kHz +/-3db ... -
Page 6: Connecting Your Speakers
CONNECTING YOUR SPEAKERS Here are two examples of typical outdoor speaker wiring patterns and hookups. If this volume is controlled by a receiver or a pre-amp, wire directly from your source to the speakers as shown. If you are using a separate stereo volume control, route your wires from the source to the volume control and then to the speakers. -
Page 7: Speaker Placement
SPEAKER PLACEMENT Obviously wiring aesthetics will more often than not dictate were your outdoor speakers will be placed but here are a few ideas to keep in mind. Protect speakers from direct contact with extreme weather, water, and the elements. -
Page 8: Speaker Installation
SPEAKER INSTALLATION Once you have made a decision on where to install your speakers and have verified that the location is safe, you will need the following tools to complete the installation • Stud Finder • Drill & Drill Bits • Wire Cutter/Strippers •... -
Page 9: Limited Warranty
(Hint: Brushing and rolling grills are nearly impossible since the grill holes fill up easily. Try aerosol paint or purchase an aerosol kit and thinner from your local paint store to use your existing paint.) Emotiva assumes no responsibility for the durability and suitability of your finish. -
Page 10: Service Assistance
SERVICE ASSISTANCE Please note that BEFORE sending your Speaker in for repair you MUST call Emotiva and obtain a return authorization (RMA) number. Prior to contacting Emotiva to begin the RMA process, please have as detailed a description of the problem(s) you are experiencing and the conditions under which the problem(s) occur.
