Summary of Contents for Emotiva airmotiv vaulta AVL-6.5

  • Page 3: Table Of Contents

    Airmotiv Vaulta AVL - 6.5 Specifications .......................7 Choosing Where To Install Your Speakers ....................8 Installing Your Airmotiv Vaulta AVL - 6.5 Speakers ...................9 Care and Maintenance ............................ 12 Emotiva Audio Corporation Five-Year Limited Warranty ..............13 Notes ..................................16 Page 1...
  • Page 4 AIRMOTIV VAULTA AVL- 6.5 Page 2...

  • Page 5: Avl

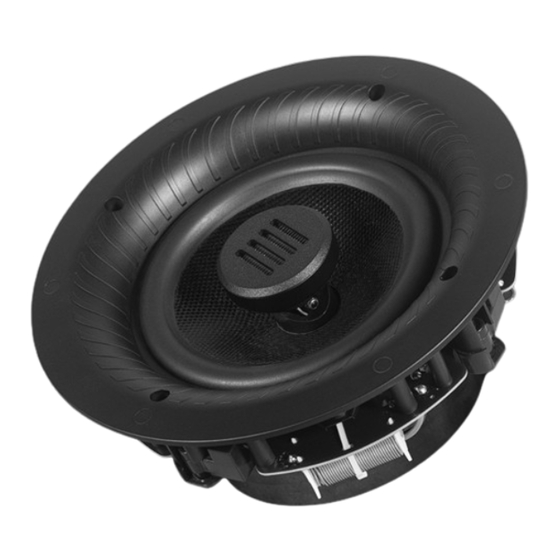

    Introduction Thank you for purchasing our new Emotiva Airmotiv™ Vaulta AVL- 6.5 ceiling speaker. The Emotiva Airmotiv series of speakers represents the culmination of years of research and experience in producing home and professional loudspeakers offering both excellent technical performance and superb sound quality. Our Airmotiv speakers were designed from the start to be equally at home in an audiophile stereo system or a high-end home theater.

  • Page 6: About This Manual

    AIRMOTIV VAULTA AVL- 6.5 About This Manual This manual will provide you with all the information you need to achieve great performance, accurate sound, and many years of reliable service from your Airmotiv speakers. We suggest that you read through the entire manual; we kept things as short and direct as possible.

  • Page 7: Airmotiv Vaulta Avl - 6.5 Features

    • Full five year warranty - ensures that you’ll be able to enjoy your Airmotiv speakers for years to come. You can find more information about the Emotiva Airmotiv Vaulta AVL - 6.5 on our website at www.emotiva.com. Page 5...

  • Page 8: Unpacking

    Your Airmotiv Vaulta AVL - 6.5 loudspeakers were carefully packed and should reach you in perfect condition. If you notice any shipping damage or other issues when you unpack them, please contact Emotiva immediately. Gently remove your Airmotiv loudspeakers from the packing carton and remove all wrappings and shipping material.

  • Page 9: Airmotiv Vaulta Avl - 6.5 Specifications

    AIRMOTIV VAULTA AVL- 6.5 Airmotiv Vaulta AVL - 6.5 Specifications Driver Complement High frequency driver: 25 mm Airmotiv folded ribbon tweeter. Low frequency driver: 6-1/2 inch woven fiber cone mid/woofer with NBR roll surround. Electrical Specifications Crossover frequency: 3.7 kHz. Crossover slope: 12 dB / octave.

  • Page 10: Choosing Where To Install Your Speakers

    AIRMOTIV VAULTA AVL- 6.5 Choosing Where To Install Your Speakers Your Airmotiv Vaulta AVL - 6.5 loudspeakers are designed to sound great no matter where you install them. But, of course, room acoustics will affect how they sound and how they interact with the rest of your system.

  • Page 11: Installing Your Airmotiv Vaulta Avl - 6.5 Speakers

    AIRMOTIV VAULTA AVL- 6.5 Installing Your Airmotiv Vaulta AVL - 6.5 Speakers Installing your new Airmotiv Vaulta AVL - 6.5 loudspeakers will require the use of tools such as a drill, screwdriver, and saw. The installer should be familiar with the use of such tools, and familiar with all applicable building and fire codes.
  • Page 12 AIRMOTIV VAULTA AVL- 6.5 1) Before installing your Airmotiv Vaulta AVL - 6.5 loudspeakers you should first run appropriate speaker cable to the location where they are to be installed. We suggest using high quality moderately heavy gauge speaker cable rated for in-wall or in-ceiling use (14 gauge or thinner is usually most appropriate for ceiling speakers).
  • Page 13 AIRMOTIV VAULTA AVL- 6.5 TIGHTENING MOUNTING SCREWS (ClockWise) First rotates locking arms into position; then tightens them against wall. FRONT VIEW LOCKING ARMS LOCKING ARMS NOT ENGAGED LOCKING ARMS ENGAGED SIDE VIEW (EXPANDED) MOUNTING SCREW WALL SPEAKER LOCKING ARM (ENGAGED) THE TWEETER TILTS IN THE DIRECTION OF THE ARROW INDICATED BELOW.

  • Page 14: Care And Maintenance

    AIRMOTIV VAULTA AVL- 6.5 Care and Maintenance Periodic Maintenance Your Airmotiv Vaulta loudspeakers require no periodic maintenance or calibration. Cleaning the Grill • The grill of the Airmotiv Vaulta loudspeaker should normally be cleaned with a rag dampened with plain water. DO NOT spray water directly onto or into the speaker and DO NOT use abrasive or chemical cleaners.

  • Page 15: Emotiva Audio Corporation Five-Year Limited Warranty

    The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”...
  • Page 16 If your Product was not adequately packaged, we will refuse receipt and the damaged package will be returned to you at your cost. If you do not have the original Emotiva Audio packaging, please check with our sales department to purchase replacement-shipping cartons.
  • Page 17 If you purchased your Emotiva Product outside of the USA and wish to have it serviced at the factory, all freight charges are your responsibility. If you do not have an authorized distributor or repair center in your country, your Product must come back to the Emotiva USA factory for warranty service.

  • Page 18: Notes

    AIRMOTIV VAULTA AVL- 6.5 Notes All information contained in this manual is accurate to the best of our knowledge at the time of publication. In keeping with our policy of ongoing product improvement, we reserve the right to make changes to the design and features of our products without prior notice. User Manual Revision 1.0 March 2020 Page 16...
