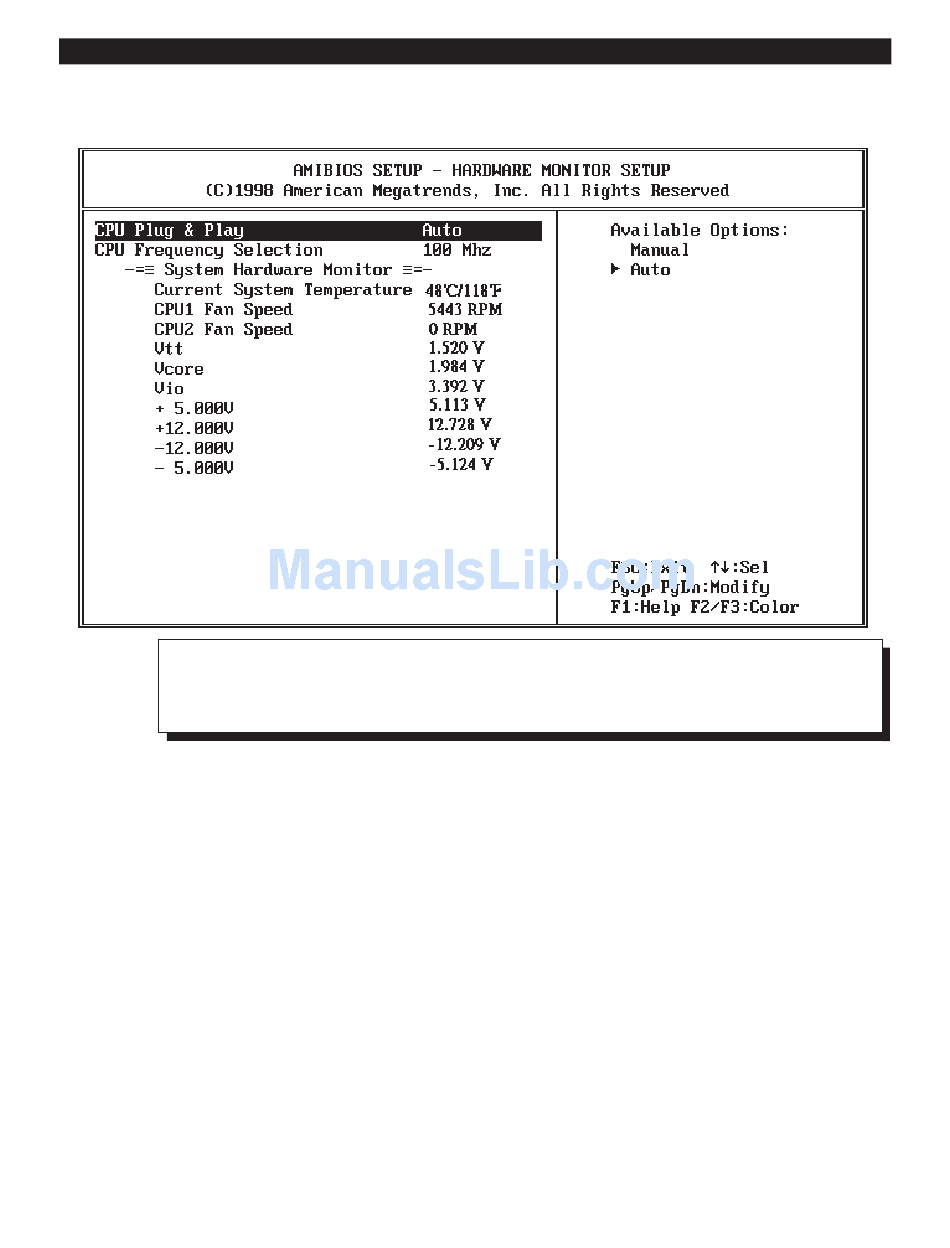

HARDWARE MONITOR SETUP
There is a LM78 chip that can monitor onboard system voltage and fan speed.
The voltage monitoring will cover +5V, +12V, -12V, and -5V.
Note:
Normal CPU fan RPM is more than 5000 RPM. If your CPU fan RPM is less than
5000 RPM, something is wrong and the CPU will be in overheat condition. Make sure
that the connection at CN12/CN13 is correct.
AMI BIOS Setup Menus
36
