2
Board Configuration

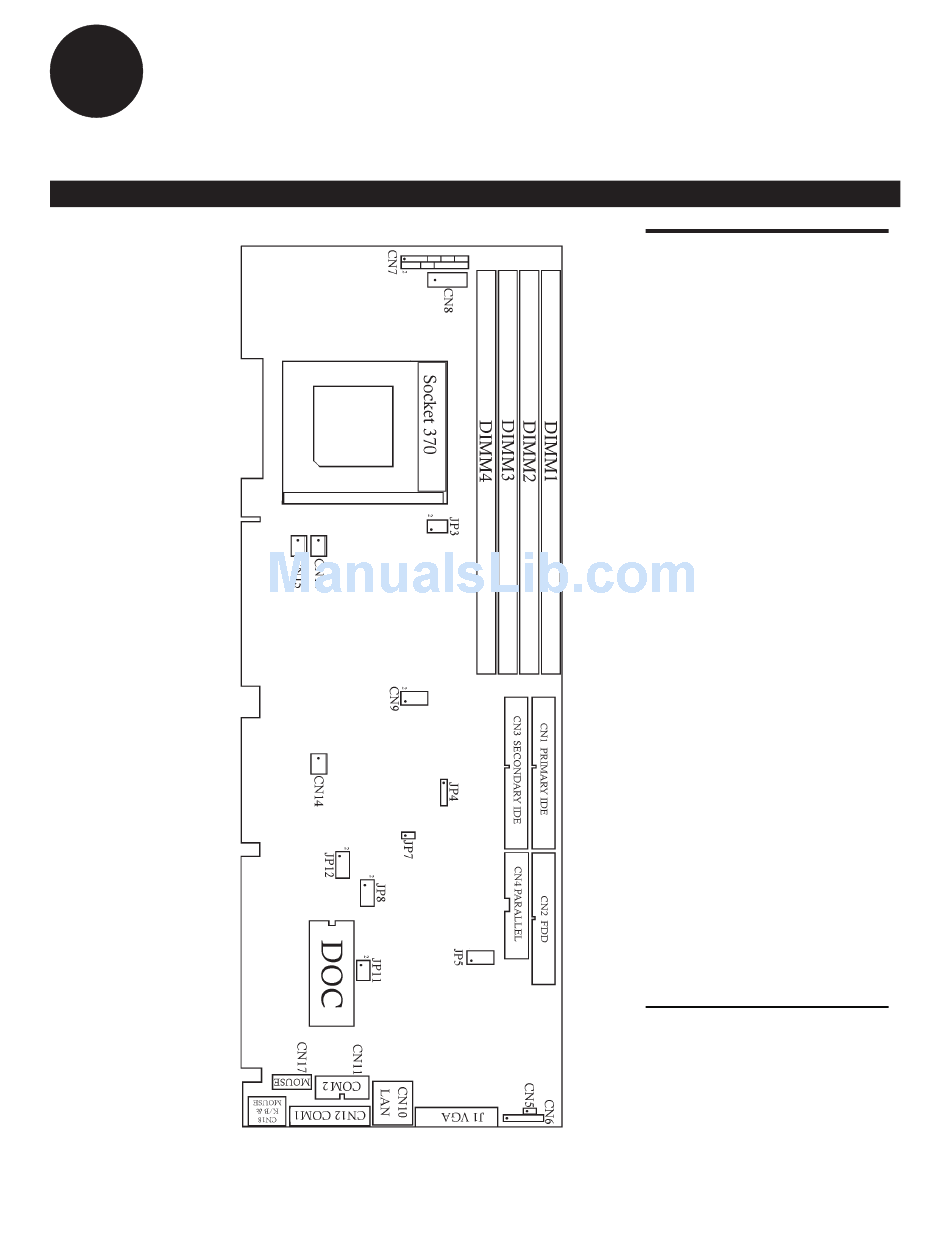

BOARD LAYOUT
Figure 2. SBC-370
Configuration.
JP3, CPU Frequency
JP8, CPU Multiplier Setting
JP5, Watchdog Timer Type
Setting
JP12, Watchdog Timeout Period
JP11, DiskOnChip Memory
Address Setting
JP4, Clear CMOS Setup
JP7, PS/2 Mouse Setting
CN2, Floppy Disk Drive
CN1, Primary IDE
CN3, Secondary IDE
CN4, Parallel Port
CN12, Serial Port 9-pin
D-sub (COM1)
CN11, Serial Port 2x5 pin
header (COM2)
CN8, External Keyboard
CN17, Mouse
CN18, Keyboard/Mouse
CN7, Multi Panel Switch
CN9, USB
CN6, IrDA
J1, VGA
CN10, LAN RJ45
CN5, LED Connector for LAN
CN13, CPU Fan
CN14, System1 Fan
CN15, System2 Fan
DIMM1/2/3/4, DIMM Sockets
Socket 370, Intel Socket 370
Celeron processor
12
