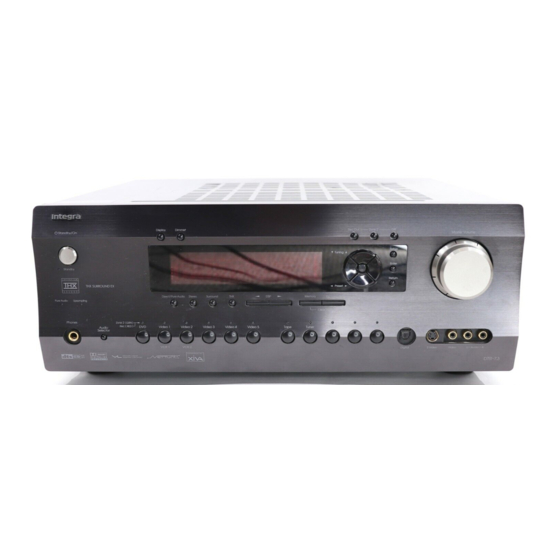

AV Receiver
DTR-7.3
Instruction Manual
Thank you for purchasing the
Please read this manual thoroughly before making
connections and plugging in the unit. Following the
instructions in this manual will enable you to obtain
optimum performance and listening enjoyment
from your new AV Receiver. Please retain this
manual for future reference.
AV Receiver.
Contents
Before using
Facilities and connections
Setup and operation
Remote controller
Appendix
2
8
29
61
73
E

Advertisement

Table of Contents
loading

Related Manuals for Integra DTR-7.3

Summary of Contents for Integra DTR-7.3

  • Page 1 AV Receiver DTR-7.3 Instruction Manual Thank you for purchasing the Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

  • Page 2: Before Using Important Safeguards

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Precautions

    2. AC Fuse The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Integra/Onkyo authorized service station. 3. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth.

  • Page 4: Table Of Contents

    Turning on the power from the remote controller ... 28 Setup and operation Enjoying music or videos with the DTR-7.3 ... 29 Basic operation ... 29 To change the display of the input source from TAPE to MD ... 29 Temporarily turning off the sound ...
  • Page 5 4-4. OSD Position Sub-menu ... 60 Remote controller Using remote controller ... 61 Overview ... 61 Controlling an Integra/Onkyo cassette tape deck ... 61 Controlling an Integra/Onkyo DVD player ... 62 Controlling an Integra/Onkyo CD player ... 63 Controlling an Integra/Onkyo MD recorder ... 64 Entering a pre-programming code ...

  • Page 6: Features

    I Character Input I Powerful backlit/preprogrammed learning remote with macro and mode-key LEDs Supplied accessories Check that the following accessories are supplied with the DTR-7.3. AM loop antenna × 1 Remote controller × 1 Batteries (AA, R6 or UM-3) × 2 The alphabet displayed at the end of the product name found in catalogs and on the packages represents the color of this player.

  • Page 7: Before Using This Unit

    • Using another remote controller in the same room or using the DTR-7.3 near equipment that uses infrared rays may cause operational interference. • Do not put objects on the remote controller. Its buttons may be pressed by mistake and drain the batteries.

  • Page 8: Index Parts And Facilities

    In the standby state, the display is turned off and the DTR-7.3 cannot be operated. Standby indicator [7, 28] Lights when the DTR-7.3 is in the standby state and when a signal is received from the remote controller. Audio Selector button [33] Press to select the type of audio input signal.
  • Page 9 Setup Menu operations. Rec Out/Zone 2/Off buttons [36-38] These buttons allow you to use the DTR-7.3 to output to a remote zone (Zone 2) or to another component for recording (Rec Out). Press the Rec Out button to output the audio and video signals to a recording component for recording.

  • Page 10: Front Panel Display

    Index parts and facilities Front panel display Input signal path indicators Shows from which terminal the input signal is coming. Listening mode or digital input format indicators One of these indicators lights to show the format of the current input source.

  • Page 11: Remote Controller

    The RC-514M is a multi-functional remote controller. The instructions given here only explain how to use the remote controller in conjunction with the DTR-7.3. To operate the DTR-7.3 using the remote controller, first press the RCVR Mode button to place the...
  • Page 12 Press to operate other devices connected to the DTR-7.3. Input Selector buttons [29, 36-38] Press to select an input source. Same as the input selector buttons on the front panel of the DTR-7.3. The input source for each button is given here. DVD:DVD, CD:CD, V1:VIDEO1,...

  • Page 13: Rear Panel

    DVD player, see page 16; to connect a DVD recorder, see page 18; and to connect a digital satellite tuner, see page 19. PRE OUT [27] To use the DTR-7.3 as a preamplifier, connect a power amplifier to this jack. ANTENNA [22-23] These jacks are for connecting a tuner.

  • Page 14: Connecting To Audio/Video Equipment

    Connecting to Audio/Video equipment • Be sure to always refer to the instructions that came with the component that you are connecting. • Do not plug in the power cord until all connections have been properly made. • For input jacks, red connectors (marked R) are used for the right channel, white connectors (marked L) are used for the left channel, and yellow connectors (marked V) are used for video connection.

  • Page 15: Connecting Your Audio Components

    Connecting to Audio/Video equipment Here is an explanation of typical ways to connect various components to the DTR-7.3. There are many ways that any one component can be connected, and it is up to you to decide which method best fits your situation. The directions given here are only one option and should only be thought of as such.

  • Page 16: Connecting Your Video Components

    (composite) of the DVD or LD player to the DVD VIDEO IN jack of the DTR-7.3. Or if the DVD or LD player has an S video output jack, connect it to the DVD S VIDEO IN jack with an S video cable. Or if the device has component video outputs, connect them to one of the banks of COMPONENT VIDEO INPUT jacks on the DTR-7.3.
  • Page 17 VIDEO 1 VIDEO IN jack of the DTR-7.3 and connect the video input jack of the video cassette recorder to the VIDEO 1 VIDEO OUT jack of the DTR-7.3. Or if the video cassette recorder has S video input and output jacks, connect them to the VIDEO 1 S VIDEO IN and OUT jacks of the DTR-7.3...
  • Page 18 (VIDEO 2) Using RCA video cables, connect the video output jack (composite) of the device to the VIDEO 2 VIDEO IN jack of the DTR-7.3 and connect the video input jack of the device to the VIDEO 2 VIDEO OUT jack of the DTR-7.3.
  • Page 19 DTR-7.3. Or if the device has an S video output jack, connect it to the VIDEO 3 (or 4) S VIDEO IN jack of the DTR-7.3 using an S video cable. Or if the device has component video outputs, connect them to one of the banks of COMPONENT VIDEO INPUT jacks on the DTR-7.3.

  • Page 20: Connecting Speakers

    Connecting speakers Before connecting the speakers, it is very important to place them properly for the optimum sound space for your listening pleasure. Be sure to refer to the instruction manuals that came with the speakers during placement and connection. Furthermore, be aware that for surround playback, the configuration and placement of your speakers are both very important.

  • Page 21: Connecting Speakers

    Caution: Connect only speakers with an impedance between 4 and 16 Ω to the DTR-7.3. If the impedance of even one speaker is between 4 and 6 Ω, be sure to set the speaker impedance setting accordingly (see page 41).

  • Page 22: Connecting Antennas

    Connecting antennas To use the tuner of DTR-7.3, it is necessary to prepare the supplied FM and AM antennas. • Adjustment and placement of the FM and AM antennas for better reception must be done while listening to a station broadcast.

  • Page 23: Connecting An Fm Outdoor Antenna

    Connecting antennas Connecting an FM outdoor antenna Make sure to follow the general rules given below: • Keep the antenna away from noise sources (neon signs, busy roads, etc.). • It is dangerous to put the antenna close to power lines. Keep it well away from power lines, transformers, etc.

  • Page 24: Connecting The Remote Zone (Zone 2) Speakers

    The room where the DTR-7.3 is actually located is referred to as the main room while the separate room is referred to as the remote zone (Zone 2). In addition, the IR IN/OUT terminal of the DTR-7.3 allows you to...

  • Page 25: Operating Components Not Reached By The Remote Controller Signals (Ir In/Out)

    : Signal flow The IR IN input allows you to control the DTR-7.3 from the remote zone (Zone 2) with the remote controller even though the remote zone may be on the other side of the building from the main zone.

  • Page 26: Miscellaneous Connections

    • If a component has two terminals, you can use either one to connect to the DTR-7.3. The other one can be used to daisy chain with another component. • With Integra/Onkyo DVD players, you can enter the pre-...

  • Page 27: Connecting To An External Device With 12V Trigger Terminal

    Set the 12V TRIGGER terminal using the Setup menu: Input setup → 12V trigger (see page 52). When the DTR-7.3 is in the ZONE 2 mode, this terminal outputs at 12 V/100 mA. Connecting to devices with analog multi channel...

  • Page 28: Connecting The Power

    2 above and place the DTR-7.3 in the standby state. 1. Press the RCVR MODE button. The RCVR MODE button lights. 2. Press the On button to turn on the DTR-7.3 (take it out of the standby state). To return the DTR-7.3 to the standby state, press the Standby button.

  • Page 29: Enjoying Music Or Videos With The Dtr-7.3

    Enjoying music or videos with the DTR-7.3 Input source buttons Though the DTR-7.3 is often used to listen to the radio, it does not show you its true ability until it is used to play music or watch videos, DVDs, and the like. The DTR-7.3 has the latest and most state-of-the-art features to play back today’s technologies with the...

  • Page 30: Temporarily Turning Off The Sound

    To turn off the sound momentarily, press the Muting button on the remote controller. When pressed, “Muting” is displayed on the DTR-7.3. Press the Muting button again to turn the sound back on. Remote controller Adjusting the bass and treble You can adjust the bass and treble levels at the Setup Menu →...

  • Page 31: Changing The Listening Mode

    Changing the listening mode To change the listening mode during playback, press the listening mode buttons. The functions of the buttons on the DTR-7.3 and those on the remote controller are the same. For more information on each listening mode, see pages 50 through DTR-7.3...

  • Page 32: Switching The Display

    RCVR CH Sel Display Adjusting the brightness of the front display You can adjust the brightness of the front display of the DTR-7.3 using the DIMMER button on the remote controller or on the DTR- 7.3 front panel. DTR-7.3 Temporarily changing the speaker output levels To change the individual speaker volumes temporarily, follow the procedure given below.

  • Page 33: Changing The Audio Mode

    DTR-7.3 Remote controller Auto (automatic detection): With this setting, the DTR-7.3 automatically detects whether the input signal is digital or analog. When a digital signal is not input, then the analog signal is played. This setting only appears if a digital input is selected for the Digital Input setting at Setup Menu →...

  • Page 34: Listening To Radio Broadcasts

    Listening to Radio Broadcasts One of the features of the DTR-7.3 that is most frequently used is its ability to play FM and AM broadcast radio stations. The DTR-7.3 provides a number of listening modes perfect for listening to the radio and getting the most out of your audio system.

  • Page 35: Presetting A Radio Station

    Preset RCVR Tuner Selecting a preset radio station 1. Press Tuner input source button on the DTR-7.3 or TUN button on the remote controller. The front display should show the currently selected frequency. 2. Press the Preset select the number of the desired preset station.

  • Page 36: Enjoying Music In The Remote Zone

    Note: When the remote zone (Zone 2) speakers are connected to the pre-main amplifier that is connected to the ZONE 2 terminal of the DTR-7.3, adjust the volume for the remote zone at the pre-main amplifier. On/Standby Level /...

  • Page 37: Recording A Source

    Recording a source To record the input source signal you are currently watching or listening to This method outputs to the audio and video outputs the currently selected input source signal. This method allows you to a signal while you are actually listening to or watching it. 1.

  • Page 38: To Record An Input Source Signal Different From That You Are Currently Watching Or Listening To

    Recording a source To record an input source signal different from that you are currently watching or listening to Follow the procedure given below to record an input source signal different from that which you are listening to or watching at the time of recording.

  • Page 39: Setup Menu

    When making the various settings required to configure your DTR-7.3 for optimum performance, you can either use the OSD Menu that appears on your television monitor or you can use the display on the front of the DTR-7.3. The OSD Menu is a settings menu that is displayed on your TV monitor.

  • Page 40: Navigating Through The Setup Menu

    You can change settings in the Setup Menu using the buttons on the front panel and on the remote controller. The buttons on the remote controller correspond to those on the DTR-7.3 as shown below. Button on remote controller Button on DTR-7.3...

  • Page 41: Hardware Setup

    |ENTER|Quit:|SETUP| The settings within the Hardware Setup Menu will need to be made before you use your DTR-7.3 for the first time. Once you set the Speaker Impedance setting of the Hardware Setup Menu, the setting will not be displayed again when you enter the Basic Menu. To change the setting at a later date, select the Advanced Menu to display the Hardware Setup Menu.

  • Page 42: Ir In Setup Sub-Menu

    Quit:|SETUP| Use this sub-menu when you have a remote control sensor connected to the IR IN terminal. The setting in this sub-menu tells the DTR-7.3 whether the remote control sensor is being used for operation of the DTR-7.3 in the main zone or the remote zone (Zone 2).

  • Page 43: Speaker Setup

    Speaker Setup 1. Speaker Setup Menu After you have installed the DTR-7.3, connected all the components, and determined the speaker layout, it is now time to perform the settings in the Speaker Setup Menu for the optimum sound acoustics for your environment and speaker layout.

  • Page 44: Speaker Distance Sub-Menu

    Speaker Setup 1-2. Speaker Distance Sub-menu Use this sub-menu to enter the distance from each speaker to the normal listening position. Notes: • Speakers that you selected “No” or “None” for in the Speaker Config Sub-menu will not appear in this sub-menu. •...

  • Page 45: Level Calibration Sub-Menu

    (3) Press the CH Sel button again. The DTR-7.3 will now emit the pink noise from the front right speaker. Use the Level from the front left speaker so that it is the same level as that that was emitted from the center speaker.

  • Page 46: Input Setup

    This menu allows you to make the various settings concerning the signals input from the various input sources that you use with the DTR-7.3. The settings made in this menu are valid for the input source that is currently selected with the input source buttons at the front panel and, therefore, these settings are made separately for each input source.

  • Page 47: Multichannel Setup Sub-Menu (When Net Audio Is Not Selected As The Input Source)

    In such cases, try playing the source in the “DTS” selected. • The DTS indicator on the DTR-7.3 lights while a DTS source is played. When playback finishes and the DTS signal transmission stops, the DTR-7.3 remains in DTS mode and the DTS indicator remains lit.

  • Page 48: Video Setup Sub-Menu

    Input Setup 2-3. Video Setup Sub-menu Advanced Menu 2.Input Setup Input:DVD 2-3.Video Setup Input:DVD a.Video :DVD b.Component Video :INPUT1 Quit:|SETUP| a. Video This setting allows you to match the audio from one component with the video from another. Therefore, you can set a video source to be displayed while the audio from another input source is heard.

  • Page 49: Character Input Sub-Menu

    IntelliVolume When switching input sources, you may find that the output level for different components or input sources connected to the DTR-7.3 is different even though the main volume setting is the same. Under normal circumstances, you would then have to change the volume setting each time you change the input source.

  • Page 50: Listening Mode Preset Sub-Menu

    Input Setup 2-6. Listening Mode Preset Sub-menu With the DTR-7.3, you can set a different listening mode for each different signal type that comes from each input source. For example, if your DVD player also plays compact discs and the DVD video signal is Dolby Digital and the compact disc signal is PCM, then you can set a different listening mode for each.
  • Page 51 Note that if you connect a device to the COMPONENT VIDEO INPUT 2 jacks of the DTR-7.3, the relay switch doesn’t activate and signals are output to the COMPONENT VIDEO OUTPUT jacks.

  • Page 52: Trigger Setup Sub-Menu

    Dolby web site at http://www.dolby.com. The DTR-7.3 can play the 5.1-channel sources in THX surround EX mode, even if the source is not encoded in Dolby Digital Surround EX format. In this case, the sound actually output from the surround back channels depends on the source and may not fit your tastes.

  • Page 53: Audio Adjust

    Audio Adjust 3. Audio Adjust Setup Menu Set the various parameters for the sound signals. Advanced Menu 3.Audio Adjust 1.Tone Control 2.Surround Speakers 3.Sound Effect 4.Delay 5.LFE Level 6.Mono 7.Theater-Dimensional 8.Surround Advanced Menu 3.Audio Adjust 9.THX 10.Mono Movie 11.Enhanced 7 12.Orchestra 13.Unplugged 14.Studio-Mix...

  • Page 54: Sound Effect Sub-Menu

    Audio Adjust 3-3. Sound Effect Sub-menu This sub-menu is used to turn on and off the various sound effects available with the DTR-7.3. Setting Values a. Re-EQ On, Off b. Upsampling On, Off c. Subwoofer On, Off (Analog/PCM) d. Late Night Off, Low, High a.

  • Page 55: Lfe Level Sub-Menu

    Some films have been transferred to video without such a high-frequency rolloff, and thus sound overly bright and hissy. The DTR-7.3 includes this “Academy filter,” which is based on contemporary playback practices for such films over wide-range systems.

  • Page 56: Surround Sub-Menu

    Audio Adjust 3-8. Surround Sub-menu This sub-menu provides various settings for modifying the plain Dolby Digital, DTS, and Pro Logic II Surround listening modes. The settings that can be set are shown in the table below. Setting Values a. Surr Mode Pro Logic II Movie (Analog/PCM) Pro Logic II Music...

  • Page 57: Thx Sub-Menu

    Audio Adjust 3-9. THX Sub-menu This sub-menu allows you to set the settings that will be enabled when the THX listening mode is selected. The settings available are shown in the table below. Setting Values a. Re-EQ (THX) Off, On b.
  • Page 58 Audio Adjust Settings possible for each listening mode (3-1. 3-2. 3-3. Sub-menu) Setting 3-1. Tone Control a. Bass b. Treble Listening mode Mono Direct/Pure Audio Stereo Theater-Dimensional Dolby EX DTS-ES Matrix 6.1 DTS-ES Discrete 6.1 DTS 96/24 Dolby Digital Dolby Pro Logic II DTS-ES Neo:6 THX Cinema (PLII) THX Cinema (Neo:6)

  • Page 59: Preference

    “Off.” d. Power On Volume This sets a designated volume for which the DTR-7.3 will be set to every time that the power is turned on. This prevents the DTR-7.3 from suddenly outputting very loud sounds if it is turned on while it is set to an extremely high volume.

  • Page 60: Headphones Level Setup Sub-Menu

    (Australian models only) The default setting is “Auto,” which means that the television format is detected and automatically set by the DTR-7.3. However, if you know the correct format, you can use this setting to choose either PAL or NTSC so that no time is wasted on detection.

  • Page 61: Remote Controller

    Overview The RC-514M remote controller is a useful tool that can not only operate the DTR-7.3, but also all the other components of your home theater as well. To operate any component, first press the Mode button on the remote controller that corresponds to the component that you wish to control.

  • Page 62: Controlling An Integra/Onkyo Dvd Player

    The DVD Mode button lights. 2. Press the desired operation button. The buttons shaded in the figure to the left are the operation buttons that can be used to control an Integra/Onkyo DVD player. Operation buttons: On: Turns DVD player on and off Standby: Turns DVD player off (Some sets may not respond to this button.

  • Page 63: Controlling An Integra/Onkyo Cd Player

    2. Press the desired operation button. CD Mode The buttons shaded in the figure to the left are the operation buttons that can be used to control an Integra/Onkyo compact disc player. Operation buttons: On: Turns on and off the compact disc player (same as Standby...

  • Page 64: Controlling An Integra/Onkyo Md Recorder

    65, then this button cannot be used to operate Integra/Onkyo MD recorders. If this is the case, to operate an Integra/Onkyo MD recorder, you must first erase the satellite tuner code by following the directions given in “Erasing all the commands programmed under a MODE...

  • Page 65: Entering A Pre-Programming Code

    DTR-7.3 with an cable. You will then operate the DVD player by pointing the remote controller at the remote control sensor on the DTR-7.3. You do not need to enter this code because it is factory preset. However, if the code has been changed to 601 or 613, then you will need to change it back to 600.

  • Page 66: Pre-Programming Codes

    (i.e. if the first code does not work, then try the next). BRAND SETTING No. DENON 602, 609 HITACHI KENWOOD MAGNAVOX 606, 613 MARANTZ MITSUBISHI 608, 613 INTEGRA/ONKYO 600, 601, 613 PANASONIC PIONEER PROSCAN SONY TOSHIBA YAMAHA 609, 614 ZENITH 613, 615 BRAND SETTING No.

  • Page 67: Operating Your Programmed Remote Controller

    0,1 to 9: Numeric keys ENTER: Confirm You may also use the following buttons: : Adjusts the volume at the DTR-7.3 Muting: Activates the muting function at the DTR-7.3 Numeric keys Enter Cable Mode (Cable Mode) 1. Press the Cable Mode button.

  • Page 68: Vcr Mode (Vcr Mode)

    0,1 to 9, +10: Numeric keys You may also use the following buttons: Numeric keys : Adjusts the volume at the DTR-7.3 Muting: Activates the muting function at the DTR-7.3 TV Mode (TV Mode) 1. Press the TV Mode button. The TV button lights.

  • Page 69: Programming The Commands Of Remote Controllers For Other Devices Into The Remote Controller

    Programming the commands of remote controllers for other devices into the remote controller 2 to 6 inches (5 to 15 cm) Programming procedure When programming the commands of another remote controller to the RC-514M remote controller, you must first decide under which Mode button you want the commands to be linked.

  • Page 70: Erasing The Programmed Command From One Button

    7. Operate the newly programmed buttons to make sure the learning function was performed properly. Notes: • The remote controller codes for Integra/Onkyo compact disc players, cassette tape decks, DVD players, and mini disc recorder have already been programmed into buttons on the remote controller.

  • Page 71: Using The Macro Function

    (up to 16) on the remote controller into a single button. The series of operations are then called a macro. For example, to play a compact disc player connected to the DTR-7.3 normally, you must perform the following steps: 1.

  • Page 72: Erasing A Macro From The Macro 1 (Or 2) Button

    Using the macro function Macro 1 Erasing a macro from the Macro 1 (or 2) button Send/Learn 1. Press and hold down any one of the 8 Mode buttons, indicator press the Macro 1 (or 2) button, and then release both buttons.

  • Page 73: Troubleshooting Guide

    If a problem occurs while you are using the remote controller, first try to operate the controls on the front panel of the DTR-7.3 to make sure that it is not due to a malfunction (or worn out batteries) in the remote controller.

  • Page 74: Video And Audio

    DTR-7.3. © Point the remote controller at the remote sensor of the DTR- 7.3 (see page 7). • Remote controller is too far from the DTR-7.3. © Operate the remote controller within 16 feet (5 meters) (see page 7). • Remote controller is functioning in a different mode ©...

  • Page 75: If One Of The Messages Shown Below Appears

    * To reset the surround mode and other settings to the factory default settings, hold down the VIDEO 1 button with the DTR- 7.3 turned on and then press the Standby/On button. “CLEAR” appears in the front display and the DTR-7.3 enters the standby state.

  • Page 76: Specifications

    80 dB (IHF A, 5 mV input) Line: 110 dB (IHF A, 0.5 V input) Muting: Due to setup menu Integra Division of ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www. integrahometheater.com Integra Division of ONKYO CORPORATION Sales &...

  • Page 77: System Requirements

    DTR-7.3 Features The DTR-7.3 is a network audio client that is connected via a LAN to a server NAS-2.3 and allows you to enjoy music files saved on the server NAS-2.3, as well as Internet radio, from anywhere in your home.
  • Page 78 Connecting the DTR-7.3 to your Ethernet Network Plug one end of an Ethernet CAT-5 cable into the port on the backside of the DTR-7.3 and the other end into the gateway. Internet NAS-2.3 Modem To the WAN side To the LAN...

  • Page 79: Enjoying Internet Radio

    Net Audio 7. Press the Enter button. Buffering starts with the following message displayed. When the buffering completes, the DTR-7.3 starts playback of the broadcast. Note: If you are connected to the Internet via a slow link (such as a dial-up connection) rather than a broadband link (via an xDSL or cable modem), you may not be able to enjoy Internet radio as you expect or at all.
  • Page 80 It may take a few minutes. 2. Turn on the DTR-7.3. When you connect the DTR-7.3 to the network first time, it will be connected to the server found first. 3. Press the Net Audio button (on the main unit) or the Net A button (on the remote controller).
  • Page 81 Repeat All: Repeats the tracks in the currently selected mode. Repeat Off: Repeat mode is disabled. You can operate the DTR-7.3 when playing and stopped. I Selecting a track list: You can use the music file data saved in the NAS-2.3 to select which tracks to play.

  • Page 82: Configuring Various Settings

    OSD. Network Setup Menu Before you can use the DTR-7.3 to play music contained in the music library in the NAS-2.3 and listen to Internet radio, you must correctly configure the DTR-7.3’s network settings so that it can connect to your LAN and the Internet.
  • Page 83 Also, you can use this menu to manually configure network settings. Referring to the documentation from your ISP, enter the IP address and subnet mask assigned to your DTR-7.3 as well as the IP addresses of the default gateway and DNS server.

  • Page 84: Appendix Troubleshooting Guide

    If this does not resolve the problem, turn off the power of the NAS- 2.3 and turn it on again. • The NTSP Port setting on the DTR-7.3 differs from that of NAS-2.3. © Go to “5-4.Client Setup Sub-menu”, select “c.NTSP Port”, then set the same value as used for NAS-2.3.
