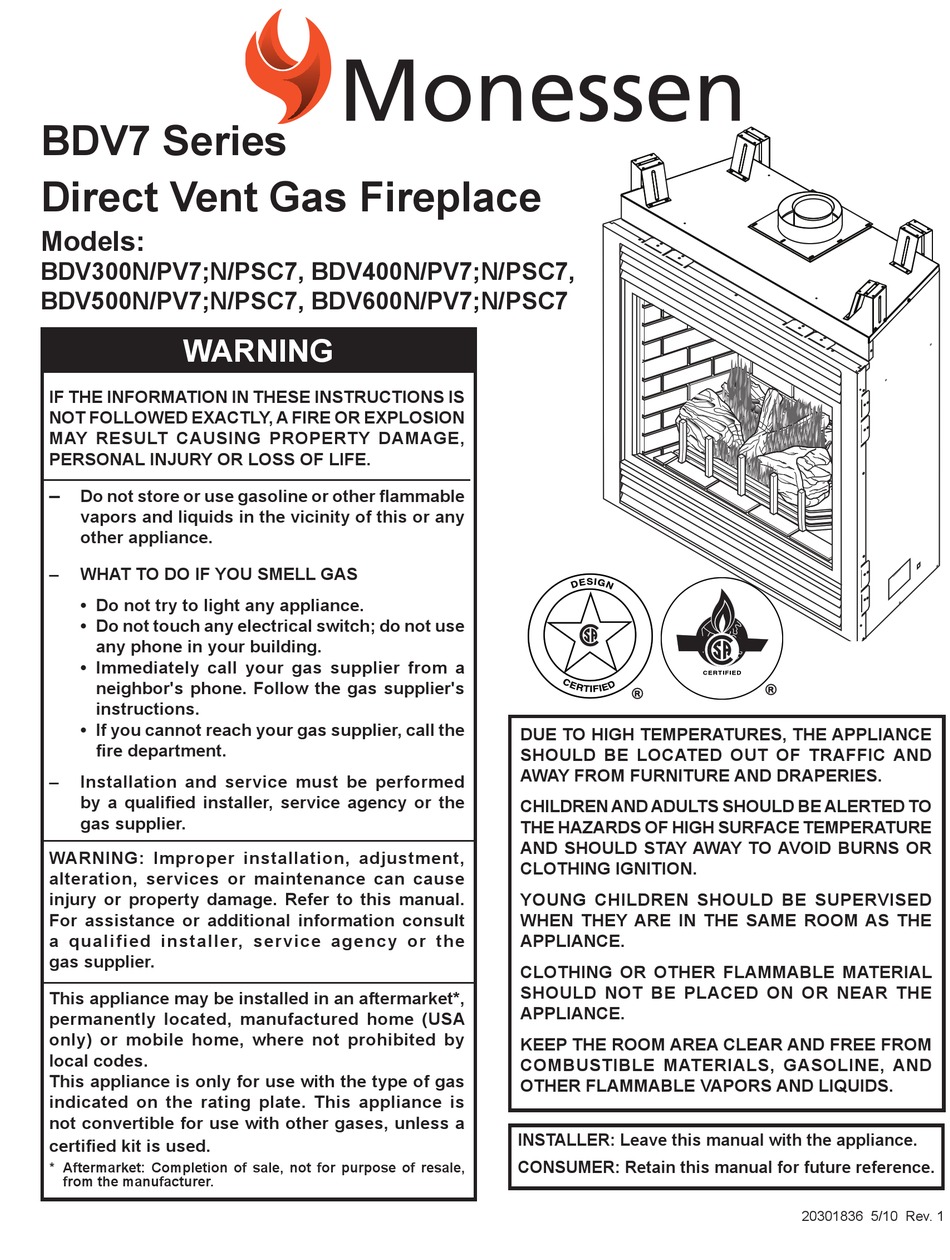

BDV7 Series
Direct Vent Gas Fireplace
Models:
BDV300N/PV7;N/PSC7, BDV400N/PV7;N/PSC7,
BDV500N/PV7;N/PSC7, BDV600N/PV7;N/PSC7
WARNING
IF the INFoRMAtIoN IN theSe INStRuCtIoNS IS
Not FolloWeD exACtly, A FIRe oR exPloSIoN
MAy ReSult CAuSING PRoPeRty DAMAGe,
PeRSoNAl INjuRy oR loSS oF lIFe.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–
WhAt to Do IF you SMell GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
–
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: Improper installation, adjustment,
alteration, services or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
this appliance may be installed in an aftermarket*,
permanently located, manufactured home (uSA
only) or mobile home, where not prohibited by
local codes.
this appliance is only for use with the type of gas
indicated on the rating plate. this appliance is
not convertible for use with other gases, unless a
certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
Due to hIGh teMPeRAtuReS, the APPlIANCe
547050
ShoulD Be loCAteD out oF tRAFFIC AND
DVB7 cover
AWAy FRoM FuRNItuRe AND DRAPeRIeS.
ChIlDReN AND ADultS ShoulD Be AleRteD to
the hAZARDS oF hIGh SuRFACe teMPeRAtuRe
AND ShoulD StAy AWAy to AVoID BuRNS oR
ClothING IGNItIoN.
youNG ChIlDReN ShoulD Be SuPeRVISeD
WheN they ARe IN the SAMe RooM AS the
APPlIANCe.
ClothING oR otheR FlAMMABle MAteRIAl
ShoulD Not Be PlACeD oN oR NeAR the
APPlIANCe.
KeeP the RooM AReA CleAR AND FRee FRoM
CoMBuStIBle MAteRIAlS, GASolINe, AND
otheR FlAMMABle VAPoRS AND lIquIDS.
INStAlleR: leave this manual with the appliance.
CoNSuMeR: Retain this manual for future reference.
20301836 5/10 Rev. 1
Advertisement
Table of Contents
Related Manuals for Monessen Hearth BDV300N/PV7
Summary of Contents for Monessen Hearth BDV300N/PV7
- Page 1 BDV7 Series Direct Vent Gas Fireplace Models: BDV300N/PV7;N/PSC7, BDV400N/PV7;N/PSC7, BDV500N/PV7;N/PSC7, BDV600N/PV7;N/PSC7 WARNING IF the INFoRMAtIoN IN theSe INStRuCtIoNS IS Not FolloWeD exACtly, A FIRe oR exPloSIoN MAy ReSult CAuSING PRoPeRty DAMAGe, PeRSoNAl INjuRy oR loSS oF lIFe. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Table Of Contents
CoNteNtS BDV7 Series Direct Vent Gas Fireplace thank you and congratulations on your purchase of a Monessen Fireplace. PleASe ReAD the INStAllAtIoN AND oPeRAtIoN INStRuCtIoNS BeFoRe uSING the APPlIANCe! IMPoRtANt: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Important Safety Information
IMPoRtANt SAFety INFoRMAtIoN BDV7 Series Direct Vent Gas Fireplace oWNeR INStAlleR Please retain these instructions for future reference. Please leave these instructions with the appliance. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. •... -
Page 4: Code Approval
BDV7 Series Direct Vent Gas Fireplace IMPoRtANt SAFety INFoRMAtIoN 12. Do not use this fireplace to cook food or burn paper or IMPoRtANt: other objects. PleASe ReAD the FolloWING 13. Never place anything on top of fireplace. CAReFully 14. Do not use any solid fuels (wood, coal, paper, card- board, etc.) in this fireplace. -
Page 5: Product Features
PRoDuCt FeAtuReS and GAS SPeCIFICAtIoNS BDV7 Series Direct Vent Gas Fireplace GAS SPeCIFICAtIoNS & oRIFICe SIZe PRoDuCt SPeCIFICAtIoNS • This appliance has been certified for use with either Max.Input Min. Input Orifice natural or propane gas. Refer to appropriate data Model Fuel BTU/h... -
Page 6: Fireplace & Framing Dimensions
FIRePlACe DIMeNSIoNS BDV7 Series Direct Vent Gas Fireplace Min. Rough Opening Depth 1/2” 5/8” 1/2” 5/8” 1/2” or 5/8” O - Min. Rough Opening Width Min. Rough Opening Height 1/2” 5/8" Figure 2 - 3 ” Fireplace and Framing Dimensions 8 ” BDV300 BDV400 BDV500 BDV600 33Z\zn” (840 mm) 37Z\zn”... -
Page 7: Fireplace Location
PRe-INStAllAtIoN INFoRMAtIoN BDV7 Series Direct Vent Gas Fireplace FIReBox FRAMING Firebox framing can be built before or after the appliance is set in place. Refer to Figure 2 for fireplace and framing Do not fill spaces around firebox with dimensions. Construct firebox framing following Figure 2 insulation or other materials. -
Page 8: Clearances
CleARANCeS BDV7 Series Direct Vent Gas Fireplace CleARANCeS to CoMBuStIBleS Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. the appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. -
Page 9: Secure Fireplace To Floor Or Framing
SeCuRe FIRePlACe to FlooR or FRAMING BDV7 Series Direct Vent Gas Fireplace The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. -
Page 10: Optional Top Vent Application
oPtIoNAl toP VeNt APPlICAtIoN BDV7 Series Direct Vent Gas Fireplace oPtIoNAl toP VeNt APPlICAtIoN After conversion to top vent configuration, the The appliance is shipped as a rear vent unit. If the instal- 4” (102 mm) flue pipe should be concentric lation layout requires the unit to be a top vent configu- within the 6B\,”... -
Page 11: Vent Installation
VeNtING INStAllAtIoN INFoRMAtIoN BDV7 Series Direct Vent Gas Fireplace Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life. -
Page 12: Termination Location
BDV7 Series Direct Vent Gas Fireplace VeNtING INFoRMAtIoN GeNeRAl VeNtING INFoRMAtIoN - teRMINAtIoN loCAtIoN INSIDE CORNER DETAIL G V H A D E L C B B V Fixed B V Closed V Fixed Operable Closed F V B M V B ... -
Page 13: Termination Clearances
VeNtING INFoRMAtIoN BDV7 Series Direct Vent Gas Fireplace Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall... -
Page 14: Vent Graph
VeNtING INFoRMAtIoN BDV7 Series Direct Vent Gas Fireplace hoW to uSe the VeNt GRAPh t-loCK PIPeS When using unitized T-Lock pipe it is not necessary to The Vent Graph should be read in conjunction with the use sealant on the joints. The only areas of the venting following vent installation instructions to determine the re- lationship between the vertical and horizontal dimensions system that need to be sealed with high temperature sili-... - Page 15 VeNt INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace horizontal sections of this vent system this fireplace must be vented to the require a minimum of 3” clearances to outside. the venting system must NeVeR combustibles at the top of the flue and 1” be attached to a chimney serving a clearance at the sides and bottom until separate solid fuel burning appliance.
-
Page 16: Rear Wall Vent Applications & Installation
VeNtING INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace ReAR WAll VeNt APPlICAtIoN Vent opening for Combustible Walls 9B\,” When installed as a rear vent unit this appliance may be (244 mm) Min. vented directly to a termination located on the rear wall behind the appliance. -
Page 17: Top Vent Sidewall Applications & Installation
VeNt INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace Finish Wall Vent Rise Termination FP1472 Figure 20 - There must be a 1/2" rise per foot length toP VeNt SIDeWAll APPlICAtIoN Figure 18 - FP2294 Note: For all top vent installations where a 90° elbow Side View of Final Unit Location is the first pipe piece towards a sidewall termination (up FP1472... - Page 18 VeNtING INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace • The maximum number of elbow degrees in a system is When installing the appliance as a rear vent unit, the 270°. Figure 26 90° or 45° transition elbow attached directly to the Example: Elbow 1 = 90°...
- Page 19 VeNtING INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace VeRtICAl SIDeWAll INStAllAtIoN - t-loCK PIPe Step 1 Locate vent opening on the wall. It may be necessary to first position the fireplace and measure to obtain hole lo- cation. Depending on whether the wall is combustible or noncombustible, cut opening to size.
-
Page 20: Vertical Sidewall Installation
BDV7 Series Direct Vent Gas Fireplace VeNtING INStAllAtIoN Step 7 Guide the vent terminations 4” and 7” collard into their respective vent pipes. Double check that the vent pipes overlap the collars by 2” (51 mm). Secure the termina- 4” Flex Vent Pipe tion to the wall with screws provided and caulk around 12"... -
Page 21: Below Grade Installation
BDV7 Series Direct Vent Gas Fireplace VeNtING INStAllAtIoN BeloW GRADe INStAllAtIoNS 6. Slide the snorkel into the vent pipes and secure to the wall. When it is not possible to meet the required vent terminal 7. Level the soil so as to maintain a 4" clearance below clearances of 12"... -
Page 22: Vertical Through-The-Roof Installation
VeNtING INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace VeRtICAl thRouGh-the-RooF INStAllAtIoN Note: For all top vent straight vertical through-the-roof Max.Height 40’ (12.2. m) installations greater than 12’ (3.7 m), install the supplied Min. Height cross-bar flue restrictor onto the top edge of the firebox 8’... - Page 23 VeNtING INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace 10. Add additional vent lengths for proper height. Figure Horizontal Overhang 11. Apply high temperature sealant to 4” and 7” collars of vertical vent termination and install. 2 ft. 2 ft. Min. If there is a room above ceiling level, fire stop spacer must Min.
-
Page 24: Fireplace Installation
BDV7 Series Direct Vent Gas Fireplace FIRePlACe INStAllAtIoN CheCK GAS tyPe Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. - Page 25 BDV7 Series Direct Vent Gas Fireplace FIRePlACe INStAllAtIoN A manual shutoff valve must be installed only persons licensed to work with gas upstream of the appliance. union tee and piping may make the necessary gas plugged 1/8” NPt pressure tapping point connections to this appliance.
-
Page 26: Check Gas Pressure - Millivolt
BDV7 Series Direct Vent Gas Fireplace MIllIVolt CheCK GAS PReSSuRe and eleCtRICAl INStAllAtIoN 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, StoP! Do not install the appliance. -
Page 27: Electrical Installation
eleCtRICAl INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace ReMote WAll MouNteD SWItCh A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach the wall switch in a junction box at the desired location on the wall. Figure 44. Do not extend beyond the wall switch wire length provided. -
Page 28: Optional Fan/Blower Systems - Milli-Volt
BDV7 Series Direct Vent Gas Fireplace oPtIoNAl FAN / BloWeR SySteM oPtIoNAl FAN/BloWeR SySteMS (Blot) Installation Instructions Wiring 1. Before installing the blower, wire the receptacle into an electrical circuit. This should be done be- fore framing the fireplace. Wire with minimum 60° C wire in accordance with prevailing codes. 2. -
Page 29: Operating Instructions - Millivolt
oPeRAtING INStRuCtIoNS - MIllIVolt BDV7 Series Direct Vent Gas Fireplace FoR youR SAFety ReAD BeFoRe lIGhtING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly. -
Page 30: Lighting Pilot
oPeRAtING INStRuCtIoNS - MIllIVolt BDV7 Series Direct Vent Gas Fireplace lIGhtING PIlot FoR the FIRSt tIMe APPRoVeD leAK teStING MethoD If using a soap and water You may check for gas leaks with the following methods solution to test for leaks, only: Do Not spray solution onto •... -
Page 31: Lighting Burner
oPeRAtING INStRuCtIoNS - MIllIVolt BDV7 Series Direct Vent Gas Fireplace lIGhtING BuRNeR MAIN BuRNeR SWItCh The “ON/OFF/RS” switch for the main burner can be found behind door of the fireplace. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the “ON”... -
Page 32: Check Gas Pressure - Signature Command System
SIGNAtuRe CoMMAND - CheCK GAS PReSSuRe and eleCtRICAl INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace 1. Check gas type. The gas supply must be the same as Pressure Inlet stated on the appliance’s rating decal. If the gas supply is different from the fireplace, StoP! Do not install the appliance. -
Page 33: Signature Command System
eleCtRICAl INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace juNCtIoN Box WIRING 1. This should be done before framing the fireplace. Wire the receptacle into an electrical circuit. Wire with minimum 60° C wire in accordance with prevailing codes. 2. Remove the external junction box cover by removing the screw from the side of the outside firebox wall. -
Page 34: Signature Command Wiring Diagram
BDV7 Series Direct Vent Gas Fireplace eleCtRICAl INStAllAtIoN Optional To Junction Box AC Module in Fireplace Pilot Optional White Light Black Optional White Blower Black White Optional Black Aux. Green Connector Pin To Control Board Input 300 Watt Max. Each Optional A/C Module Replaces 6V Adapter When Used RF Receiver ON/OFF Button Control Board 6V AC Black / Thermopile Adapter Red / Thermopile Sensor Conversion NG/LP Ignitor / Sparker Plug-in Connector... -
Page 35: Optional Fan/Blower Systems
oPtIoNAl FAN BloWeR SySteMS BDV7 Series Direct Vent Gas Fireplace electrical Grounding Instructions: this electrical connections should only be appliance is equipped with a three-prong performed by a qualified licensed electrician. (grounding) plug for your protection against Main power supply must be turned off before shock hazard and should be plugged directly connecting the fan to the main electrical into a properly grounded three-prong... -
Page 36: Blot Automatic Thermostat Blower
oPtIoNAl FAN BloWeR SySteMS BDV7 Series Direct Vent Gas Fireplace Blot AutoMAtIC theRMoStAt BloWeR 120VAC Receptacle Junction BLACK GREEN FP2675 WHITE BLACK WHITE BLACK BLACK Speed Control Before installing the blower, wire the receptacle into an Figure 55 - electrical circuit. This should be done before framing the BLOT Blower Wiring Diagram fireplace. -
Page 37: Operating Instructions - Signature Command System
oPeRAtING INStRuCtIoNS - SIGNAtuRe CoMMAND BDV7 Series Direct Vent Gas Fireplace FoR youR SAFety ReAD BeFoRe lIGhtING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of lie. A. -
Page 38: Operating Instructions
oPeRAtING INStRuCtIoNS - SIGNAtuRe CoMMAND BDV7 Series Direct Vent Gas Fireplace oPeRAtING INStRuCtIoNS 1. StoP! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand. 3. -
Page 39: Signature Command System Operation
SIGNAtuRe CoMMAND SySteM oPeRAtIoN INStRuCtIoNS BDV7 Series Direct Vent Gas Fireplace FeAtuReS To Thermopile RF Receiver Command Center ON/OFF To Sensor • Easy Access Function Operation and System Configuration To Sparker • Operation Confirmation/Fault Diagnostic Indications (LED/ Buzzer) NG/LP • Conversion ON/OFF/HI/Med/Low Operation •... -
Page 40: System Configuration/Setup
SIGNAtuRe CoMMAND SySteM oPeRAtIoN INStRuCtIoNS BDV7 Series Direct Vent Gas Fireplace SySteM CoNFIGuRAtIoN/SetuP All System configuration/setup is done on the Command Center. Note: When using On/Off wall switch, the switch must be in the ON position to perform all configuration set ups at the command center. - Page 41 SIGNAtuRe CoMMAND SySteM oPeRAtIoN INStRuCtIoNS BDV7 Series Direct Vent Gas Fireplace FuNCtIoNS/oPeRAtIoN turning on the fireplace 1. Turn on the master switch and wait for a beep. 2. Press the ON button on the Command Center or turn on wall switch. Pilot will light and burner will come on High set- ting or last memory setting (See Turning Off Fireplace below).
-
Page 42: Glass Removal
GlASS ReMoVAl BDV7 Series Direct Vent Gas Fireplace GlASS FRAMe ReMoVAl 1. Release two clamps on bottom of fireplace. Figure 58 2. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fireplace. 3. -
Page 43: Final Installation
FINAl INStAllAtIoN BDV7 Series Direct Vent Gas Fireplace RoCK Wool PlACeMeNt Burner 1. For best results in flame appearance and opera- tion, use one (1) 8 gram bag of rock wool for propane/LP models and up to three (3) bags of rock wool for natural gas models. -
Page 44: Cleaning And Maintenance
CleANING and MAINteNANCe BDV7 Series Direct Vent Gas Fireplace Thermocouple turn off gas before servicing fireplace. It Thermopile is recommended that a qualified service Millivolt Control technician perform these check-ups at the Pilot beginning of each heating season. BuRNeR, PIlot AND CoNtRol CoMPARt- MeNt Keep the control compartment, logs, and burner areas FP1943... -
Page 45: Vent System
CleANING and MAINteNANCe BDV7 Series Direct Vent Gas Fireplace VeNt SySteM The fireplace and venting system should be inspected before initial use and at least annually by a qualified field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. -
Page 46: Troubleshooting
tRouBleShootING BDV7 Series Direct Vent Gas Fireplace StANDING PIlot IGNItIoN SyMPtoM PoSSIBle CAuSe ACtIoN 1. Spark ignitor will A. Wire disconnected. A. Open door and check to make sure wire is connected not light pilot after to ignitor. repeated triggering of B. - Page 47 tRouBleShootING BDV7 Series Direct Vent Gas Fireplace StANDING PIlot IGNItIoN SyMPtoM PoSSIBle CAuSe ACtIoN 4. Frequent pilot A. Pilot flame may be too high A. Clean and adjust the pilot flame for maximum flame outage problem. or too low, causing pilot impingement on thermocouple.
-
Page 48: Signature Command System
tRouBleShootING BDV7 Series Direct Vent Gas Fireplace SIGNAtuRe CoMMAND SySteM ACTION OPERATION FAULT DIAGNOSIS Using Battery polarity wrong? Re-install batteries battery? Make sure Command Install batteries and/or Battery voltage low? Change batteries Center and plug in the AC board No beep in about the control 8 seconds board are... -
Page 49: Replacement Parts
RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace FIReBox CoMPoNeNtS 540701 DVB parts 20301836... - Page 50 RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace FIReBox CoMPoNeNtS Item Description qty. BDV300 BDV400 BDV500 BDV600 Standard Features Junction Box 26D2128K 26D2128K 26D2128K 26D2128K Black Louver 54D0246 26D0695 26D0697 26D0699 Glass Frame Assembly 54D0294 54D0198 54D0340 54D0443 Factory Installed options Brass Louver 54D0249K 26D0701K...
-
Page 51: Standing Pilot Millivolt Control
RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace StANDING PIlot - MIllIVolt CoNtRol 11,12,13,14 540701 DVB millivolt parts 20301836... - Page 52 RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace StANDING PIlot - MIllIVolt CoNtRol Item Description qty. BDV300NV7 BDV300PV7 BDV400DNV7 BDV400PV7 BDV500NV7 BDV500PV7 BDV600NV7 BDV600PV7 Gas Valve Assy. 37D0117 37D0118 37D0117 37D0118 37D0117 37D0118 37D0117 37D0118 Pilot Assembly 37D0018 37D0019 37D0018 37D0019 37D0018 37D0019...
-
Page 53: Signature Command System
RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace SIGNAtuRe CoMMAND SySteM 13,14,15,16,17 540701 SC parts 20301836... - Page 54 RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace SIGNAtuRe CoMMAND SySteM Item Description qty. BDV300NS7 BDV300PS7 BDV400NS7 BDV400PS7 BDV500NS7 BDV500PS7 BDV600NS7 BDV600PS7 1. Gas Valve Assy. 80D0001 80D0002 80D0001 80D0002 80D0001 80D0002 80D0001 80D0002 2. Pilot Assembly 80D0006 80D0007 80D0006 80D0007 80D0006 80D0007...
-
Page 55: Logs
RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace loGS Ref. Description qty. BDV300 BDV400 BDV500 BDV600 1. Rear Log #1 54D0121 54D0181 54D0339 54D0339 540700 2. Top Right Log #2 54D0147 54D0116 54D0361 54D0361 BDV logs 3. Top Left Log #3 54D0146 54D0115 54D0360... -
Page 56: Vertical Venting Components
BDV7 Series Direct Vent Gas Fireplace RePlACeMeNt PARtS VeRtICAl VeNtING Description Model Number Vertical Vent Termination Kits Vertical Vent Termination w/ Storm Collar 47TLVTK (flashing NOT included) Vertical Vent Termination w/ Storm Collar - 8 pack 47TLVTK/8 (flashing NOT included) Vertical Vent Termination w/ 1/12 - 6/12 Flashing, Storm 47TLVTKA Collar and Ceiling Support Kit... -
Page 57: Horizontal Venting Components
RePlACeMeNt PARtS BDV7 Series Direct Vent Gas Fireplace hoRIZoNtAl VeNtING Description Model Number Horizontal Vent Termination Kits Rear Vent Hot Touch Termination Kit w/ 10" to 16" 47TLBRTK Adjustable Termination Pipe, Firestop, and Hot Touch Termination w/ Siding Shield Up and Out Side Wall Termination Kit w/ 10" to 16" 47TLSTK Adjustable Termination Pipe, 90°... -
Page 58: Massachusetts Residents Only
Massachusetts Residents only — Please read and follow these special requirements BDV7 Series Direct Vent Gas Fireplace 2. Approved Carbon Monoxide Detectors. Each carbon Note ReGARDING VeNteD PRoDuCtS monoxide detector as required in accordance with the above This product must be installed by a licensed plumber or gas fitter provisions shall comply with NFPA 720 and be ANSI/UL 2034 when installed within the Commonwealth of Massachusetts. -
Page 59: Warranty
BDV7 Series Direct Vent Gas Fireplace lIMIteD lIFetIMe WARRANty PolICy lIFetIMe WARRANty The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FIVe yeAR WARRANty The following components are warranted five (5) years to the original owner, subject of proof of purchase: Ceramic Fiber Logs. -
Page 60: Efficiencies
Based on CSA P.4.1-09 efficiency Ratings Model enerGuide Ratings Fireplace efficiency (%) BDV300NV7 57.9 BDV300PV7 53.8 BDV300NSC7 61.8 Recherchez dans la brochure BDV300PSC7 55.7 les caractéristique de rendement BDV400NV7 58.4 énergétique de foyer au gaz BDV400PV7 58.5 Énerguide BDV400NSC7 61.1 BDV400PSC7 60.7 Selon CSA P.4.1-09 Based on CSA P.4.1-09 BDV500NV7 58.7...
