Panel Description - Icom IC-M23 Instruction Manual

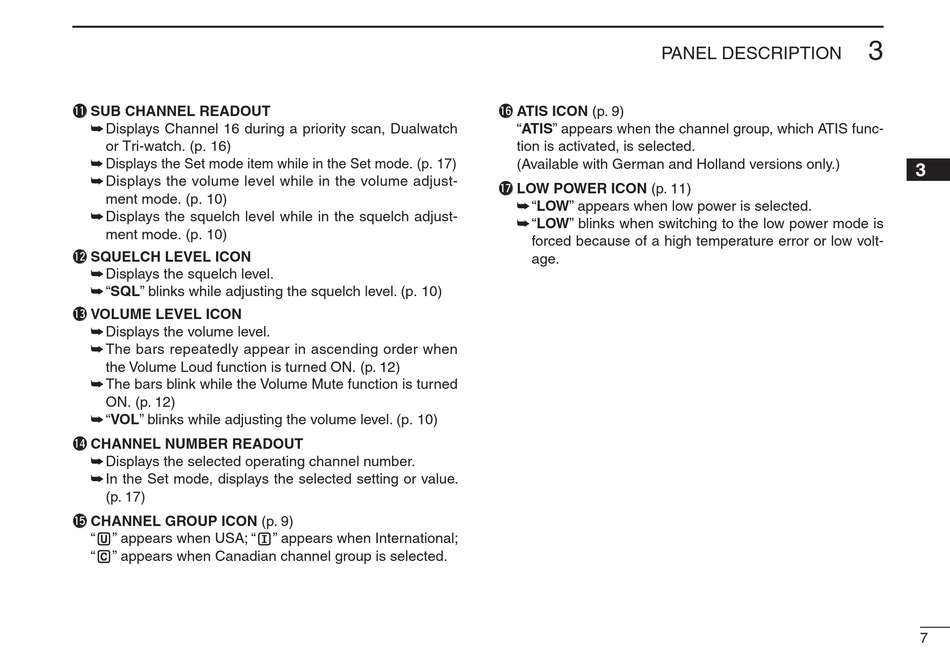

!1 SUB CHANNEL READOUT
➥ Displays Channel 16 during a priority scan, Dualwatch
or Tri-watch. (p. 16)
➥ Displays the Set mode item while in the Set mode. (p. 17)
➥ Displays the volume level while in the volume adjust-
ment mode. (p. 10)
➥ Displays the squelch level while in the squelch adjust-
ment mode. (p. 10)
!2 SQUELCH LEVEL ICON
➥ Displays the squelch level.
➥ "SQL" blinks while adjusting the squelch level. (p. 10)
!3 VOLUME LEVEL ICON
➥ Displays the volume level.
➥ The bars repeatedly appear in ascending order when
the Volume Loud function is turned ON. (p. 12)
➥ The bars blink while the Volume Mute function is turned
ON. (p. 12)
➥ "VOL" blinks while adjusting the volume level. (p. 10)
!4 CHANNEL NUMBER READOUT
➥ Displays the selected operating channel number.
➥ In the Set mode, displays the selected setting or value.
(p. 17)
!5 CHANNEL GROUP ICON (p. 9)
" " appears when USA; "
" " appears when Canadian channel group is selected.
" appears when International;

PANEL DESCRIPTION

!6 ATIS ICON (p. 9)
"ATIS" appears when the channel group, which ATIS func-
tion is activated, is selected.
(Available with German and Holland versions only.)
!7 LOW POWER ICON (p. 11)
➥ "LOW" appears when low power is selected.
➥ "LOW" blinks when switching to the low power mode is
forced because of a high temperature error or low volt-
age.
