Battery Charging - Icom IC-M23 Instruction Manual

• For BC-121N

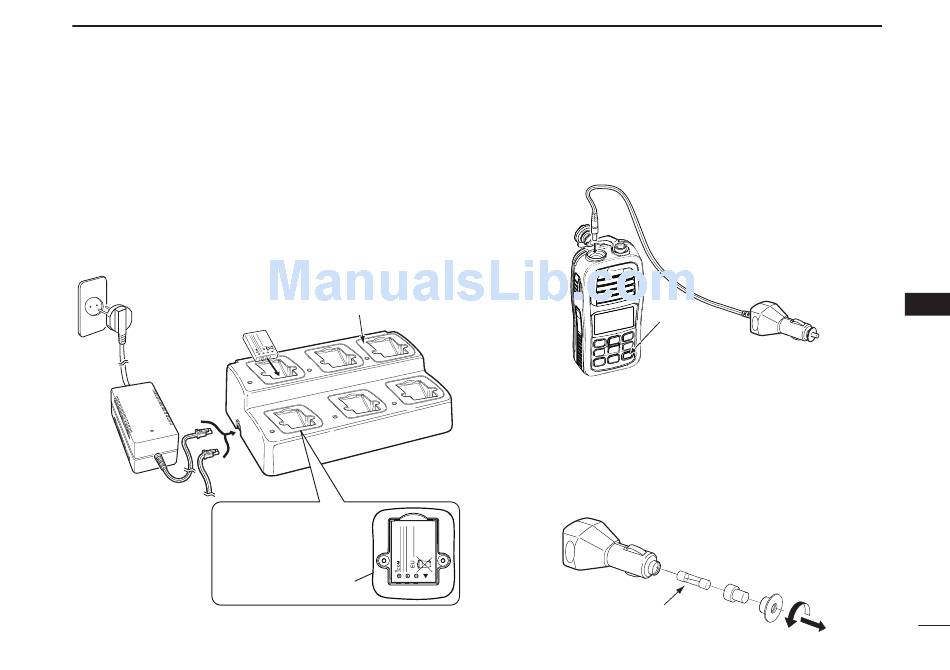

The optional BC-121N allows up to six battery packs to be
charged simultaneously.
Charging time: Approximately 2.5 hours
The following items are additionally required.
• Six AD-123
CHARGER ADAPTERS
• An AC adapter or the DC power cable (OPC-656)
See the instruction manual
for details of the charger,
LED indication, operation, etc.
BP-266
AC adapter
(Purchased
separately)
DC power cable (OPC-656)
IMPORTANT!:
(Connect to a DC
Ensure the battery pack
power supply;
13.8 V/at least 7 A) snaps flat in the AD-123.
(purchase separately)
AD-123 charger
adapters are installed
in each slot.
BP-266 BP-266
BP-266
BC-121N
BP-266 BP-266 BP-266
BP-266 BP-266
x
AD-123
BP-266
D Charging from a cigarette lighter socket
Use the optional CP-24
from a cigarette lighter socket.
Charging time: Approximately 8.5 hours.
[DC] jack
• CAUTION: BE SURE to remove the CP-24 from the ciga-
rette lighter socket when charging is finished, because a
slight current still fl ows in the CP-24 and will drain the ve-
hicle's battery.
• The CP-24 is equipped with a 2 A fuse. If the fuse blows, de-
termine and fi x the problem, then replace it with a new rated
fuse.
x

BATTERY CHARGING

CIGARETTE LIGHTER CABLE
CP-24
Power OFF
To a cigarette lighter
socket (12/24 V DC)
Fuse (2 A /250 V)
