Teac MCD65BT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

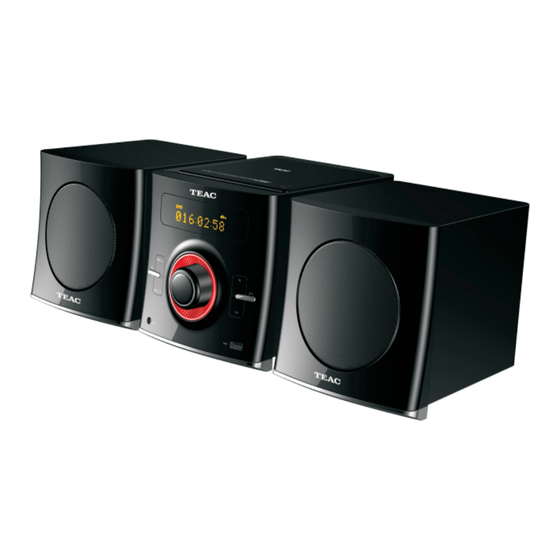

MCD65BT
CD Micro System

Advertisement

Table of Contents
loading

Related Manuals for Teac MCD65BT

Summary of Contents for Teac MCD65BT

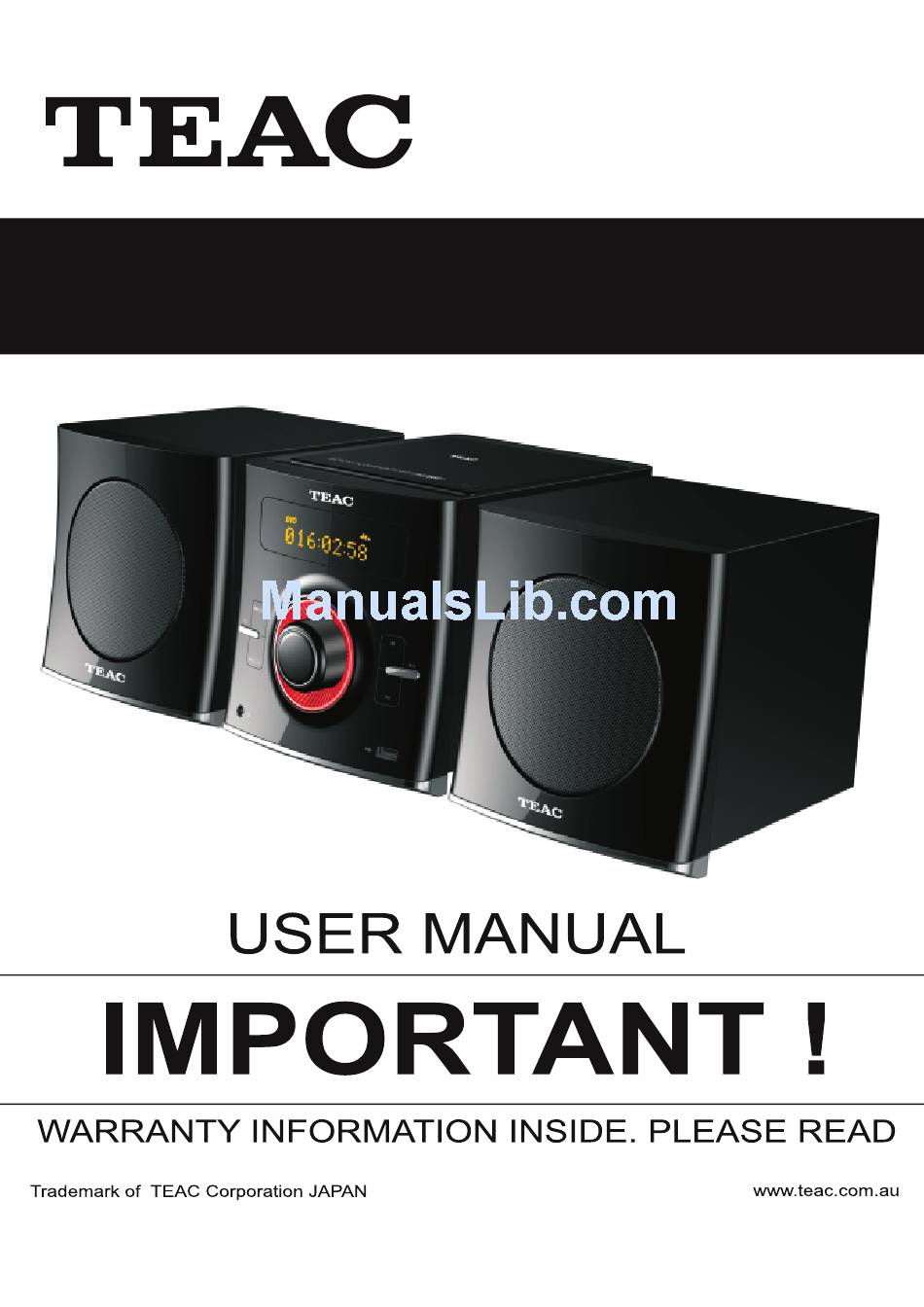

  • Page 1 MCD65BT CD Micro System...
  • Page 3 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
  • Page 4 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.
  • Page 5 Before Use Safety Precautions...
  • Page 6 Before Use Safety Instructions and Maintenance Power source: Only use this Keep the unit and the power Avoid rain, direct sunlight and unit with the electrical current plug away from water and excessive heat. indicated on the label. moisture. Never open the cover if you Protect the power cable from If the unit is not used for a long are not authorised service...

  • Page 7: Table Of Contents

    Contents Accessory list Panel overview Setting up System connections Remote control Listening to CDs Listening to music via LINE IN Listening to the radio Listening to music via USB Listening to music via wireless Bluetooth Clock Function Troubleshooting Unit Specifications The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights...

  • Page 8: Accessory List

    Accessory List CUSTOMER SUPPORT HOTLINE: 1300553315 www.teac.com.au teacservicesupport@awa.com.au Contact Card 2x AAA Batteries User Manual Remote Control Panel Overview LED DISPLAY STOP PREV/CH- STANDBY PLAY/PAUSE NEXT/CH+ SOURCE USB JACK HEADPHONE JACK VOLUME...

  • Page 9: Setting Up

    Setting Up Connecting the Speakers 1. Connect the speaker cables to the speaker terminals. 2. Connect the black end of each wire to the terminals at the back of the main unit that are marked “-”, and the other end to the terminals marked “+”. Connecting the FM Antenna 1.

  • Page 10: System Connections

    DVD Player External Amplifier System 1. SPEAKERS OUT: Connect to the MCD65BT speakers (R and L) 2. AUDIO OUT: Connect with with R/L audio cables to an external speaker system 3. LINE IN: Connect with R/L audio cables to an external media player (eg. DVD player)

  • Page 11: Remote Control

    Remote Control MUTE Press to toggle muting of sound output STANDBY Turn the unit ON or back to STANDBY Mode CD/USB Press to switch between CD and USB Modes SOURCE Switch between CD/LINE IN/BT Modes Press to start auto channel search in Radio SEARCH Mode Manual search to FM channel, press the...

  • Page 12: Listening To Cds

    Listening to CDs Basic CD Playback This unit can play Audio CDs and MP3/WMA CDs. ACTION N UNIT ON REMOTE OPEN/CLOSE 1. Open the disc tray 2. Insert the CD (label facing up) 3. Close the disc tray OPEN/CLOSE 4. Select CD Mode (if not in CD Mode) SOURCE 5.

  • Page 13: Listening To Music Via Line In

    Listening to music via LINE IN Play audio from external devices like DVD players or TVs. ACTION 1. Connect the external device to the LINE IN terminals behind the unit. >If the device has only one audio out (mono), connect it to the white jack. 2.

  • Page 14: Listening To Music Via Usb

    Listening to music via USB Listen to MP3 files saved on a USB Flash Drive by connecting it to the USB port on the unit. ACTION ON UNIT ON REMOTE 1. Connect the USB device to the USB – – port –...

  • Page 15: Listening To Music Via Wireless Bluetooth

    The blue LED light will flash three times, and the unit will beep. After that, the red light on the front of the unit will flash. 2. While the unit is in Bluetooth pairing mode, scan for the MCD65BT unit from your Bluetooth-enabled device.

  • Page 16: Troubleshooting

    Troubleshooting Symptom Cause Correction General The power cord is not Plug in the power cord. No power. plugged Check whether electricity Check the condition by operating failed. other electronic devices. No sound. Check whether you select Press SOURCE and check the right function.

  • Page 17: Unit Specifications

    Specifications SYSTEM Power supply 110-240V/50Hz RATED WORKING POWER CONSUMPTION Channel separation 40dB Distortion 0.7% Frequency response 70Hz-20KHz(+/-3dB) Audio S/N 80dB Audio output(analog audio)........Electric level output:1.0-2.0v Resistance:10ks Audio output(digital audio)........Electric level output:0.5vp-p Resistance:75s TUNER FM Frequency range ..............87.5-108MHZ AMPLIFIER Output power..:....................5W+5W BASS......................
