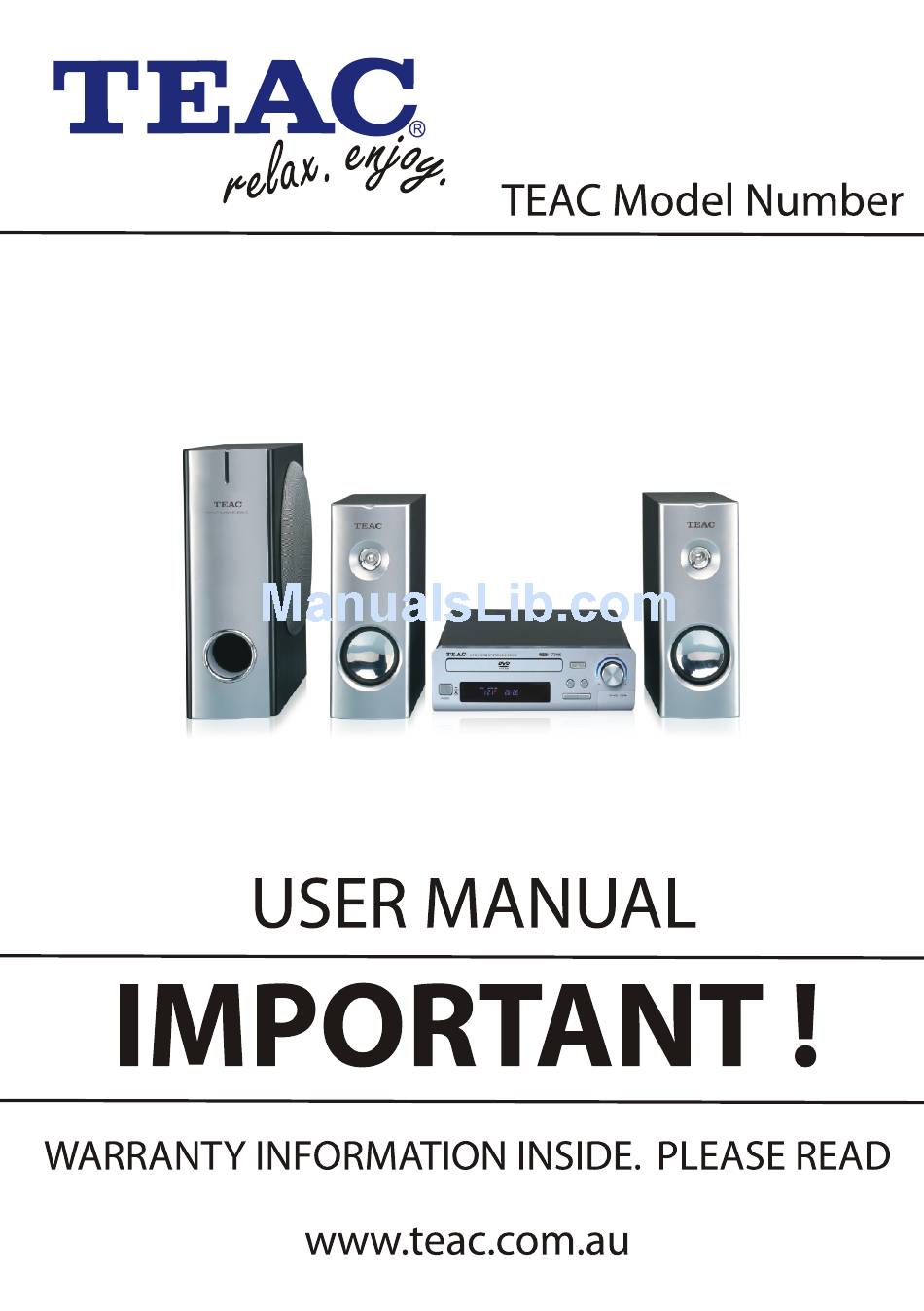

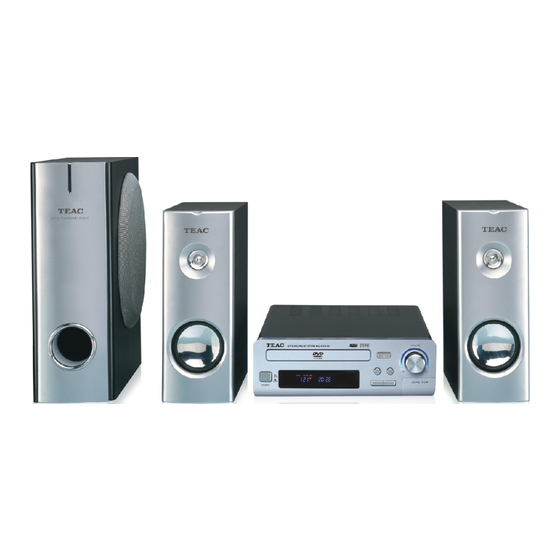

- Page 1 MC-DV610...
-
Page 5: Table Of Contents
Contents Features................2 For your Attention..............3 Accessories................4 Panel.................5-6 Connection.................7-8 System Setup..............9-12 Play................13-17 Troubleshooting..............18 Specification................19 Remote control Instruction book Power cord... -
Page 6: Features
Features Thank you for purchasing our product. Please go through this manual carefully before connection and operation. Please keep this manual for future reference. DVD player is a new generation home player which can produce high quality video and audio. Its performance is much better than that of any previous home video playing equipment. -
Page 7: For Your Attention
For Your Attention IMPORTANT NOTES IMPORTANT NOTES Please read through the manual carefully before connection and operation. Do not open the cover or touch any internal components for non-professional Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time) And keep the unit' plug in easy-to-plug/unplug status in daily life for convenient use. -
Page 8: Accessories
Accessories Accessories User Manual A/V Cable AM Antenna FM Antenna Speaker Connect Cable Remote Controller Operation Insert the batteries into the cell box. The remote controller would work within 8 meters if facing the obverse face of the unit /within 6 meters if facing the side of the unit and within 30 degrees at left or right side. -
Page 9: Panel
Panel FRONT PANEL 6 PREV 1 POWER BUTTON 7 NEXT 2 DISPLAY WINDOW 8 STOP BUTTON 3 DISC TRAY 9 VOLUME+/- 4 OPEN/CLOSE BUTTON 10 USB PORT 5 PLAY/PAUSE BUTTON... - Page 10 Panel REAR PANEL SPEAKER OUTPUT TERMINAL 2 LINE IN TERMINAL 3 VIDEO OUTPUT TERMINAL 4 S-VIDEO OUTPUT TERMINAL 5 COMPONENT VIDEO OUTPUT TERMINAL 6 R/ L Audio Output 7 COAXIAL DIGITAL AUDIO OUTPUT 8 FM ANTENNA JACK 9 AM ANTENNA JACK...
-
Page 11: Connection
Connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection The following video output available for this unit . The following video output available for this unit . -
Page 12: Connection
Connection Connection Connection Audio system connection Audio system connection Audio system connection The player has both analogue and digital audio output. The analogue The player has both analogue and digital audio output. The analogue The player has both analogue and digital audio output. The analogue audio is two channel. -
Page 13: System Setup
System Setup MENU OPERATION P ress [SETUP] button in the remote controller, the SETUP MENU (main) will be displayed. 1. After accessing the [SETUP] Menu, press [ ]and [ ] buttons to select a desired item, then press [ENTER] button to enter the sub-menu. In the submenu, press [ ]and [ ] buttons to select the desired one, then press the [ENTER]... - Page 14 System Setup LAST MEMORY When this function is on, the unit can memorize the time elapsed from the last time you played the disc. When playing next time, it will resume playing from the memorized time. AUDIO SETUP PAGE: ANALOG AUDIO SETUP: DOWNMIX: Use [ ] arrow button to move the scroll to choose one.
- Page 15 System Setup VIDEO SETUP PAGE: VIDEO OUTPUT: OFF: Set video output to the composite. YUV: Set video output in analog component video format when connecting to Y/U/V terminals. P-YUV: Set progressive YUV signals. Connection same as YUV. Note: : If the video setting differs from the physical connection, the TV set may be without picture.
- Page 16 System Setup PREFERENCE SETUP: TV TYPE: This product supports various system, including NTSC and PAL. If TV set has only NTSC or PAL system, screen will blink and become colorless when a wrong system is selected. For more information of output format, please refer to the instruction of your TV set.
-
Page 17: Play
Play The following is the basic operation for this unit with the attached remote controller. Please note some function just is available for some disc. STANDBY Stand by/working mode switch SOURCE SELECT AV Source switch among DVD/TUNER(AM/FM) OPEN/CLOSE Eject or load the disc tray CH-LEVEL Press this key to select a channel then press VOLUME+/- to adjust its level. - Page 18 Play When playing VCD, CD disc, after loading the disc, use the digit key to select the desired track or chapter directly. Press 10+ key and then another digit key to select the track whose 0/10 0/10 number is 10 or more. You can press digit keys at PROGRAM and MENU selection.
- Page 19 Play PROG If the disc is with 2 or more tracks, chapters or titles, set up the playing order as your preference. Press this button to enter program menu. Press the digit key to input the number of the track, title or chapter.
- Page 20 Play PLAY PICTURE CD DISC Press [ ] key,12 small pictures will show on the TV screen. Press [ ][ ][ ] [ to select the desired picture, then press [ENTER] to start random play. Press [ ] to pausing playing picture CD. Press [ ] again to return to normal play.
-
Page 21: Play
Play Tuner Operation: AM/FM AM/FM switch. MO/ST Mono/Stereo switch in FM mode. MEMORY After having selected a station and tuned a new frequency, press MEMORY to start saving the frequency, and press MEMORY again to confirm the store action. AUTO Automatic searching and presetting in FM/AM tuner mode. -
Page 22: Troubleshooting
Troubleshooting Before resorting to maintenance service, please kindly check by yourself with the following chart. Cause(s) Symptom Solution The power cord isn't connected Connect the power cord properly No power Fuse melting Replace a same specification fuse! TV video setup isn't correct Select the suitable setup Player video setup isn't correct No picture... -
Page 23: Specification
Specification DVD Mini Combination System Power supply AC ~240V/50Hz Power consumption Temperature -10~+40 Working Relative humidity 5%~90% environment TV System MULTI/PAL/NTSC 1V P-P 75 NEGATIVE SYNCHRONISM Output level 1.0~2.2V rms 1KHz/0dB Output level Frequency Response 20Hz~20KHz Disc output 80dB(1KHz) S/N A weight 70dB(1KHz) Frequency Range THD+NOISE...
