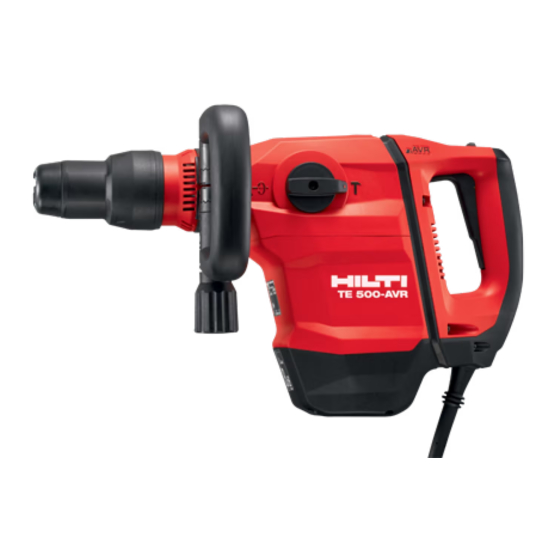

Hilti TE 500-AVR Operating Instructions Manual

Breaker
Hide thumbs Also See for TE 500-AVR:
Table of Contents

Advertisement

Quick Links

Printed: 08.07.2013 | Doc-Nr: PUB / 5130650 / 000 / 01
TE 500 /
TE 500-AVR
Operating instructions
Mode d'emploi
Manual de instrucciones
Manual de instruções
en
fr
es
pt

Advertisement

Table of Contents
loading

Related Manuals for Hilti TE 500-AVR

Summary of Contents for Hilti TE 500-AVR

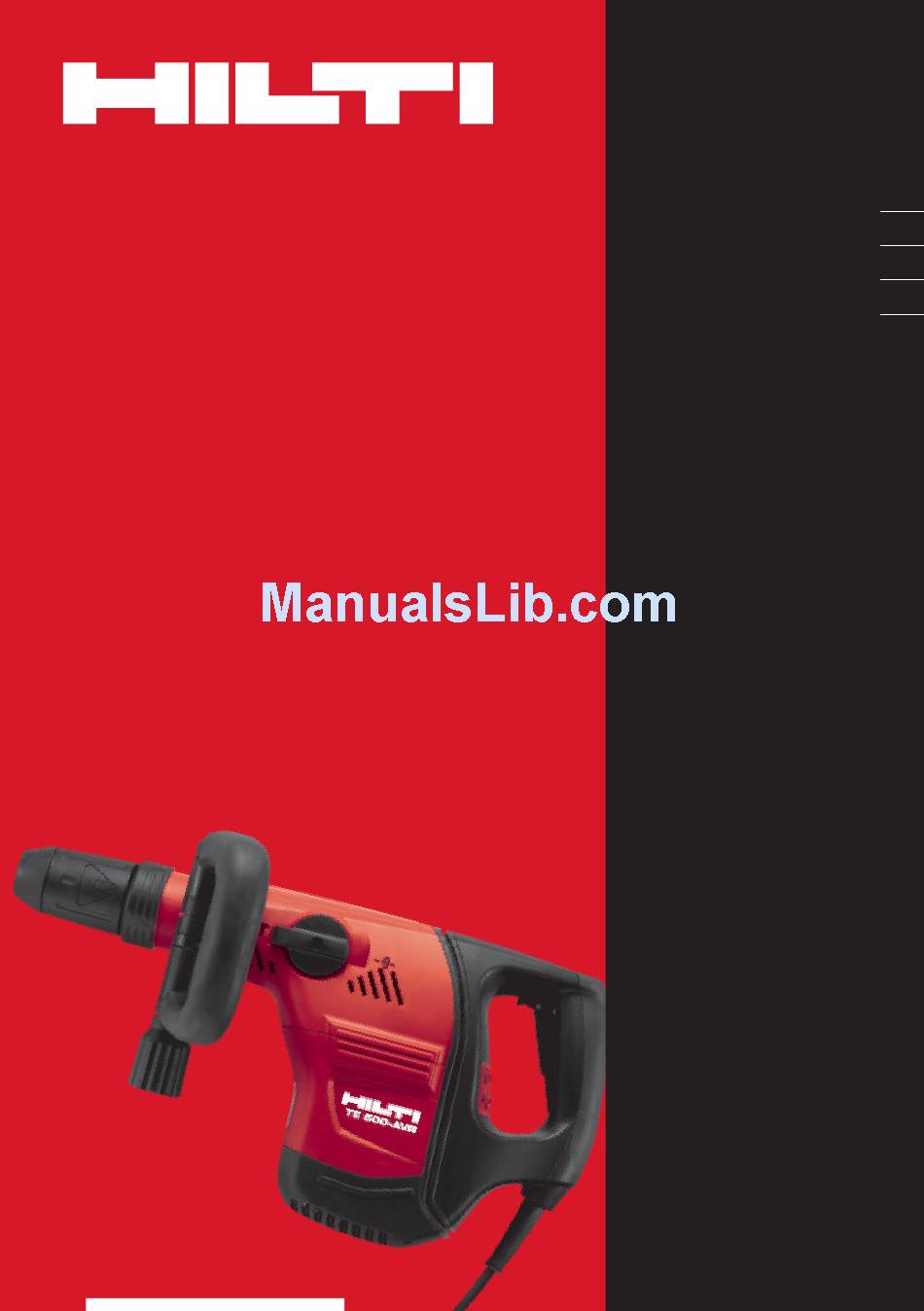

  • Page 1 TE 500 / TE 500-AVR Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 08.07.2013 | Doc-Nr: PUB / 5130650 / 000 / 01...
  • Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 08.07.2013 | Doc-Nr: PUB / 5130650 / 000 / 01...
  • Page 3 Printed: 08.07.2013 | Doc-Nr: PUB / 5130650 / 000 / 01...

  • Page 4: Table Of Contents

    In these operating instructions, the designation “the Always keep these operating instructions to- power tool” always refers to the TE 500 or TE 500-AVR gether with the power tool. breaker. Ensure that the operating instructions are...

  • Page 5: Description

    The power tool may be operated only when connected to a power supply providing a voltage and frequency in compliance with the information given on its type identification plate. Modification of the power tool or tampering with its parts is not permissible. To avoid the risk of injury, use only genuine Hilti accessories and insert tools.
  • Page 6 Theft protection system indicator (optional) (see section “Operation”) 2.10 Items supplied as standard Power tool with side handle Operating instructions Hilti toolbox Cleaning cloth Grease 2.11 Using extension cords Use only extension cords of a type approved for the application and with conductors of adequate cross section.

  • Page 7: Accessories, Consumables

    206999, optional Company Remote and TPS‑K key Use the Hilti insert tools listed below. With these insert tools you will achieve higher performance and longer tool life as the power tool and insert tools have been optimized as a system.

  • Page 8: Safety Instructions

    Other information about the power tool Chuck TE‑Y (SDS‑max) Protection class Protection class I (grounded) or protection class II (dou- ble insulated). See type identification plate. 5 Safety instructions not use a power tool while you are tired or under 5.1 General Power Tool Safety Warnings the influence of drugs, alcohol or medication.
  • Page 9 Hold power tool by insulated gripping surfaces, frequently for work on conductive materials when performing an operation where the cutting should be checked at regular intervals at a Hilti accessory may contact hidden wiring or its own Service Center. Under unfavorable circumstances, cord.

  • Page 10: Before Use

    tection appropriate for the type of dust generated, 5.3.5 Personal protective equipment and designed to filter out microscopic particles and direct dust away from the face and body. Avoid prolonged contact with dust. Wear protec- tive clothing and wash exposed areas with soap and water.
  • Page 11 Open the chuck by pulling back the insert tool lock- 7.2.2 Chiseling ing sleeve. NOTE Pull the insert tool out of the chuck. Working at low temperatures: The hammering mecha- nism works only when the power tool has reached a 7.2 Operation minimum operating temperature.

  • Page 12: Care And Maintenance

    Blinking red light See section “Troubleshooting”. damaged or when the controls do not function faultlessly. 8.4 Maintenance If necessary, the power tool should be repaired by Hilti WARNING Service. Repairs to the electrical section of the power tool may be carried out only by trained electrical specialists.

  • Page 13: Disposal

    10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.
  • Page 14 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3256 | 0613 | 00-Pos. 3 | 1 Printed in Germany © 2013 Right of technical and programme changes reserved S. E. & O 378617 / A4 Printed: 08.07.2013 | Doc-Nr: PUB / 5130650 / 000 / 01...
