EMPIRE
EMPIRE
Comfort Systems

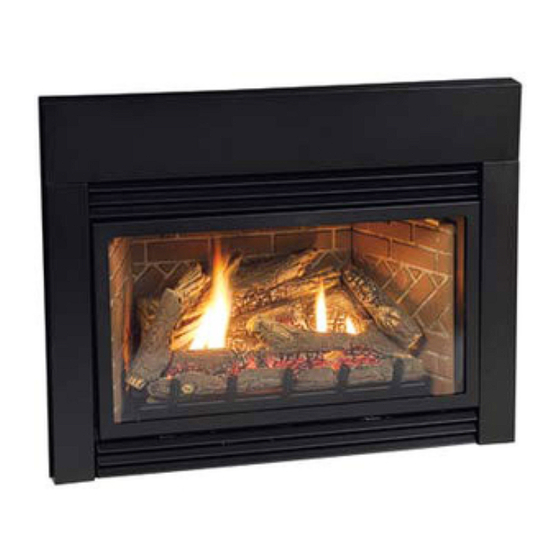

FIREPLACE INSERT
WARNING
WARNING: If the information in these instruc-
tions are not followed exactly, a fire or explo-
sion may result causing property damage,
personal injury or loss of life.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
•
Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLATION INSTRUCTIONS
HOT GLASS
WILL
CAUSE BURNS.
DO NOT TOUCH
GLASS
UNTIL COOLED.
NEVER
ALLOW CHILDREN
TO TOUCH GLASS.
AND
OWNER'S MANUAL
GAS FIREpLACE HEATER
UL FILE NO. MH30033
Installer:
Consumer: Retain this manual for future refer-
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
DIRECT vENT
MODEL SERIES
Dv25IN33L(N,p)-3
Dv33IN33L(N,p)-3
Dv35IN33L(N,p)-3
GAS-FIRED
Leave this manual with the appli-
ance.
ence.
Page 1
Advertisement
Table of Contents
Related Manuals for Empire Comfort Systems DV25IN33L(N,P)-3
Summary of Contents for Empire Comfort Systems DV25IN33L(N,P)-3
-
Page 1: Direct Vent
INSTALLATION INSTRUCTIONS EMPIRE EMPIRE OWNER’S MANUAL Comfort Systems FIREPLACE INSERT DIRECT vENT GAS FIREpLACE HEATER MODEL SERIES Dv25IN33L(N,p)-3 Dv33IN33L(N,p)-3 Dv35IN33L(N,p)-3 GAS-FIRED UL FILE NO. MH30033 WARNING Installer: Leave this manual with the appli- HOT GLASS WILL ance. CAUSE BURNS. Consumer: Retain this manual for future refer-... -
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION pAGE Important Safety Information ....................3 Safety Information for Users of LP Gas ................4 Introduction ........................5 Specifications ........................6 Fireplace Insert Dimensions ....................7 Mantle and Trim Clearances ....................8 Gas Supply ........................9 Venting and Installation ....................10-12 Vertical Termination ...................... -
Page 3: Important Safety Information
IMpORTANT SAFETY INFORMATION Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly. DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED • Adequate accessibility clearances for servicing and DANGER: Indicates a hazardous situation which, if not proper operation should be maintained. -
Page 4: Safety Information For Users Of Lp Gas
SAFETY INFORMATION FOR USERS OF Lp GAS Propane (LP-Gas) is a flammable gas which can cause fires by point with the members of your household. Someday and explosions. In its natural state, propane is odorless and when there may not be a minute to lose, everyone’s safety colorless. -
Page 5: Introduction
• Installation of any damaged fireplace insert or vent system component. • Modification of the fireplace insert or direct vent system. • Installation other than as instructed by Empire Comfort Systems, State of Massachusetts: The installation must be made by Inc. -
Page 6: Specifications
SpECIFICATIONS Dv25IN33L MODELS Remote Control Description Accessories Input Btu/hr Maximum 25,000 25,000 FRBC Millivolt Battery Remote ON/OFF Btu/hr Minimum 17,000 17,000 FRBTC Millivolt Battery Remote Thermostat KWH (Maximum) 7.30 7.30 Millivolt WIRELESS Wall Thermostat (Minimum) 5.00 5.00 Millivolt Reed Switch Wall Thermostat Orifice #53 (0.0596) #42 (0.0935) -
Page 7: Fireplace Insert Dimensions
FIREpLACE INSERT DIMENSIONS • Whether optional accessories - devices such as a wall switch When planning a fireplace insert installation, it’s necessary to or remote control - are desired. determine: • Electrical supply requirements for blower. • The vent system configuration to be used. •... -
Page 8: Mantle And Trim Clearances
MANTLE AND TRIM CLEARANCES COMBUSTIBLE 12” MANTEL/TRIM AREA 8” MINIMUM CLEARANCE TO PERPENDICULAR COMBUSTIBLE SIDE-WALL (FROM EDGE OF DOOR FRAME) TOP OF INSERT Figure 3 SURROUND PANELS Distance from Height Above Top of Insert Face of Fireplace 10” 23” 9-1/4” 22”... -
Page 9: Gas Supply
GAS SUppLY The gas pipeline can be brought in through the right or left side of Installing the Main Gas Cock the appliance. The insert has a Flexline with shutoff valve located on Each appliance should have its own manual gas cock. the right side when facing the unit. -
Page 10: Venting And Installation
vENTING AND INSTALLATION Before beginning, remove glass door and log package from To assure top performance, safety and efficiency, inserts must unit. Also check to make sure there is no hidden damage to be installed with an approved flue liner as per CAN/CGA B-149 the unit. - Page 11 vENTING AND INSTALLATION vent System Approvals Connecting the vent pipe Figure 8 shows the vent termination caps and systems approved CAUTION for use with these models. Approved vent system terminations are labeled for identification. 3-inch diameter listed flexible aluminum Sharp edges. Always use gloves when installing. or stainless steel gas vent is used for both the incoming combustion air and exhaust vent pipes.
- Page 12 vENTING AND INSTALLATION RECTANGULAR TERMINATION CAP (DVVK3FV KIT) NOTE: LONG EXTENSION TUBE FOR INLET VENT ROUND CONNECTION. TERMINATION CAP (DVKI KIT) ROUND CO-LINEAR TO CO-AXIAL ADAPTOR VENT CLAMPS RETAINER SCREWS MAY USE HIGH TEMP BE INSTALLED THROUGH SEALANT ON VENT THE VENT CLAMPS TO CONNECTIONS ENSURE POSITIVE SECUREMENT...
-
Page 13: Vertical Termination
vERTICAL TERMINATION Determining Minimum vent Height Above the Roof. vertical Through the Roof Applications The Gas Fireplace Insert has been approved for: WARNING a) Vertical installations up to 35 feet in height (top of insert to cap). Major U.S. building codes specify minimum chimney and/or b) Two sets of 45 degree elbow offsets (bends in flexvent) within vent height above the roof top. -
Page 14: Alternate On/Off Switch Installation
ALTERNATE ON/OFF SWITCH INSTALLATION WIRING THE FIREpLACE Find the coiled low voltage wire assembly and ON/OFF switch located in the instruction packet. NOTICE: Electrical wiring must be installed by a licensed electrician. Attach the flag terminal ends to the “TH/TP” and “TH” termi- nals on the front terminal block of the gas valve. -
Page 15: Surround Panel Installation
SURROUND pANEL INSTALLATION INSTALLING THE TRIM SURROUNDS Combustible materials MUST NEVER overlap onto the front face. WARNING WHEN FINISHING THE FIREpLACE INSERT, NEvER OB- STRUCT OR MODIFY THE AIR INLET/OUTLET LOUvERS ON THE FIREpLACE INSERT IN ANY MANNER. NOTE: INSTALL SURROUND PANELS SO THAT THE TOP PANEL RETURN FLANGE SLIDE’S OVER THE TOP FLANGE ON... -
Page 16: Blower Accessory Information
BLOWER ACCESSORY INFORMATION The appliance, when installed must be electrically con- nected and grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code. U.S. Installations, follow local codes and the National Electrical Code, ANSI/NFpA No. -
Page 17: Log Placement
LOG pLACEMENT Before you begin: This fireplace insert is supplied with a set of 13. Replace the glass door assembly onto the fireplace insert. seven ceramic fiber logs. Do not handle these logs with your bare 14. Secure the glass door with the two spring clamps located hands. -
Page 18: Operating Instructions
OpERATING INSTRUCTIONS 750 Millivolt System instructions at all times. Lower the door assembly to view the gas The standing pilot (750 millivolt system) is a continuous burning pilot. controls for the fireplace. The pilot remains ON even when the main burner is OFF. Initial Lighting When you ignite the pilot, the thermopile produces millivolts (electrical Upon completing the gas line or turning the gas valve on after it has... -
Page 19: Standing Pilot Lighting Instructions
STANDING pILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. When •... -
Page 20: Standing Pilot Wiring
STANDING pILOT WIRING Optional Wall Switch For Standing pilot Ignition Wiring Position the wall switch in the desired position on a wall. Run a Appliance Requirements maximum of 25 feet (7.8m) or less length of 18 A.W.G. minimum wire and connect it to the fireplace valve pigtails. WARNING DO NOT CONNECT 110-120 vAC TO THE GAS CONTROL WARNING... -
Page 21: Standing Pilot Troubleshooting
—Check REMOTE/OFF/ON switch and wires for proper —Check and adjust log position. See Page 17. Contact connections. Place jumper wires across terminal at switch. Empire Comfort Systems, Inc. If burner comes on, replace defective switch. If OK, place Debris around throat of main burner. -
Page 22: Insert Maintenance And Service
INSERT MAINTENANCE AND SERvICE Cleaning Logs Although the frequency of servicing and maintenance will depend Use a soft brush attachment on a vacuum cleaner to gently remove on use and the type of installation, you should have a qualified dust or soot deposits from logs and burner. service technician perform an appliance checkup at the beginning of each heating season. -
Page 23: Decorative Accessories
DECORATIvE ACCESSORIES The following accessory parts can be obtained from your Empire Comfort Systems dealer. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., Nine Eighteen Freeburg Ave., Belleville, Illinois 62220. Decorative Mission Louver... -
Page 24: Insert Parts View
INSERT pARTS vIEW Page 24 26996-7-0411... -
Page 25: Insert Parts List
INSERT pARTS LIST INDEX NO. pART NUMBER DESCRIpTION Dv25IN33L(N,p) Dv33IN33L(N,p) Dv35IN33L(N,p) 22950 22950 22950 GUIDE, FLUE CONNECTOR 23309 23211 23211 VENT SLIDE PLATE ASSEMBLY R9188 R9188 R9188 GASKET, TOP R9192 R9196 R9199 BRICK PANEL, BACK R9195 R9198 R9201 BRICK PANEL, RIGHT R9194 R9197 R9200... -
Page 26: Master Parts Distributor List
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort. com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing East Coast Energy products... -
Page 27: Appliance Service History
AppLIANCE SERvICE HISTORY Date Dealer Name Service Technician Name Service performed/Notes 26996-7-0411 Page 27... - Page 28 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com...
