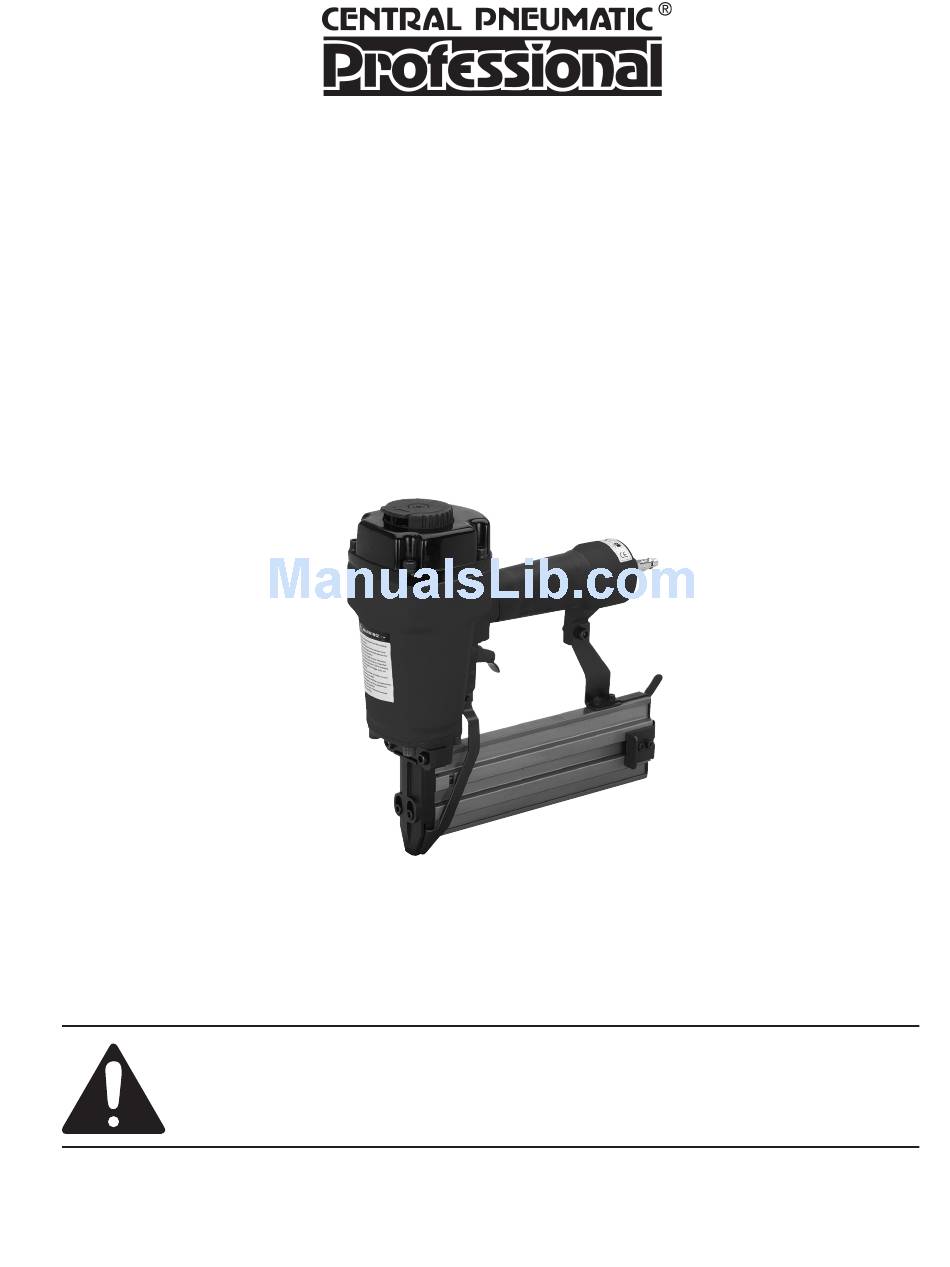

CONCRETE "T" NAILER
(3/4" TO 2-1/2")
ASSEMBLY and OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright
2007 by Harbor Freight Tools
©
or any artwork contained herein may be reproduced in any shape or form without the
express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
97512
Model
90342
. All rights reserved. No portion of this manual
®
.
®
Advertisement
Table of Contents
Related Manuals for Central Pneumatic Professional 97512
Summary of Contents for Central Pneumatic Professional 97512
- Page 1 CONCRETE “T” NAILER (3/4” TO 2-1/2”) 97512 Model 90342 ASSEMBLY and OPERATING INSTRUCTIONS Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Distributed exclusively by Harbor Freight Tools ®...
-
Page 2: Specifications
Specifications Recommended Air Pressure 85 - 115 PSI Maximum Air Pressure 115 PSI Air Inlet 1/4” - 18 NPT Nail Capacity 3/4” to 2-1/2” T Nails Magazine Capacity 80 (Side Load) Air Consumption 7.4 CFM Includes: Coupler Plug, 3 Hex Keys, Tool Oil, OSHA Approved Goggles, Replacement nails available at Harbor Freight Tools: #90375 - 3/4”, 13G, 2000 Pack;... - Page 3 Do not overreach. Keep proper footing and balance at all times. Do not reach over or across running machines or air hoses. Maintain tools with care. Keep tools clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords and air hoses periodically and, if damaged, have them repaired by an authorized technician.
-
Page 4: Specific Product Warnings And Precautions
SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS Important consumer information: This Nailer is equipped with a contact trip Trigger. This Trigger mechanism is designed primarily for high volume work where exact placement of the nail is not critical. By holding the Trigger, the Nailer will fire each time the nosepiece contacts the wood. - Page 5 Do not drive nails on top of other nails, or with the tool at too steep an angle. The nails can ricochet, causing personal injury. Do not drive nails close to the edge of a workpiece. The workpiece is likely to split, allowing the nail to fly free or ricochet and cause personal injury.
- Page 6 Air Connection Setup 1/4”-18 NPT Concrete Nailer For best service you should incorporate an oiler, regulator, and inline filter, as shown in the diagram above. Hoses, couplers, oilers, regulators, and filters are all available at Harbor Freight Tools. You will need to prepare a 1/4” coupler plug (included) to connect to the air inlet on the Concrete Nailer.
-
Page 7: Operation
Operation Adjust Exhaust Cover (#4) so it sends the exhaust away from you. FIGURE 1 Air Inlet (#54) Coupler Plug Threads On Here Coupler Plug (#73) Lock (#66) Trigger (#37) Loading Nails Movable Magazine (#53) Refer to FIGURES 1 and 2 on pages 5 and . Nailer Specific Warnings! Warning! Disconnect the Nailer from the air compressor whenever loading or servicing. - Page 8 Operation (continued) FIGURE 2 Lock (#66) Movable Magazine (#53) Operating the Concrete Nailer 1. With the tool disconnected from the air supply, load nails as explained on page 5. Then, connect the Concrete Nailer to the air supply. 2. Before using the Nailer each time, check the driving depth by firing a nail into a scrap piece of wood.
-
Page 9: Troubleshooting
Troubleshooting Warning! If you detect any air leaks, power loss, the Nailer skips driving, drives too deep, or not deep enough, take the Nailer to an qualified service technician for repair. Note: Have the following problems repaired by a qualified service technician. Problem: Air leaking at trigger valve area. -
Page 10: Parts List
Parts List Part Description Part Description Part Description Screw 0-ring Feeder Shoe Spring Washer Base Bushing Screw Movable Magazine Exhaust Cover Plate Air Inlet Washer Front Plate End Cap Screw Screw 0-ring Spring Washer Locking Washer Soft Grip Sleeve Cylinder Cap Gasket Safe Guider Screw... -
Page 11: Assembly Drawing
Assembly Drawing Coupler Plug (#73) Not shown. SKU 90342 Page 11... -
Page 12: Limited 1 Year Warranty
LIMITED 1 YEAR WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase (90 days if used by a professional contractor or if used as rental equipment).
