FLOOR NAILER
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright
2007 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 10g
CLEAT & STAPLE TYPE
Model
. All rights reserved. No portion of this manual or any artwork
®
97586
Advertisement
Table of Contents
Related Manuals for Central Pneumatic 97586
Summary of Contents for Central Pneumatic 97586

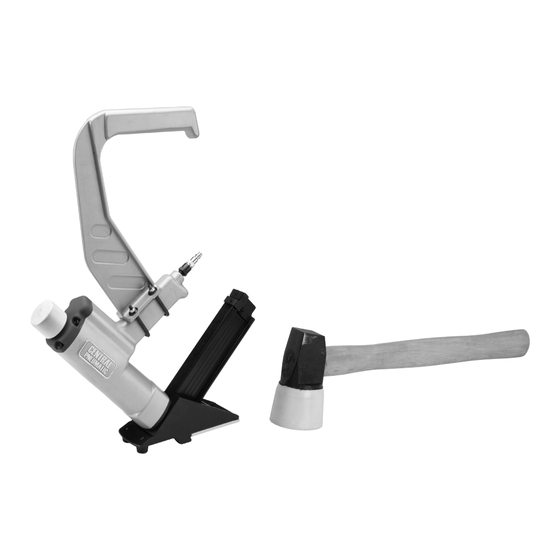

- Page 1 FLOOR NAILER CLEAT & STAPLE TYPE Model 97586 ASSEMBLY AND OPERATING INSTRUCTIONS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL. Copyright 2007 by Harbor Freight Tools .
-
Page 2: Symbol Definitions
TO A RISK OF FIRE, ELECTRIC injury. SHOCK, OR INJURY TO NOTICE is used to PERSONS address practices not related to personal injury. Page 2 For technical questions, please call 1-800-444-3353. SKU 97586... -
Page 3: Work Area
Do not force the tool. Use the correct tool for the application. The correct tool SKU 97586 For technical questions, please call 1-800-444-3353. Page 3... -
Page 4: Air Source
Avoid unintentional misfiring. Always Tool service must be performed only use caution to avoid accidentally striking by qualified repair personnel. the Head Cap (10). This product does Page 4 For technical questions, please call 1-800-444-3353. SKU 97586... - Page 5 Do not drive fasteners on top power sanding, sawing, grinding, of other fasteners, or at too steep of an drilling, and other construction activities, contains chemicals known [to the State SKU 97586 For technical questions, please call 1-800-444-3353. Page 5...
- Page 6 Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused Page 6 For technical questions, please call 1-800-444-3353. SKU 97586...
-
Page 7: Specifications
Attach an air hose to the compressor’s any other bottled gas as a power air outlet. Connect the air hose to the air source for this tool. SKU 97586 For technical questions, please call 1-800-444-3353. Page 7... - Page 8 Inspect the air connections for leaks. Repair any leaks found. If the tool will not be used at this time, turn off and detach the air supply and safely discharge any residual air pressure. Page 8 For technical questions, please call 1-800-444-3353. SKU 97586...
-
Page 9: Changing The Spacer
Push the Movable Magazine (50) forward Secure the Spacer (32/58) to the tool, and secure the Movable Magazine in using the three Screws (33). place with the Latch (44). SKU 97586 For technical questions, please call 1-800-444-3353. Page 9... - Page 10 When finished, make sure to store the Floor Nailer in a clean, dry, safe location out of reach of children and other unauthorized people. Page 10 For technical questions, please call 1-800-444-3353. SKU 97586...
-
Page 11: User Maintenance Instructions
Dispose of the using only white lithium grease. remaining fastener strip; it may be bent Other lubricants may damage the or damaged in some other way. SKU 97586 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Troubleshooting
3. Replace damaged components. 4. Dirty, worn or damaged valve. 4. Clean or replace valve assembly. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. Page 12 For technical questions, please call 1-800-444-3353. SKU 97586... -
Page 13: Please Read The Following Carefully
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. REV 10g SKU 97586 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Assembly Diagram
ASSEMBLY DIAGRAM REV 10g Page 14 For technical questions, please call 1-800-444-3353. SKU 97586... - Page 15 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 SKU 97586 For technical questions, please call 1-800-444-3353. Page 15...
