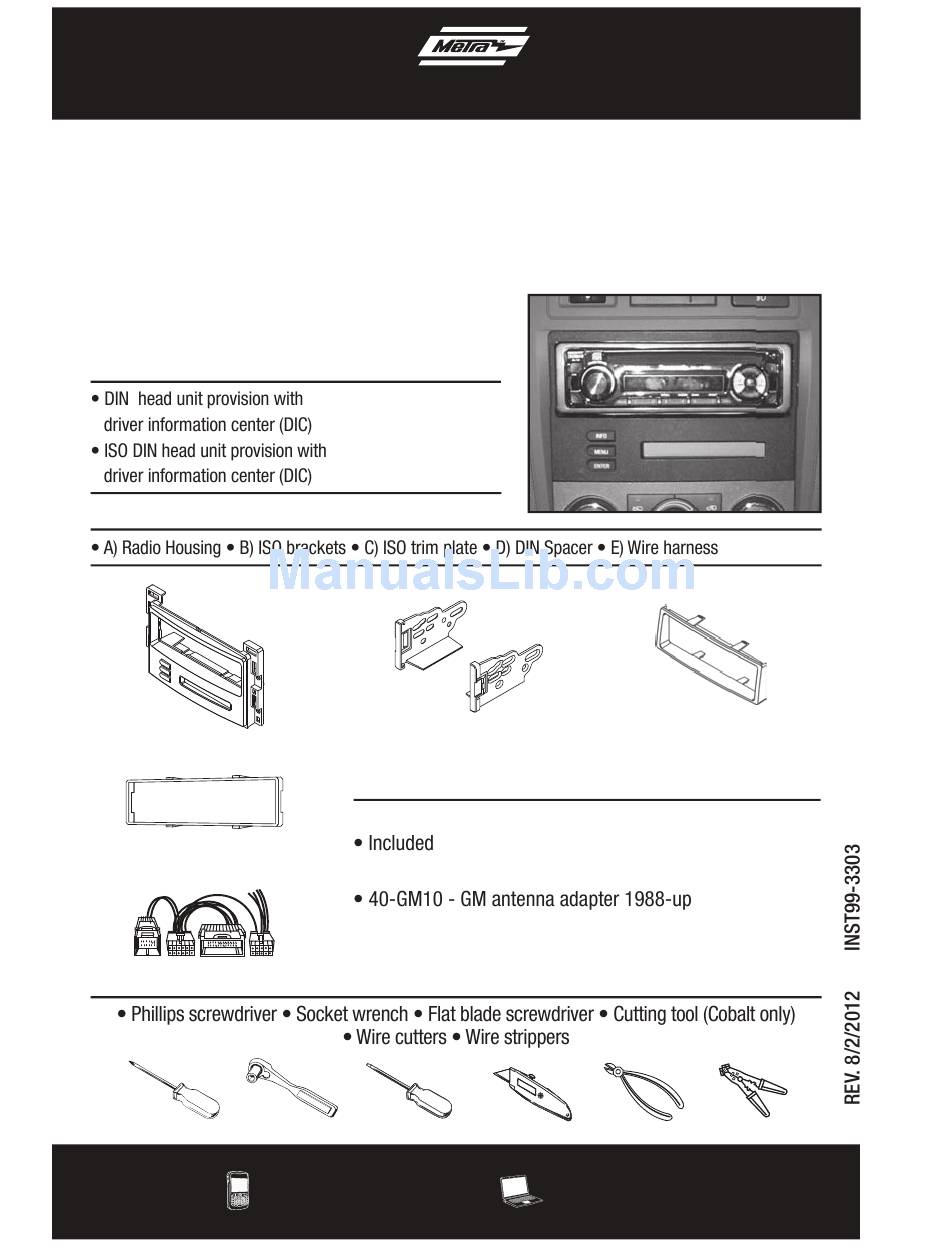

INSTALLATION INSTRUCTIONS FOR PART 99-3303
Chevrolet/Pontiac 2004-2009
KIT FEATURES
KIT COMPONENTS
A
D
E
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
APPLICATIONS
99-3303
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
Antenna Adapter:
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
C
metraonline.com
