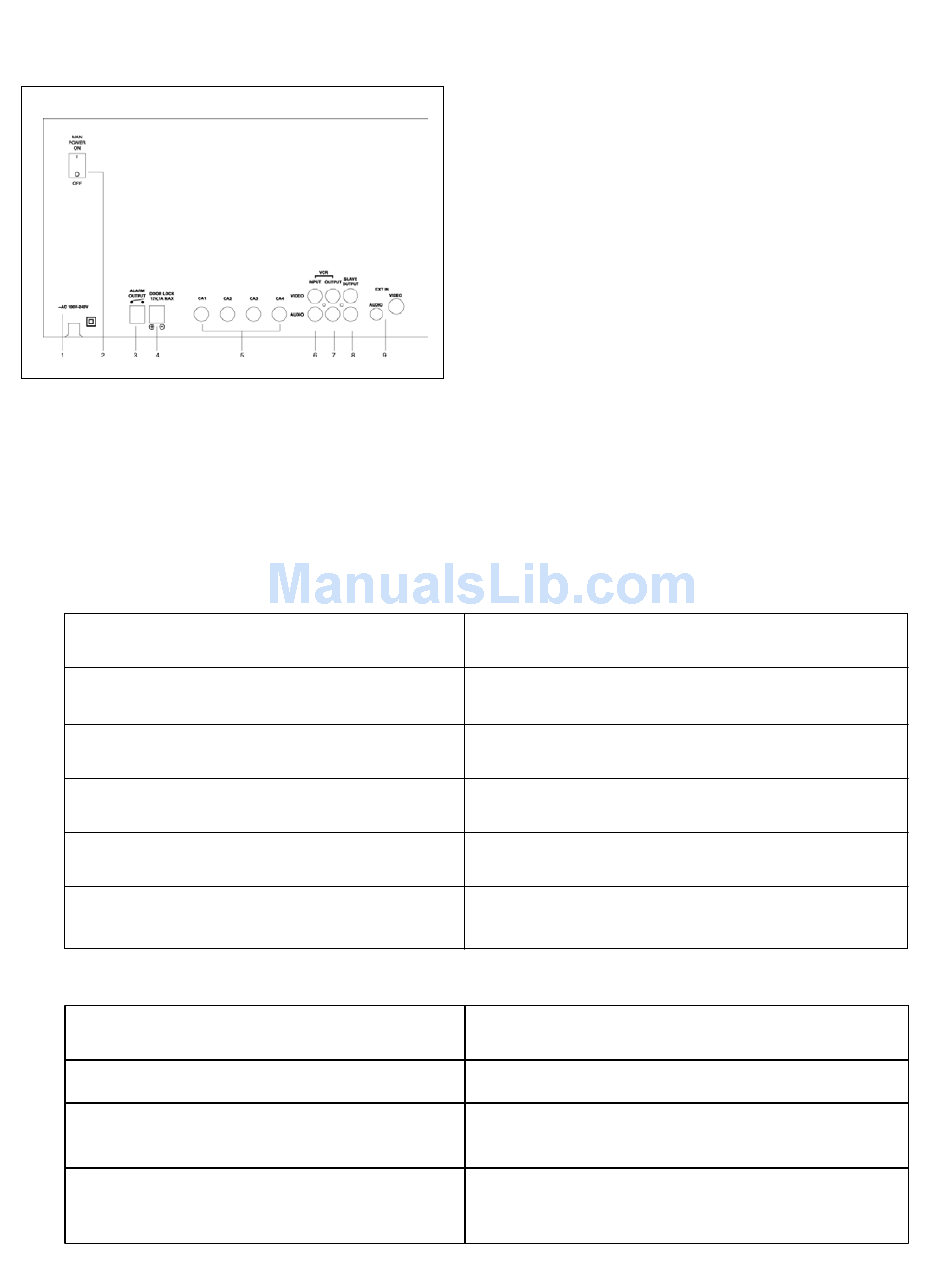

MONITOR CONNECTIONS

TROUBLE SHOOTING

If the system does not function properly, please check the following points.
MONITOR
Too dark or bright picture
NO POWER
Picture but no sound
Shrinking picture
Poor picture quality
CAMERA
No Picture
Picture Flickering or Over Exposed
Motion sensor not working
PROBLEM
PROBLEM
1. Camera 1 input
Connect one end of the supplied 65ft cable to
the first wired camera and the other end to the
camera 1 input
2. Camera 2 input
Connect one end of the supplied 65ft cable to
the first wired camera, the other end to camera
2 input
3. Camera 3 input
Connect one end of the supplied 65ft cable to
the second wired camera, the other end to
camera 3 input
4. Camera 4 input
Connect one end of the supplied 65ft cable to
the third wired camera, the other end to
camera 4 input
Readjust the CONTRAST or BRIGHTNESS controls
Check AC connection
Adjust the VOLUME control
Check the condition of the POWER source
Clean the camera lens. Readjust the CONTRAST
or BRIGHTNESS controls
Check the cable for any lose connection
Make sure the camera is not facing any direct light
or Sunlight
Check the connections from the PIR to the camera
REMEDY
REMEDY
