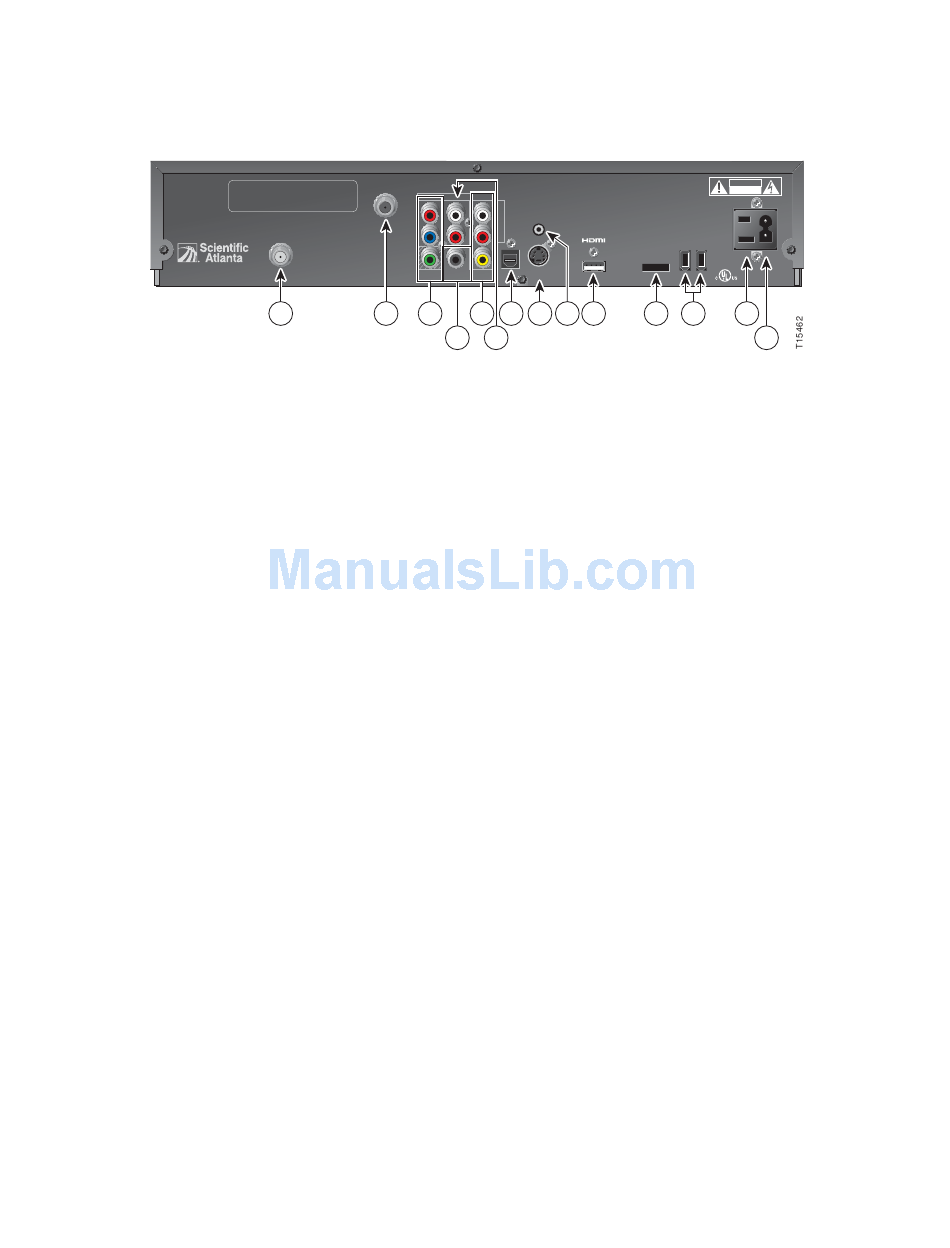

What's On the Back Panel?
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
CABLE
IN ANY OTHER FASHION MAY CAUSE
IN
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CATV CONVERTER
MADE IN MEXICO
1
1 Cable In
Connect the coaxial cable that delivers the signal from your cable
service provider
2 Cable Out
Connect a coaxial cable to Cable Out to send audio and video signals to
a TV or VCR. These signals are standard-defi nition TV (SDTV) video
and stereo audio
3 PrPbY/V
Connect the 8240HD (when in HD mode) to the component video input
(YPrPb) on the HDTV. When the 8240HD is confi gured for SD mode,
the Y/V portion of the component video output connects to the
composite video input of an HDTV or SDTV. See Connections for an
HDTV and VCR or Connections for a Standard-Defi nition TV and
VCR, later in this guide, for complete details
4 Digital Audio
Connect an RCA cable to send a digital audio signal to a surround-
Output
sound receiver or other digital audio device
5 Secondary Video
Connect to either a VCR for archiving saved content from the 8240HD or
and Audio Out
connect to another set of inputs (composite) on your HDTV
6 Audio Out
Connect RCA cables to Audio Out to send audio signals (left and
(LEFT and RIGHT) right) to a TV with stereo outputs
7 Optical Audio
Connect an optical cable to send a digital audio signal to a surround-
Output
sound receiver or other digital audio device
8 S-Video Out
Connect an S-Video cable to send an S-Video signal to your TV or VCR.
This signal is standard defi nition but higher quality than other SDTV
connections
9 IR
(This connector reserved for future use.)
10 HDMI
Connect the HDTV HDMI™ connector to the HDMI port. HDMI supports
both digital audio and video. May be used to connect to a DVI interface
using an adaptor
11 SATA
Connect to an external Serial ATA (SATA) hard disk drive for expanded
recording capacity. Check with your cable service provider for a list of
approved hard drive models for use with the 8240HD
12 1394 Firewire
Connect to display devices equipped with a 1394 input. This connector
is reserved for future use and may not be available on all 8240HD models
13 AC Outlet
Connect the AC power cord from another device, such as a TV
14 AC Power Input
Connect the power cord to deliver power to the 8240HD
