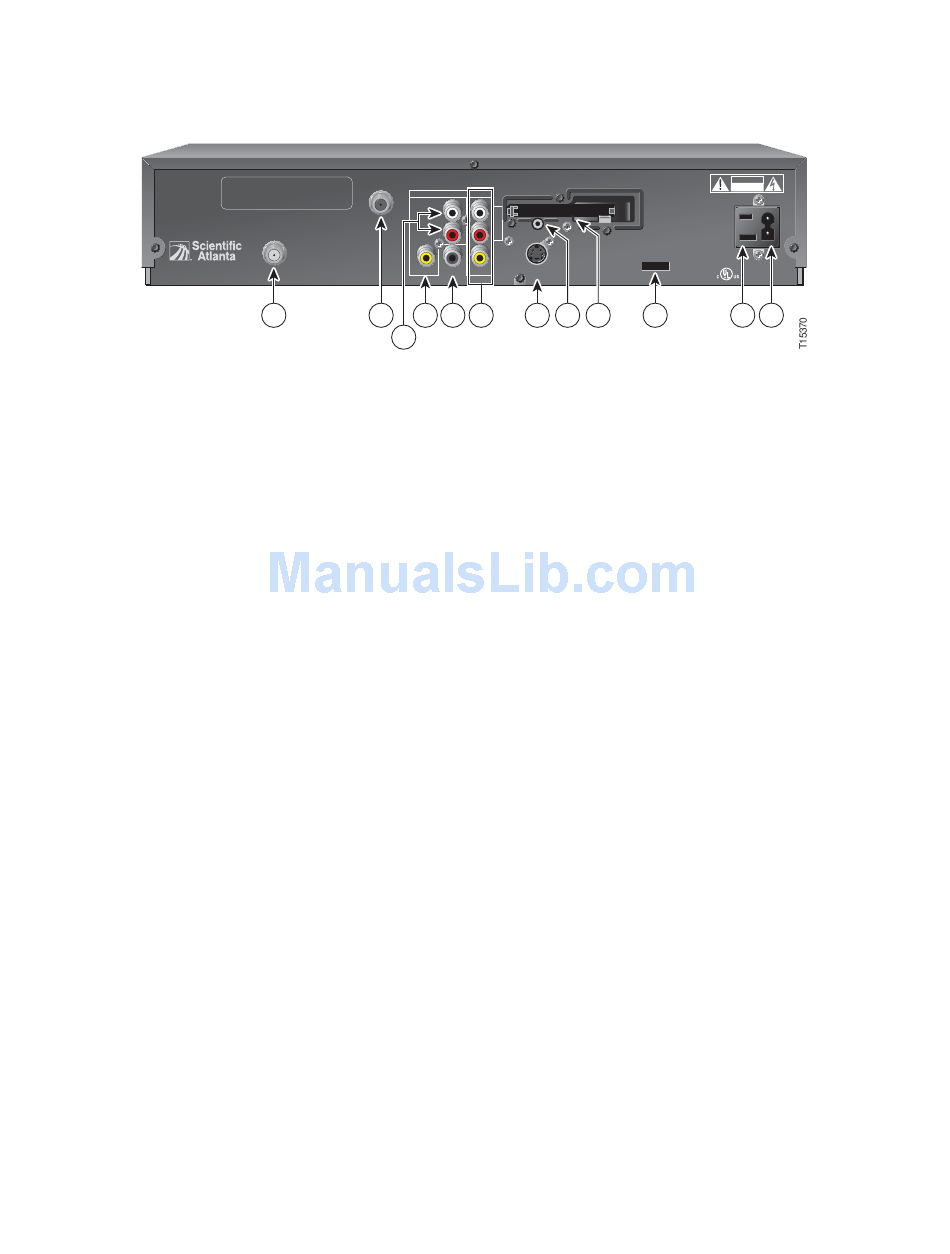

What's on the Back Panel?
CATV CONVERTER
MADE IN MEXICO
1 Cable In
Connects to a coaxial cable that delivers the signal from your service provider
2 Cable Out
Connects to a coaxial cable that sends analog audio and video signals to a TV or VCR.
These signals are standard-defi nition TV (SDTV) video and stereo audio
3 Audio Out
Connects to RCA cables that send analog audio signals (left and right) to the stereo
(LEFT and RIGHT)
inputs on a TV
4 Video Out
Connects to the video input of a TV or VCR
5 Digital Audio
Connects to an RCA cable that sends a digital audio signal to a surround-sound receiver or
Out
other digital audio device
6 Secondary Video
Connects to either a VCR for archiving saved content from the DVR or connects to another
and Audio Out
set of inputs (composite) on your TV
7 S-Video Out
Connects to an S-Video cable that sends an S-Video signal to your TV or VCR. This signal
is standard defi nition, but higher quality than other SDTV connections
8 IR
(This connector reserved for future use)
9 Multi-Stream
Slot for Multi-Stream CableCARD (M-Card) module for decrypting subscription digital
CableCARD
channels. This DVR will not operate correctly without an M-Card module. Obtain an
M-Card module from your service provider
Note: Your service provider may provide this when you fi rst receive the DVR.
10 eSATA
Connects to an external Serial ATA (eSATA) hard disk drive for expanded drive space.
(A connected eSATA drive is not an archival device.) Check with your service provider for a
list of approved hard drive models for use with the DVR
11 AC Outlet
Connects to the AC power cord from another device, such as a TV
12 AC Power Input
Connects to the power cord to deliver power to the DVR
Note: This illustration may vary from the actual product.
8
CABLE
OUT
OUT 1
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
CABLE
IN ANY OTHER FASHION MAY CAUSE
IN
HARMFUL INTERFERENCE TO RADIO
TV
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
VIDEO
DIGITAL
AUDIO OUT
1
2
4
3
MULTI-STREAM
OUT 2
A
U
L
D
IR
I
O
R
eSATA
S - VIDEO
VIDEO
OUT
5
6
7
8
9
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS:
RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
120 VAC
120 VAC
60HZ 5A
60HZ 80W
LISTED 14H1
CABLE EQUIP.
11
12
10
