IPD-1

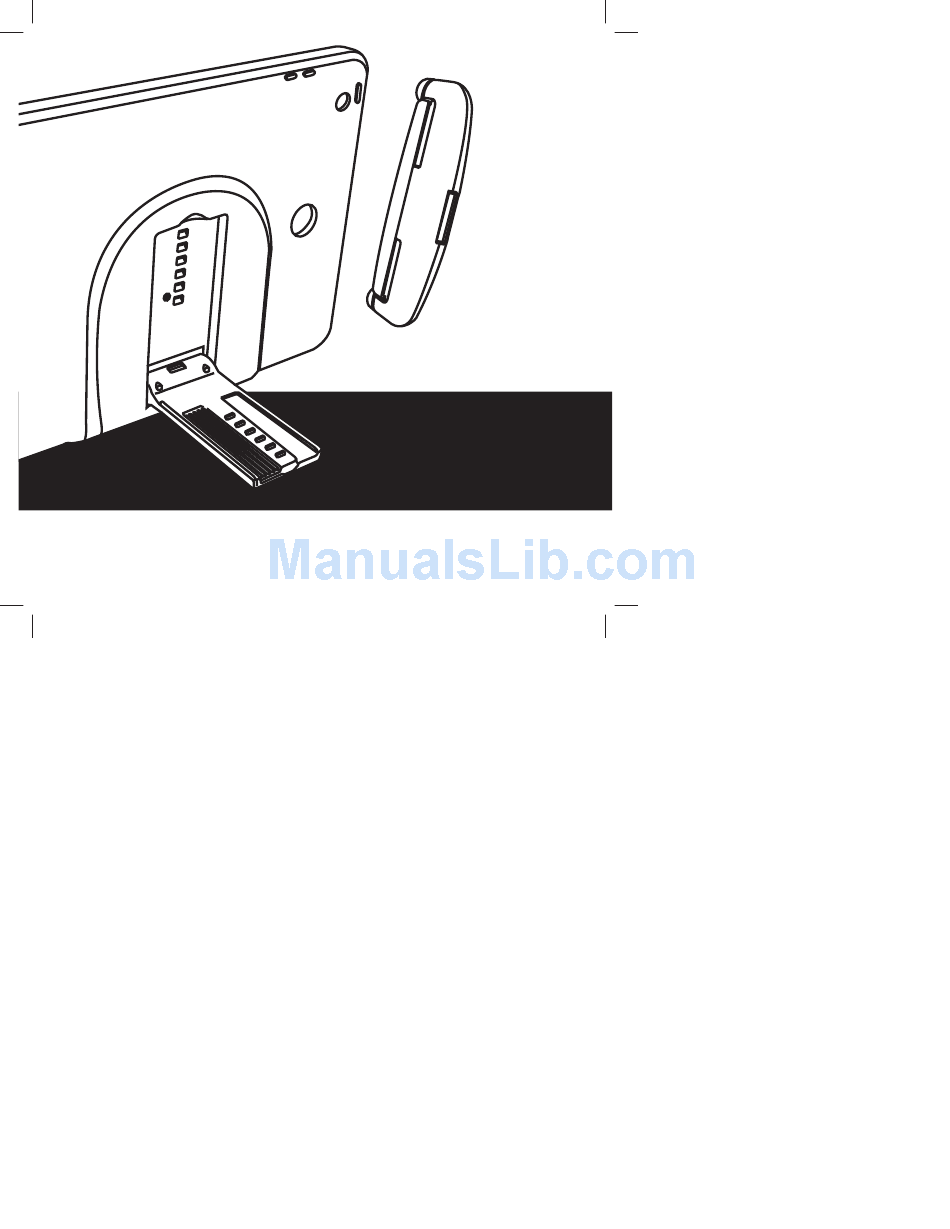

OWNERS MANUAL

Advertisement

loading

Related Manuals for Audiovox IPD-1

Summary of Contents for Audiovox IPD-1

  • Page 1 IPD-1 OWNERS MANUAL...
  • Page 2 Congratulations on your purchase of the IPD-1 Rear Seat Entertainment Mount. Please read the instruction manual for this product before using it. The documentation provided will alow you to enjoy all the features this product has to off er. Please save this manual for future reference.
  • Page 3 What’s In the Box? IPD-1 OWNERS MANUAL Protective Case Universal Manual Seatback Dock Features • Easily docks and undocks to the seatback by a Quick Connect attachment mechanism • Universal Seatback Dock can be installed on driver or passenger side •...
  • Page 4 Front Back...
  • Page 5 Finger Push Out Window To push out the iPad from the Protective Case. Open Base Port Volume -/Volume + Buttons Power On/Off Button To turn the iPad on or off . Camera Port Mounting Arm Attaches and locks the Protective Case to the Universal Seatback Dock. Red Switch Hold to lock or unlock the Mounting Arm into Universal Seatback Dock.
  • Page 6 To insert your iPad into the Protective Case: Make sure the Locking Key is in the closed (pushed in) position so that it is fl ush within the case. Press Slide your iPad into the Protective Case. Match the iPad charging connector with the Protective Case’s Open Base Port position and gently pull the Locking Key out while sliding the iPad into the case.
  • Page 7 To remove your iPad from the Protective Case: Hold the iPad and Protective Case vertically. Pull the Locking Key gently while holding the Protective Case in a vertical position. The iPad will slide down. Note: Please do not pull the Locking Key too hard when removing your iPad from the Protective Case to prevent damaging the locking parts.
  • Page 8 To install the Universal Seatback Dock on the Headrest: The Universal Seatback Dock can be installed on either the driver or passenger seat. Adjust the headrest position. Turn Screws (A) counterclockwise and remove the Screws to disassemble the Universal Seatback Dock. Clamp the Front Bracket (B) and Rear Bracket (C) around the headrest posts.
  • Page 9 To attach the Protective Case to the Universal Seatback Dock: The Mounting Arm has six depth settings to Fully inserted and allow for proper fi tting to the seat depending locked-in position First locked-in position on the size of the headrest. Warning! Always make sure the Red Switch is in the UNLOCK position when inserting or removing the Mounting Arm,...

  • Page 10: Troubleshooting

    Troubleshooting Problem Cause Solution The Protective Case does not • Red Switch is not unlocked • Hold Red Switch in UNLOCK fi t into the Mounting Arm. when you are inserting the position. Protective Case into the Universal Seatback Dock. •...

  • Page 11: 12 Month Limited Warranty

    Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option)
  • Page 12 128-9124...
