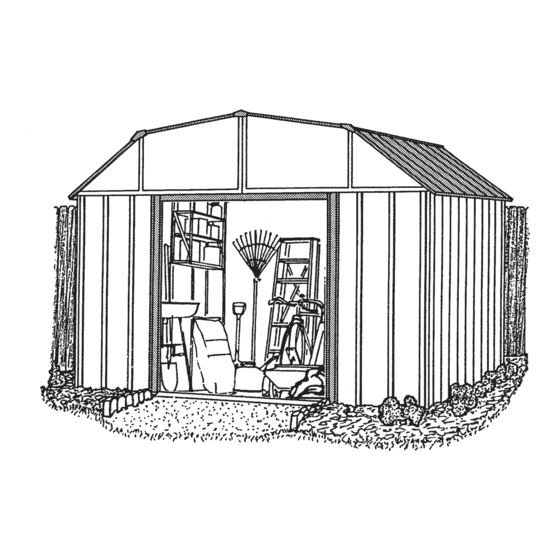

Owner's Manual & Assembly Instructions
WP01
Model No.
715500109
BUILDING DIMENSIONS
*Approx.
Foundation
Size
Size
10' x 12' 121" x 143 1/4"
3,0m x 3,6m 307,3cm x 363,9cm 10,7m
697.68222
* Size rounded off to the nearest foot
Storage Area
Sq. Ft. Cu. Ft.
115
759
2
3
21,5m
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
Height
123 1/4"
145 3/4"
87 7/8"
313,1cm
370,2cm
223,2cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Width
Depth
118 1/4" 140 1/2" 86 5/8" 55 1/2"
300,4cm 356,9cm 220,0cm 141,0cm 152,4cm
Door
Opening
Height Width Height
60"
Advertisement
Related Manuals for Arrow Storage Products 697.68222
Summary of Contents for Arrow Storage Products 697.68222
- Page 1 Owner's Manual & Assembly Instructions WP01 Model No. 697.68222 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ 715500109 SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
- Page 2 BEFORE YOU BEGIN..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.
- Page 3 PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
- Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
- Page 5 CARE & MAINTENANCE..A5 Web Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch- up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
- Page 6 ACCESSORIES..A6 WEB ROOF STRENGTHENING FLOOR FRAME KITS (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof by 50%. ANCHOR KITS Model No. AK4 MODELS FB47410, FB5465, FB106-A Anchor Kit contains heavy-duty steel FB109-A and FB1014-A augers, 60' (18m) of steel cable and 4 cable...
- Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 9 Foundation AQ09 The Foundation For Your Building OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB1014-A or 68387-A) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground . This kit should be used with one of the following: A.
- Page 10 Anchoring Anchoring Down The Building It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia. Recommended for use with any suggested base.
- Page 11 Hardware WP11 Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13mm) 65923 65004 Black Screw (8) #8-32x3/8" (10mm) 65103 #8Ax5/16" (8mm) #8-32 Hex Nut (236) (Packed with Screws) Bolt (236) Screw (416) 65109 67468 66646 #8-32 Acorn Nut (4) Peak Cap (6) 66045...
-
Page 12: Table Of Contents
Parts List WP12 Assembly Part Part Quantity Check Key No. Number Description In Carton List 3719 Door Handle Brace 9373 Front Wall Panel 6514 Corner Panel 6108 Large Right Gable 6109 Large Left Gable 6114 Small Right Gable 6115 Small Left Gable 10510 Right Roof Panel 10511... - Page 13 Assembly by Key No. WP13...
-
Page 14: Side Floor Frame
● ● ● ● ● 8934 Ramp (1) ● Parts Needed For ● ● ● ● ● ● 9367 Front Floor Frame (2) Step 1 ● ● ● ● ● 8936 Rear Floor Frame (2) Floor Frame Assemblies ● ● ● ● ● 10392 Side Floor Frame (4) SV14 The front floor frame is made up of three pieces. -
Page 15: Side Wall Channel
● ● ● ● ● 5986 Rear Wall Angle (2) ● Parts Needed For ● ● ● ● ● ● 10389 Rear Wall Channel (2) Step 2 ● ● ● ● ● 10390 Side Wall Channel (4) Frame Assemblies ● ● ● ● ● 10394 Side Wall Angle (4) SR15 The main frame pieces reinforce the walls. -
Page 16: Roof Panel
● Parts Needed For ● Step 3 ● ● ● ● ● 10397 Roof Beam (8) Roof Beam Assemblies SV16 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four pieces 10397 overlapped back to back at the cen- ter. - Page 17 ● Parts Needed For ● ● ● ● ● ● 6403 Door Track Splice (1) Step 4 ● ● ● ● ● 9366 Door Track (2) Door Track Assembly NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall.
- Page 18 ● ● ● ● ● Front Floor Assembly (1) ● Parts Needed For ● Step 5 ● ● ● ● ● Side Floor Assembly (2) Floor Frame ● ● ● ● ● Rear Floor Assembly (1) SW18 RIGHT REAR 10392 STEP Place the floor frame pieces that 8936...
- Page 19 ● Parts Needed For ● ● ● ● ● ● 6515 Wall Panel (2) Step 6 ● ● ● ● ● 9373 Front Wall Panel (2) Corners ● ● ● ● ● 6514 Corner Panel (4) SR19 NOTE Narrow The remainder of the building assembly Side requires many hours and more than one 6514...
-
Page 20: Wall Panel
● ● ● ● ● Door Track Assembly (1) ● Parts Needed For ● Step 7 ● ● ● ● ● Rear Wall Angle Assembly (1) Top Frames ● ● ● ● ● Side Wall Angle Assembly (2) WP20 The top frame pieces give rigidity to the walls and provide a surface for attaching the gables which support the roof. - Page 21 ● Parts Needed For ● Step 8 ● ● ● ● ● Rear Wall Channel Assembly (1) ● ● ● ● ● Side Wall Channel Assembly (2) Mid Frames WP21 The mid frame pieces give rigidity to the side and rear walls. Fasten the rear wall channel across the middle of the rear wall using screws.
- Page 22 ● Parts Needed For ● Step 9 ● ● ● ● ● 6515 Wall Panel (8) Wall Panels SR22 STEP Each wall panel has a crimped rib on one side. The crimped rib should go under the rib of the panel that follows Crimped Rib STEP Underneath...
- Page 23 ● Parts Needed For ● ● ● ● ● ● 9369 Door Jamb (2) Step 10 ● ● ● ● ● 9365 Front Wall Channel (2) Front Channel/Door Jamb SO23 The door jambs reinforce the door opening and provide an attractive 9365 trim.
- Page 24 ● ● ● ● ● 6108 Large Right Gable (2) ● ● ● ● ● 6109 Large Left Gable (2) ● Parts Needed For ● Step 11 ● ● ● ● ● 6114 Small Right Gable (2) Gable Assemblies ● ● ● ● ● 6115 Small Left Gable (2) ●...
- Page 25 ● ● ● ● ● Left Gable Assemblies (2) ● Parts Needed For ● ● ● ● ● ● Right Gable Assemblies (2) Step 12 ● ● ● ● ● Single Roof Beam Assemblies (2) Gables/Roof Beams ● ● ● ● ● 6636 Gable Brace (2) WP25 Lift and fasten a right and left gable, under angle at corner, to the...
- Page 26 ● Parts Needed For ● ● ● ● ● ● Main Roof Beam Assembly (1) Step 13 ● ● ● ● ● 6227 Roof Beam Brace (2) Roof Beam/Braces WP26 Fasten the track supports to the front gable assembly only, as shown. STEP Wrap the weather stripping tape around the two joined edges of the...
- Page 27 ● Parts Needed For ● Step 14 ● ● ● ● ● 10510 Right Roof Panel (1) Right Roof Panel WP27 Installing the roof panels is best done with a step ladder. Install the first roof panel at the back right corner of the building.
- Page 28 ● Parts Needed For ● ● ● ● ● ● 10511 Left Roof Panel (1) Step 15 ● ● ● ● ● 6538 Roof Panel (2) Ridge Caps & Panels ● ● ● ● ● 6869 Ridge Cap (3) WP28 Install a left roof panel 10511 at the left rear corner of the roof.
- Page 29 ● Parts Needed For ● ● ● ● ● ● 6538 Roof Panel (2) Step 16 ● ● ● ● ● 6868 Ridge Cap (3) Ridge Caps & Panels WP29 Install the second ridge caps 6868 overlapping the first ridge caps while installing two roof panels 6538.
- Page 30 ● ● ● ● ● 6538 Roof Panel (2) ● Parts Needed For ● ● ● ● ● ● 6869 Ridge Cap (3) Step 17 ● ● ● ● ● 10510 Right Roof Panel (1) Ridge Caps & Panels ● ● ● ● ● 10511 Left Roof Panel (1) WP30 Reducing Large Gable Bulge Install the third ridge caps 6869...
- Page 31 ● Parts Needed For ● ● ● ● ● ● 6014 Side Roof Trim (2) Step 18 ● ● ● ● ● 6015 Side Roof Trim (4) Roof Trim WP31 Attach the side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.
- Page 32 ● ● ● ● ● 3719 Door Handle Brace (2) ● Parts Needed For ● ● ● ● ● ● 10475 Right and Left Doors (2) Step 19 ● ● ● ● ● 10497 Horizontal Door Brace (4) Door Assembly ●...
- Page 33 ● Parts Needed For ● ● ● ● ● ● Right Door Assembly (1) Step 20 ● ● ● ● ● Left Door Assembly (1) Door Installation & Adjustment SQ33 Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the STEP...
- Page 34 SOME FACTS ABOUT RUST SO34 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
