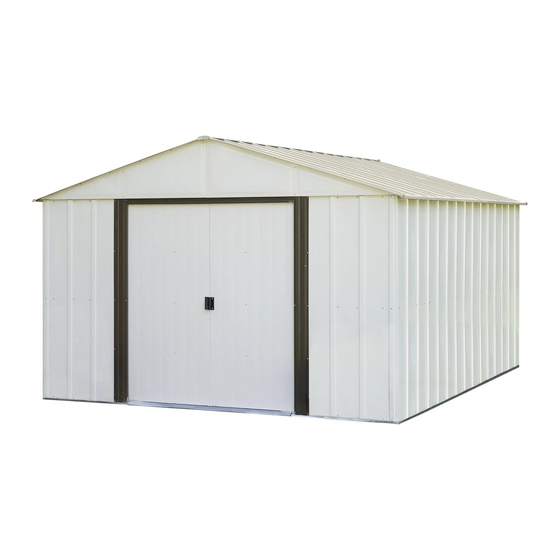

Owner's Manual & Assembly Instructions
CN01
Model No.
709310118
Storage Area: 27 Sq. Ft. 142 Cu. Ft.
2,5 m
2
BUILDING DIMENSIONS * Size rounded o to the nearest foot
*Approx.
Size
6' x 5'
74" x 57"
1,8 m x 1,4 m
188,0 cm x 144,8 cm
EN65 A
EN65GEU
SA65 A
4,0 m
3
Exterior Dimensions
Base
(Roof Edge to Roof Edge)
Size
Width
76 1/4"
193,7 cm
ENB65
EN65EU A 697.76082
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Depth
Height
Width
59 1/2"
67 7/8"
71 1/4"
151,1 cm
172,4 cm
181,0 cm
EN65G
Interior Dimensions
(Wall to Wall)
Depth
Height
54 1/4"
66 5/8"
137,8 cm
169,2 cm
HM65 A
Door
Opening
Width
Height
32"
58"
81,3 cm
147,3 cm
