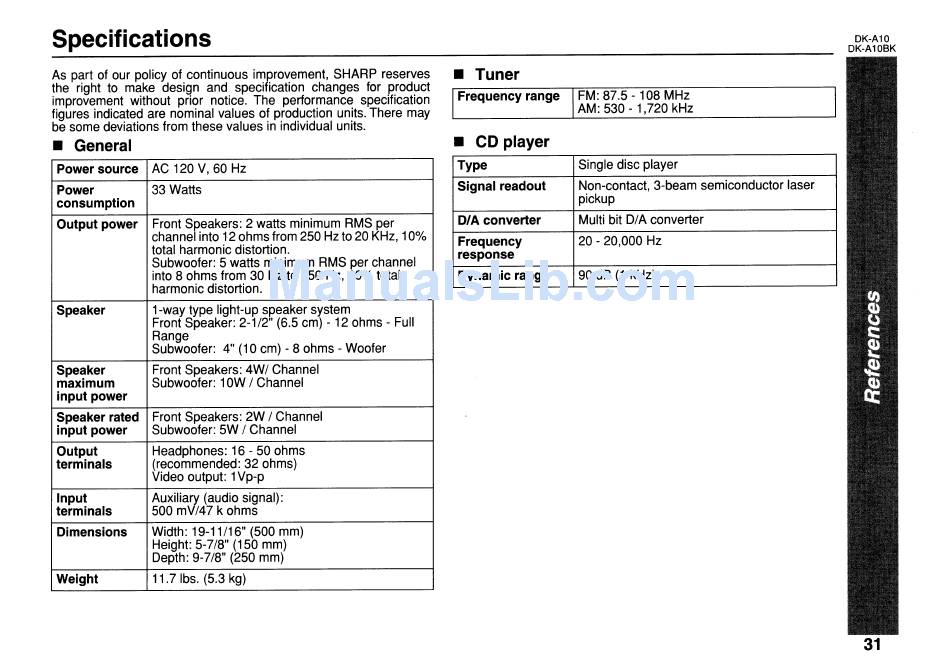

Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification
figures indicated are nominal values of production units. There may
be some deviations from these values in individual units.
•
General
Power source
AC 120 V, 60 Hz
Power
33 Watts
consumption
Output power
Front Speakers: 2 watts minimum RMS per
channel into 12 ohms from 250 Hz to 20 KHz, 10
%
total harmonic distortion.
Subwoofer: 5 watts minimum RMS per channel
into 8 ohms from 30 Hz to 250 Hz, 10
%
total
harmonic distortion.
Speaker
1-way type light-up speaker system
Front Speaker: 2-1/2" (6.5 cm) - 12 ohms - Full
Range
Subwoofer: 4" (10 cm) - 8 ohms - Woofer
Speaker
Front Speakers: 4W/ Channel
maximum
Subwoofer: 1OW
1
Channel
input power
Speaker rated
Front Speakers: 2W
1
Channel
input power
Subwoofer: 5W
1
Channel
Output
Headphones: 16 - 50 ohms
terminals
(recommended: 32 ohms)
Video output: 1Vp-p
Input
Auxiliary (audio signal):
terminals
500 mV/47 k ohms
Dimensions
Width: 19-11/16" (500 mm)
Height: 5-7/8" (150 mm)
Depth: 9-7/8" (250 mm)
Weight
11.7 Ibs. (5.3 kg)
•
Tuner
Frequency range
FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
•
CD player
Type
Single disc player
Signal readout
Non-contact, 3-beam semiconductor laser
pickup
01
A converter
Multi bit 01 A converter
Frequency
20 - 20,000 Hz
response
Dynamic range
90 dB (1 kHz)
DK-A10
DK-A10BK
31
