you cannot access this menu unless you stop record or play first.

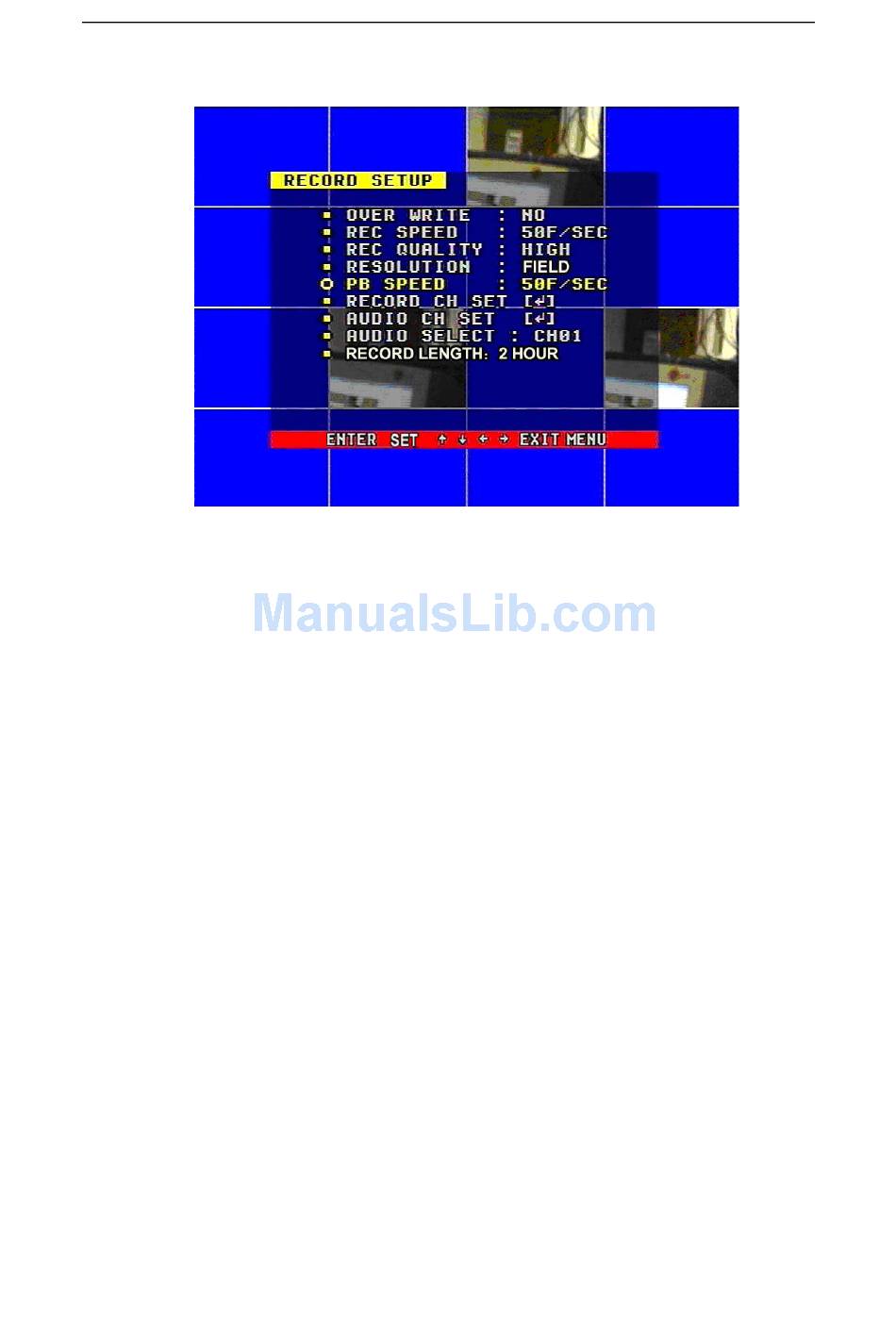

OVER WRITE: if set to "YES", the DVR will automatically overwrite the HDD from the
beginning when the HDD is full. If set to "NO", the DVR will automatically stop recording when
the HDD is full. If there are two HDD in the DVR, when the MASTER HDD is full, the video will
store to the SLAVE HDD, and when the SLAVE HDD is also full, the DVR will overwrite the
MASTER HDD if set this to yes, otherwise it will stop recording.
REC SPEED: the recording frame rate of the DVR, factory default setting is 30F/SEC under
NTSC (25F/1SEC under PAL). This means the DVR records the events at the speed of 30 shots of
frames per second. The higher of the record frame rate, the more natural look will be displayed on
the screen when you playback the footage. The lower of the record frame rate, the more you can
save the space on the hard disk. The highest frame rate is 120F/SEC(PAL is 100F/SEC) when the
resolution is in 320 mode
REC QUALITY: There are four different video quality settings: LOW, NORMAL, HIGH,
VERY HIGH. The higher of the video quality, the clearer images you can get when you playback.
The lower of the video quality, the more you can save the space on the hard disk drive.
RESOLUTION: the record picture size of the DVR have two modes:CIF and FIELD, default
is CIF. In FIELD mode, the recorded picture is twice the size of that in CIF mode. In CIFmode the
REC speed is 120F/SEC NTSC (PAL is 100F/SEC) and the maximal REC speed in FIELD mode
is 60F/SEC NSTC (PAL is 50F/SEC).
PB SPEED: the frame rate of playback, default is AUTO, which means the same as record.
14. Record CH Set
When the cursor moves to REC ch Set, please press enter button, the REC ch setup window will
appear. This screen is different for CIF and FIELD modes . In FIELD mode, the window is
illustrated as below, press UP and DOWN buttons to select channel and press LEFT or RIGHT
button to change the setting, if the channel is set "OFF", this channel will not record when in
recording mode. If the resolution is set to "CIF ", the REC ch Setup window can not be setup.
8-Channel Digital Video Recorder
9
