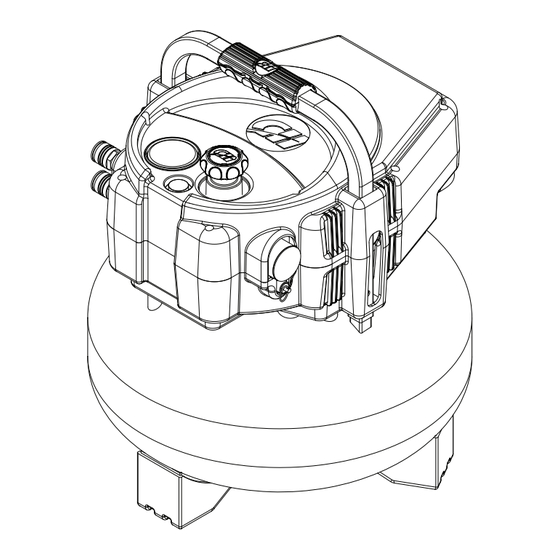

Campbell Hausfeld MW2500 Series Operating Instructions & Parts List Manual

See Warranty on page 12 for important information about commercial use of this product.
Operating Instructions and Parts List
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
Oilless compressors are designed for
do-it-yourselfers with a variety of
home and automotive jobs. These
units operate without oil. Compressed
air from this unit will contain moisture.
Install a water filter or air dryer if
application requires dry air.
Unpacking
After unpacking the unit, inspect
carefully for any damage that may
have occurred during transit. Make
sure to tighten fittings, bolts, etc.,
before putting unit into service. In
case of questions, damaged or missing
parts, please call 1-800-543-6400 for
customer assistance.
Have the date code, model number,
and parts list (with missing parts
circled) before calling.
DO nOt retUrn
the PrODUct tO
STOP!
the retaILer!
Do not operate
unit if damaged
during shipping, handling or use.
Damage may result in bursting and
cause injury or property damage.
reaD & FOLLOW aLL
InStrUctIOnS
Save theSe InStrUctIOnS
DO nOt DIScarD
© 2011 Campbell Hausfeld/Scott Fetzer
Record the Model No., Serial No.
and date of purchase located on the
back of the unit.
Model No.: ______________________
Serial No.: _______________________
Date of purchase: ________________
Retain these numbers for

Safety Guidelines

This manual contains information that is very important to know and
understand. This information is provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help recognize this information, observe the
following symbols.
nOte: Information that requires special attention.
REMINDER: Keep your dated proof of purchase for warranty purposes!
Attach it to this manual or file it for safekeeping.
For parts, product & service information,
visit www.chpower.com
Oilless
compressors
future reference.
Danger indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
Warning indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Caution indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
Notice indicates important information, that if not followed,
may cause damage to equipment.
MW2500 Series

Breathable Air Warning

this compressor/pump is not
equipped and should not
be used "as is" to supply
breathing quality air. For
any application of air for
human consumption, the air
compressor / pump will need to
be fitted with suitable in-line
safety and alarm equipment.
this additional equipment is
necessary to properly filter
and purify the air to meet
minimal specifications for Grade
D breathing as described in
compressed Gas association
commodity Specification G
7.1 - 1966, OSha 29 cFr 1910.
134, and/or canadian Standards
associations (cSa).
DIScLaIMer OF WarrantIeS
In the event the compressor
is used for the purpose of
breathing air application
and proper in-line safety
and alarm equipment is not
simultaneously used, existing
warranties shall be voided, and
campbell hausfeld disclaims any
liability whatsoever for any loss,
personal injury or damage.
IN634000AV 8/11
