Campbell Hausfeld FP260200 Operating Instructions And Parts Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
table of contents
Description . . . . . . . . . . . . . . . . . . . . . 1
Unpacking . . . . . . . . . . . . . . . . . . . . . . 1
Safety Guidelines . . . . . . . . . . . . . . . . 1
Important Safety Information . . . . . . 2
Installation. . . . . . . . . . . . . . . . . . . . . . 2
Definition of Terms . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . 4
User-Maintenance Instructions . . . . . 5
Troubleshooting Chart . . . . . . . . . . . . 5
Replacement Parts . . . . . . . . . . . . . . . 6
Limited Warranty . . . . . . . . . . . . . . . . 8

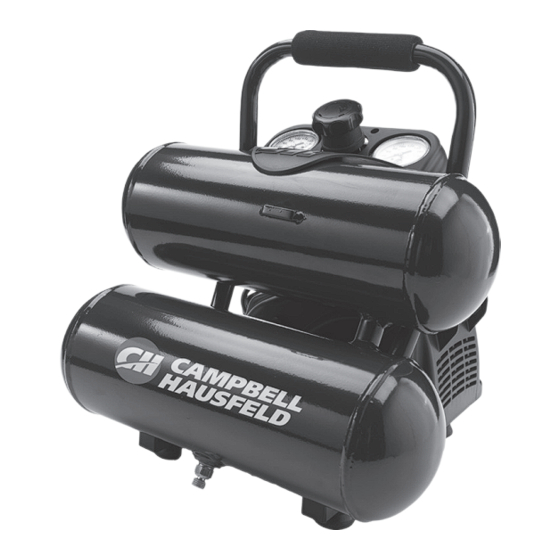

Description
Oilless compressors are designed for
do-it-yourselfers with a variety of
home and automotive jobs. These units
operate without oil. Compressed air
from this unit will contain moisture.
Install a water filter or air dryer if
application requires dry air.
Unpacking
After unpacking the unit, inspect
carefully for any damage that may
have occurred during transit. Make sure
to tighten fittings, bolts, etc., before
putting unit into service. In case of
questions, damaged or missing parts,
please call 1-800-543-6400 for customer
assistance.
Do not operate unit
if damaged during
shipping, handling or use. Damage may
result in bursting and cause injury or
property damage.
DO nOt retUrn the
PrODUct tO the
STOP!
retaIler! call
1-800-543-6400
Have the model number, serial number,
and parts list (with missing parts circled)
before calling.
© 2009 Campbell Hausfeld/Scott Fetzer
Record the Model Number, Serial
Number, and date of purchase
located on the base below the pump
in the space below.
Model Number: ___________________
Serial Number: ___________________
Date of Purchase: _________________
Retain these numbers for
future reference.
Safety Guidelines
This manual contains information
that is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe the
following symbols.
hazardous situation which, if not
avoided, WILL result in death or serious
injury.
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
REMINDER: Keep your dated proof of purchase for warranty purposes!
Attach it to this manual or file it for safekeeping.
For parts, product & service information
visit www.chpower.com
Oilless compressors
This compressor/pump is not
equipped and should not be used
"as is" to supply breathing quality air.
For any application of air for human
consumption, the air compressor/
pump will need to be fitted with
suitable in-line safety and alarm
equipment. This additional equipment
is necessary to properly filter and
purify the air to meet minimal
specifications for Grade D breathing
as described in Compressed Gas
Association Commodity Specification
G 7.1 - 1966, OSHA 29 CFR 1910.
134, and/or Canadian Standards
Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor is
used for the purpose of breathing
air application and proper in-line
safety and alarm equipment is
not simultaneously used, existing
warranties shall be voided, and
Campbell Hausfeld disclaims any
liability whatsoever for any loss,
personal injury or damage.
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Danger indicates
an imminently
information, that if not followed, may
cause damage to equipment.
nOte: Information that requires special
Warning indicates
attention.
a potentially
FP260200
Breathable Air Warning
Caution indicates
a potentially
Notice indicates
important
IN632800AV 12/09
