NOTE: The running position of the transducer is now completely adjustable. Subsequent adjustment may be
necessary to tweak the installation after high speed testing.
3
To adjust the running position of the transducer:
The transducer mounting bracket allows height and tilt adjustment, while the pivot bolt allows angular
adjustment. These adjustments will help reduce cavitation. Initially, adjust the transducer as described in the
following paragraphs. Further adjustment may be necessary to refine the installation after high-speed testing.
1. First, adjust the pivot angle of the transducer body, so it is parallel with the length of the hull of
the boat.
2. Fully tighten the two pivot screws, using the supplied Allen wrench. Access to the pivot screws
is provided by the lower holes in the side of the mounting bracket. It may be necessary to re-
tighten the pivot bolt after initial use as the plastic may still be conforming to the pressure from
the lock washers.
Tighten the Mounting Screws
5. If access to the top mounting hole is not possible due to the selected height of the transducer,
fully tighten the two lower screws, then simply remove the headed pivot pin and the transducer
assembly, and tighten the top screw, then reassemble.
6. Confirm that the pivot angle has not changed and that all mounting screws are fully tightened.
5
1
4
Normal Cavitation

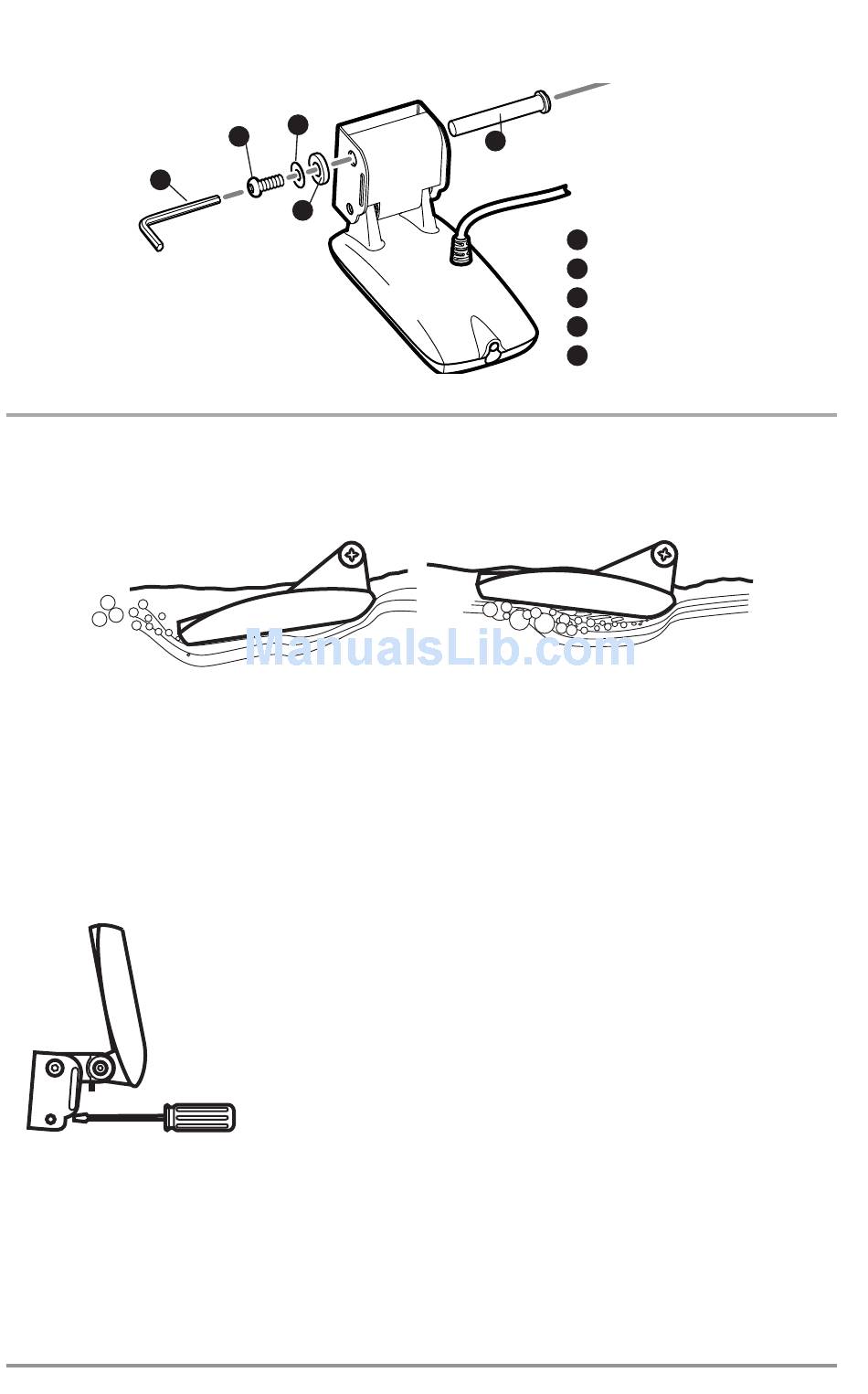

3. Adjust the height of the assembly so the face of the transducer is 1/8"
(3 mm) to 1/4" (6 mm) beneath the bottom of the transom, and fully
tighten the three mounting screws.
4. In order to gain access to the mounting screws, the transducer
assembly must be pivoted up in the bracket as shown. Be careful not
to alter the running angle as some force is necessary to pivot the
assembly.
2
1
2
3
4
5
Cavitation that will cause
erratic sonar readings
22
Screw
Headed Pin
Allen Wrench
Nylon Washer
Stainless Washer
