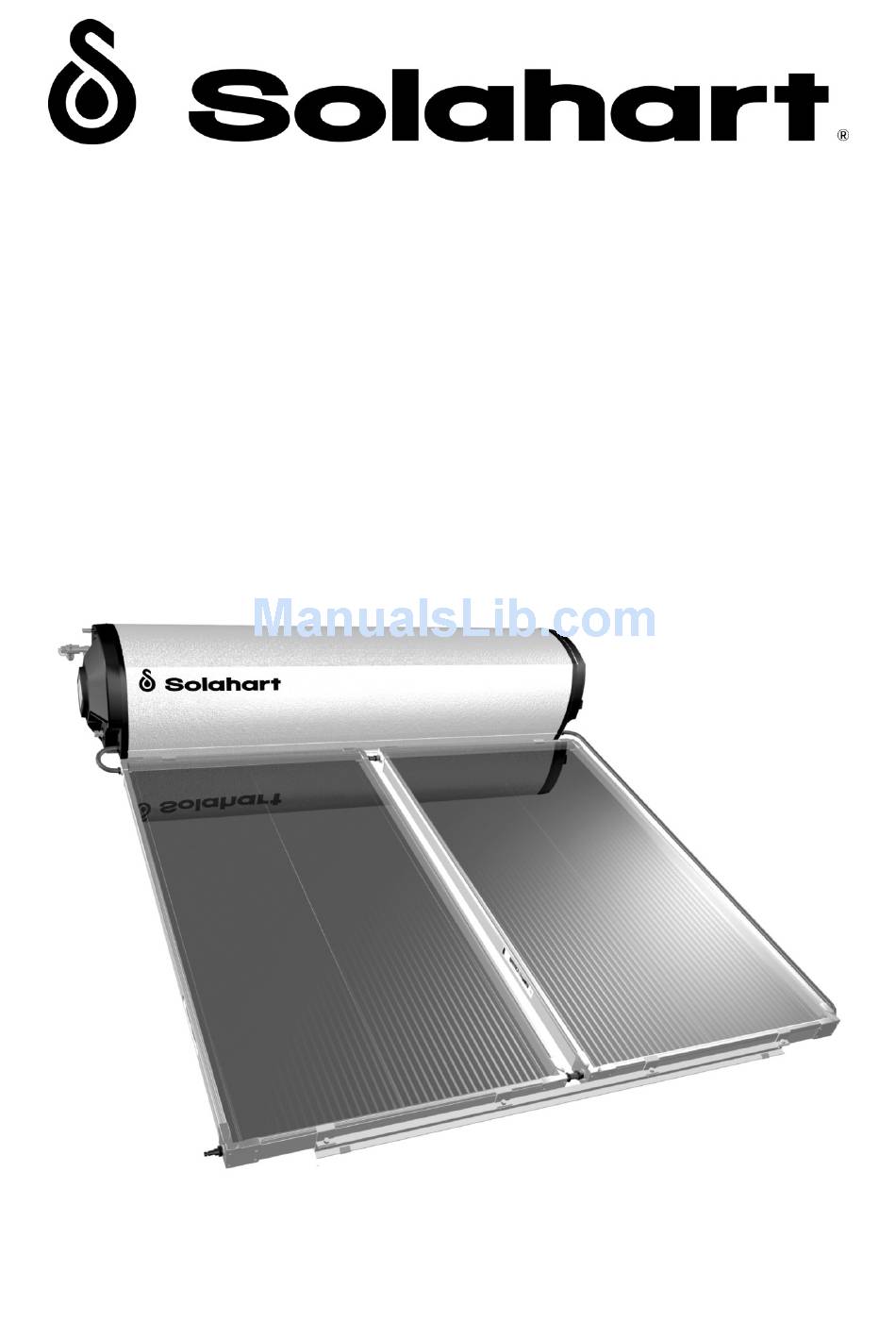

OWNER'S MANUAL
Includes Installation Instructions
SOLAR WATER HEATERS
Solahart Industries Pty Ltd
ABN 45 064 945 848

Advertisement

Table of Contents
loading

Related Manuals for Solahart SOLAR WATER HEATERS

Summary of Contents for Solahart SOLAR WATER HEATERS

  • Page 1 OWNER’S MANUAL Includes Installation Instructions SOLAR WATER HEATERS Solahart Industries Pty Ltd ABN 45 064 945 848...

  • Page 2: Table Of Contents

    CONTENTS Here's How It Works ......................... 1 Facts You Should Know About Your Solahart Water Heater ..........2 Operating Your Solar Water Heater ..................4 Maintenance ..........................8 Installation Instructions - All Models ..................10 Installation Instructions – Closed Circuit Series..............18 Installation Instructions –...

  • Page 3: Here's How It Works

    Both series transfer heat absorbed from the sun by the solar collectors to the water storage tank through the Natural Thermosiphon Principle without the need for pumps or sensors. The Solahart collectors absorb solar energy. The low-iron content solar glass allows more solar energy to pass through and be retained than conventional glass.

  • Page 4: Facts You Should Know About Your Solahart Water Heater

    Hot Hot Water! Your Solahart water heater will generate hot water quickly and efficiently. Under normal family use, it will operate between 60ºC and 70ºC. However, the temperature can exceed this and under certain circumstances may be as high as 95ºC (see recommendation below).
  • Page 5 Water Quality - Is It Suitable For The Solahart Water Heater? Your Solahart water heater is suitable for use with water with a total dissolved solid content less than 1,000 ppm and for which the total hardness does not exceed 200 ppm CaCO 3 . Water supplies having calcium hardness (CaCO 3 ) and an alkalinity in excess of 150 ppm should be treated by a softening process prior to use with this water heater to prevent scaling and damage to the electric booster element.

  • Page 6: Operating Your Solar Water Heater

    200 litres The overall performance and energy savings that you will obtain from your Solahart water heater will depend on your hot water usage pattern and your operation of the in-tank booster. A time clock may be fitted to the system to turn the booster on when required.
  • Page 7 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 Timer Control of the Tank Boosting A timer control switch can be installed and will help maximise energy savings with an electrically boosted solar water heater connected to a continuous, time of use or extended Off-Peak (overnight and day) electricity supply.
  • Page 8 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 Temperate/sub tropical climate Minimum winter cold water supply temperature = 20°C Thermostat set point = 60°C Temperature rise = 40°C Booster Heating Unit 150 model 180 model...
  • Page 9 If using the Solahart water heater as a pre-heater to a storage water heater, the water supply from the Solahart heater be tempered to the temperature setting of the storage heater OR a temperature controlled by-pass valve be installed to the storage heater to divert water from the Solahart heater when at a temperature above this setting.

  • Page 10: Maintenance

    THE DRAIN LINE WILL BE HOT. STAND CLEAR OF THE DRAIN LINE‟S POINT OF DISCHARGE WHEN OPERATING THE VALVE‟S LEVER. If the temperature pressure relief valve is not readily accessible, contact your local Solahart Dealer. Operate the easing lever on the expansion control valve. It is very important you raise and lower the lever gently.
  • Page 11 Operate the easing lever on the expansion control valve once every six months. If water does not flow freely from the drain line when the lever is lifted, then the water heater should be checked by your nearest Solahart Dealer. The expansion control valve should be checked for performance or replaced at intervals not exceeding 5 years, or more frequently in areas where there is a high incidence of water deposits.

  • Page 12: Installation Instructions - All Models

    In areas susceptible to cyclones, hurricanes or very high winds, a suitable With Pitch frame is required. Refer to your local Solahart Dealer for details. The installation of this solar water heater on a suitable frame, subject to the frame‟s design...
  • Page 13 / freezing, a Closed Circuit system should be used. Solahart recommends using a minimum of 1 complete 4.5 litre bottle of „Hartgard‟ in each system (or a minimum concentration of 20% in large capacity systems) as standard where ambient temperatures do not fall below 0°C.

  • Page 14: Revision F – Jan

    OR DAMAGE TO THE HEATING ELEMENT WILL RESULT The power rating and current requirement of your Solahart water heater will be specified on the heater‟s data plate, located on the cover to the electrical cavity. The temperature rating of the power supply lead‟s insulation should suit this application.
  • Page 15 A combination thermostat/safety cut-out is installed to control the electrical heating element to the factory pre-set temperature of 60°C. Individual situations may require this setting to be altered. Only qualified electricians or Solahart service contractors are permitted to adjust the thermostat. The safety cut-out (also called a thermal cut-out) will de-energise the element should the temperature within the tank reach 83°C when the element is activated.
  • Page 16 Local regulations may make it mandatory to install an expansion control valve (ECV) in the cold water line to the water heater. In other areas, an ECV is not required unless the water saturation index is greater than +0.4. For this Solahart Water Heater an RMC H50 Cold Relief Valve (part no 45-1103) is supplied in the parts kit for use as the ECV.
  • Page 17 Manually fed boosters such as stove coils, back boilers or coils in open fired grates are not permitted to be connected to Solahart water heaters unless the storage cylinder is open vented. Such auxiliary energy sources must not be connected into the closed circuit.
  • Page 18 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 Thermosiphon Pipe Shroud Cover The function of the Pipe Shroud Cover is to cover the plumbing pipe-work and electrical connections to the thermosiphon tank, including the drain line from the temperature pressure relief valve, without restricting pipe runs for the installation or the operation of the TPR valve.
  • Page 19 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 FITTING THE PIPE SHROUD COVER The Pipe Shroud Cover contains a number of preformed cut outs. Each cut-out can be removed using a pair of snips by following the preformed cut-out lines.

  • Page 20: Installation Instructions - Closed Circuit Series

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION INSTRUCTIONS – CLOSED CIRCUIT SERIES WARNING: THE TANKS AND COLLECTORS ARE HEAVY. IMPROPER LIFTING TECHNIQUES COULD RESULT IN PERSONAL INJURY DURING INSTALLATION. IT IS THE INSTALLER‟S RESPONSIBILITY TO USE ONLY APPROVED LIFTING AND SAFETY DEVICES AND TECHNIQUES WHEN LIFTING COLLECTORS AND TANKS ON ROOFS.

  • Page 21: Filling And Commissioning The Closed Circuit

    In locations frequently subject to atmospheric temperature below -10ºC, hot and cold pipes and valves may freeze even when insulated. It is recommended that in these locations, the cold pipes and valves to the Solahart storage tank and the hot pipe from the tank should have electric heater tape under the insulation.
  • Page 22 If this is the case, then the section of gutter immediately beneath the proposed location of the new Solahart system should be isolated from the rainwater collection system. This can be done by blocking that section of gutter from the remaining gutter, and fitting a separate down pipe to take any run-off water from that section of roof away to waste.
  • Page 23 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 CLOSED CIRCUIT INDIRECT SYSTEMS – END CAP The end cap is supplied fitted to the „tail‟ end of the tank. The end cap used should not need to be removed to complete the installation.
  • Page 24 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 CLOSED CIRCUIT COMMISSIONING PROCEDURE – GENERAL Remove the Fill Plug from the Collector Fill Assembly. Remove PR6/PR200 Valve from the Tank. Connect a ½” hose to the Collector Fill Assembly and fill the Closed Circuit with water.
  • Page 25 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 IMPORTANT: If more than 0.5 litres of fluid is spilled, repeat steps 1-5 Remove the PR6/PR200 Valve and siphon the entire contents of the Hartgard container into the Closed Circuit using the ½” hose.

  • Page 26: Installation Instructions - Open Circuit Series

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION INSTRUCTIONS – OPEN CIRCUIT SERIES WARNING: THE TANKS AND COLLECTORS ARE HEAVY. IMPROPER LIFTING TECHNIQUES COULD RESULT IN PERSONAL INJURY DURING INSTALLATION. IT IS THE INSTALLER’S RESPONSIBILITY TO USE ONLY APPROVED LIFTING AND SAFETY DEVICES AND TECHNIQUES WHEN LIFTING COLLECTORS AND TANKS ON ROOFS.
  • Page 27 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 OPEN CIRCUIT DIRECT SYSTEMS – END CAP The end cap is supplied fitted to the „tail‟ end of the tank. The end cap used on the open circuit direct system has an opening to enable the solar hot pipe to be connected to the solar storage tank.
  • Page 28 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATIONS INCLUDING TEMPERATURE LIMITING DEVICES In the event of the collectors stagnating and generating steam, it is possible that high temperature water may by-pass the temperature limiting device. To prevent this from occurring please follow the connection details shown below.

  • Page 29: Installer's Checklist

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLER’S CHECKLIST  Ensure that the system is installed as directed in this manual  Ensure the system is installed with the correct TILT (hot pipe side higher) ...

  • Page 30: Technical Specifications

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 TECHNICAL SPECIFICATIONS 151L & 151L 181L & 181L 181J & 181J 181KF & 181KF 182L & 182L 182J & 182J 182KF & 182KF Systems 151J 151KF FREE HEAT...
  • Page 31 33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 444L & 444L 444J & 444J 444KF & 444KF Systems FREE HEAT FREE HEAT FREE HEAT Delivery litres (solar) US gal. Auxiliary litres boost US gal. Weight...

  • Page 32: Annual Performance Calculations For Europe

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 ANNUAL PERFORMANCE CALCULATIONS FOR EUROPE Annual performance calculation of Solahart thermosiphon systems according EN12976 SolarKeyMark Systems, ITW Test Report No 04SYS30 for the 302Kf system, INETI Test Report No 10/101.104/2005 for the 302J system and ITW test report No.

  • Page 33: Installation Diagram Models 151J & 151Kf

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 151J & 151KF For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 34: Installation Diagram Models 151L & 151L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 151L & 151L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 35: Installation Diagram Models 181J, 181Kf, 181J Free Heat & 181Kf Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 181J, 181KF, 181J FREE HEAT & 181KF FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 36: Installation Diagram Models 181L & 181L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 181L & 181L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 37: Installation Diagram Models 182J, 182Kf, 182J Free Heat & 182Kf Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 182J, 182KF, 182J FREE HEAT & 182KF FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 38: Installation Diagram Models 221J & 221Kf

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 221J & 221KF For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 39: Installation Diagram Models 301J & 301Kf

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 301J & 301KF For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 40: Installation Diagram Models 301L & 301L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 301L & 301L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 41: Installation Diagram Models 302J, 302Kf, 302J Free Heat & 302Kf Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 302J, 302KF, 302J FREE HEAT & 302KF FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 42: Installation Diagram Models 302L & 302L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 302L & 302L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 43: Installation Diagram Models 303J, 303Kf, 303J Free Heat & 303Kf Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 303J, 303KF, 303J FREE HEAT & 303KF FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 44: Installation Diagram Models 303L & 303L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 303L & 303L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 45: Installation Diagram Models 443J, 443Kf, 443J Free Heat & 443Kf Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 443J, 443KF, 443J FREE HEAT & 443KF FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Closed Circuit models, refer to Page 18.

  • Page 46: Installation Diagram Models 443L & 443L Free Heat

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 INSTALLATION DIAGRAM MODELS 443L & 443L FREE HEAT For general (for ALL models) Installation Instructions, refer to Page 10. For Installation Instructions on Open Circuit models, refer to Page 24.

  • Page 47: Connection Details

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 CONNECTION DETAILS Closed Circuit Systems Water Connections (All Potable water & drain lines are ½” BSP) Open Circuit Systems Water Connections (All Potable water & drain lines are ½” BSP)

  • Page 48: Assembly Drawings

    33-1197 Solahart Owner‟s Manual – Thermosiphon Systems - Revision F – Jan. 12 Assembly Drawings Collector Rail Fixing Tank Clamp Assembly Strap (330847) fixed with “TEK” self drilling screws (metal deck) or coach screws (fibro roof). Collector Rail 31846 / 331847...

  • Page 49: Solahart Thermosiphon Solar Water Heater Warranty

    2.1 The decision of whether to repair or replace a faulty component is at Solahart’s sole discretion. 2.2 If you require a call out and we find that the fault is not covered by the Solahart warranty, you are responsible for our standard call out charge.
  • Page 50 FOR THE WATER HEATERS DETAILED IN THIS DOCUMENT 3.1 Solahart will repair or replace a faulty component of your water heater if it fails to operate in accordance with its specifications as follows: The period in which the fault must...
  • Page 51 AFFIX INSTALLATION AND WARRANTY REPORT HERE Note: Installation and Warranty report to be produced in quadruplicate on carbon copy paper in the colours indicated...
  • Page 52 + 1 334 260 1586 Australia Facsimile International: + 1 334 260 1514 For SERVICE Telephone - 1800 638 011 or your nearest Solahart Dealer For Sales Telephone - 1300 769 475 or your nearest Solahart Dealer Item No 331197 Rev F 2012 January...
