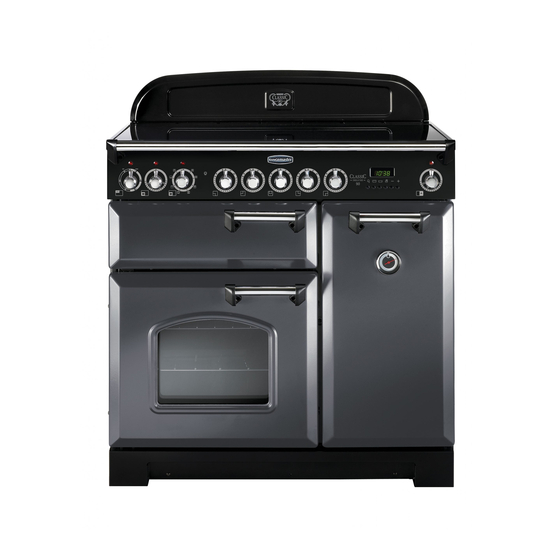

Rangemaster dual fuel range cooker
Hide thumbs
Also See for Classic 90:
- Installation & user manual (36 pages) ,
- User's manual & installation instructions (44 pages) ,
- User manual (40 pages)
Related Manuals for Rangemaster Classic 90
Summary of Contents for Rangemaster Classic 90
-
Page 1: User Guide
Britain’s No.1 Range Cooker USER GUIDE & INSTALLATION INSTRUCTIONS Classic 90 Dual Fuel Rangemaster 90 Dual Fuel Toledo 90 Dual Fuel... - Page 2 We o er cookware to work perfectly with all fuel types manufactured by Rangemaster, including induction hobs. You can be assured of functionality with style, as well as the quality and meticulous attention to detail you expect from the pioneers of range cooking.
-
Page 3: Table Of Contents
Tap Adjustment General Oven Tips Stick on Label Cooking Table Pressure Testing Cleaning Your Cooker Circuit Diagram Essential Information 10. Technical Data Hotplate Burners Grill Control Panel and Doors Ovens The Tall Oven Cleaning Table Classic, Toledo and Rangemaster 90DF U106010-11... -
Page 5: Before You Start
1. Before You Start... This User Guide covers a number of different models. If You Smell Gas Although some of the illustrations will look different to • DO nOT turn electric switches on or off your particular model the functions will be the same. We •... -
Page 6: Cooker Care
Accessible parts will become hot during use and will NEVER leave a chip pan unattended. Always heat fat retain heat even after you have stopped cooking. slowly, and watch as it heats. Deep fry pans should Keep babies and children away from the cooker and be only one third full of fat. -
Page 7: Cooker Overview
The 90 dual fuel cooker (Fig.2-1) has the following features: Fig.2-2 5 hotplate burners including: – A wok burner (Classic & Toledo models) or – A high burner (Rangemaster model) A control panel A grill Main fan oven Tall fan oven... -
Page 8: Wok Burner (Classic And Toledo Models Only)
The igniter should spark and light the gas. Keep holding the Fig.2-3 knob pressed in to let the gas through to the burner for about ten seconds. If, when you let go of the control knob, the burner goes out, then the FSD has not been bypassed. -
Page 9: The Wok Cradle (Optional Extra)
The Wok Cradle (Optional Extra) Fig.2-9 The wok cradle is designed to t a 35 cm wok. If you use a di erent wok, make sure that it ts the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 10: The Grill
The Grill Fig.2-15 CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. CAUTION: Accessible parts may be hot when the grill ArtNo.330-0003 - Grill pan w handle pulled forwards is in use. -
Page 11: The Clock
The Clock Fig.2-20 You can use the timer (Fig.2-20) to turn the ovens on and o . The clock must be set to the time of day before the ovens will work. Setting the Time of Day ArtNo.302-0002 - 6BC annotated When the clock is rst connected the display ashes ( 0.00 ) ... -
Page 12: Key Lock
AUTO is Showing, But you Want to Reset to Fig.2-30 Fig.2-31 Manual Cooking To return to manual cooking from any automatic setting, the ‘cook period’ must be cancelled. Press and hold the [] button and then press the [–] button until the display reads ArtNo.302-0009 - Activating ArtNo.302-0008 - the key lock 2... -
Page 13: Accessories
Accessories Fig.2-35 Oven Shelves – Left-hand (Main) Oven Shelf guard The oven shelves (Fig.2-35) can be easily removed and re tted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig.2-36). Front Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf forward (Fig.2-37). -
Page 14: Cooking Tips
3. Cooking Tips Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed rmly to the back require approximately the same cooking time. However, of the oven. -
Page 15: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 16: Cleaning Your Cooker
5. Cleaning Your Cooker Essential Information Fig.5-1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix di erent cleaning products –... -
Page 17: Grill
Grill Fig.5-5 Before you remove any of the grill parts for cleaning. make sure that they are cool, or use oven gloves. The grill pan can be easily removed for cleaning (Fig.5-5). The grill pan and trivet should be washed in hot soapy water. ArtNo.330-0003 - Grill pan w handle pulled forwards After grilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use. -
Page 18: Cleaning Table
Cleaning Table Cleaners listed (Table 5-1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 19: Troubleshooting
6. Troubleshooting Hotplate ignition or hotplate burners faulty Power failure Is the power on? Is the clock illuminated? In the event of a failure in the electrical supply, remember to reset the clock to make sure that the If not, there maybe something wrong with the power timed oven continues to operate. - Page 20 An oven light is not working Fig.6-1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W – ArtNo.324-0005 Oven light bulb 230 V lamp, FOR OVENS.
-
Page 21: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. 7. Installation Dear Installer Provision of Ventilation Before you start your installation, please complete the details This appliance is not connected to a combustion products below, so that, if your customer has a problem relating to evacuation device. - Page 22 INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. You will need the following equipment to complete the Checking the Parts: cooker installation satisfactorily: 3 pan supports Griddle plate (some models) • Stability bracket: If the cooker is to be supplied with gas through a flexible hose, a stability bracket or chain MUST be fitted.
-
Page 23: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Positioning the Cooker ArtNo.090-0009 - 90 2BC cooker min spacings Fig.7-1 Fig.7-1 and Fig.7-2 show the minimum recommended distance from the cooker to nearby surfaces. 75 mm 75 mm 650 mm The cooker should not be placed on a base. -
Page 24: Completing The Move
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Lowering the Two Rear Rollers Fig.7-5 To adjust the height of the rear of the cooker, rst t a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig.7-5). -
Page 25: Conversion To Another Gas
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Conversion to Another Gas Fig.7-10 If the appliance is to be converted to another gas do the conversion at this point. See the conversion section of these instructions and see the instructions in the conversion kit. -
Page 26: Gas Connection
Although a 900 mm hose can be used, a 1250 mm hose will allow slightly more exibility in the positioning of the ArtNo.090-0034 - RangeMaster 90 Hose connectors bayonet and make moving the cooker easier. The hose should be tted so that both inlet and outlet connections are vertical so that the hose hangs downwards in a ‘U’... -
Page 27: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Electrical Connection Fig.7-14 The cooker must be installed by a quali ed electrician, in accordance with all relevant Standards/Codes of Practice with the relevant national and local regulations. Current Operated Earth Leakage Breakers The combined use of your cooker and other domestic appliances may cause nuisance tripping, so we... -
Page 28: Conversion To Lp Gas
Lift the control panel and pull forwards, taking care not to damage or strain the wiring. Rangemaster and Toledo – Removing the Control Panel Pull o all the control knobs and remove the xing screws underneath the control panel. -
Page 29: Stick On Label
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. Stick on Label Stick the LP gas label over the natural gas part of the appliance data label. -
Page 30: Circuit Diagram
9. Circuit Diagram P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill control Ignition spark generator Blue Grill element left-hand side Ignition switch Brown Grill element right-hand side Oven light switch... -
Page 31: Technical Data
10. Technical Data ArtNo.105-0008 - Technical data - 90 induction - Elan THE COOKER IS CATEGORY: CatII 2H3+. It is supplied set for group H natural gas. A conversion kit from NG to LP is packed with the cooker. INSTALLER: Please leave these instructions with the User. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening. - Page 32 Notes...
- Page 33 Notes...
- Page 34 Notes...
- Page 35 Gas Safe registered engineer for gas appliances or an approved electrician for electrical models. CONSUMER SERVICE For a competitive quote and to arrange for a Rangemaster approved If you have any product enquiries, or in the event of a problem engineer to attend, call Consumer Services on: 0870 7895107.
- Page 36 Registered in England and Wales. Registration No. 354715 Registered O ce: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG Rangemaster continuously seeks improvements in speci cation, design and production of products and thus, alterations take place periodically. Whilst every e ort is made to produce up-to-date literature, this booklet should not be regarded as an infallible guide to...
