Drain System

The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See

"Tools and Parts."

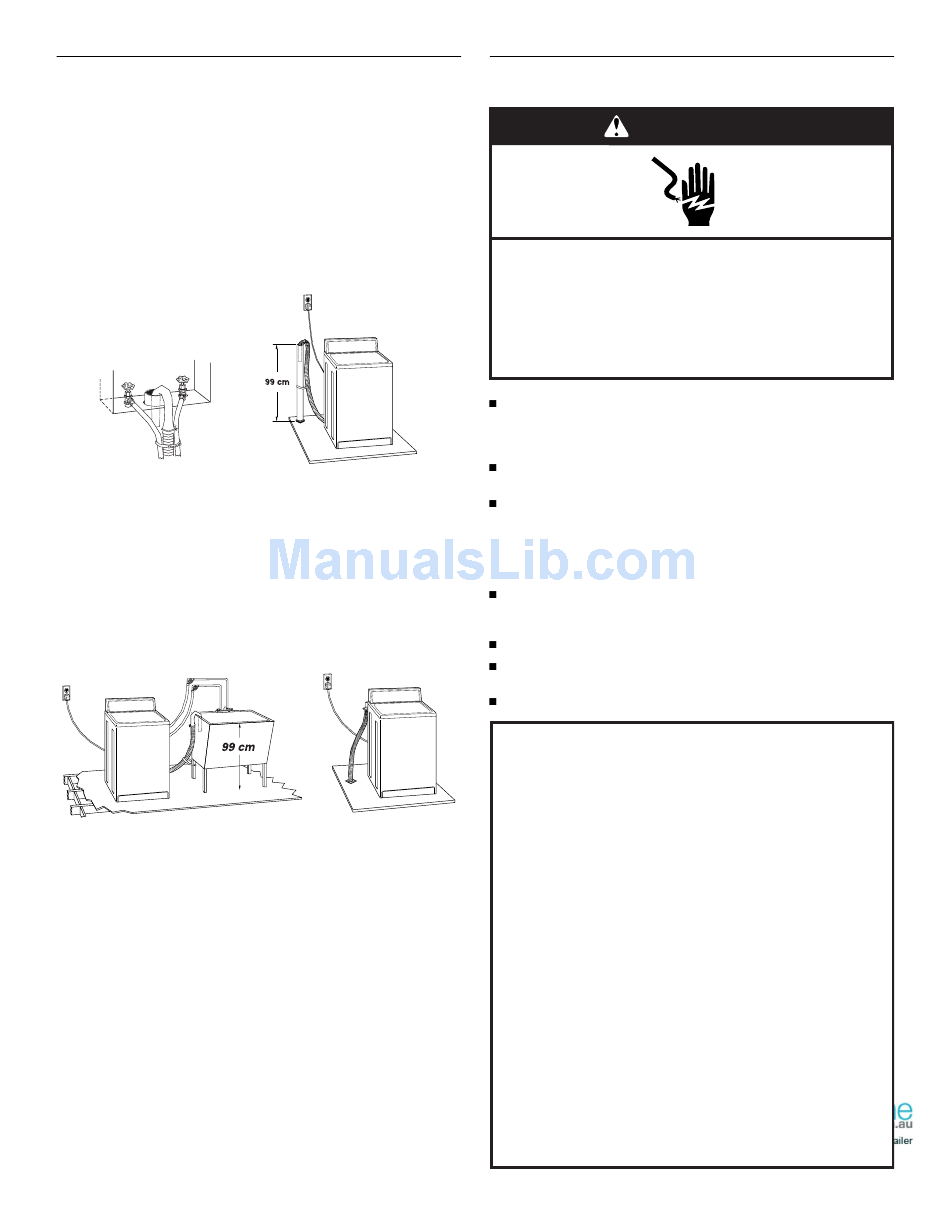

Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter standpipe of
5 cm. The minimum carry-away capacity can be no less than 64 L
per minute. A 5 cm diameter to 2.5 cm diameter standpipe
adapter kit is available. See "Tools and Parts."
The top of the standpipe must be at least 99 cm high and no
higher than 244 cm from the bottom of the washer.
A
Laundry tub drain system (view A)
The laundry tub needs a minimum 76 L capacity. The top of the
laundry tub must be at least 99 cm above the floor and no higher
than 244 cm from the bottom of the washer.
Floor drain system (view B)
The floor drain system requires a siphon break that may be
purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 71 cm from the bottom
of the washer. Additional hoses might be needed.
A
Electrically earth this appliance.
Do not use an extension cord or an electrical portable
outlet device.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A 240-volt, 50-Hz., AC-only, 8 - 10-ampere, fused electrical
supply is required. Time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
This washer is equipped with a power supply cord having an
B
earthing plug.
To minimize possible shock hazard, the cord must be plugged
into a mating, earthing-type outlet, earthed in accordance with
local codes and ordinances. If a mating outlet is not available,
it is the personal responsibility and obligation of the customer
to have the properly earthed outlet installed by a qualified
electrician.
If codes permit and a separate earth wire is used, it is
recommended that a qualified electrician determine that the
earth path is adequate.
Do not earth to a gas pipe.
Check with a qualified electrician if you are not sure the
washer is properly earthed.
Do not have a fuse in the neutral or earth circuit.
For an earthed, cord-connected washer:
This washer must be earthed. In the event of a malfunction
or breakdown, earthing will reduce the risk of electrical
shock by providing a path of least resistance for electric
B
current. This washer is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The
plug must be plugged into an appropriate outlet that is
properly installed and earthed in accordance with all local
codes and ordinances.

WARNING:

earthing conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly earthed.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to an earthed metal,
permanent wiring system, or an equipment earthing
conductor must be run with the circuit conductors and
connected to the equipment-earthing terminal or lead on the
appliance.

Electrical Requirements

WARNING
Electrical Shock Hazard
EARTHING INSTRUCTIONS
Improper connection of the equipment-
3
